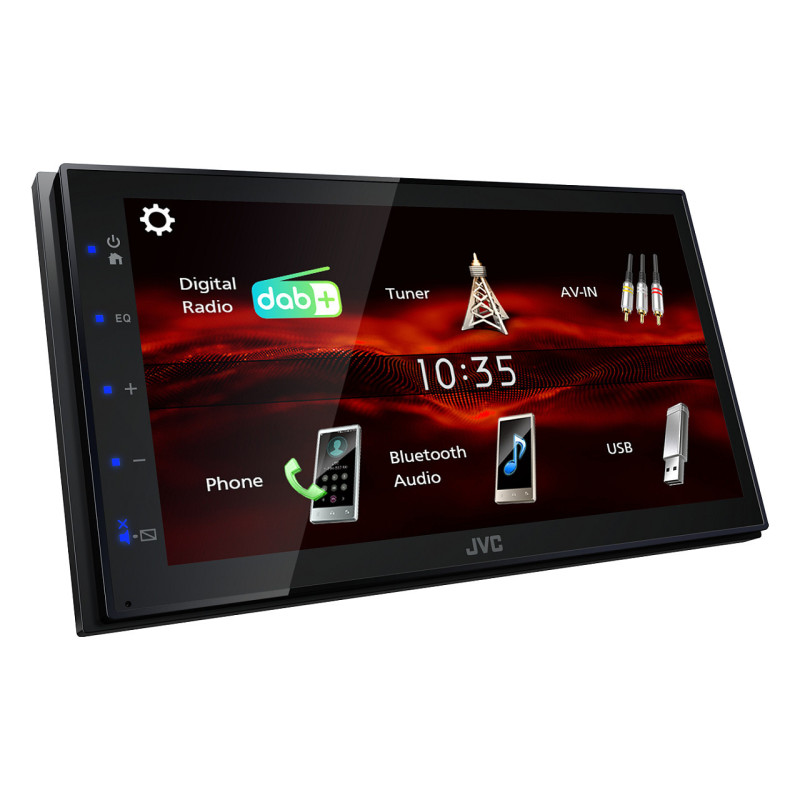

JVC KW-M180DBT car media receiver

JVC KW-M180DBT. Product colour: Black, Output power: 180 W, Maximum power per channel: 45 W. Audio formats supported: AAC, FLAC, MP3, WAV, WMA, Video formats supported: AVI, H.264, MKV, MPEG1, MPEG2, MPEG4. Display type: TFT, Touchscreen type: Capacitive, Display diagonal: 17.3 cm (6.8"). Bluetooth profiles: A2DP, AAC, AVRCP, HFP, PBAP, SBC, Bluetooth functions: Automatic pairing for Android, Handsfree calling, USB port position: Rear. Supported radio bands: AM, DAB, DAB+, FM, FM band range: 87.5 - 108 MHz, AM band range: 531 - 1611 kHz
- 6.8" WVGA capacitive touch panel with sharp, high-contrast images, vivid colors and wide viewing angles.
- DAB/DAB+ radio tuner for noise interference free reception and crystal-clear digital stereo sound.
- Bluetooth(R) Wireless Technology for hands-free calls and music streaming. (Available functions depend on cell phone).
- Supports Android USB Mirroring for seamlessly displaying and controlling your smartphone on the large screen.
- Rear, High Speed USB type-A port. 1.5A Max Charge.
- MP3-WMA-AAC-WAV-FLAC audio file MPEG1/2-MPEG4-H.264-MKV video file playback.
- Time Alignment 13-Band EQ for optimal sound tuning enhancements

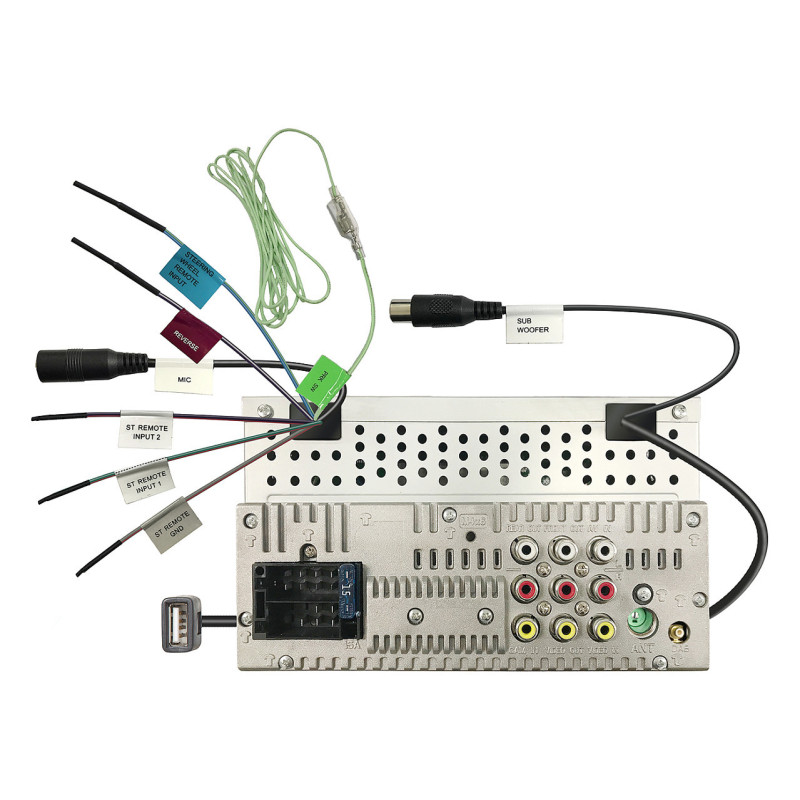

- 2 Preouts(front/rear) + sub(mono) to connect external amplifiers and improve your sound system.
- AV-in, Video-out and dedicated rear view camera input with parking guide lines
- Short body (75mm) for easy installation in a wider range of cars.

Performance

Product colour: Black
Output power: 180 W
Maximum power per channel: 45 W
Frequency range: 20 - 20000 Hz
Impedance: 4 Ω
Disc types supported: No
Ready for iPod: Yes
iPod connectivity: Yes
High pass filter: Yes
Low pass filter: Yes
Equalizer: Yes
Equalizer bands quantity: 13
Loudness control: Yes
Dimmer: Yes
Bass boost technology: Yes

Multimedia

USB direct playback: Yes
MP3 playback: Yes
CD-R playback: No
Built-in audio D/A Converter (DAC): Yes
Audio formats supported: AAC, FLAC, MP3, WAV, WMA
Video formats supported: AVI, H.264, MKV, MPEG1, MPEG2, MPEG4

Display

Built-in display: Yes
Display type: TFT
Touchscreen: Yes
Widescreen: Yes
Touchscreen type: Capacitive
Display diagonal: 17.3 cm (6.8")
Display resolution: 800 x 480 pixels
Display illumination: Yes
Illumination colour: Blue
LED backlight: Yes
Rear-view camera ready: Yes

Ports interfaces

Bluetooth version: 5.0
Bluetooth profiles: A2DP, AAC, AVRCP, HFP, PBAP, SBC
Bluetooth functions: Automatic pairing for Android, Handsfree calling
USB port: Yes
USB ports quantity: 1
USB version: 2.0
USB port position: Rear
Bluetooth: Yes
AV input: Yes
Pre out port: Yes
Subwoofer out: Yes
Audio rear right out: Yes
Audio rear left out: Yes
Audio front right out: Yes
Audio front left out: Yes

Radio

Preset stations quantity: 30
Supported radio bands: AM, DAB, DAB+, FM
FM band range: 87.5 - 108 MHz
AM band range: 531 - 1611 kHz
Radio Data System (RDS): Yes
DAB tuner: DAB+

Call management

Hands-free calling: Yes

Weight dimensions

Width: 178 mm
Depth: 75 mm
Height: 100 mm
Installation compartment width: 18.2 cm
Installation compartment depth: 7.5 cm
Installation compartment height: 11.2 cm
Weight: 1.3 kg
