TV SET ACC WALL MOUNT / WL40S-910BL16 NEOMOUNTS
Product reference:
2-8717371449544
TV SET ACC WALL MOUNT / WL40S-910BL16 NEOMOUNTS
Product reference:
2-8717371449544
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Lithuania in
3 - 5
business days

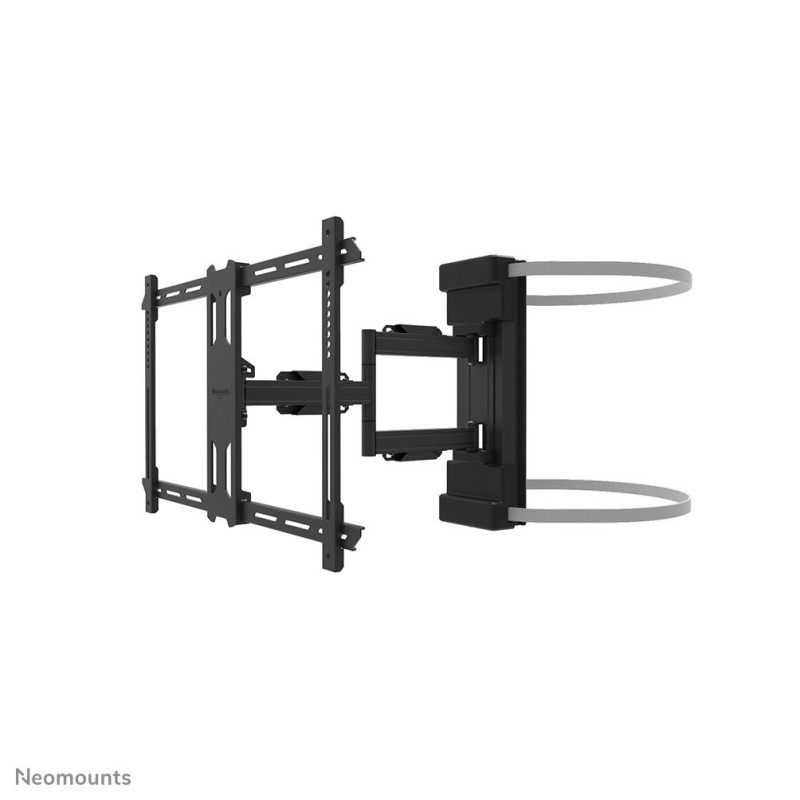

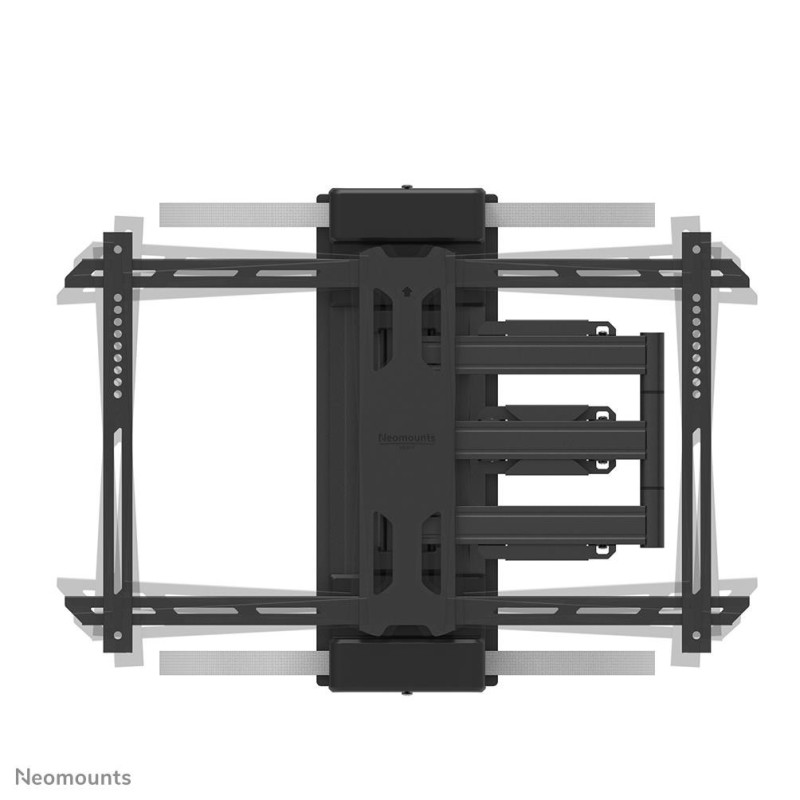

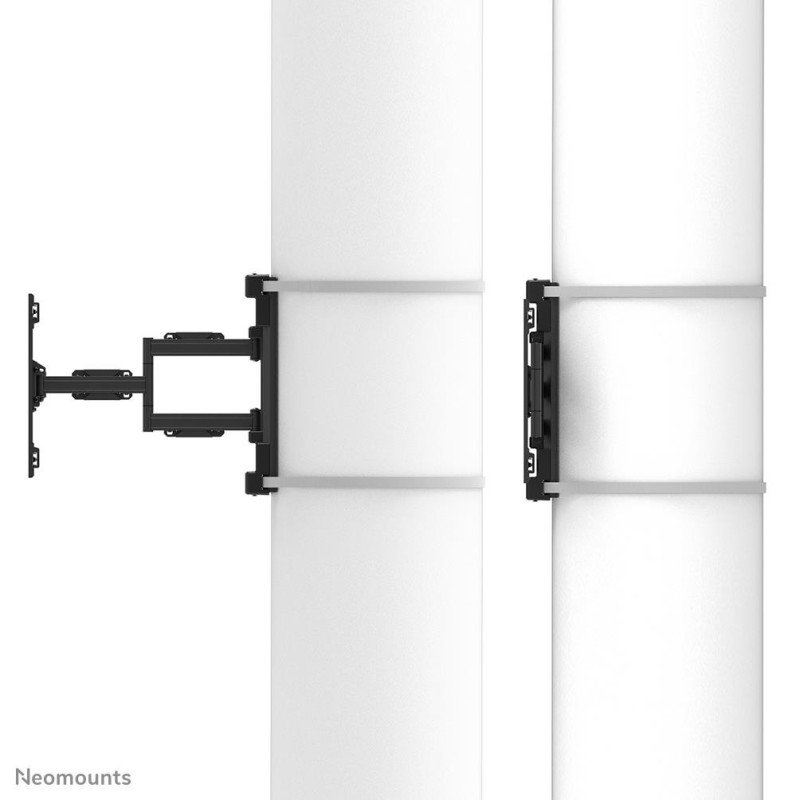

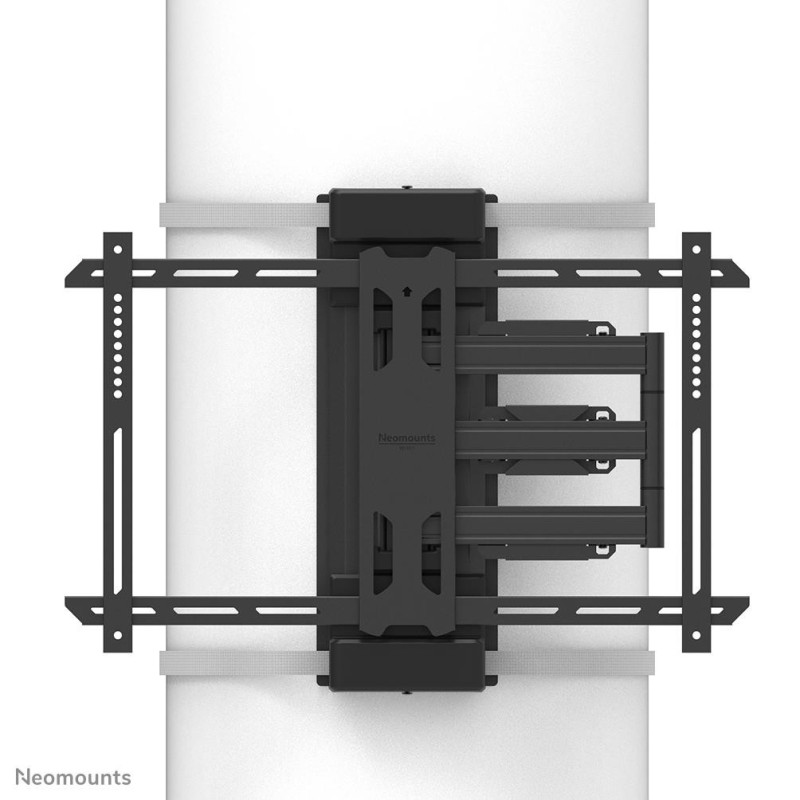

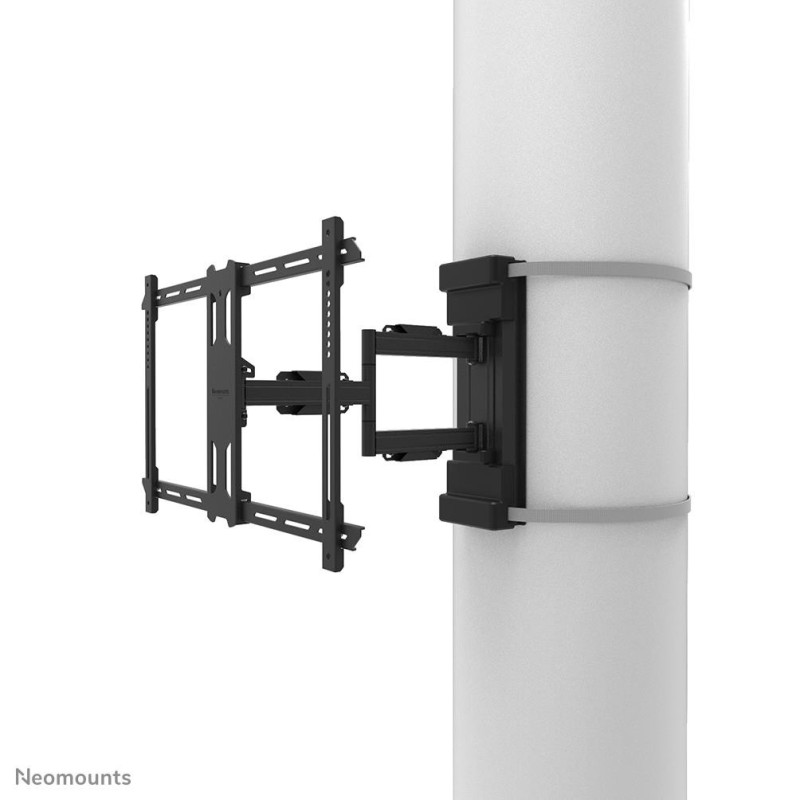

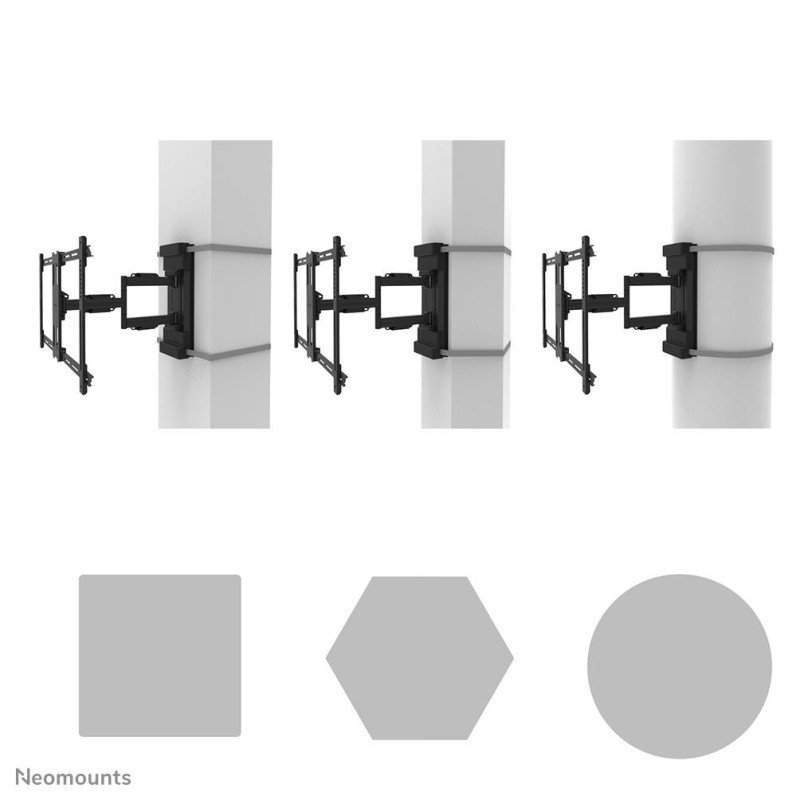

The Neomounts WL40S-910BL16 is a full motion pillar mount for screens up to 70" with a maximum weight capacity of 45 kg. The versatile tilt (14°) and swivel (90°) technology allows you to create the optimum viewing angle. The mount is suitable for Ø25-100 cm cylinder, square and rectangular pillars. Level adjustment is available for the perfect installation.

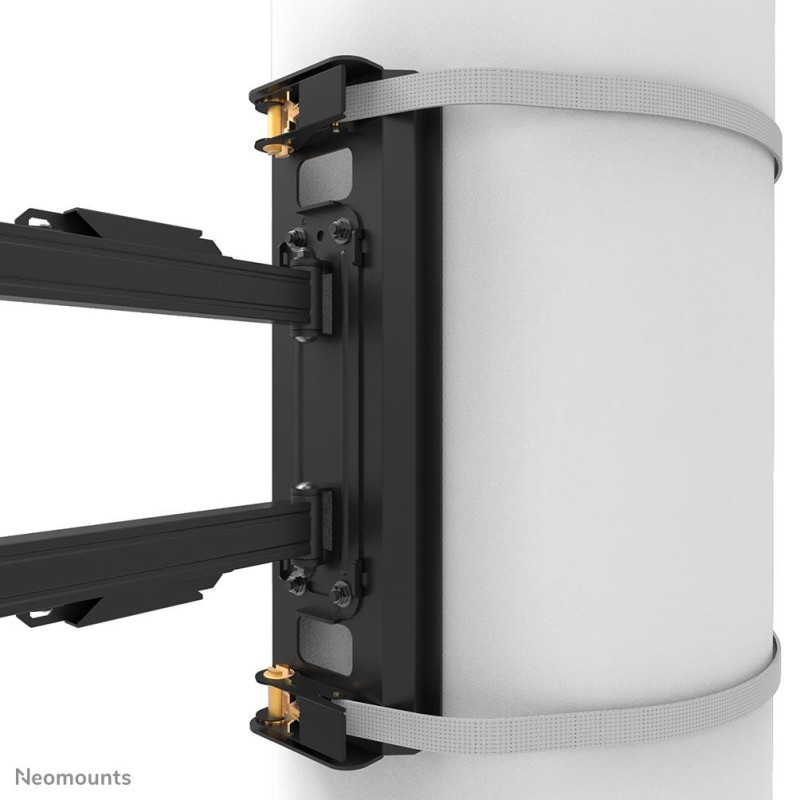

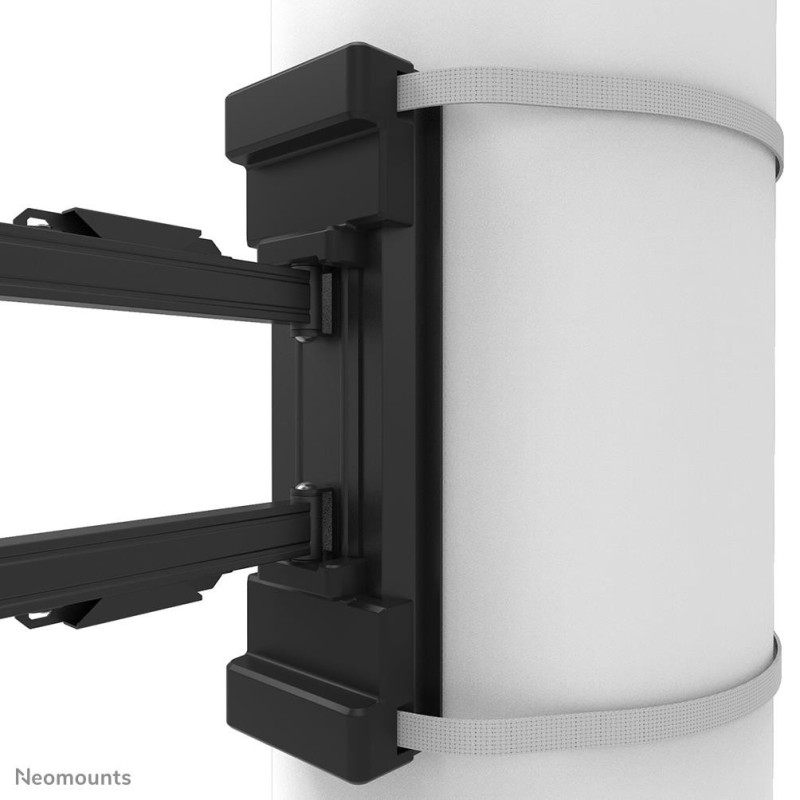

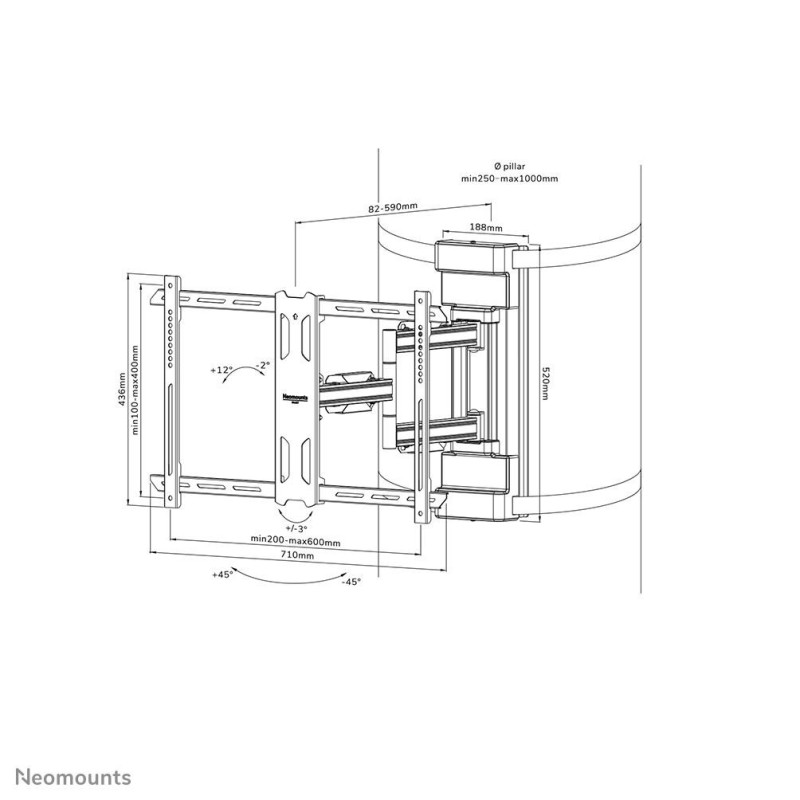

The WL40S-910BL16 has a depth of 8,2-59 cm and is suitable for screens that meet VESA hole pattern 200x100 to 600x400 mm. The pillar mount has a strap of 350 cm.

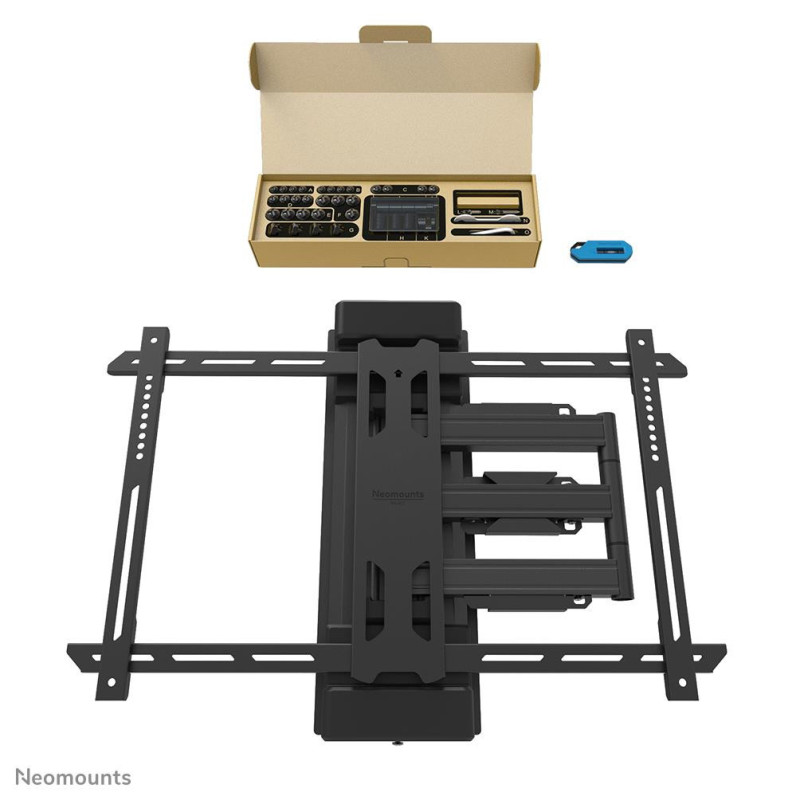

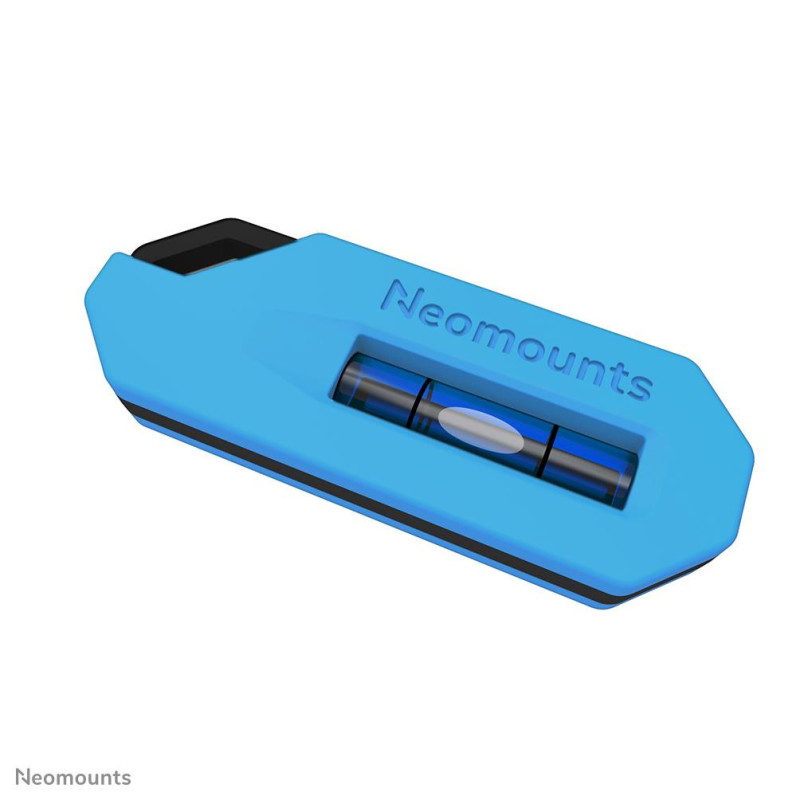

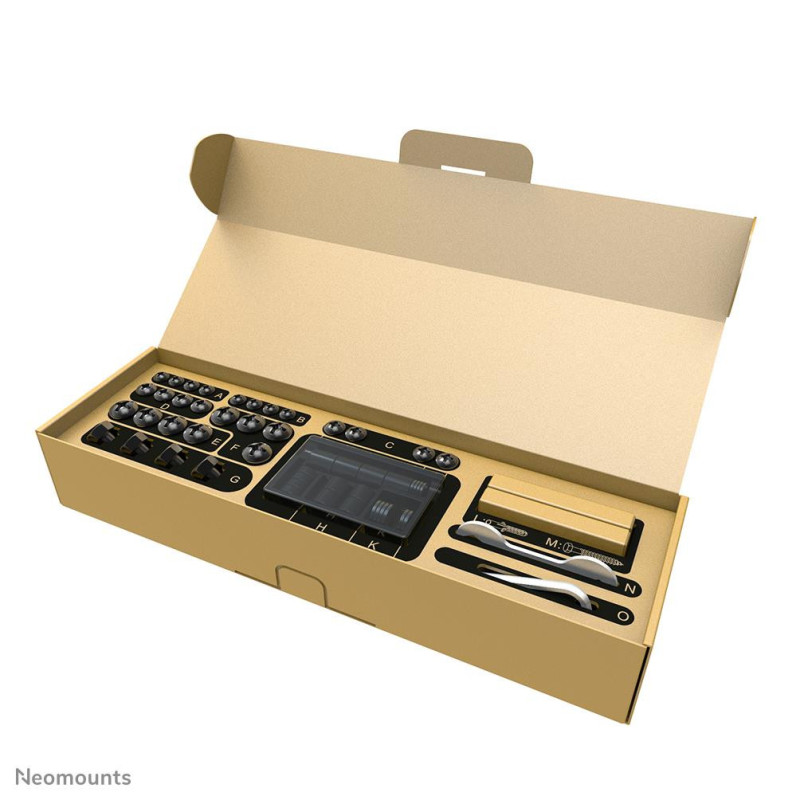

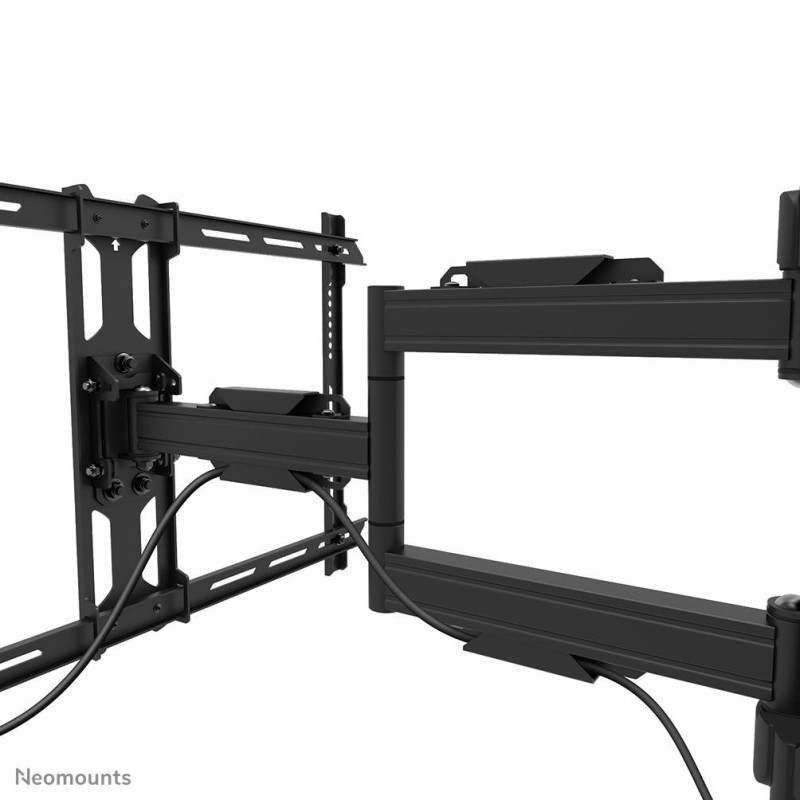

The mount is equipped with metal cable management to secure any loose cables. The ratchet clamp ensures easy installation, as well as the separate magnetic spirit level tool that is included.
| Adjustable depth | Yes |
| Angle of rotation | 6 ° |
| Cable management | Yes |
| Compatible pole diameter (max) | 1000 mm |
| Compatible pole diameter (min) | 250 mm |
| Country of origin | China |
| Depth | 590 mm |
| Depth (max) | 590 mm |
| Depth (min) | 82 mm |
| Depth adjustment range | 82 - 590 mm |
| Distance to the wall (max) | 590 mm |
| Distance to the wall (min) | 82 mm |
| Harmonized System (HS) code | 7326909890 |
| Height | 520 mm |
| Housing material | Steel |
| Lockable | Not lockable |
| Master (outer) case gross weight | 22800 g |
| Master (outer) case height | 764 mm |
| Master (outer) case length | 406 mm |
| Master (outer) case net weight | 19000 g |
| Master (outer) case width | 205 mm |
| Maximum screen size | 70 " |
| Maximum VESA mount | 600 x 400 mm |
| Maximum weight capacity | 45 kg |
| Maximum weight capacity (per display) | 45 kg |
| Minimum screen size | 40 " |
| Minimum VESA mount | 200 x 100 mm |
| Mounting kit | Yes |
| Mounting type | Pole |
| Number of displays supported | 1 |
| Package depth | 95 mm |
| Package height | 744 mm |
| Package net weight | 11100 g |
| Package weight | 11100 g |
| Package width | 386 mm |
| Panel mounting interface | 200 x 100/200 x 150/200 x 200/200 x 300/200 x 400/300 x 100/300 x 200/300 x 300/300 x 400/350 x 350/400 x 200/400 x 300/400 x 400/440 x 400/600 x 200/600 x 300/600 x 400 mm |
| Pivot angle | -3 - 3 ° |
| Product colour | Black |
| Products per master (outer) case | 2 pc(s) |
| Products per pallet (EU) | 34 pc(s) |
| Rotating | Yes |
| Summary | Neomounts WL40S-910BL16 TV pillar mount 40-70" - full motion - diam. 25-100 cm. Maximum weight capacity: 45 kg, Minimum screen size: 101.6 cm (40"), Maximum screen size: 177.8 cm (70"), Minimum VESA mount: 200 x 100 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: -2 - 12°, Swivel angle range: -45 - 45°, Angle of rotation: 6°, Distance to the wall (min): 8.2 cm, Distance to the wall (max): 59 cm. Product colour: Black |
| Swivel angle range | -45 - 45 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -2 - 12 ° |
| Type | Full motion |
| Unit Box Height | 0.39 |
| Unit Box Length | 0.755 |
| Unit Box Width | 0.1 |
| Unit Calculated Volume | 0.02944 cubm |
| Unit Calculated Weight | 11.3 kg |
| Units per Shipping Box | 1 |
| Vendor Homepage | https://www.neomounts.com/default.asp?pageid=44&artdetail=WL40S-910BL16 |
| Warranty period | 5 year(s) |
| Weight | 9500 g |
| Width | 710 mm |
