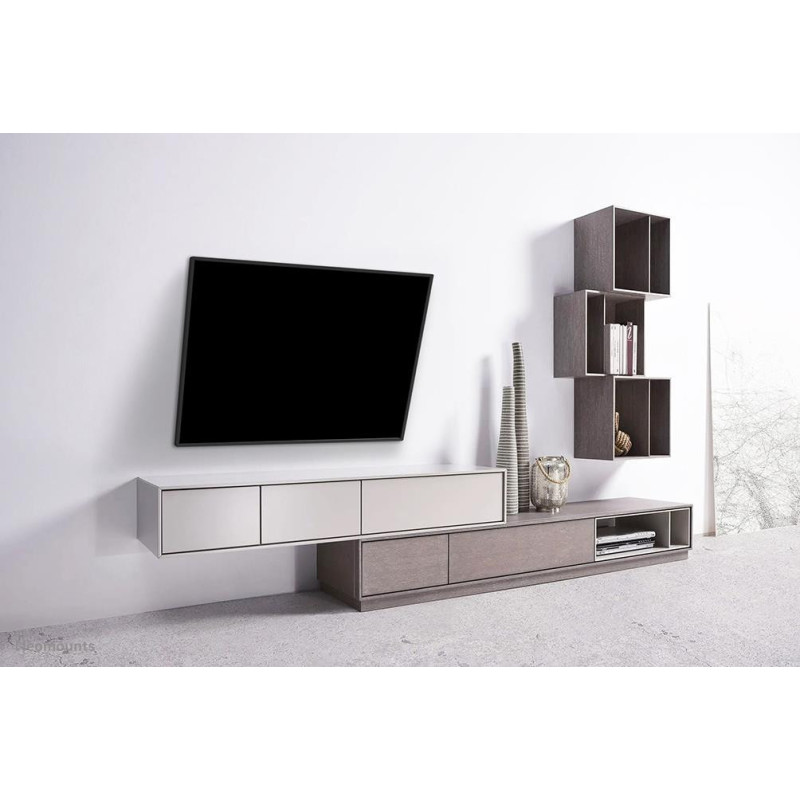

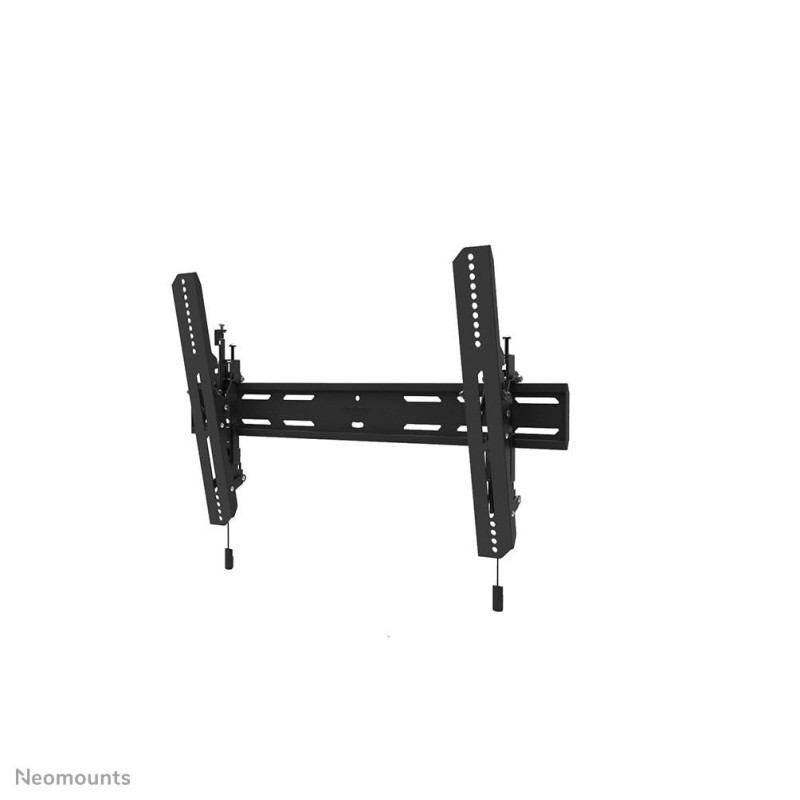

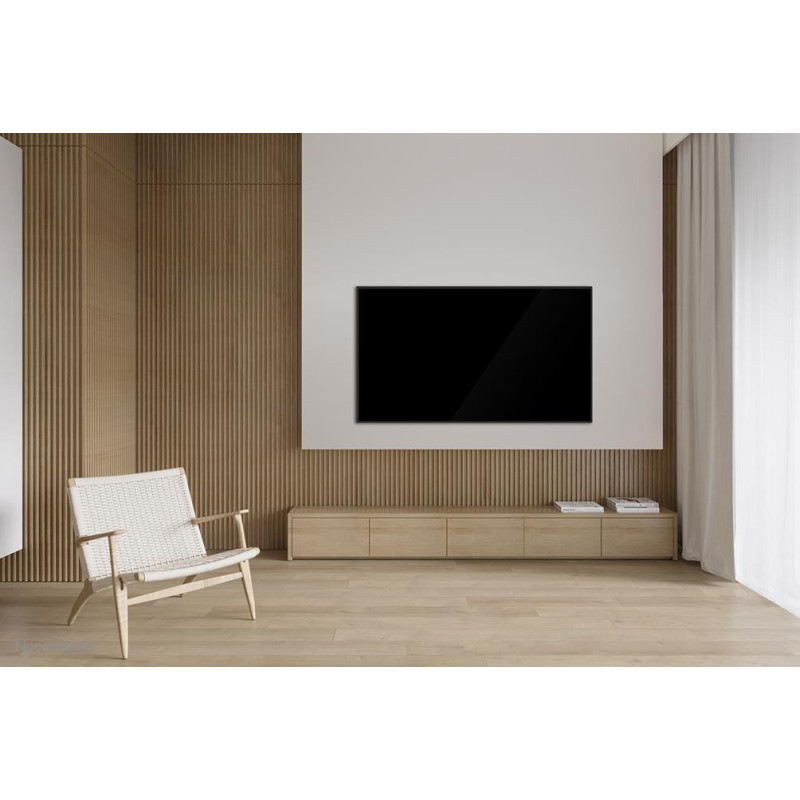

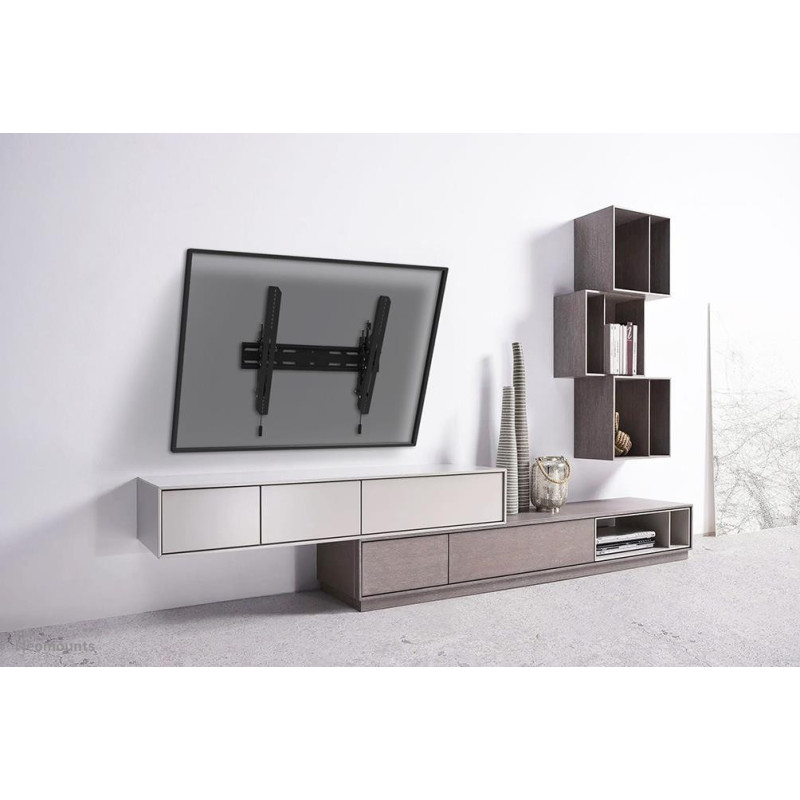

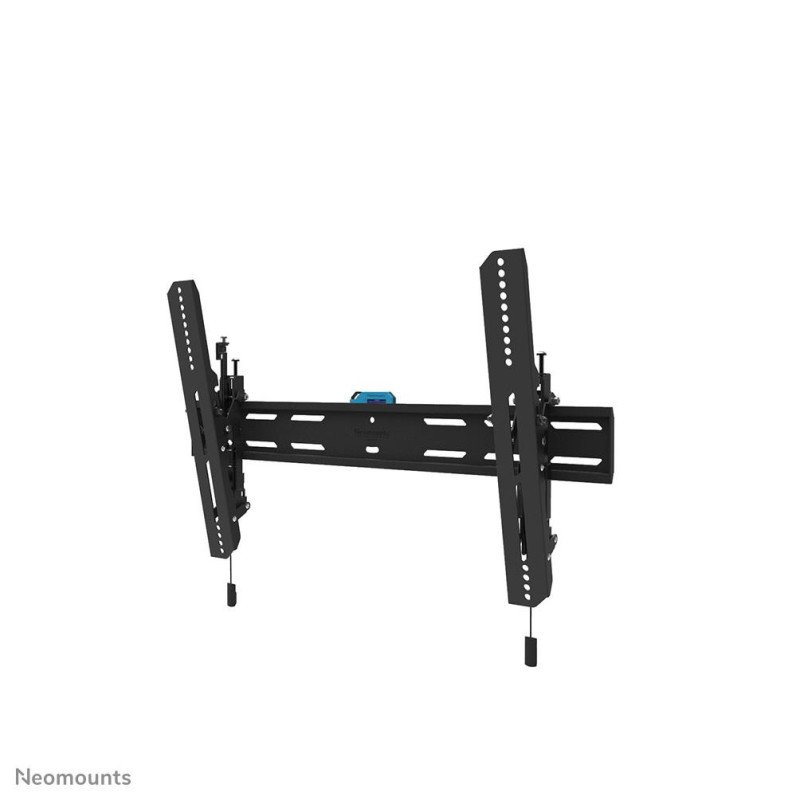

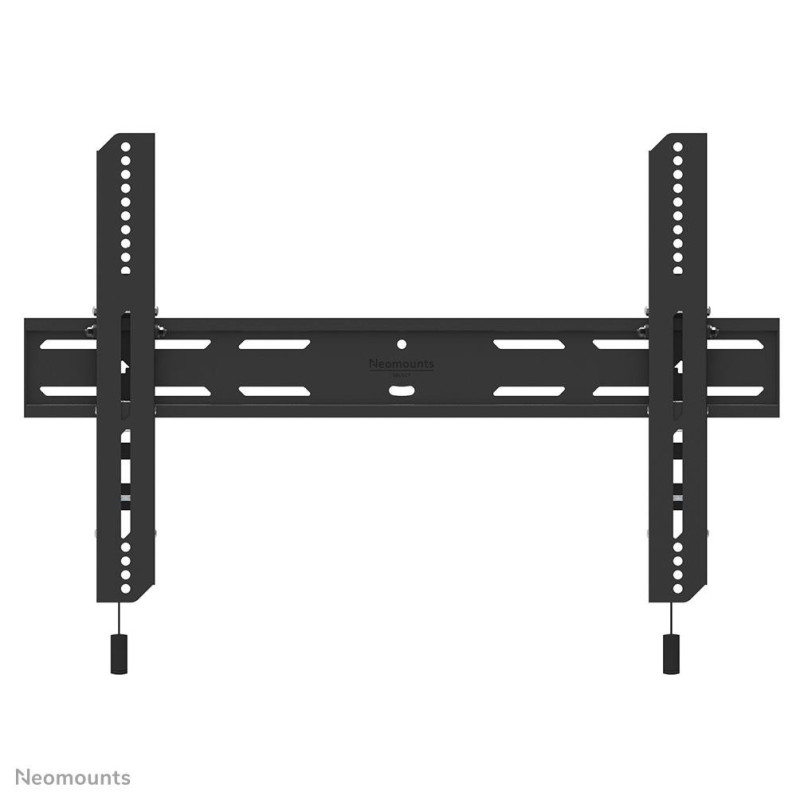

The Neomounts WL35S-850BL16 LEVEL is a tiltable wall mount for flat screens up to 86" with a maximum weight capacity of 60 kg. Height and level adjustment is available for the perfect installation.

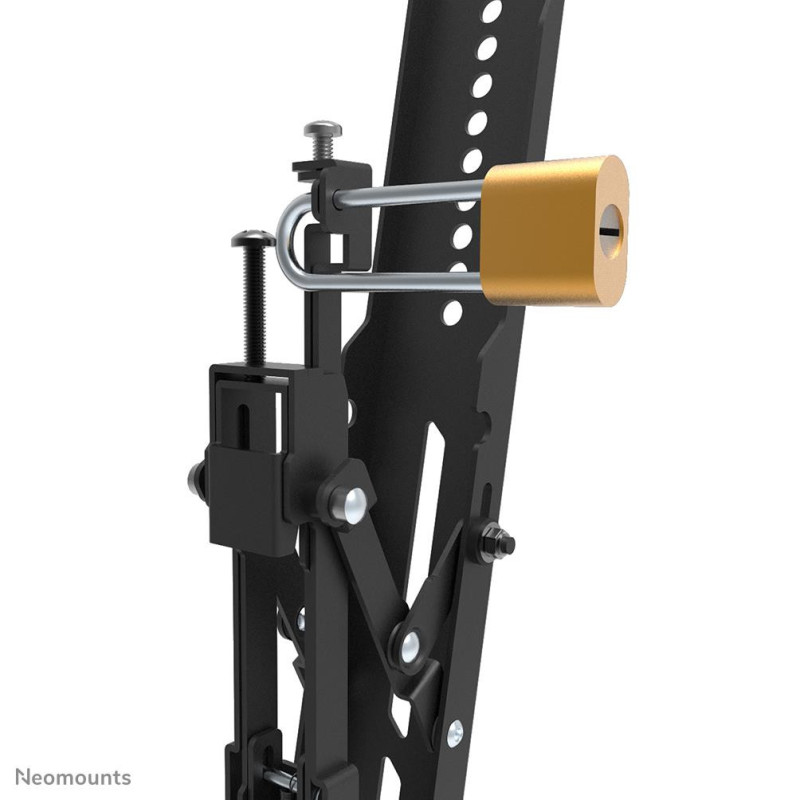

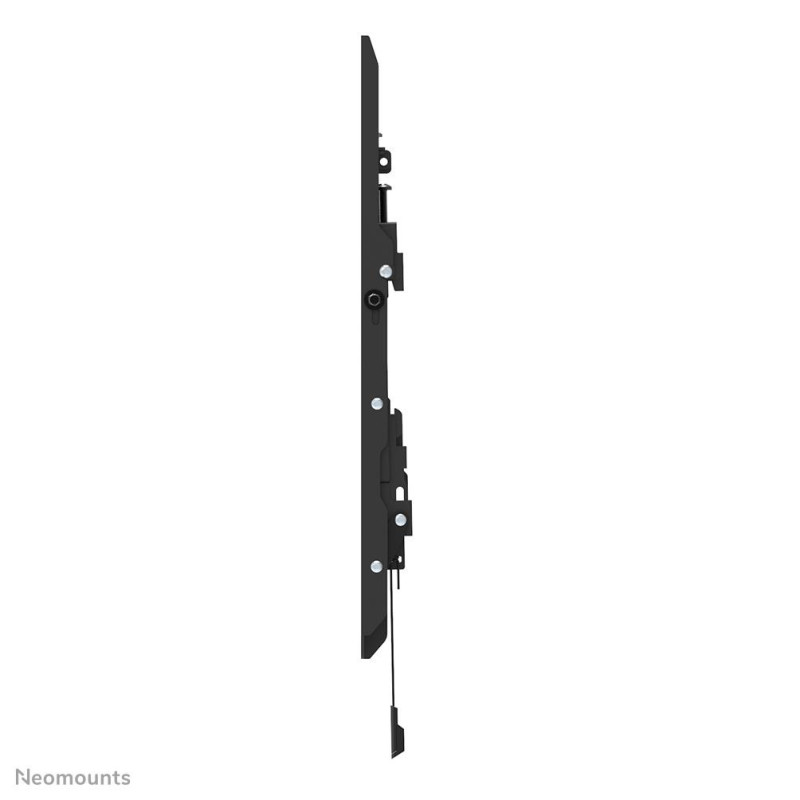

The LEVEL-850 wall mount has a depth of 3,3 cm and is suitable for screens that meet VESA hole pattern 100x100 to 600x400mm. It is possible to lock the wall mount using the included anti-theft screw or a padlock (not included).

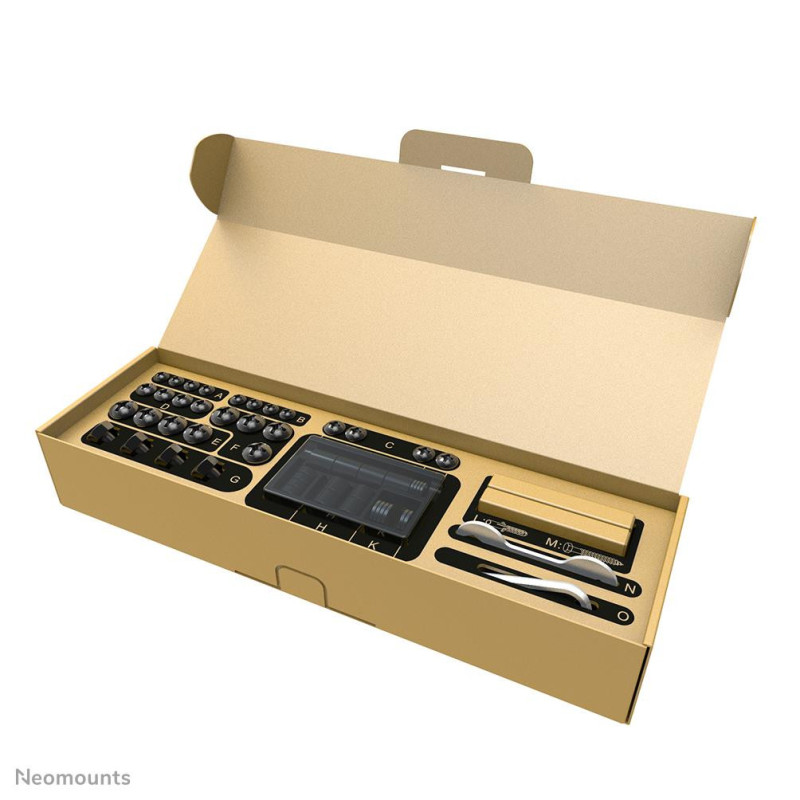

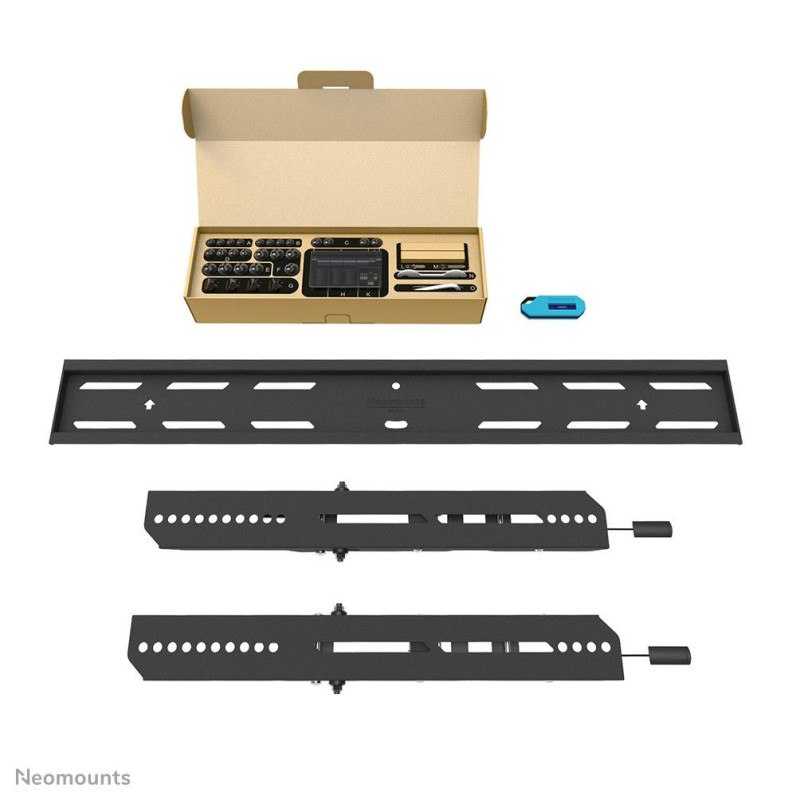

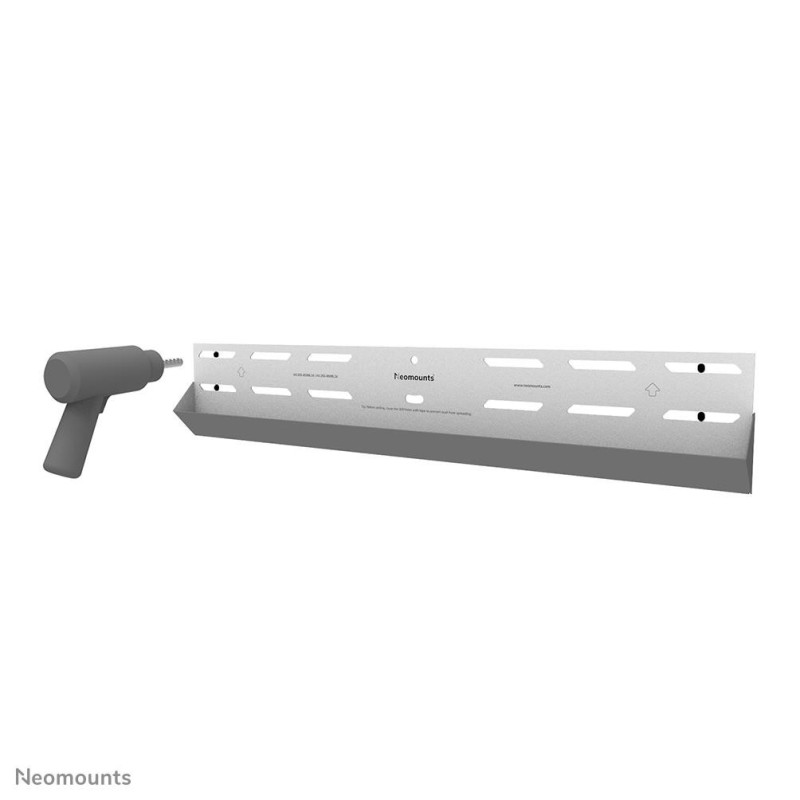

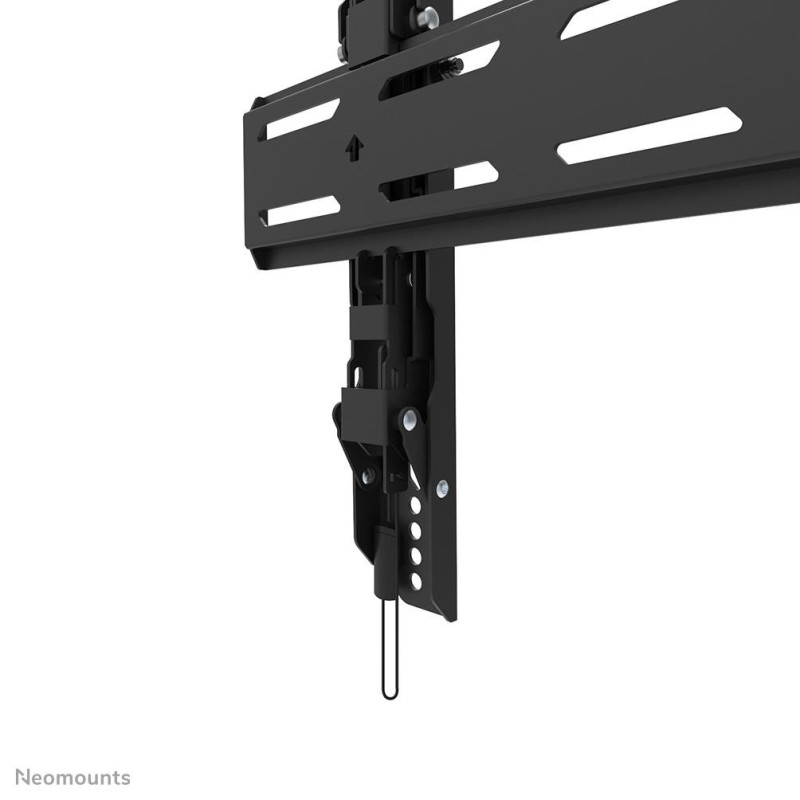

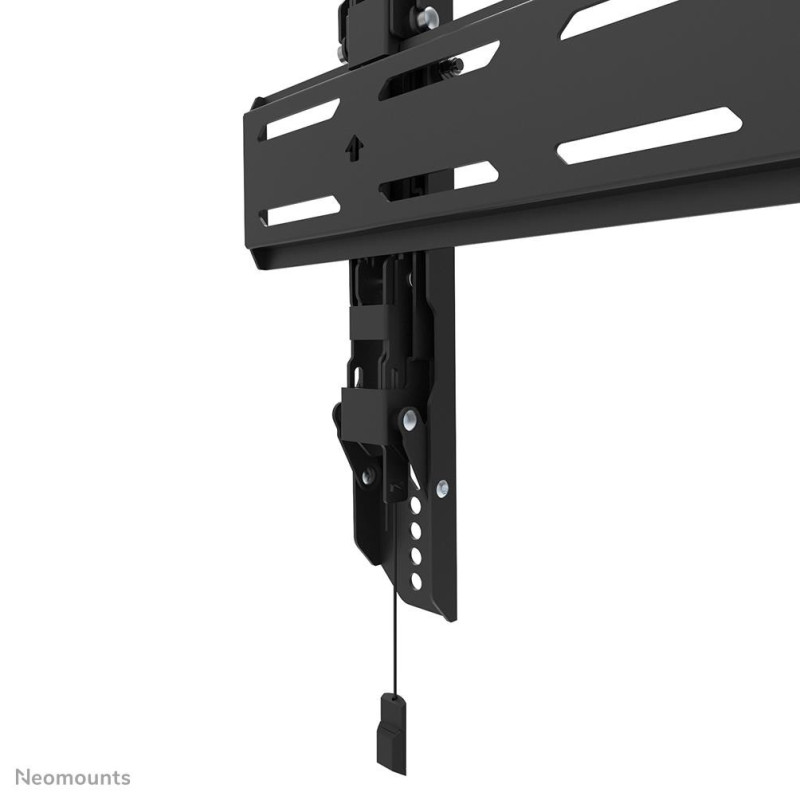

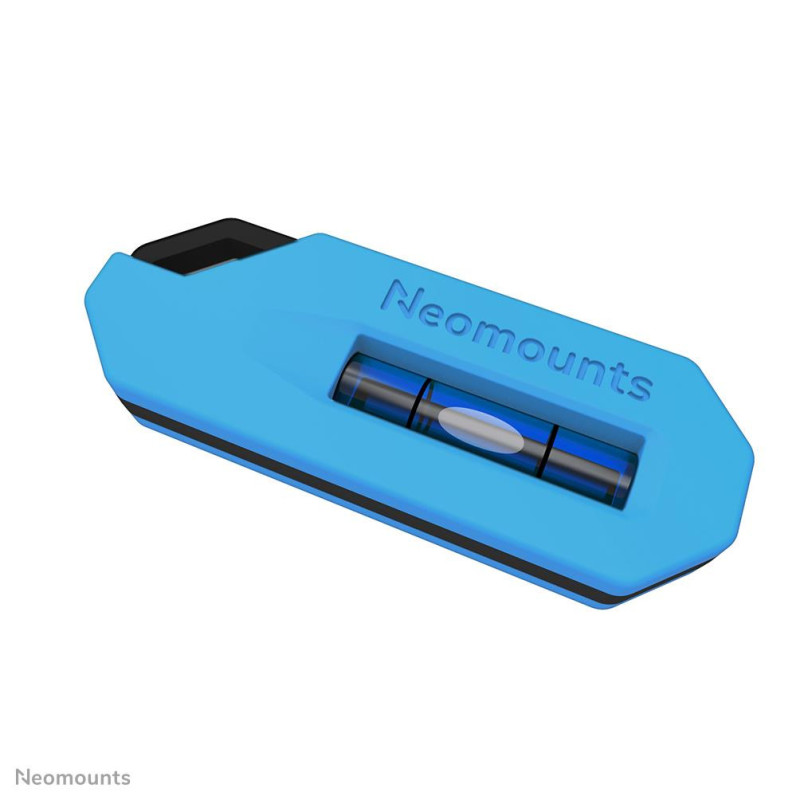

The WL35S-850BL16 features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. A separate spirit level tool is included with the wall mount, as well as a fixing template, to ensure easy installation of the mount.

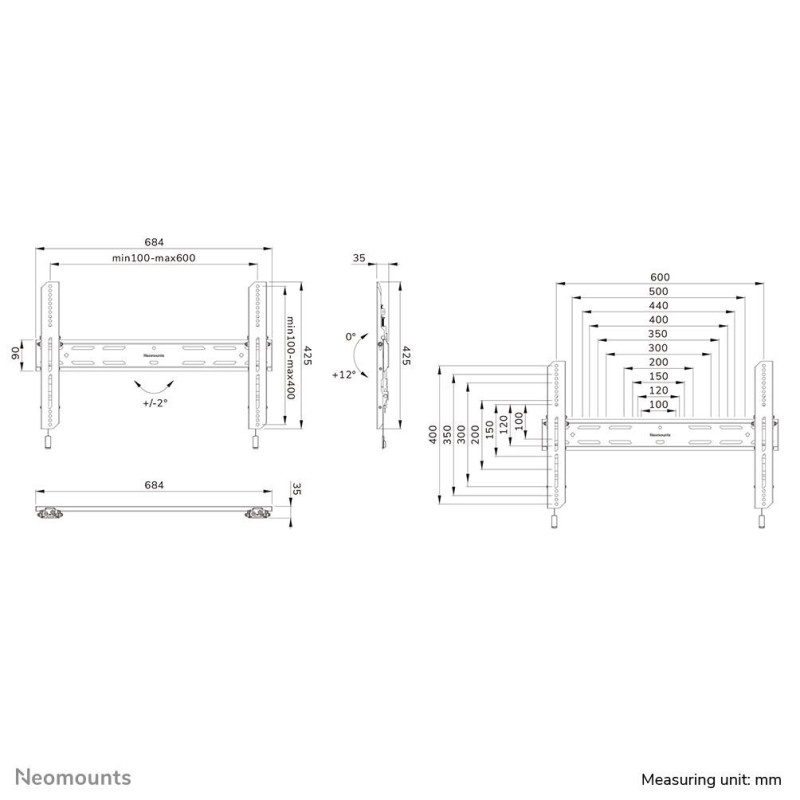

| Atstumas iki sienos (maks.) | 35 mm |
| Aukštis | 425 mm |
| Aukščio reguliavimas | Taip |
| Aukščio reguliavimo intervalas | 0 - 20 mm |
| Bruto svoris | 4.18 kg |
| Darniosios sistemos (DS) kodas | 7326909890 |
| Didžiausias ekrano dydis | 86 " |
| Didžiausioji keliamoji galia (vieno ekrano) | 60 kg |
| Gaminių skaičius ant padėklo (ES) | 100 vnt |
| Gaminių skaičius pagrindinėje (išorinėje) dėžėje | 4 vnt |
| Gylis (maks.) | 36 mm |
| Ilgis | 36 mm |
| Kiekis pakuotėje | 1 vnt |
| Kilmės šalis | Kinija |
| Korpuso medžiaga | Plienas |
| Lockable | Pridedamas apsauginis sraigtas |
| Maksimalus svoris (tūris) | 60 kg |
| Mažiausias ekrano dydis | 42 " |
| Montavimo sąsajos suderinamumas (maks.) | 600 x 400 mm |
| Montavimo sąsajos suderinamumas (min.) | 100 x 100 mm |
| Montavimo tipas | Siena |
| Neto svoris | 3.1 kg |
| Pagrindinės (išorinės) dėžės aukštis | 180 mm |
| Pagrindinės (išorinės) dėžės bendrasis svoris | 16700 g |
| Pagrindinės (išorinės) dėžės ilgis | 315 mm |
| Pagrindinės (išorinės) dėžės plotis | 724 mm |
| Pagrindinės kartono dėžutės grynasis svoris | 13600 g |
| Paketo svoris | 4000 g |
| Pakuotės aukštis | 74 mm |
| Pakuotės bendrasis svoris | 4000 g |
| Pakuotės gylis | 158 mm |
| Pakuotės plotis | 704 mm |
| Palaikomų ekranų skaičius | 1 |
| Plotis | 684 mm |
| Pokrypio reguliavimas | Taip |

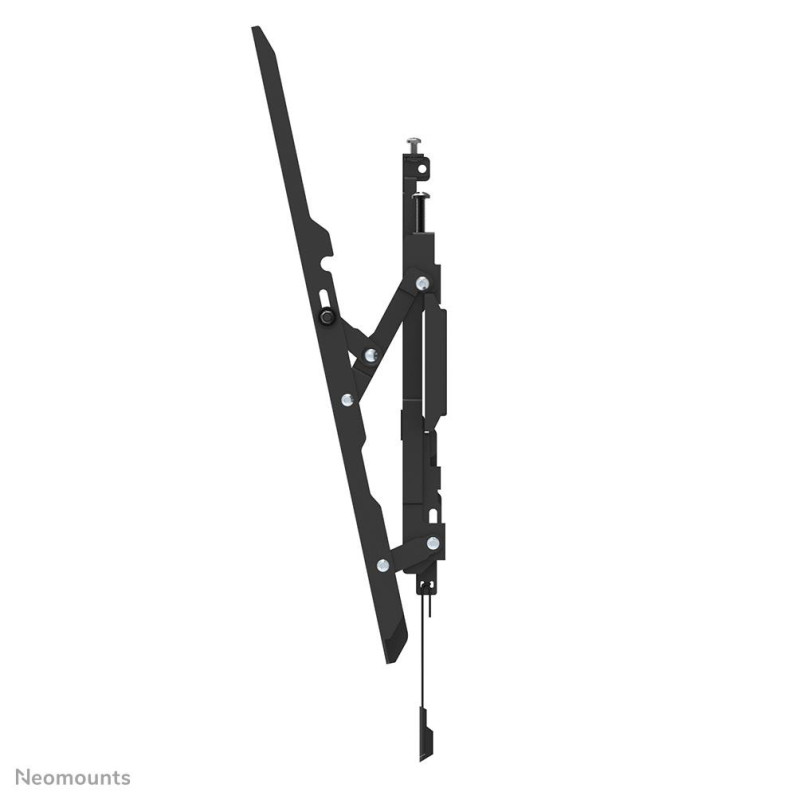

| Posvyrio kampo intervalas | 0 - 12 ° |
| Produkto spalva | Juoda |
| Shipping Box Depth | 72.5 cm |
| Shipping Box Height | 18 cm |
| Shipping Box Weight | 16.7 kg |
| Shipping Box Width | 31.5 cm |
| Suderinama su VESA sienos tvirtinimo sistema | 100 x 100/100 x 150/100 x 200/120 x 120/150 x 200/200 x 100/200 x 150/200 x 200/200 x 300/200 x 400/300 x 100/300 x 200/300 x 300/350 x 350/400 x 200/400 x 300/400 x 400/440 x 400/500 x 400/600 x 200/600 x 300/600 x 400 mm |
| Summary | Neomounts WL35S-850BL16 TV mount wall 42-86" - tiltable - lockable - fast installation. Maximum weight capacity: 60 kg, Minimum screen size: 106.7 cm (42"), Maximum screen size: 2.18 m (86"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 600 x 400 mm. Height adjustment range: 0 - 20 mm, Tilt angle range: 0 - 12°, Distance to the wall (max): 3.5 cm. Product colour: Black |
| Svoris | 2950 g |
| Unit Box Height | 0.16 |
| Unit Box Length | 0.71 |
| Unit Box Width | 0.08 |
| Unit Brutto Volume | 0.01028 cubm |
| Vendor Homepage | https://www.neomounts.com/default.asp?pageid=44&artdetail=WL35S-850BL16 |
| Vieneto aukštis | 16 cm |
| Vieneto gylis | 71 cm |
| Vieneto plotis | 8 cm |
| Vienetų skaičius vienoje siuntimo dėžėje | 4 |
