TV SET ACC WALL MOUNT / 40-75" / WHITE M7L-W ONKRON
Product reference: 2-4603728443287
TV SET ACC WALL MOUNT / 40-75" / WHITE M7L-W ONKRON
TV SET ACC WALL MOUNT / 40-75" / WHITE M7L-W ONKRON
TV SET ACC WALL MOUNT / 40-75" / WHITE M7L-W ONKRON
TV SET ACC WALL MOUNT / 40-75" / WHITE M7L-W ONKRON
TV SET ACC WALL MOUNT / 40-75" / WHITE M7L-W ONKRON
TV SET ACC WALL MOUNT / 40-75" / WHITE M7L-W ONKRON
TV SET ACC WALL MOUNT / 40-75" / WHITE M7L-W ONKRON
TV SET ACC WALL MOUNT / 40-75" / WHITE M7L-W ONKRON
TV SET ACC WALL MOUNT / 40-75" / WHITE M7L-W ONKRON

TV SET ACC WALL MOUNT / 40-75" / WHITE M7L-W ONKRON

Product reference: 2-4603728443287
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
73,50 €
Product in warehouse

Guarantee
36 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*

  • For TVs 40"-75"

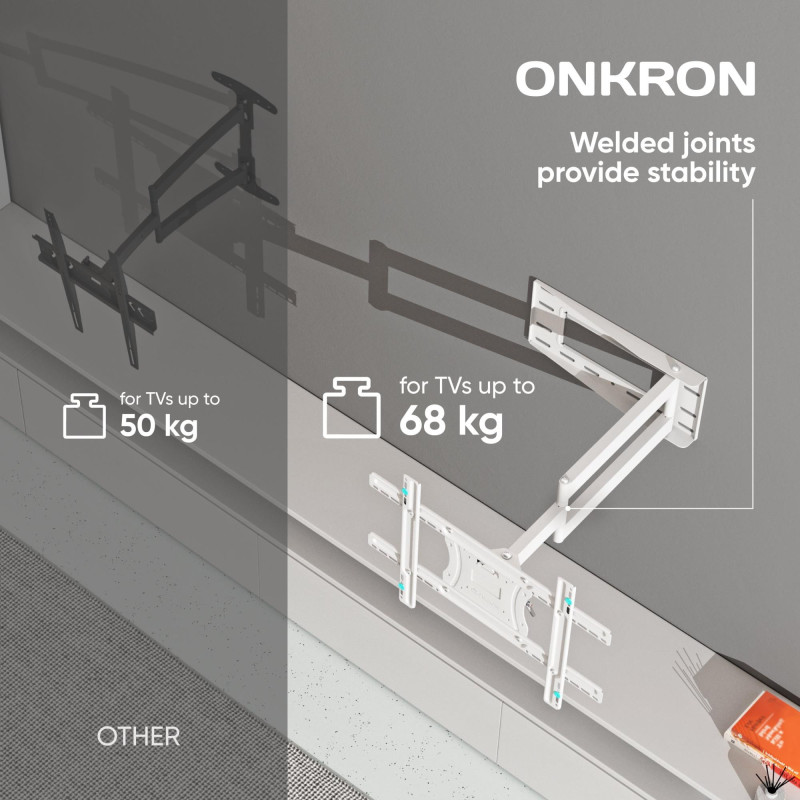

  • Max load: 68 kg

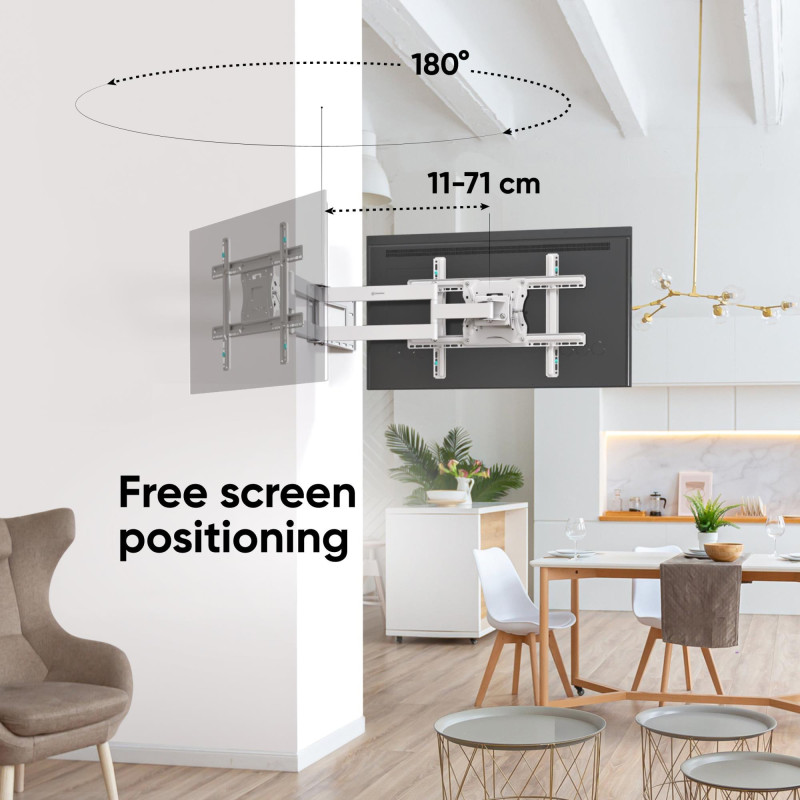

  • Extension from wall: 110-711 mm

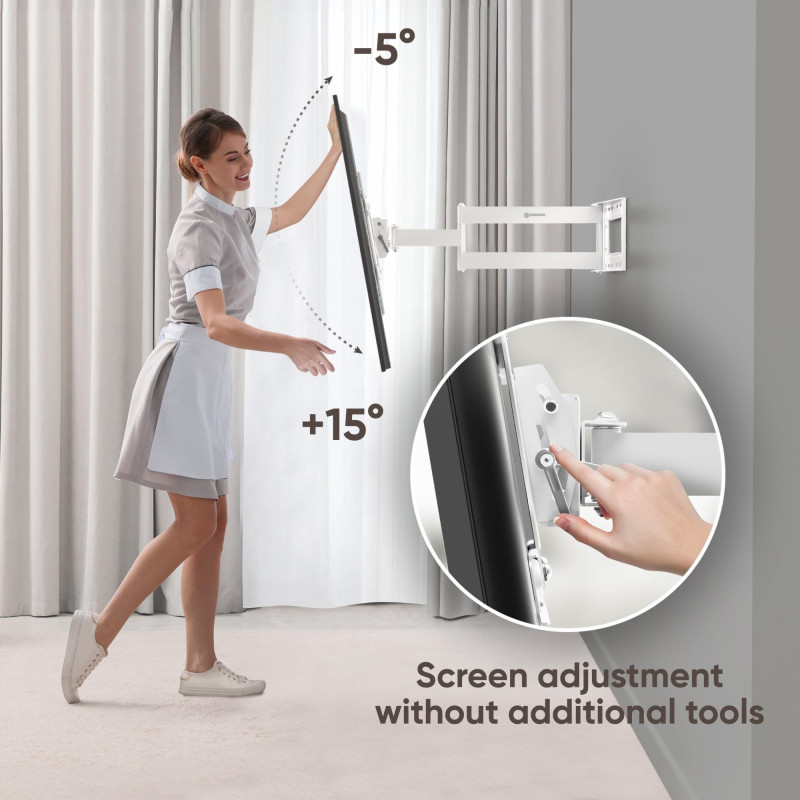

  • Tilt: -5° ~ +15°

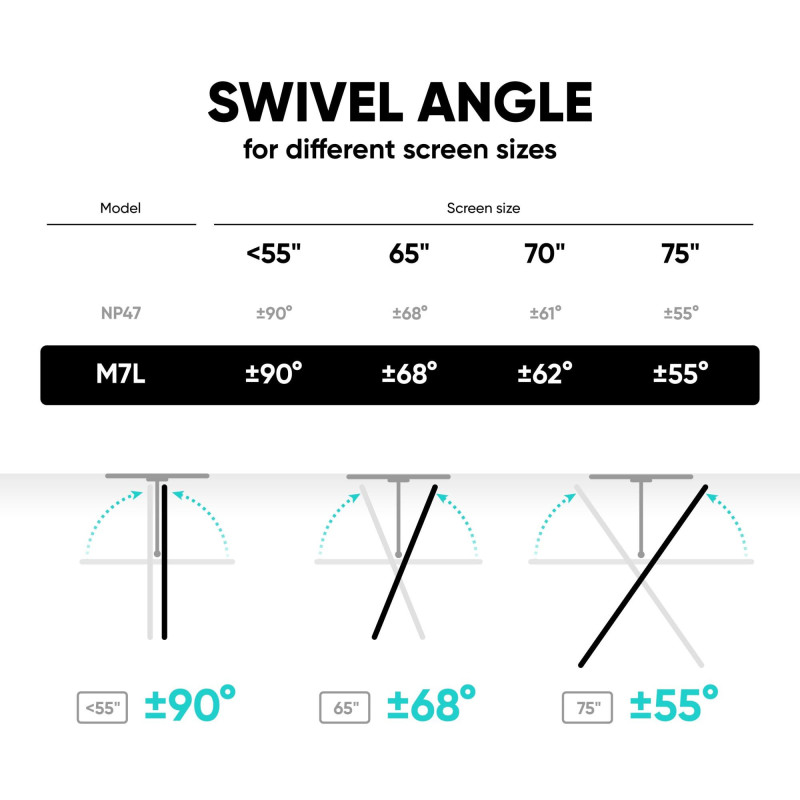

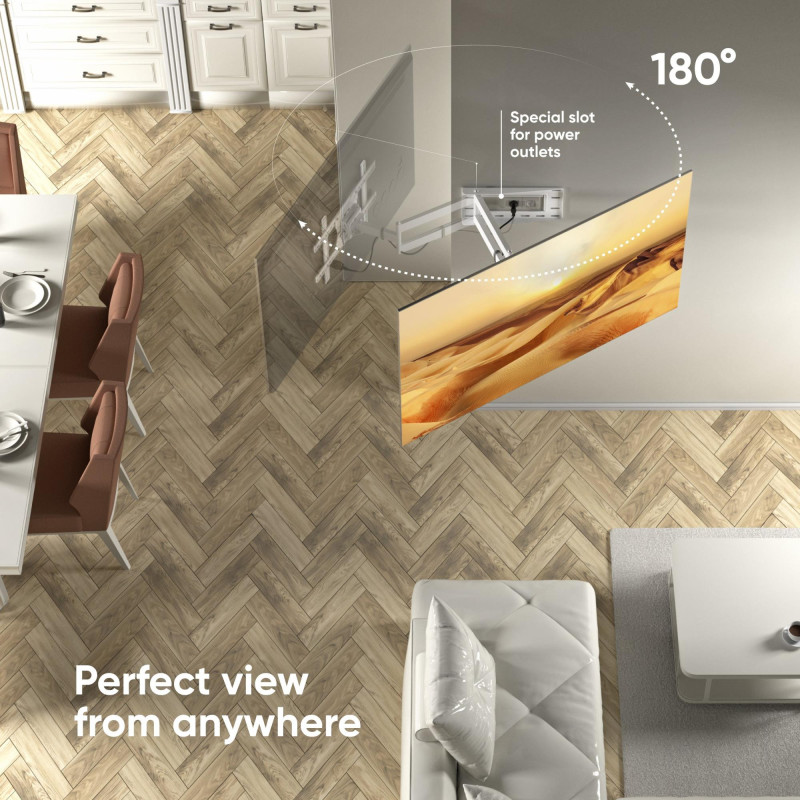

  • Swivel: 180°
  • Horizontal adjustment: ±4°

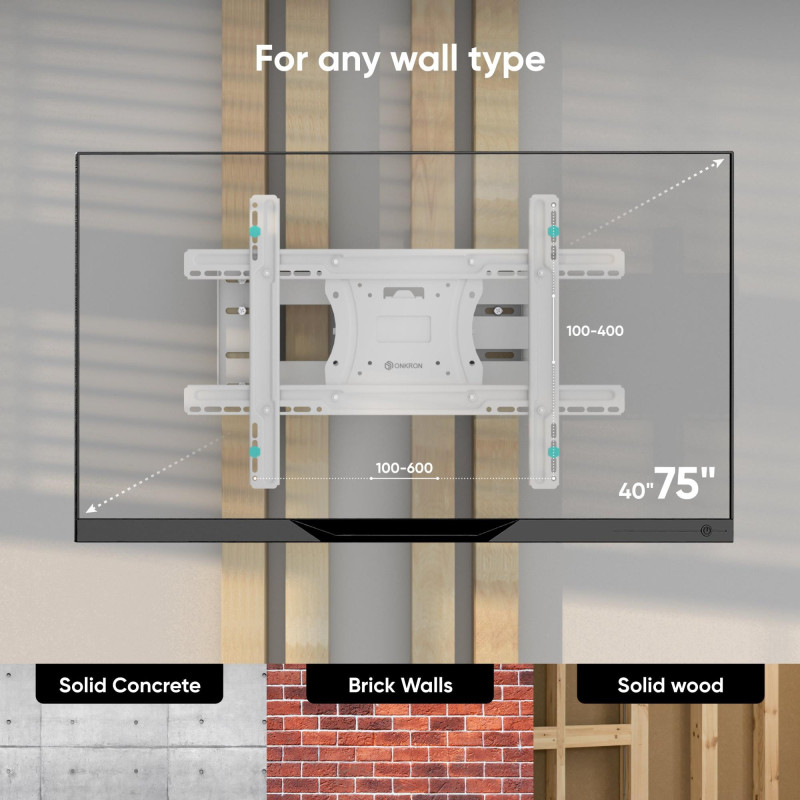

  • VESA: 100x100, 200x100, 200x200, 200x300, 200x400, 300x100, 300x200, 300x300, 300x400, 400x200, 400x300, 400x400, 500x200, 500x400, 600x200, 600x300, 600x400 mm
  • Material: cold-rolled steel

Angle of rotation 4 °
Distance to the wall (max) 711 mm
Distance to the wall (min) 110 mm
Housing material Steel
Maximum screen size 75 "
Maximum VESA mount 600 x 400 mm
Maximum weight capacity 68 kg
Maximum weight capacity (per display) 68 kg
Minimum screen size 40 "
Minimum VESA mount 100 x 100 mm
Model M7L
Mounting type Wall
Number of displays supported 1
Package depth 250 mm
Package height 105 mm
Package weight 9100 g
Package width 663 mm
Panel mounting interface 100 x 100/200 x 100/200 x 200/200 x 300/200 x 400/300 x 100/300 x 200/300 x 300/300 x 400/400 x 200/400 x 300/400 x 400/500 x 200/500 x 400/600 x 200/600 x 300/600 x 400 mm
Product colour White
Product Net Weight 8.9 kg
Quantity per pack 1 pair(s)
Shipping Box Depth 66 cm
Shipping Box Height 10 cm
Shipping Box Weight 9 kg
Shipping Box Width 24.5 cm
Summary ONKRON M7L-W. Maximum weight capacity: 68 kg, Minimum screen size: 101.6 cm (40"), Maximum screen size: 190.5 cm (75"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 600 x 400 mm. Angle of rotation: 4°, Distance to the wall (min): 11 cm, Distance to the wall (max): 71.1 cm. Product colour: White
Swivel angle 180 °
Swivelling Yes
Tilt angle 15 °
Unit Box Height 0.1
Unit Box Length 0.66
Unit Box Width 0.245
Unit Calculated Volume 0.01617 cubm
Unit Calculated Weight 9 kg
Units per Shipping Box 1
Vendor Homepage https://onkron-uk.co.uk/products/onkron-tv-wall-mount-bracket-for-40-75-inch-up-to-68-2-kg-lcd-led-oled-screens-m7l-white?_pos=1&_sid=1db40e84a&_ss=r
