Guarantee
24 month
Delivery from Lithuania in
3 - 5
business days
| Certificates of conformity | CE/RoHS |

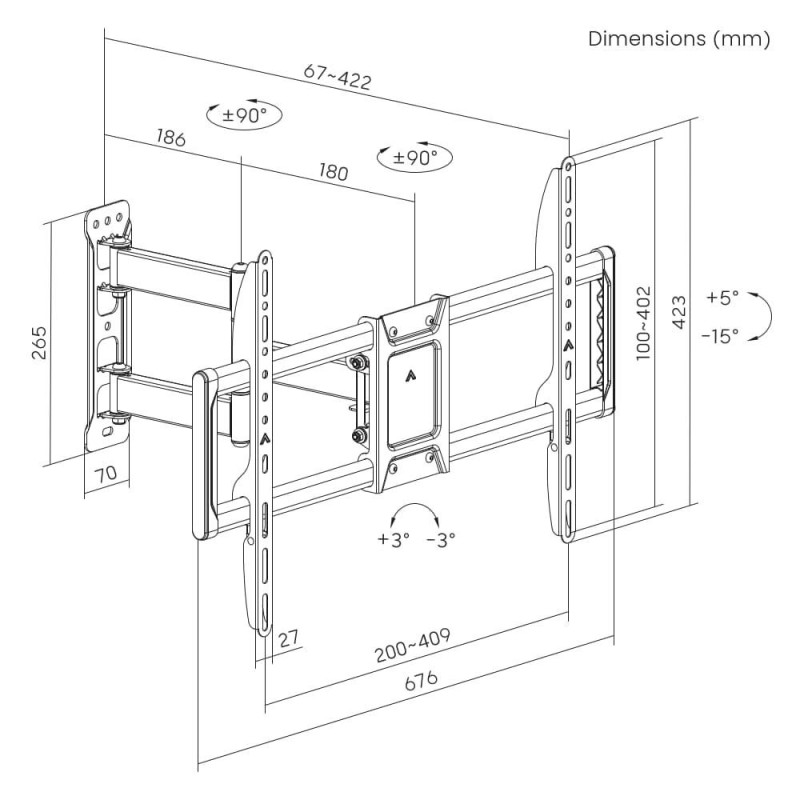

| Distance to wall (max.) | 422 mm |
| Distance to wall (min.) | 67 mm |
| Height | 423 mm |
| Gross weight | 4.4 kg |
| Maximum screen size | 90 " |
| Maximum load capacity (single screen) | 50 kg |
| Depth (max.) | 422 mm |
| Depth (min.) | 67 mm |
| Instructions | Yes |
| Quantity per pack | 1 pair |
| Housing material | Steel |
| Maximum weight (volume) | 50 kg |
| Minimum screen size | 37 " |
| Model | WM-90ST-01 |
| Mounting kit | Yes |
| Mounting interface compatibility (max.) | 600 x 400 mm |
| Mounting interface compatibility (min.) | 200 x 100 mm |
| Mounting type | Wall |
| Customs tariff code (TARIC) | 8302500000 |
| Net weight | 4 kg |
| Orientation | Landscape |
| Tilt angle | 20 ° |
| Package height | 85 mm |
| Package depth | 444 mm |
| Package width | 276 mm |
| Package type | "Box" |
| Number of supported screens | 1 |
| Swivel | 90 - -90 ° |
| Swivel angle | 180 ° |
| Width | 676 mm |
| Tilt adjustment | Yes |
| Tilt angle range | 5 - -15 ° |
| Product color | Black |
| Shipping Box Depth | 44 cm |
| Shipping Box Height | 8.5 cm |
| Shipping Box Weight | 4.4 kg |
| Shipping Box Width | 28 cm |
| Compatible with VESA wall mounting system | 200 x 100/200 x 200/200 x 300/200 x 400/300 x 200/300 x 300/300 x 400/400 x 200/400 x 300/500 x 300/500 x 400/600 x 200/600 x 300/600 x 400 mm |
| Rotating | Yes |
| Summary | Gembird WM-90ST-01. Maximum weight capacity: 50 kg, Minimum screen size: 94 cm (37"), Maximum screen size: 2.29 m (90"), Minimum VESA mount: 200 x 100 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: 5 - -15°, Swivel angle range: 90 - -90°, Distance to the wall (min): 6.7 cm, Distance to the wall (max): 42.2 cm. Product colour: Black |
| Unit Box Height | 0.085 |
| Unit Box Length | 0.44 |
| Unit Box Width | 0.28 |
| Unit Gross Volume | 0.01047 cubm |
| Vendor Homepage | https://gembird.com/item.aspx?id=13514 |
| Unit Height | 8.5 cm |
| Unit Depth | 44 cm |
| Unit Width | 28 cm |
| Number of units per shipping box | 1 |
