TV SET ACC WALL MOUNT / 32-90" / BLACK SM6L-B ONKRON
Product reference: 2-4262392442424

TV SET ACC WALL MOUNT / 32-90" / BLACK SM6L-B ONKRON

Product reference: 2-4262392442424
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
102,54 €
Product in warehouse

Guarantee
36 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*

  • For TV Screen 32"-90"
  • Max load: 50 kg
  • VESA: 200x200, 200x300, 200x400, 300x200, 300x300, 300x400, 400x200, 400x300, 400x400, 500x200, 500x400, 600x200, 600x300, 600x400 mm
  • Tilt angle: +5° ~ -10°

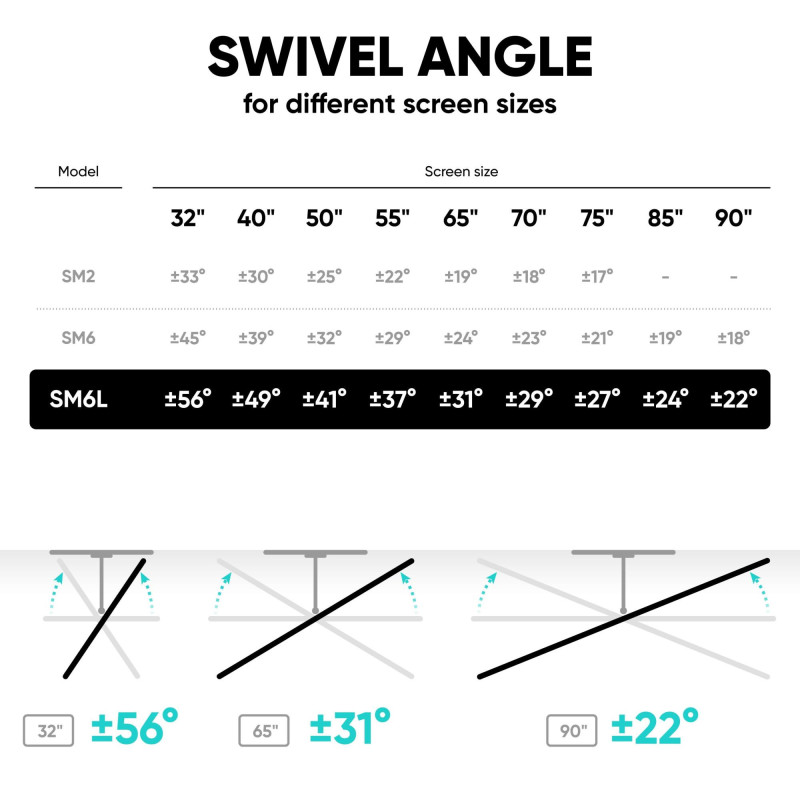

  • Rotation angle: -45° ~ +45°
  • Horizontal adjustment: -3° ~ +3°
  • Extension from the wall: 34 - 415 mm

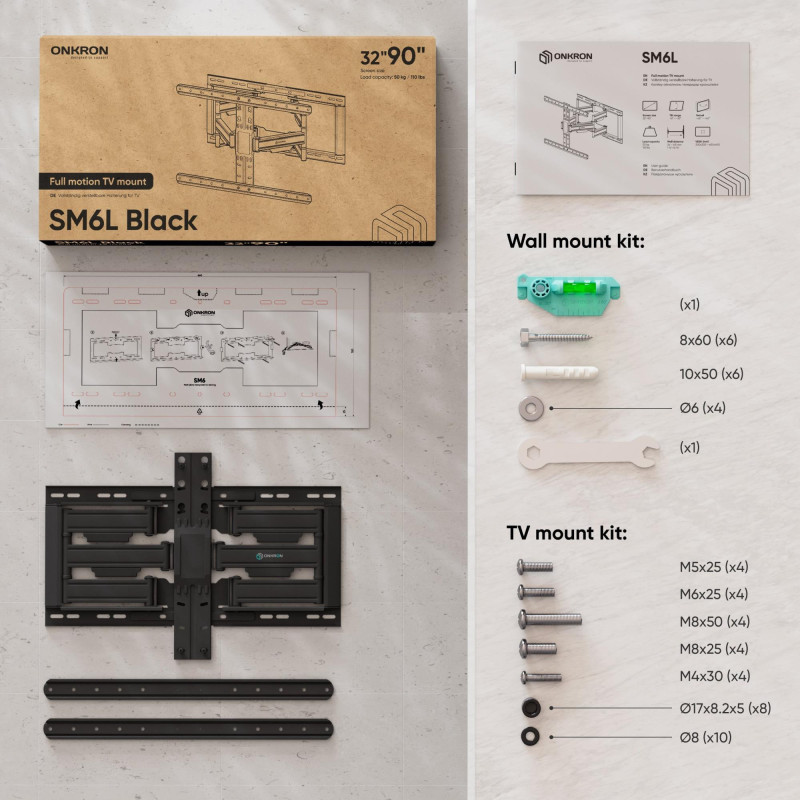

  • Removable level, marking template included
  • Material: cold-rolled steel

Dimensions of 1 set (width x length x height)710 x 505 x 55 mm
Weight of 1 package7100 g
2 set dimensions (width x length x height)770 x 393 x 77 mm
2 package weight7450 g
Distance to wall (max.)415 mm
Distance to wall (min.)34 mm
Gross weight8.15 kg
Maximum screen size90 "
Maximum load capacity (single screen)50 kg
Housing materialSteel
Maximum weight (volume)50 kg
Minimum screen size32 "
ModelSM6L
Mounting interface compatibility (max.)600 x 400 mm
Mounting interface compatibility (min.)200 x 200 mm
Mounting typeSiena
Net weight7.45 kg
Number of supported displays1
Tilt adjustmentYes
Tilt angle range-10 - 5 °
Product colorBlack
RotationYes
Shipping Box Depth72 cm
Shipping Box Height12 cm
Shipping Box Weight16.3 kg
Shipping Box Width50 cm
Compatible with VESA wall mounting system200 x 200/200 x 300/200 x 400/300 x 200/300 x 300/300 x 400/400 x 200/400 x 300/400 x 400/500 x 200/500 x 400/600 x 200/600 x 300/600 x 400 mm
Rotation angle45 °
SummaryONKRON SM6L-B. Maximum weight capacity: 50 kg, Minimum screen size: 81.3 cm (32"), Maximum screen size: 2.29 m (90"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: -10 - 5°, Angle of rotation: 45°, Distance to the wall (min): 3.4 cm, Distance to the wall (max): 41.5 cm. Product colour: Black
Unit Box Height0.05
Unit Box Length0.7
Unit Box Width0.5
Unit Ugly Volume0.0216 cubm
Vendor Homepagehttps://onkron-uk.co.uk/products/sm6l-b?_pos=1_sid=dd8e9e423_ss=r
Unit height5 cm
Unit depth70 cm
Unit width50 cm
Number of units per shipping box2
