TV SET ACC WALL MOUNT / 32-90" / BLACK SM6-B ONKRON

Product reference: 2-4262392442417

You have 3 products in compare list, please remove someone and try again

Add to compare

86,59 €

Product in warehouse

Guarantee
36 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!

Fill in the required fields*

For TV Screen 32"-90"
Max load: 50 kg
VESA: 200x200, 200x300, 200x400, 300x200, 300x300, 300x400, 400x200, 400x300, 400x400, 500x200, 500x400, 600x200, 600x300, 600x400 mm
Tilt angle: +5° ~ -10°

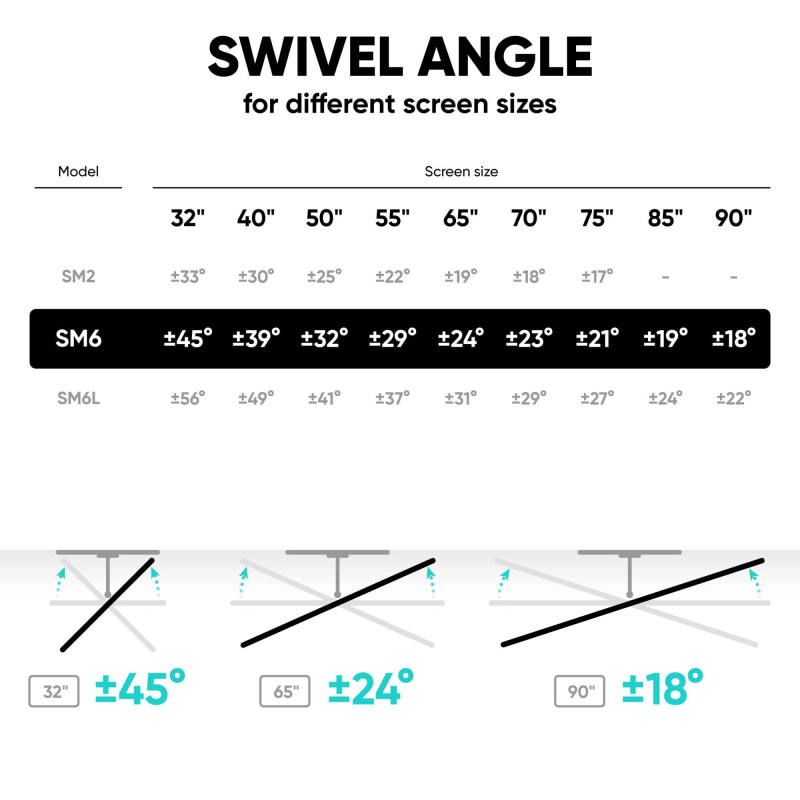

Rotation angle: -40° ~ +40°
Horizontal adjustment: -3° ~ +3°
Extension from the wall: 34 - 330 mm

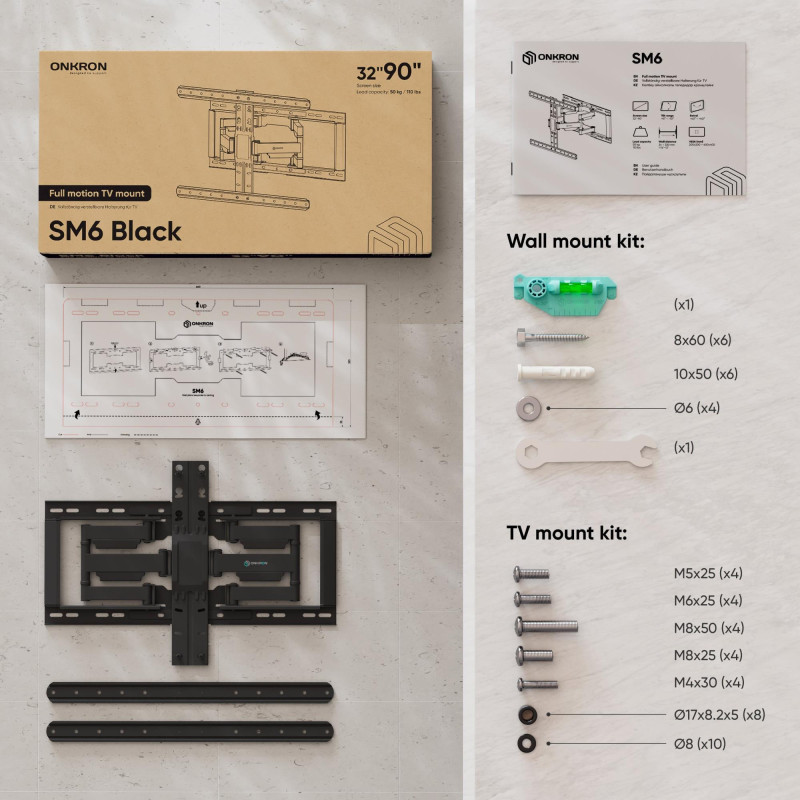

Removable level, marking template included
Material: cold-rolled steel

Angle of rotation	40 °
Distance to the wall (max)	330 mm
Distance to the wall (min)	34 mm
Housing material	Steel
Maximum screen size	90 "
Maximum VESA mount	600 x 400 mm
Maximum weight capacity	50 kg
Maximum weight capacity (per display)	50 kg
Minimum screen size	32 "
Minimum VESA mount	200 x 200 mm
Model	SM6
Mounting type	Wall
Number of displays supported	1
Package 1 dimensions (WxDxH)	705 x 500 x 53 mm
Package 1 weight	6650 g
Package 2 dimensions (W x D x H)	705 x 500 x 55 mm
Panel mounting interface	200 x 200/200 x 300/200 x 400/300 x 200/300 x 300/300 x 400/400 x 200/400 x 300/400 x 400/500 x 200/500 x 400/600 x 200/600 x 300/600 x 400 mm
Product colour	Black
Product Net Weight	6.65 kg
Rotating	Yes
Shipping Box Depth	71 cm
Shipping Box Height	11 cm
Shipping Box Weight	14.3000001907349 kg
Shipping Box Width	51 cm
Summary	ONKRON SM6-B. Maximum weight capacity: 50 kg, Minimum screen size: 81.3 cm (32"), Maximum screen size: 2.29 m (90"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: -10 - 5°, Angle of rotation: 40°, Distance to the wall (min): 3.4 cm, Distance to the wall (max): 33 cm. Product colour: Black
Tilt adjustment	Yes
Tilt angle range	-10 - 5 °
Unit Box Height	0.05
Unit Box Length	0.7
Unit Box Width	0.5
Unit Calculated Volume	0.01992 cubm
Unit Calculated Weight	7.15 kg
Units per Shipping Box	2
Vendor Homepage	https://onkron-uk.co.uk/products/sm6-b?_pos=1&_sid=469a7efb6&_ss=r
