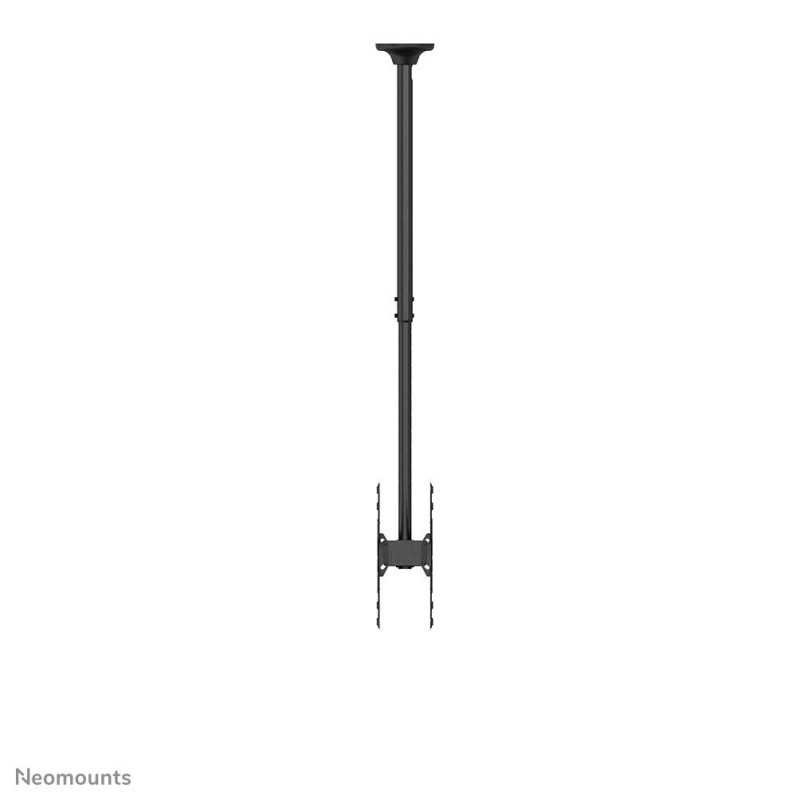

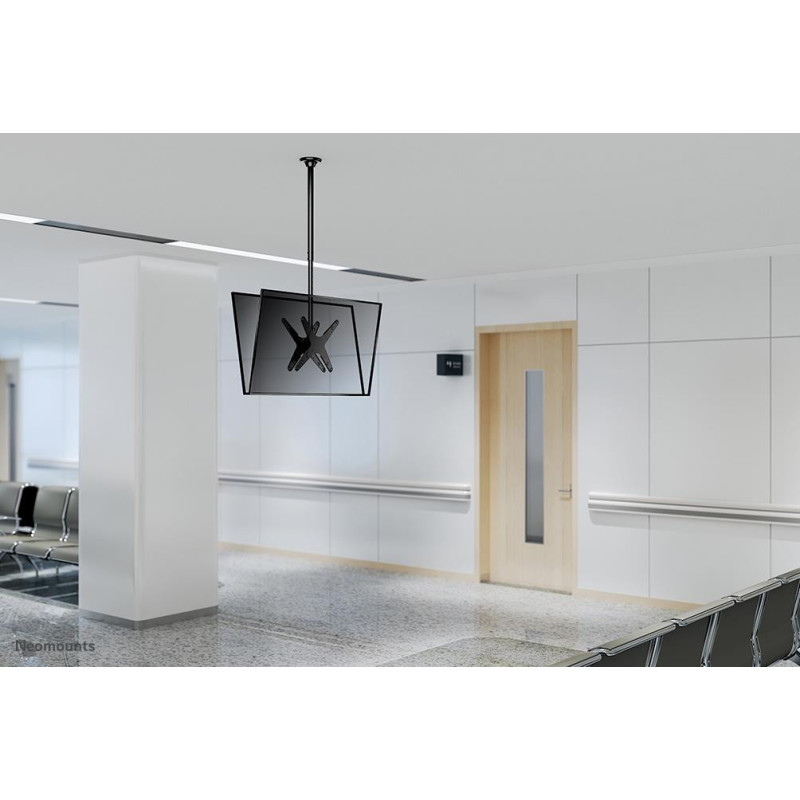

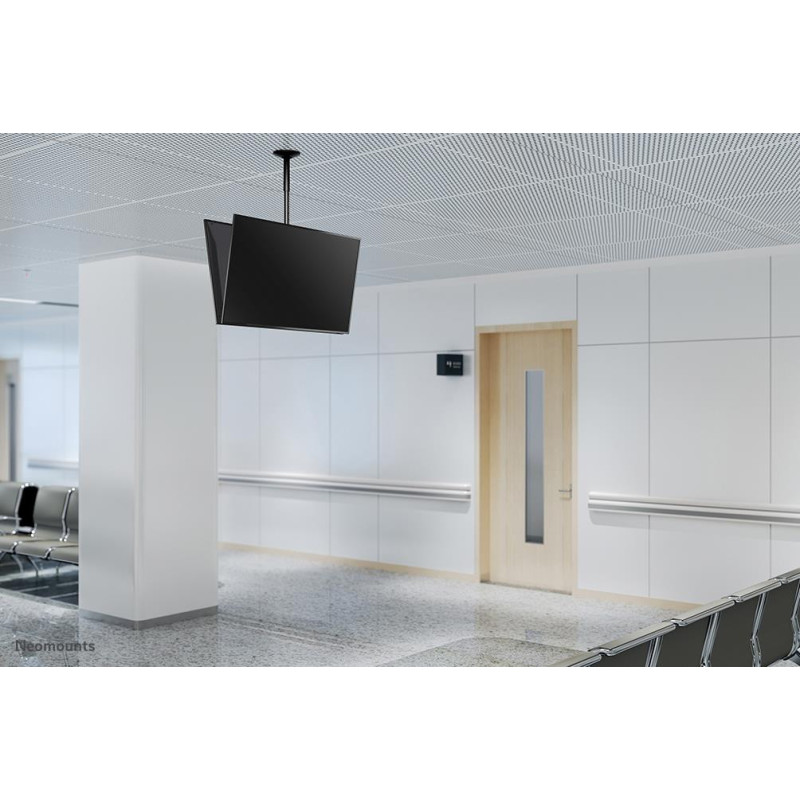

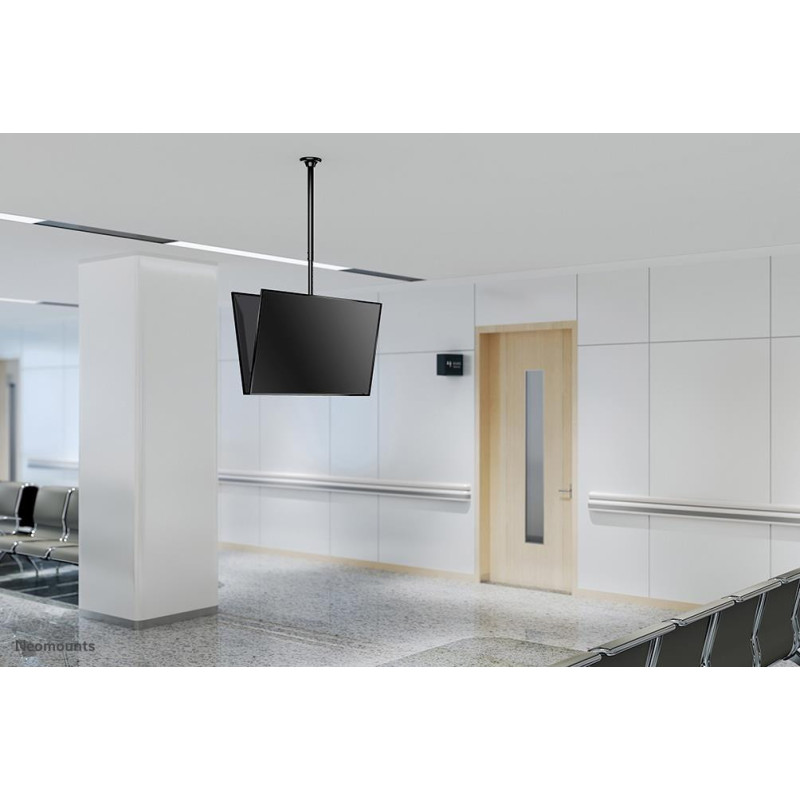

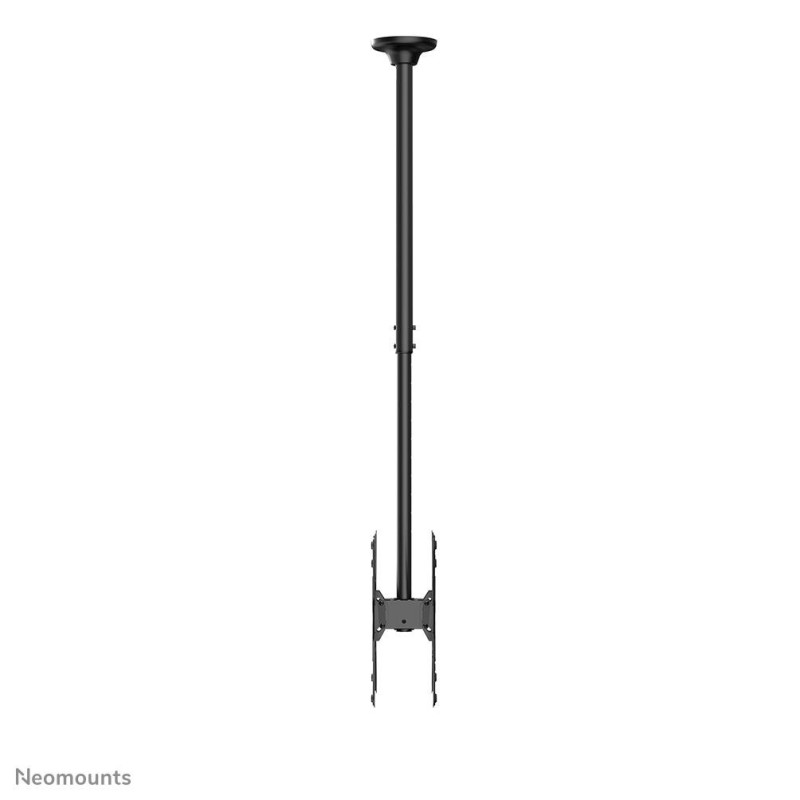

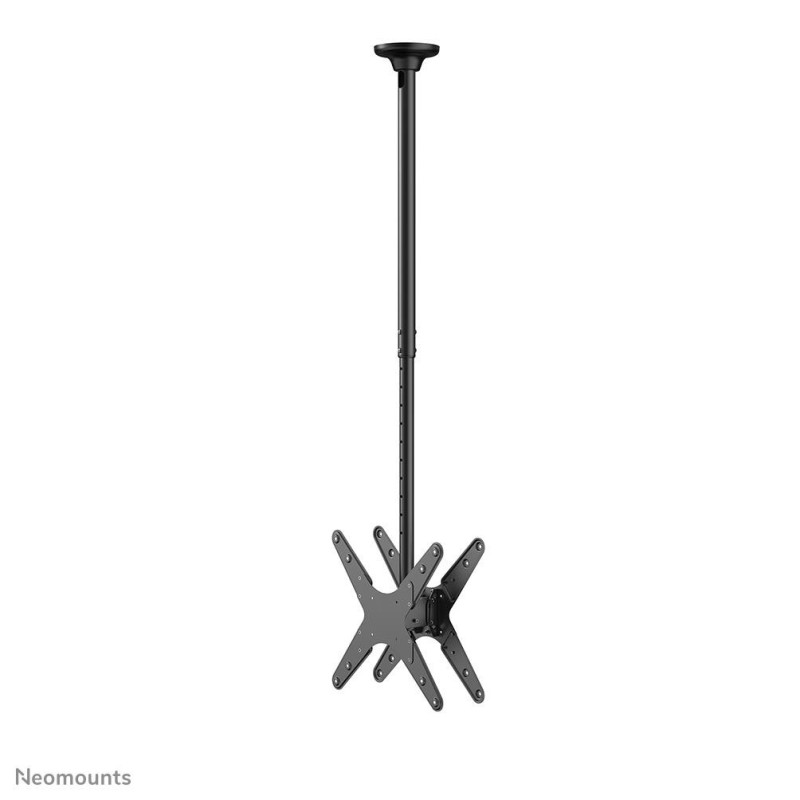

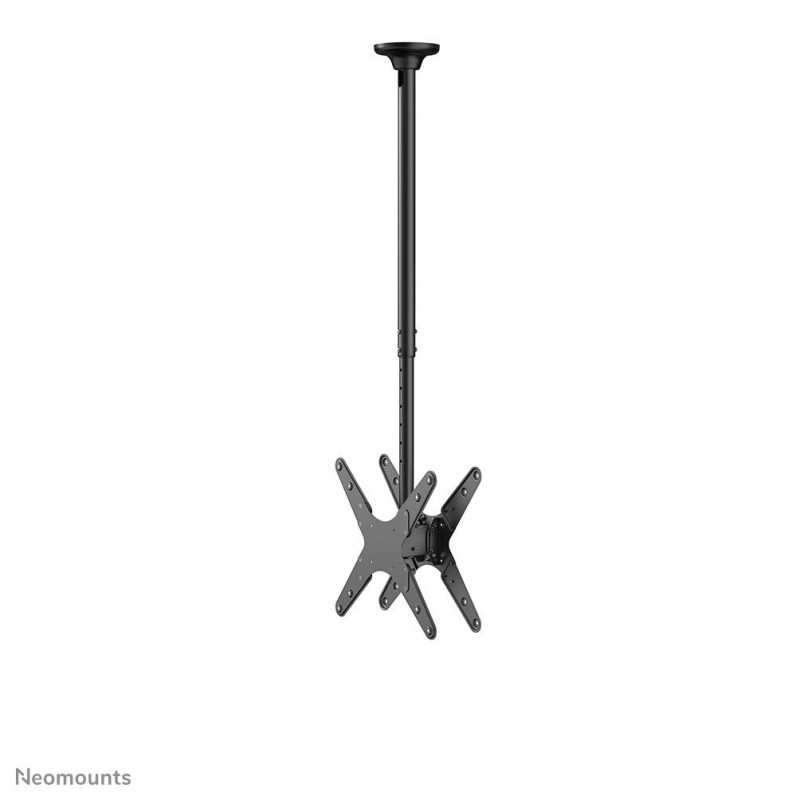

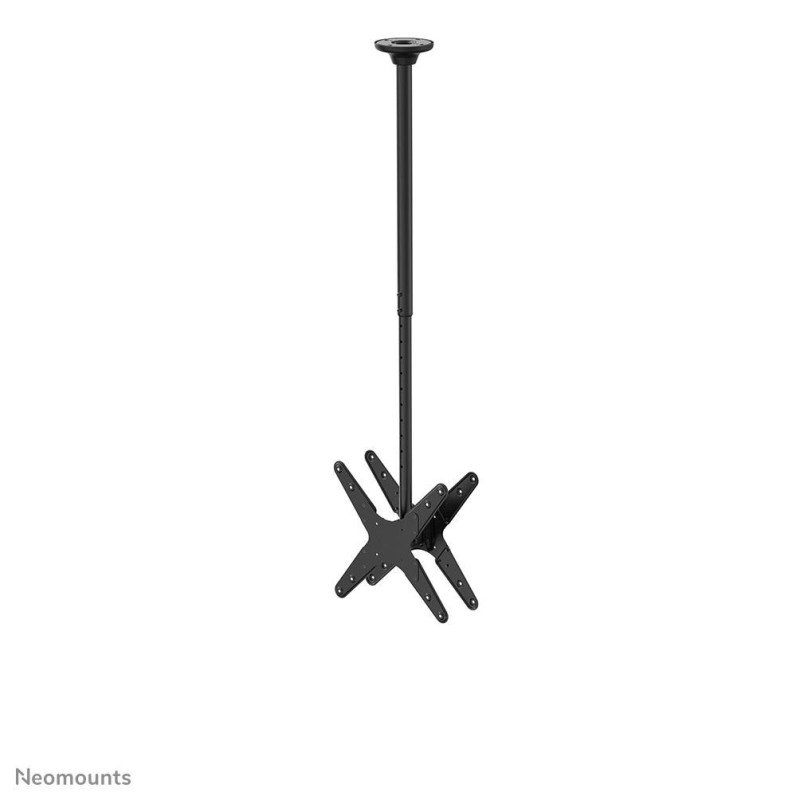

The Neomounts FPMA-C340DBLACK is a full motion ceiling mount for 2 flat screens up to 75". The unique tilt (10°), swivel (360°) and rotate technology (6°) allows the mount to change to the best angle for the optimal viewing position.

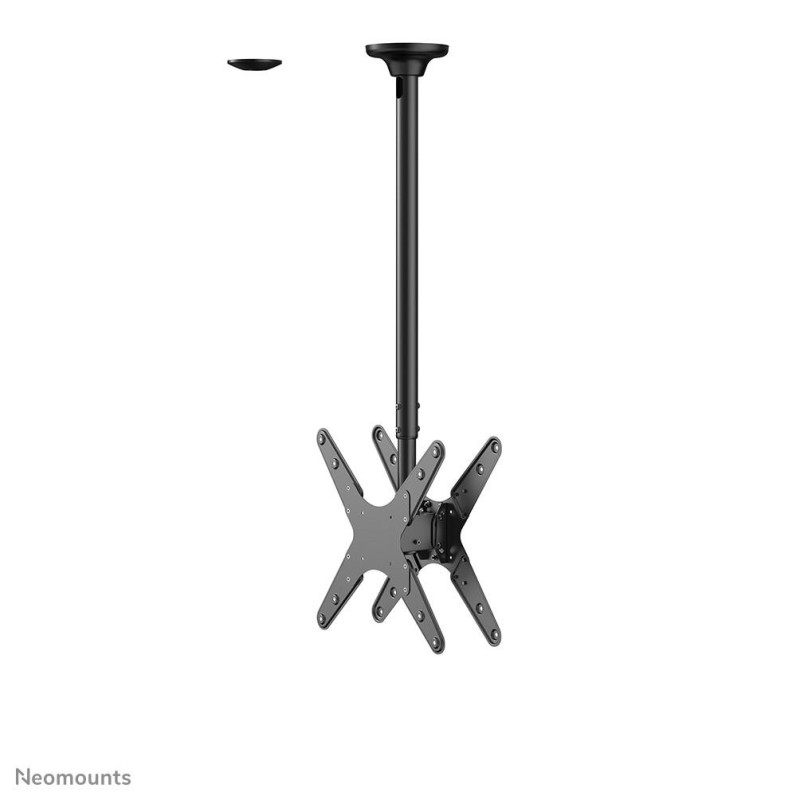

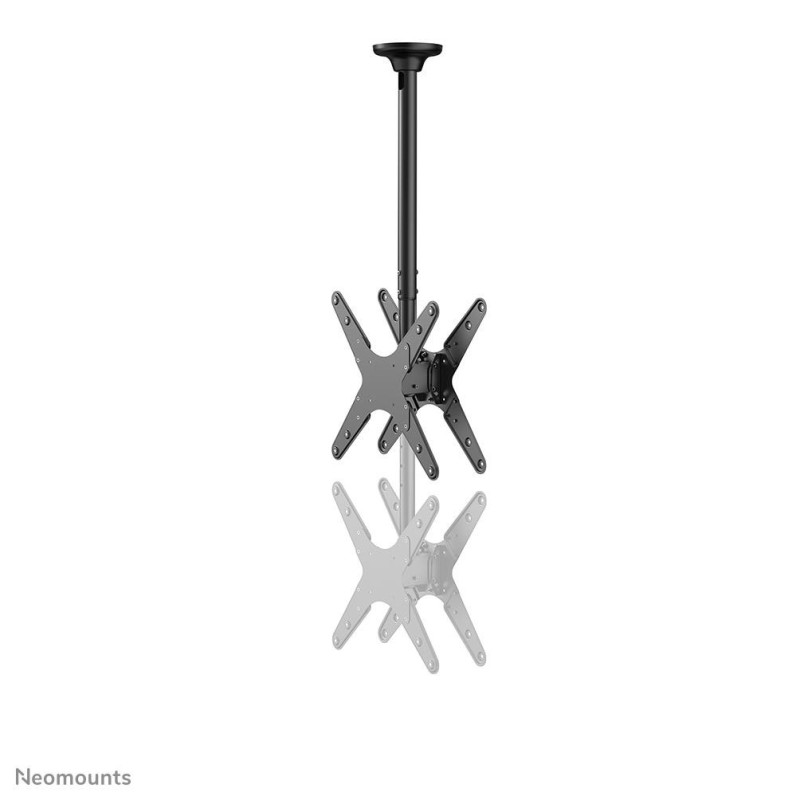

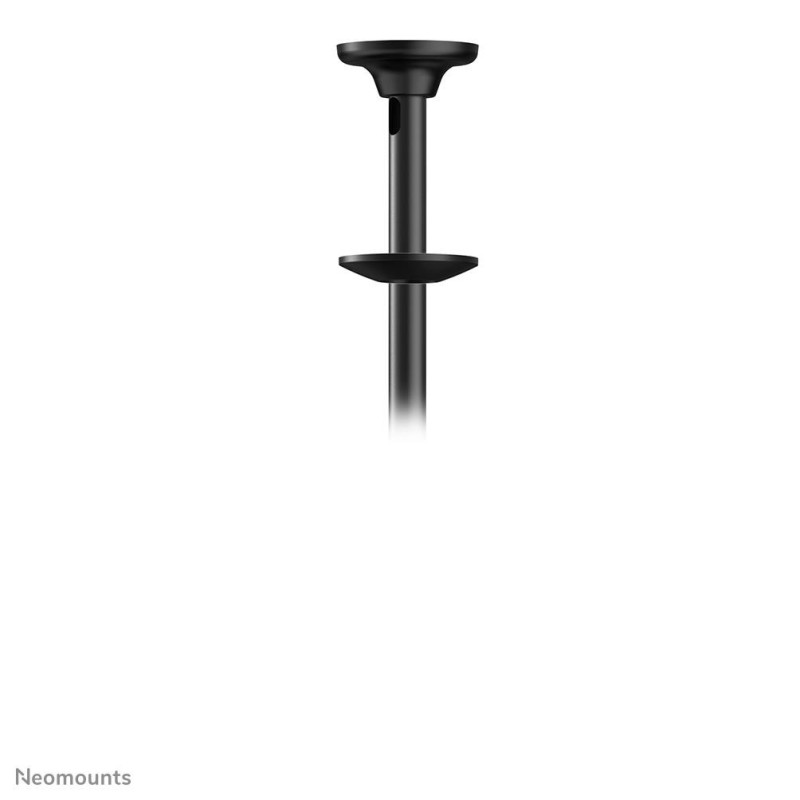

The ceiling mount can be easily adjusted in height from 106 to 156 cm* and has a weight capacity of 50 kg (2x). The FPMA-C340DBLACK is suitable for screens that meet VESA hole pattern 100x100 to 400x400mm. A nifty cable management systems conceals and routes cables from ceiling to screen. The mount comes with an additional cover for installation on suspended ceilings.
* The Neomounts NS-EP100BLACK is an extension pole for ceiling mount models NM-C440BLACK, NM-C440DBLACK, FPMA-C340BLACK and FPMA-C340DBLACK. This pole can be used as extra extension to the pole included with the models. In this way, the height of the ceiling mounts can be increased with an extra 107,5 cm.
| Angle of rotation | 6 ° |
| Cable management | Yes |
| Country of origin | China |
| Harmonized System (HS) code | 7326909890 |

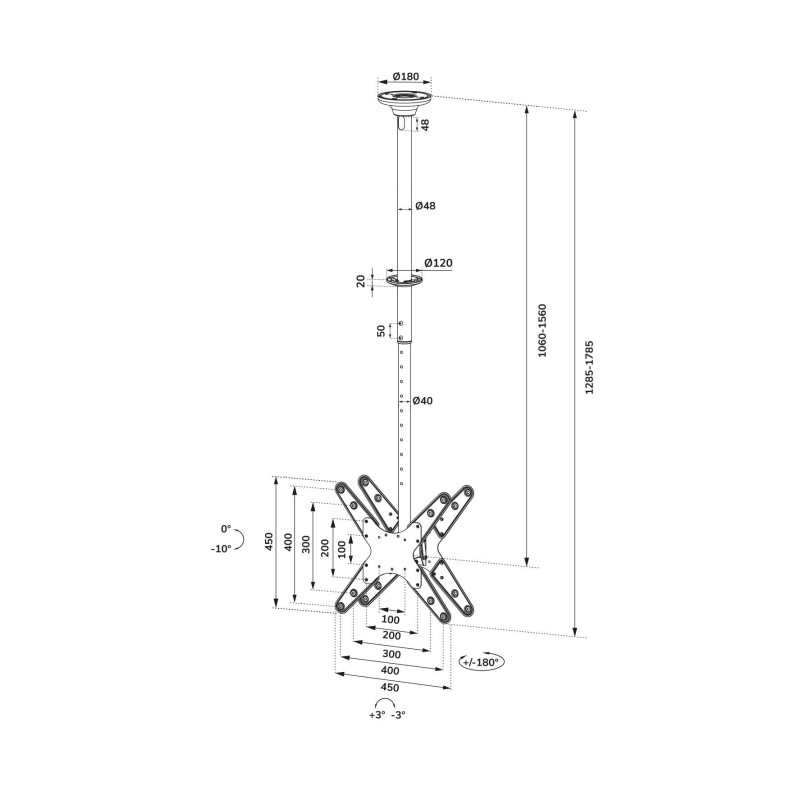

| Height | 1785 mm |
| Height adjustment | Yes |
| Height adjustment range | 1060 - 1560 mm |
| Height adjustment type | Manual |
| Housing material | Steel |
| Master (outer) case gross weight | 17900 g |
| Master (outer) case height | 310 mm |
| Master (outer) case length | 270 mm |
| Master (outer) case net weight | 14500 g |
| Master (outer) case width | 950 mm |
| Maximum screen size | 75 " |
| Maximum VESA mount | 400 x 400 mm |
| Maximum weight capacity | 50 kg |
| Maximum weight capacity (per display) | 50 kg |
| Minimum screen size | 32 " |
| Minimum VESA mount | 100 x 100 mm |
| Model | FPMA-C340DBLACK |
| Mounting type | Ceiling |
| Number of displays supported | 2 |
| Orientation | Landscape |
| Package depth | 250 mm |
| Package height | 145 mm |
| Package weight | 8500 g |
| Package width | 930 mm |
| Panel mounting interface | 100 x 100/200 x 100/200 x 200/300 x 300/400 x 200/400 x 400 mm |
| Pivot angle | -3 - 3 ° |
| Product colour | Black |
| Products per master (outer) case | 2 pc(s) |
| Products per pallet (EU) | 30 pc(s) |
| Summary | Neomounts FPMA-C340DBLACK Dual monitor/TV mount ceiling 32-75" - h 106-156 cm. Maximum weight capacity: 50 kg, Minimum screen size: 81.3 cm (32"), Maximum screen size: 190.5 cm (75"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 400 x 400 mm. Height adjustment range: 1060 - 1560 mm, Tilt angle range: -10 - 0°, Swivel angle range: -180 - 180°, Angle of rotation: 6°. Product colour: Black |
| Swivel angle | 360 ° |
| Swivel angle range | -180 - 180 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -10 - 0 ° |
| Unit Box Height | 0.25 |
| Unit Box Length | 0.93 |
| Unit Box Width | 0.15 |
| Unit Calculated Volume | 0.04126 cubm |
| Unit Calculated Weight | 8.9 kg |
| Units per Shipping Box | 2 |
| Vendor Homepage | https://www.neomounts.com/default.asp?pageid=44&artdetail=FPMA-C340DBLACK |
| Weight | 7260 g |
