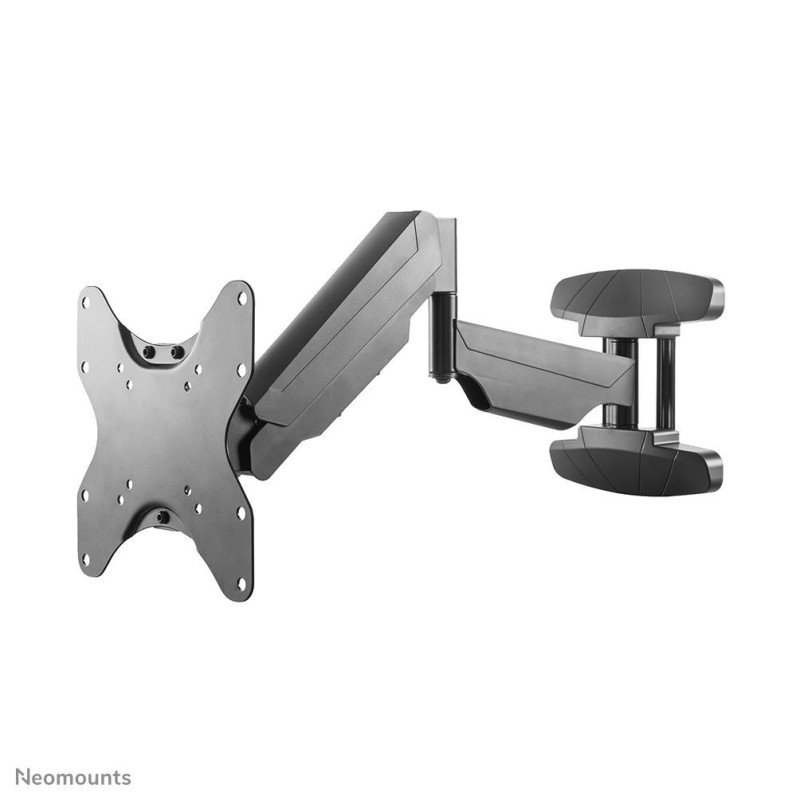

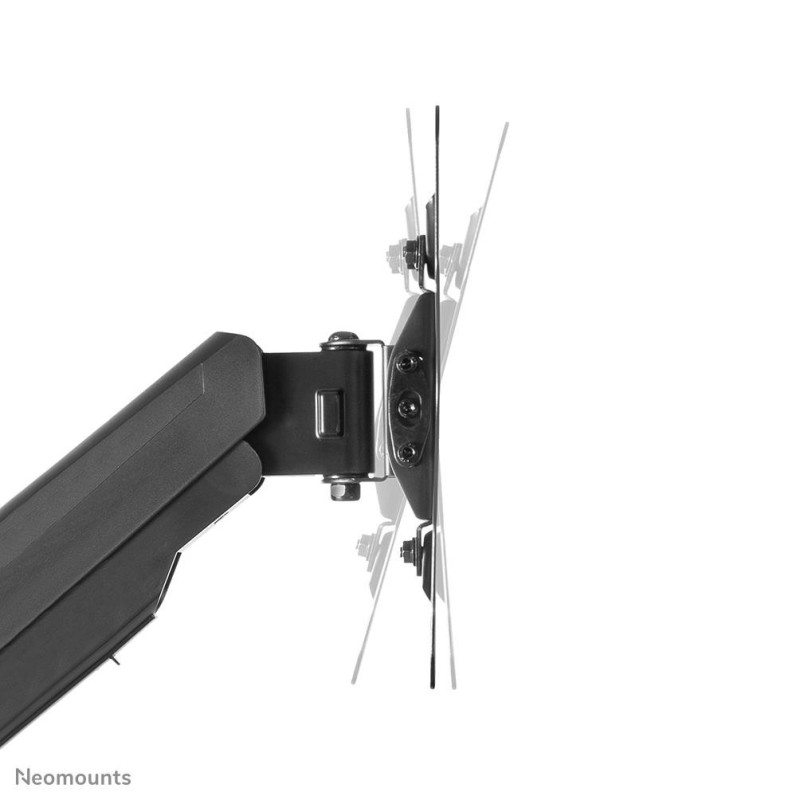

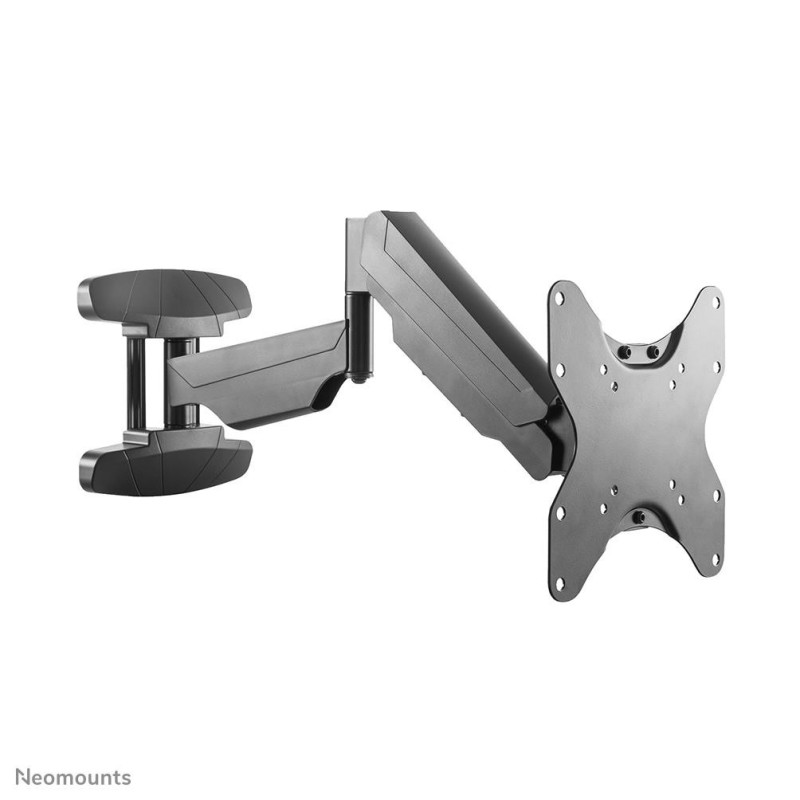

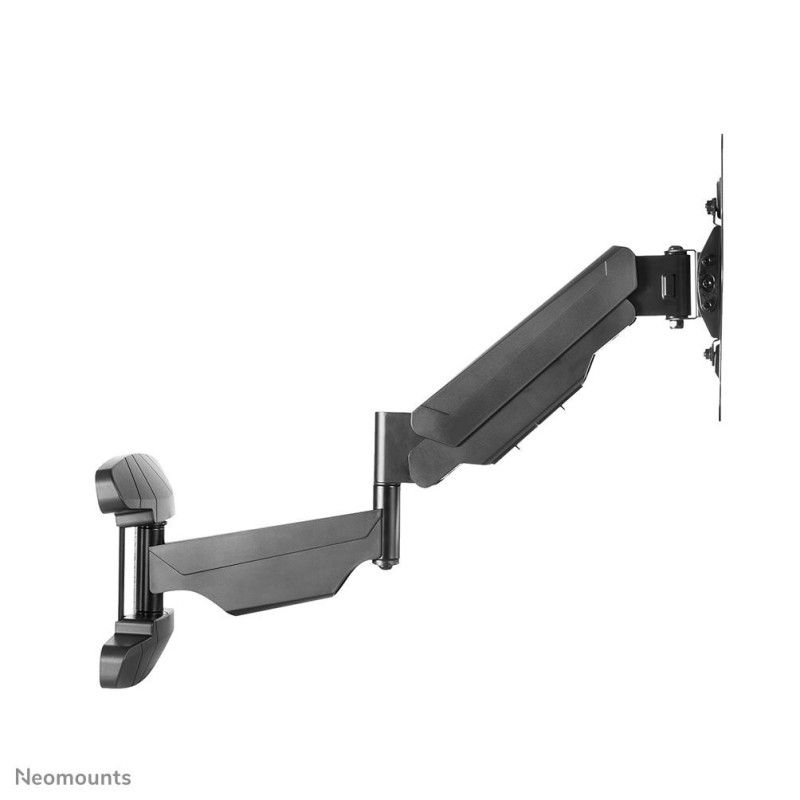

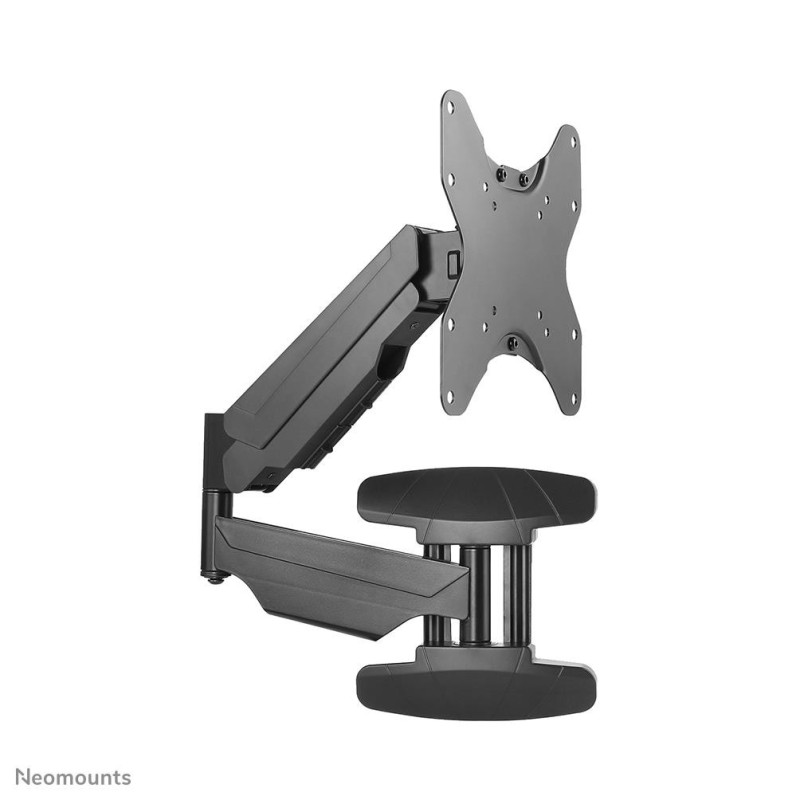

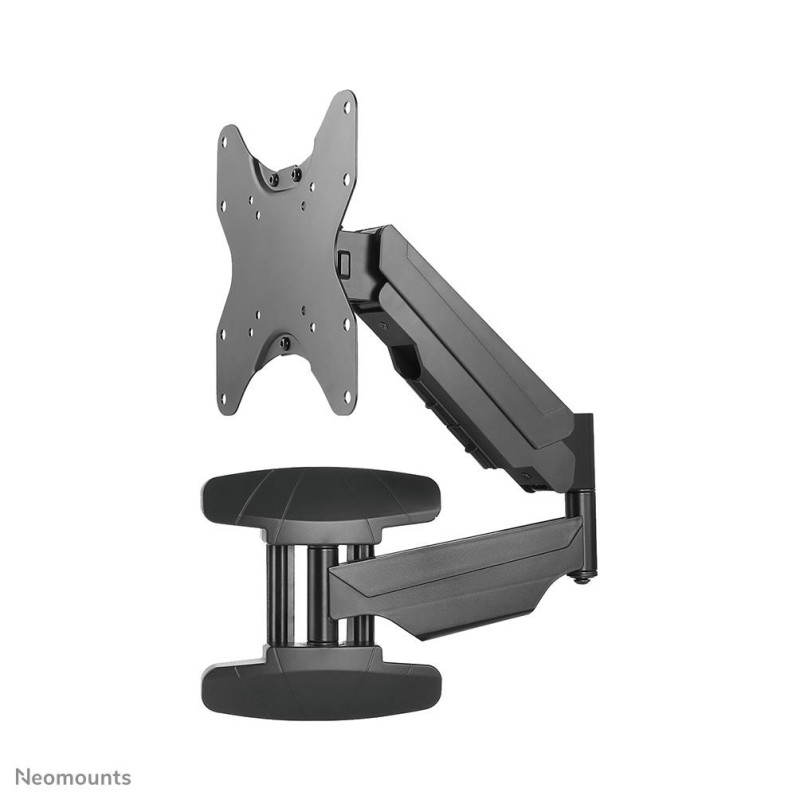

The Neomounts WL70-550BL12 is a full motion wall mount for flat screens up to 42" with a maximum weight capacity of 30 kg. The versatile tilt (20°) and swivel (180°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.

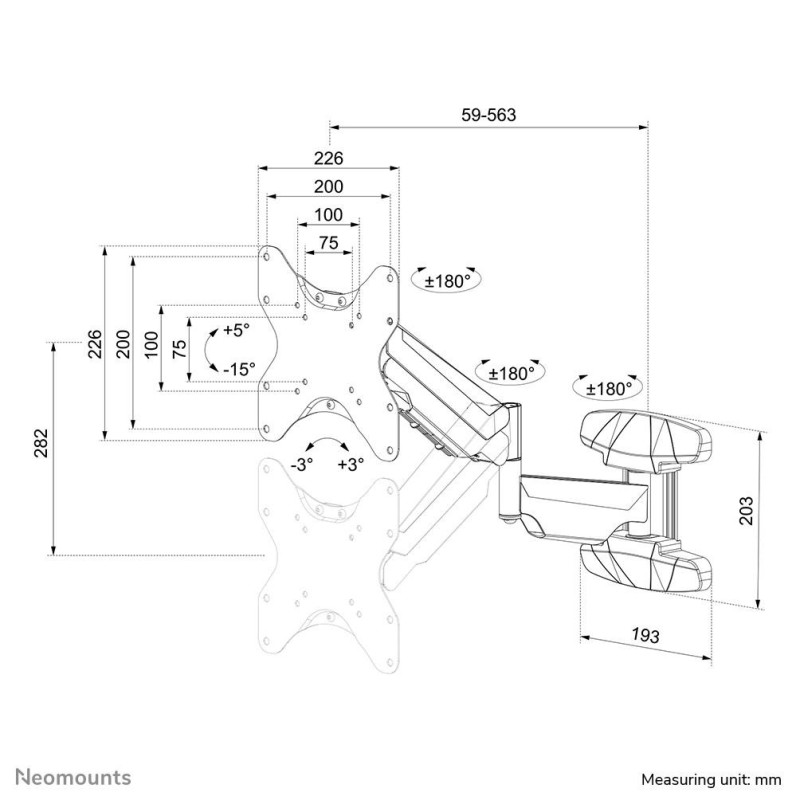

The WL70-550BL12 has a depth of 5,9-56,3 cm and is suitable for screens that meet VESA hole pattern 75x75 to 200x200 mm.

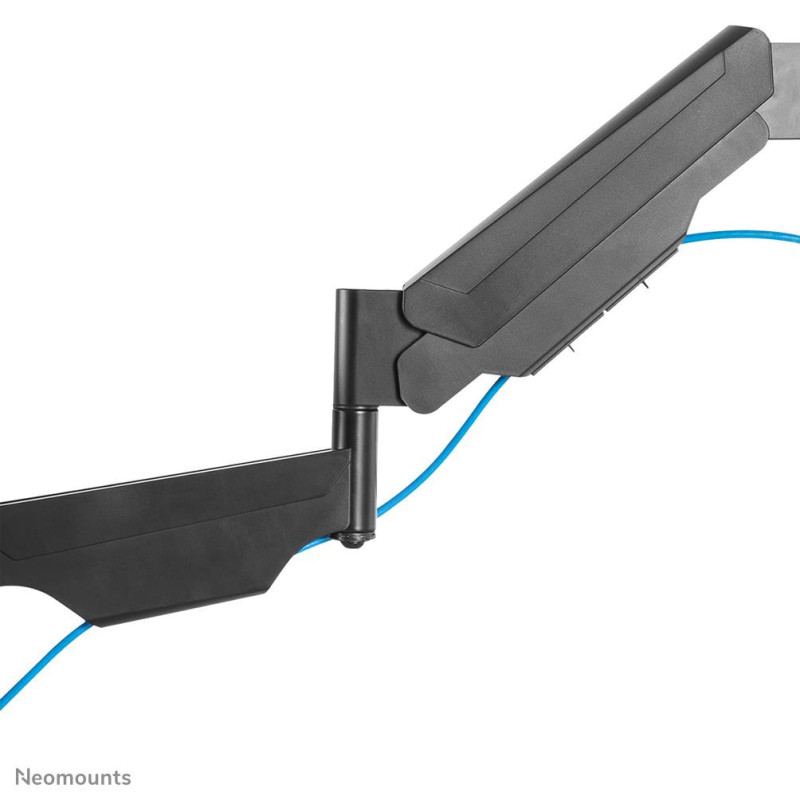

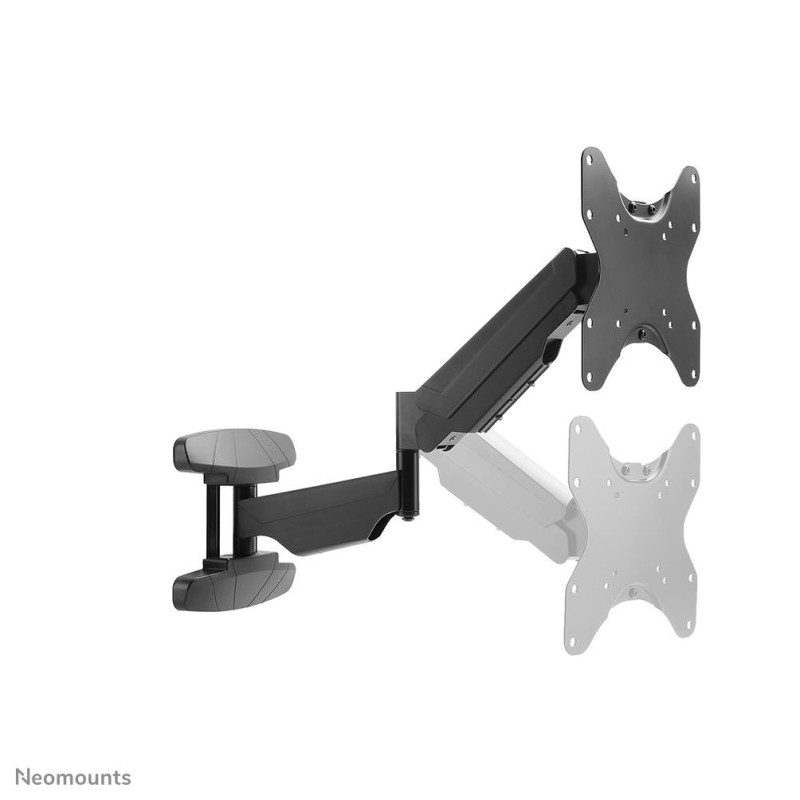

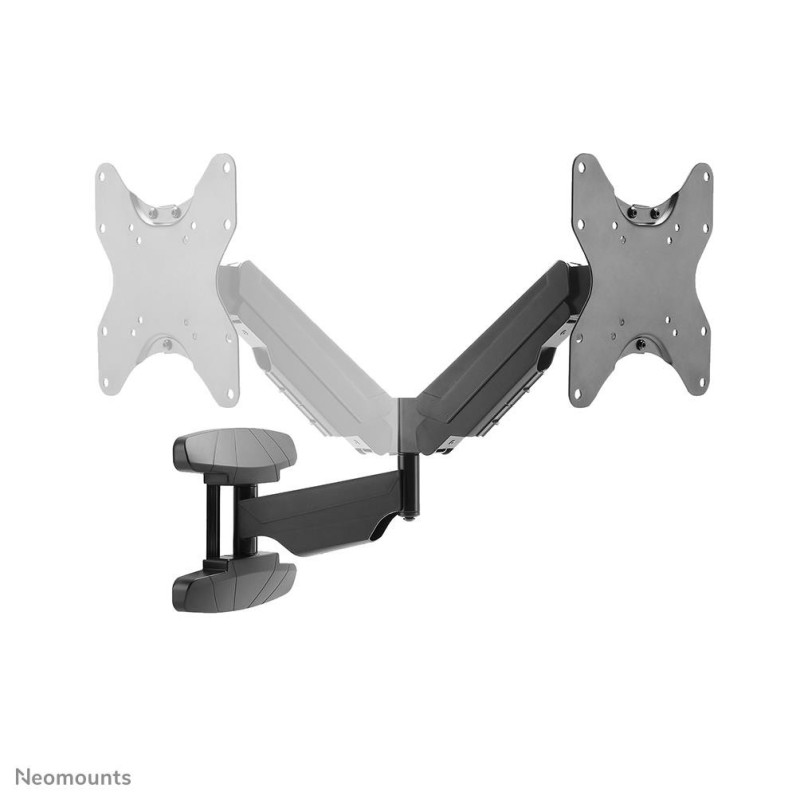

The mount can be easily adjusted in height using the gas spring. The cable management system allows you to route and secure any loose cables at the back of the screen. Additionally, the mount features an Easy-release VESA, that allows you to attach the TV in a wink of an eye.
| Distance to wall (max.) | 563 mm |
| Distance to wall (min.) | 59 mm |
| Height | 327 mm |
| Height adjustment | Yes |
| Height adjustment range | 0 - 282 mm |
| Height adjustment type | Gas spring |
| Gross weight | 4.65 kg |
| Harmonized System (HS) code | 7326909890 |
| Maximum screen size | 42 " |
| Maximum load capacity (single screen) | 30 kg |
| Number of products per pallet (EU) | 72 pcs. |
| Number of products in the main (outer) box | 3 pcs |
| Better cable management | Yes |
| Depth (max.) | 563 mm |
| Length | 563 mm |
| Quantity per package | 1 pc |
| Country of origin | China |
| Housing material | Steel |
| Maximum weight (volume) | 30 kg |
| Minimum screen size | 23 " |
| Minimum weight | 5 kg |
| Installation | Screws |
| Mounting interface compatibility (max.) | 200 x 200 mm |
| Mounting interface compatibility (min.) | 75 x 75 mm |
| Mounting type | Siena |
| Net weight | 4.5 kg |
| Height of the main (outer) box | 245 mm |
| Gross weight of the main (outer) box | 15500 g |
| Length of the main (outer) box | 520 mm |
| Width of the main (outer) box | 380 mm |
| Net weight of master carton | 11700 g |
| Package weight | 4800 g |
| Package height | 75 mm |
| Gross weight of the package | 4800 g |
| Package depth | 505 mm |
| Package width | 365 mm |
| Number of supported displays | 1 |
| Swivel | 0 - 180 ° |
| Swivel angle | 180 ° |
| Rotation angle | -3 - 3 ° |
| Width | 226 mm |
| Tilt adjustment | Yes |
| Tilt angle range | -15 - 5 ° |
| Product color | Black |
| Rotation | Yes |
| Shipping Box Depth | 50 cm |
| Shipping Box Height | 8 cm |
| Shipping Box Weight | 4.65 kg |
| Shipping Box Width | 37 cm |
| Compatible with VESA wall mounting system | 100 x 100/200 x 100/200 x 200/75 x 75 mm |
| Rotation angle | 6 ° |
| Rotating | Yes |
| Summary | Neomounts WL70-550BL12 Monitor/TV mount wall 23-42" - gas spring - full motion. Maximum weight capacity: 30 kg, Minimum screen size: 58.4 cm (23"), Maximum screen size: 106.7 cm (42"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 200 x 200 mm. Height adjustment range: 0 - 282 mm, Tilt angle range: -15 - 5°, Swivel angle range: 0 - 180°, Angle of rotation: 6°, Distance to the wall (min): 5.9 cm, Distance to the wall (max): 56.3 cm. Product colour: Black |
| Weight | 3900 g |
| Unit Box Height | 0.08 |
| Unit Box Length | 0.5 |
| Unit Box Width | 0.37 |
| Unit Ugly Volume | 0.0148 cubm |
| Vendor Homepage | https://www.neomounts.com/default.asp?pageid=44artdetail=WL70-550BL12 |
| Unit height | 8 cm |
| Unit depth | 50 cm |
| Unit width | 37 cm |
| Number of units per shipping box | 1 |
