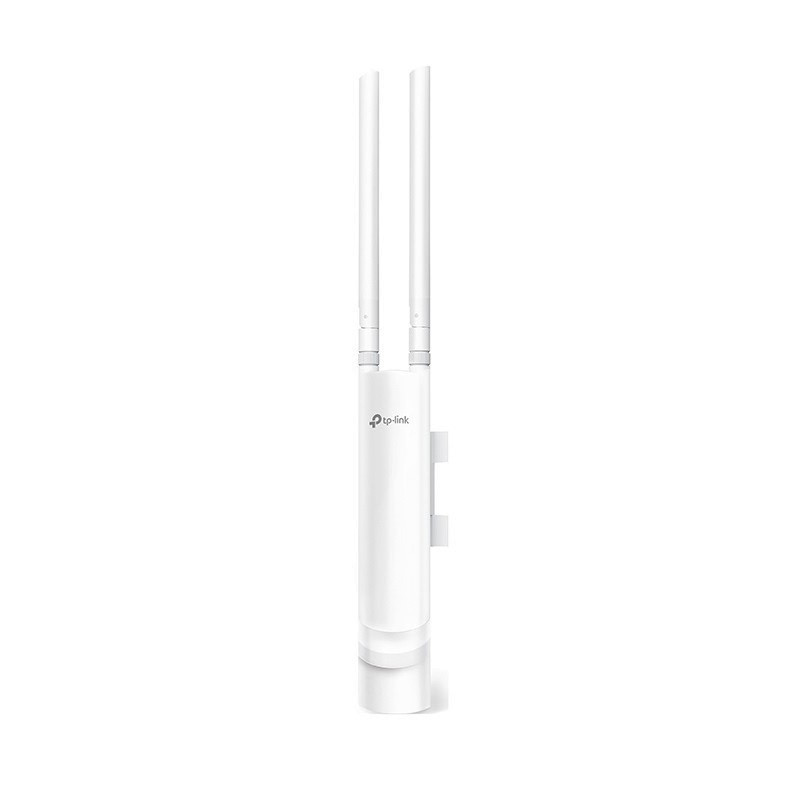

TP-LINK AC1200 Wireless MU-MIMO Gigabit Indoor / Outdoor Access Point

- Durable, weatherproof enclosure for outdoor Wi-Fi applications - Up to 1200Mbps with 2×2 MIMO technology - High transmission power and high gain antennas provide a long-range coverage area - Free Omada Controller software enables administrators easily manage hundreds of EAPs - Captive portal provides a convenient method for guest authentication - Facebook Wi-Fi and SMS authentication help to boost your business - 802.3af/Passive PoE (PoE Adapter Included) compatible and simple mounting design allow for flexible deployment and convenient installation

HARDWARE FEATURES

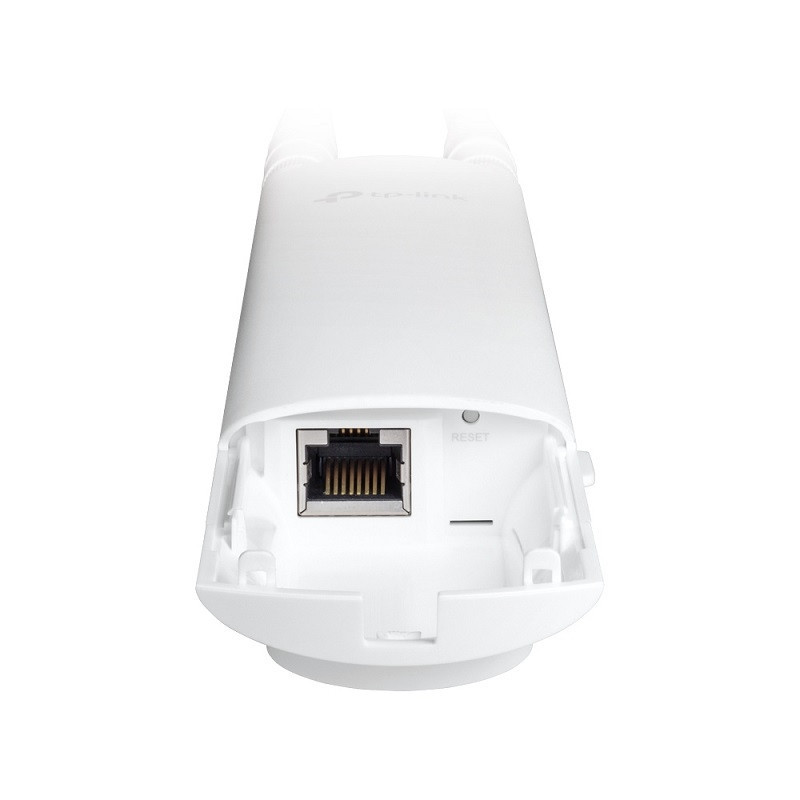

Interface: Gigabit Ethernet (RJ-45) Port*1 (Support 802.3af PoE and Passive PoE) Button: Reset

Power Supply: 802.3af/A PoE 24V Passive PoE (+4.5pins; -7.8pins. PoE Adapter Included)

Power Consumption: 10.5W Dimensions ( W x D x H ): 8.5 × 1.8 × 1.1in. (215 × 46 × 27 mm) Antenna: 2.4GHz: 2 * 3dBi, 5GHz: 2 * 4dBi Weatherproof Enclosure: IP65 Mounting: Pole/Wall Mounting (Kits included) Hardware Watch Dog: Yes

WIRELESS FEATURES

Wireless Standards: IEEE 802.11a/b/g/n/ac Frequency: 2.4GHz, 5GHz

Signal Rate: 802.11ac: 5G:6.5 Mbps to 867Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G:78Mbps to 300Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3) 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40) 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b: 1, 5.5, 11Mbps 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Wireless Functions: Multiple SSIDs（Up to 16 SSIDs, 8 for each band） Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control （Adjust Transmit Power on dBm） QoS(WMM) MU-MIMO Airtime Fairness Beamforming Band Steering Load Balance Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client

Wireless Security: Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support

Transmission Power: CE:<20dBm(2.4GHz,EIRP),<25dBm(5GHz,EIRP) FCC:<23dBm(2.4GHz),<22dBm(5GHz)

MANAGEMENT

Omada Controller Software: Yes Email Alerts: Yes Management MAC Access Control: Yes System Logging Local/Remote Syslog: Yes Web-based Management: Yes L3 Management: Yes Multi-site Management: Yes Management VLAN: Yes

OTHERS

Certification: CE、FCC、RoHS

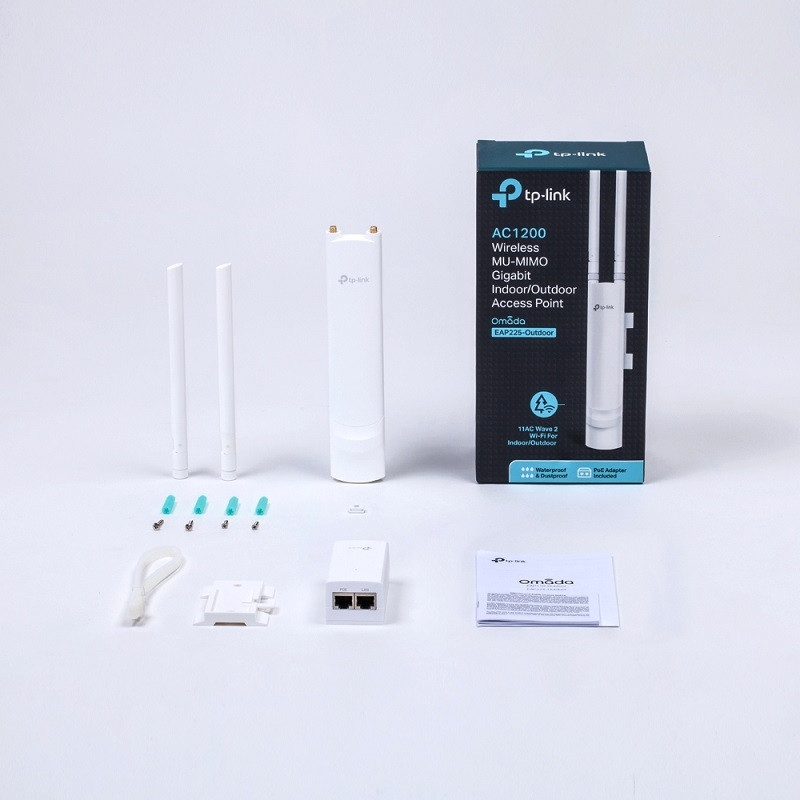

Package Contents: AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point EAP225-Outdoor Power Adapter Mounting Kits Installation Guide

Environment: Operating Temperature: -30 ~70 (-22 ~158 ) Storage Temperature: -40 ~70 (-40 ~158 ) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
