Adapter for front and rear reversing camera plus video input

Modern technology allows for many practical features in cars. But are these features exclusive to new vehicles straight from the showroom? Of course not – you can opt for these features in virtually any car. One of these is a rearview camera. You can install one in your car using an adapter for a front and rear rearview camera, plus a video input, available in our online store.

Reversing safely on any route

The adapter is designed for Chevrolet Camaro, Lexus, Toyota, and Infinity vehicles with GVIF, Land Rover, and Jaguar with touchscreen navigation version 1 and version 1.1 (menu 2). You can use it to install not only a rearview camera but also a front camera and other video sources. See the details of this practical accessory and choose the one for your vehicle.

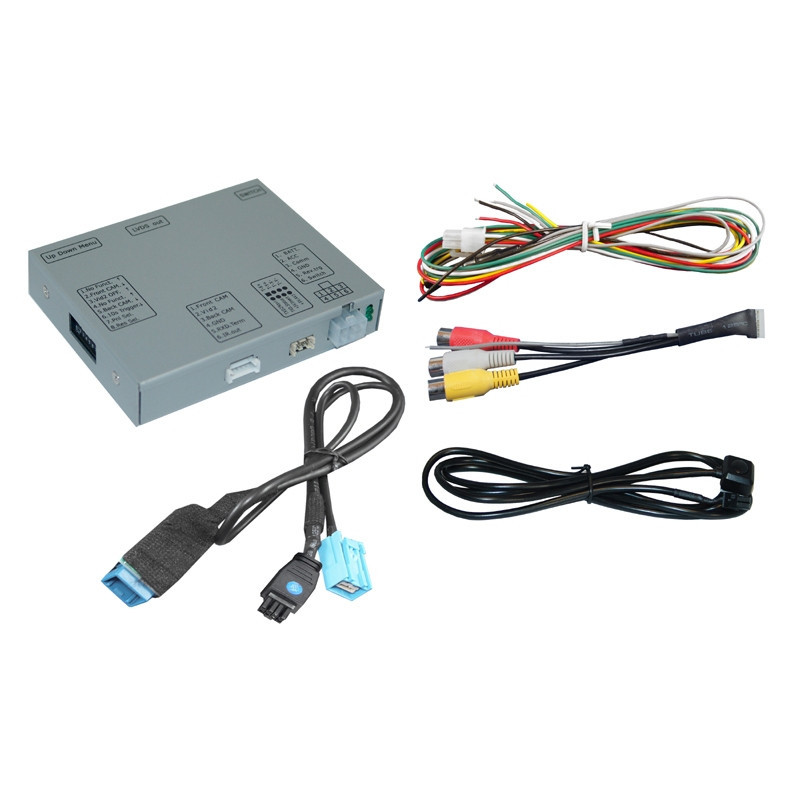

Video adapter for Chevrolet Camaro, Lexus, Toyota and Infinity with GVIF and Land Rover and Jaguar with touchscreen navigation version 1 and version 1.1 (menu 2). For connecting a rear view camera, front camera and other video source.

Product features

• Video adapter for factory infotainment systems,
• 2 FBAS video inputs for modified devices (e.g. USB player, DVB-T2 tuner, ...),
• 1 rear view camera CVBS video input,
• Automatic switching to rear camera input when reverse gear is engaged,
• Manually switch to the front camera using the switch,
• Activating parking guidelines with rear camera (not all vehicles)
• Unlocking the image while driving (for video ONLY),
• Video inputs for NTSC.

Compatibility

• ChevroletCamaro 2013 - 20147 inch MyLink

• JaguarXFX250 MY 2007 - 2011, Touchscreen version 1.1 (menu version 2) --- Only vehicles with navigation ---
• JaguarXKX150 MY 2007 - 2014 Touchscreen version 1.1 (menu version 2) --- Only vehicles with navigation ---

• Land RoverRange Rover L322 2005 - 2009, Touchscreen navi version 1 --- Only vehicles with navigation ---
• Land RoverRange Rover Sport L320 2005 - 2009, Touchscreen navi version 1 --- Only vehicles with navigation ---
• Land RoverDiscovery 3 L319 2004 - 2009,Touchscreen navi version 1 --- Vehicles with navigation only ---
• Land RoverFreelander 2 L359 2007 - 2012Touchscreen version 1.1 (menu version 2) --- Vehicles with navigation only ---

• LexusES, GS, LS, NX, RXand other vehicles with GVIF technology where the monitor and head unit are separate and connected by a GVIF cable (not 2012 LS600H)

• ToyotaLand Cruiser, Priusand other 2007- vehicles with GVIF technology. The monitor and control unit must be separate units and connected with a GVIF cable.

Limitations

• The interface only supports video connections. To connect audio, you must use the AUX input or an FM modulator.

Technical data

• Power supply 7 - 25V,
• Standby mode < 10 mA,
• Video input 0.7V - 1V,
• Video input format NTSC,
• RGB video amplitude 0.7V with 75 Ohm impedance,
• Temperature range -40 ° C to + 85 ° C,
• Dimensions 113 x 22 x 92 mm (W x H x D)
