TELTONIKA Waterproof GPRS/GNSS TRACKER with CAN data reading feature
TELTONIKA Waterproof GPRS / GNSS TRACKER with CAN data reading feature
TELTONIKA Waterproof GPRS/GNSS TRACKER with CAN data reading feature
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Lithuania in
2 - 3
business days

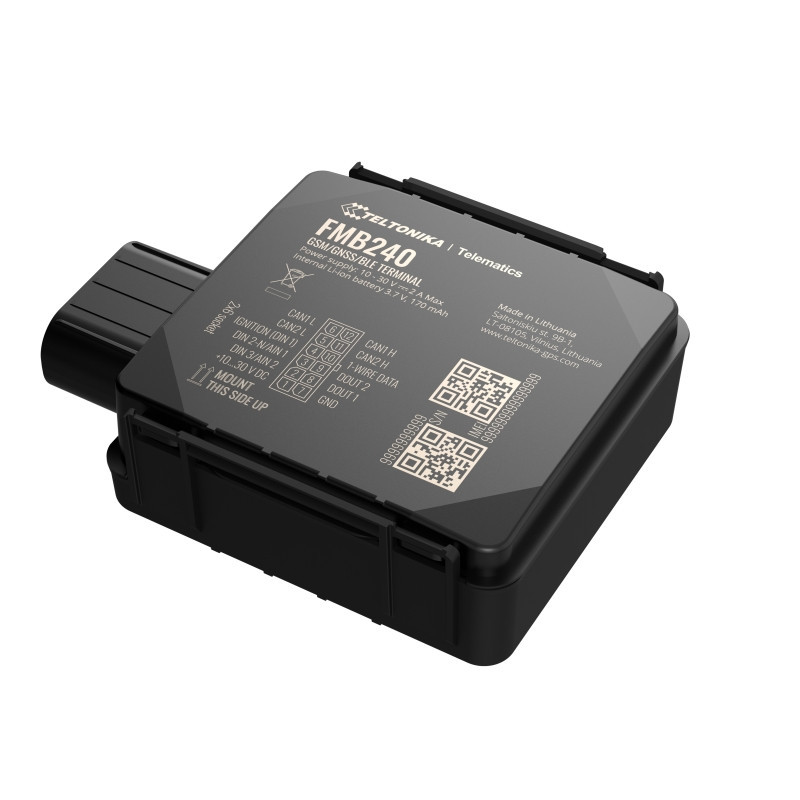

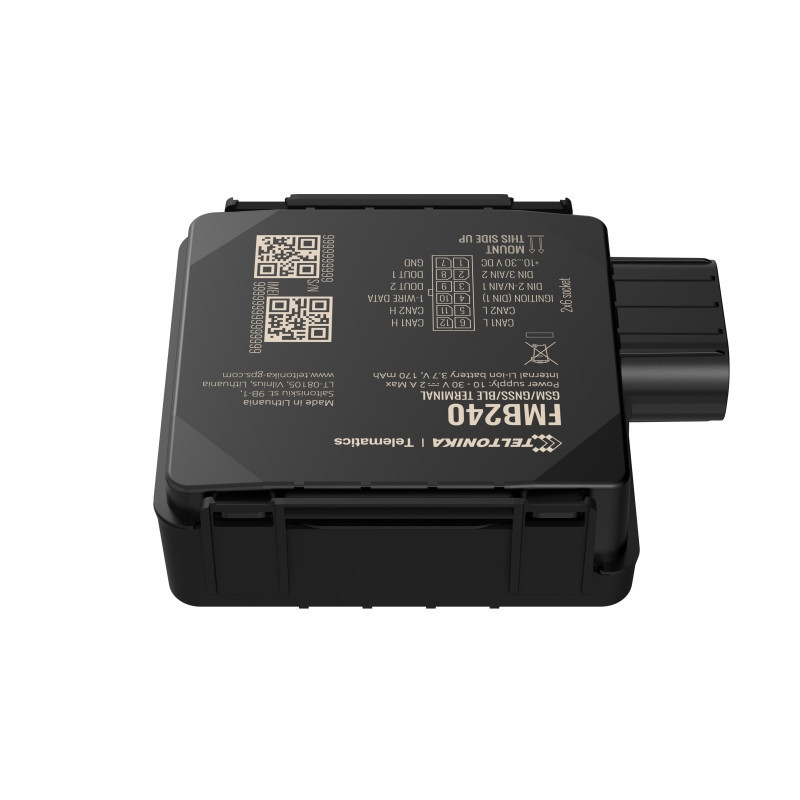

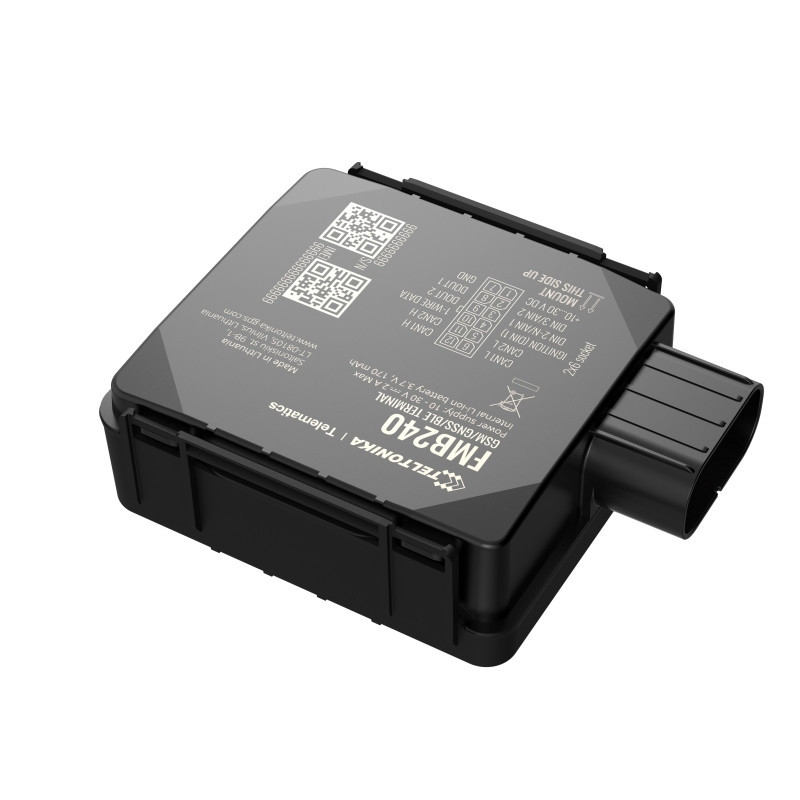

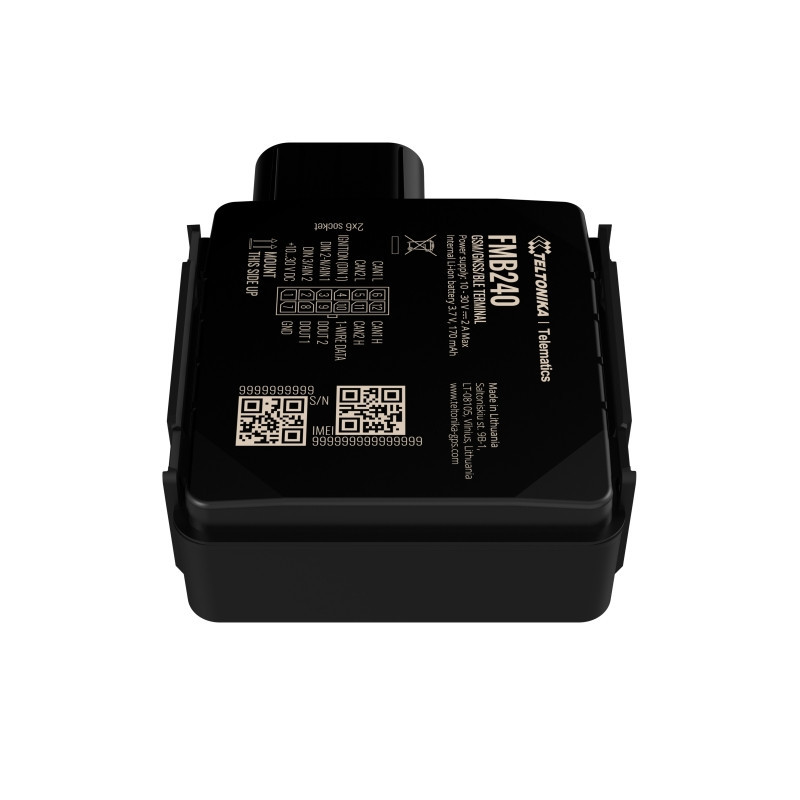

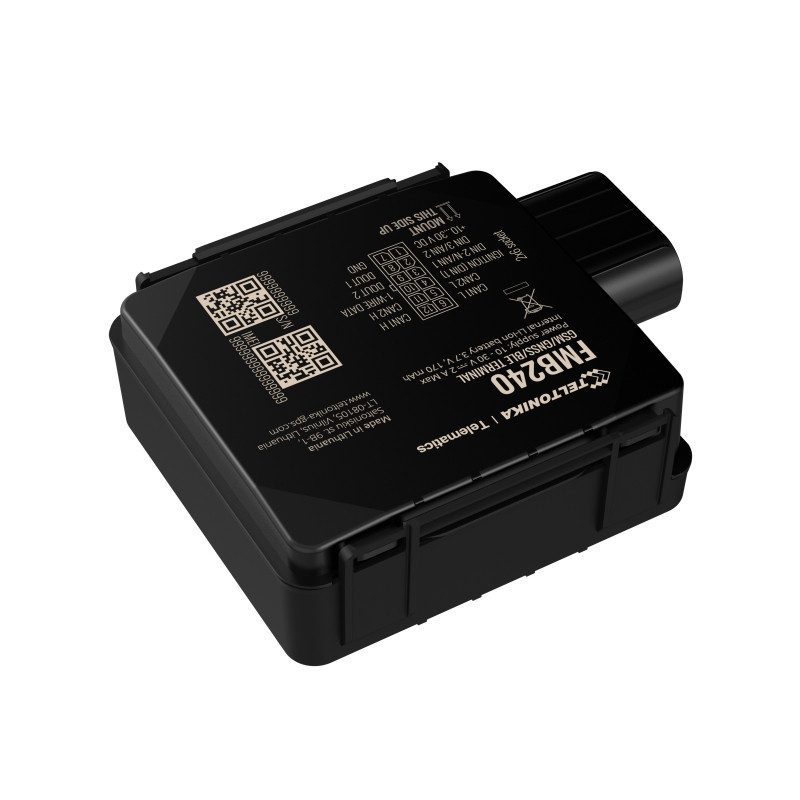

FMB240is a WATERPROOF AND DUSTPROOF GSM/GNSS/Bluetooth tracker with integrated CAN data processor. It is a compact 2-in-1 solution: GPS tracker and CAN adapter in one device! The device allows you to read CAN data from various vehicles, including light and electric vehicles, trucks, buses and special equipment. Two options are offered to meet any business needs:
LV-CAN200option - default software version withLV-CAN200parameters including fuel level, consumption, odometer, CAN speed, pedal position. Supported vehicle types: light vehicles, trucks, buses.
ALL-CAN300option* - advanced software version that allows reading more parameters than the default version. Additional parameters includeAdBluelevel, engine operating time, airbags. Supported vehicle types: agricultural, construction, forestry machinery, municipal and special machinery, light vehicles, trucks, buses + electric vehicles.
FMB240It is based on the existing 'Teltonika' platform, so it retains all theFMB140functions, adding an additionalIP67dust and water resistance.
This tracker is completely dustproof and protected against temporary immersion in water. It can be installed both inside and outside the vehicle without worrying that high-pressure water, dirt or dusty environments will affect its operation or performance quality. This is especially relevant for industries that face difficult conditions, such as agriculture, construction, mining and others.
FMB240supportsBluetooth 4.0 LEprotocol that allows for the connection of various peripheral devices and low-energy Bluetooth sensors. This new device is a significant improvement in telematics, as it provides easier implementation and the flexibility to choose the right feature set without changing the hardware.
| MODULE | |
| In the house | Teltonika TM2500 |
| Technology | GSM/GPRS/GNSS/BLUETOOTH |
| GNSS | |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS |
| Receiver | Tracking: 33 |
| Tracking sensitivity | -165 dBM |
| Accuracy | < 2.5m CEP |
| Hot start | < 1 sec. |
| Warm start | < 25 seconds |
| Cold start | < 35 seconds |
| CELLULAR | |
| Technology | GSM |
| 2G bands | Quad-band 850 / 900 / 1800 / 1900 MHz |
| Data transfer | GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B |
| Data support | SMS (text/data) |
| POWER | |
| Input voltage range | 10 - 30 V DC with overvoltage protection |
| Internal Backup battery | 170 mAh Li-Ion battery 3.7 V (0.63 Wh) |
| Power consumption | At 12V < 6 mA (Ultra Deep Sleep) At 12V < 8 mA (Deep Sleep) At 12V < 11 mA (Online Deep Sleep) At 12V < 20 mA (GPS Sleep) At 12V < 35 mA (nominal with no load) At 12V < 1.5 A Max. (with full load / peak) |
| BLUETOOTH | |
| Specifications | 4.0 + LE |
| Supported peripherals | Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support |
| PHYSICAL SPECIFICATION | |
| Dimensions | 70.5 x 67.0 x 25.6 mm (L x W x H) 85.0 x 67.0 x 25.6 mm (L x W x H) (length with connector socket) |
| OPERATING ENVIRONMENT | |
| Operating temperature (without battery) | -40°C to +85°C |
| Storage temperature (without battery) | -40°C to +85°C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP67 |
| Battery charging temperature | -0 °C to +45 °C |
| Battery discharge temperature | -20°C to +60°C |
| Battery storage temperature | -20 °C to +45 °C for 1 month -20 °C to +35 °C for 6 months |
| INTERFACE | |
| Digital Inputs | 3 |
| Negative Inputs | 1 (Digital Input 2) |
| Impulse Inputs | 2 (Digital Input 1, Digital Input 2) |
| Digital Outputs | 2 |
| Analog Inputs | 2 |
| CAN interfaces | 2 |
| 1-Wire | 1 (1-Wire data) |
| GNSS antenna | Internal High Gain |
| Cellular antenna | Internal High Gain |
| USB | 2.0 Micro USB |
| LED indication | 3 status LED lights |
| SIM | Micro-SIM + eSIM |
| Memory | 128MB internal flash memory |
| FEATURES | |
| CAN Date | Fuel Level (Dashboard), Total fuel consumption, Vehicle speed (wheel), Vehicle driven distance, Engine speed (RPM), Accelerator pedal position |
| Sensors | Accelerometer |
| Scenarios | Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip |
| Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
| Configuration and firmware update | FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration) |
| SMS | Configuration, Events, DOUT control, Debug |
| GPRS commands | Configuration, DOUT control, Debug |
| Time Synchronization | GNSS, NITZ, NTP |
| Ignition detection | Digital Input 1, Accelerometer, External Power Voltage, Engine RPM |
| CERTIFICATIONS APPROVALS (IN PROGRESS) | |
| Regulatory | CE-RED, E-mark, Reach, RoHS, Anatel |
