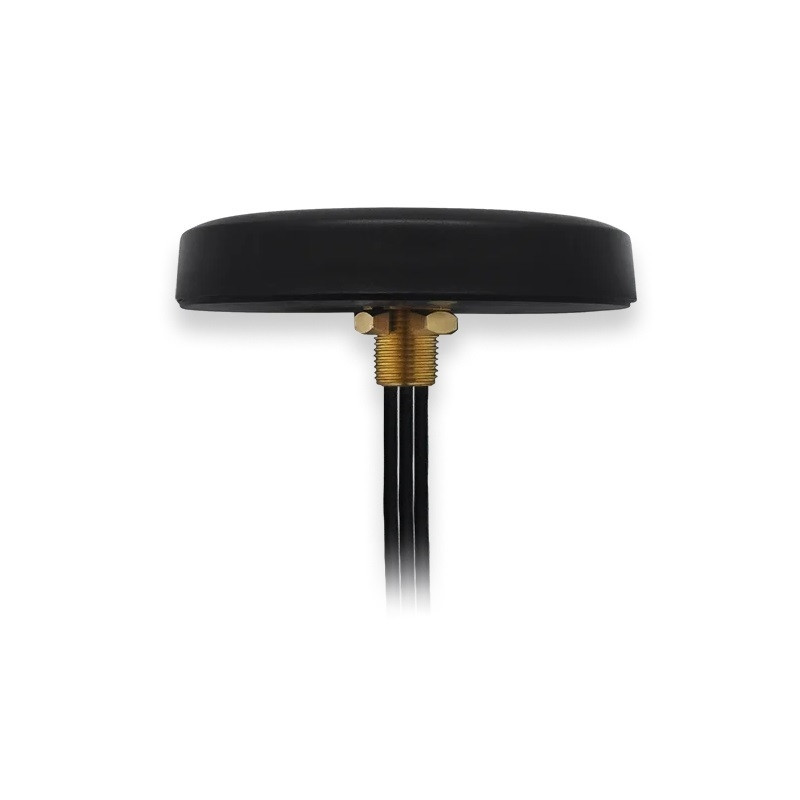

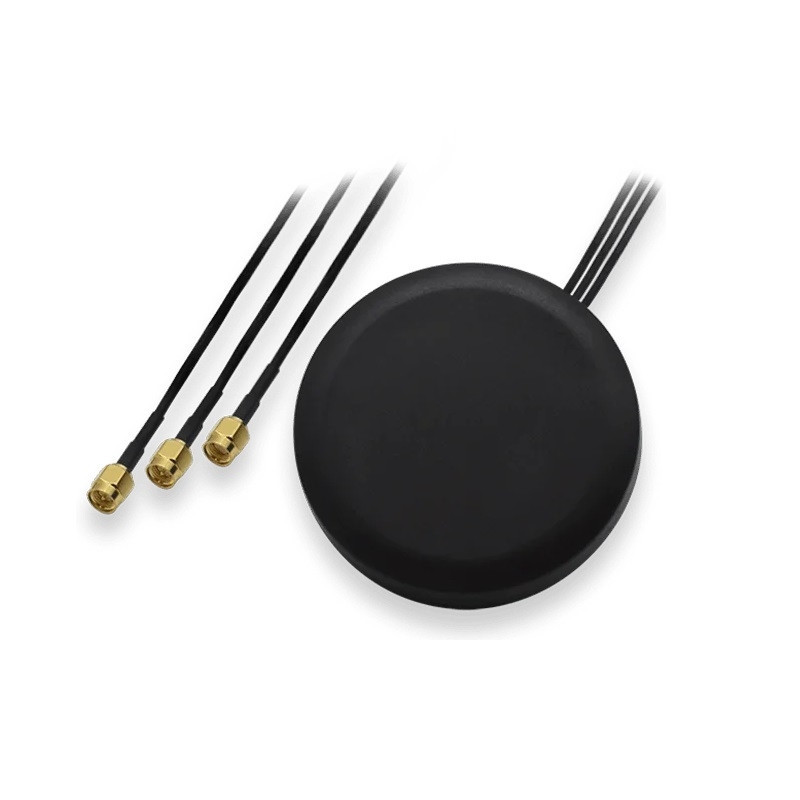

TELTONIKA COMBO SISO Mobile / GNSS / WiFi ROOF SMA Antenna

Compatible with RUTX09, RUT230, RUT240, RUT900, RUT950, RUT955 and some other Teltonika products

GNSS Antenna

Frequency Range: 1575.42-1610 MHz Polarization: RHCP Impedance: 50 Ω LNA Gain: 28 dB LNA Noise Figure: < 1.5 dB Supply Voltage: 2.7-5 ±0.5 VDC Current Consumption: < 15 mA LNA VSWR: <1.65 Connector: SMA Male

LTE Antenna

Frequency Range: 850/900/1800/1900/2170 MHz Bandwidth/: ±90/280 MHz Polarization: Vertical Gain: 3.5 dBi VSWR: <1.5:1 Impedance: 50 Ω Connector: SMA Male

WiFi Antenna

Frequency Range: 2350-2500 MHz Bandwidth: ±100 MHz Polarization: Vertical Gain: 2.5 dBi VSWR: <1.5:1 Impedance: 50 Ω Connector: RP SMA Male

Mechanical/Environmental

Mounting Method: Screw Radome Ingress Protection rating: IP67 Radome Material: ABS Weight: <250g Housing Dimensions: Ø 80x15 mm Cable: 3x RG174, 3000 mm RoHS Compliant: Yes
