TELTONIKA 8 LAN ports 10 / 100 Mbps Industrial DIN rail unmanaged switch

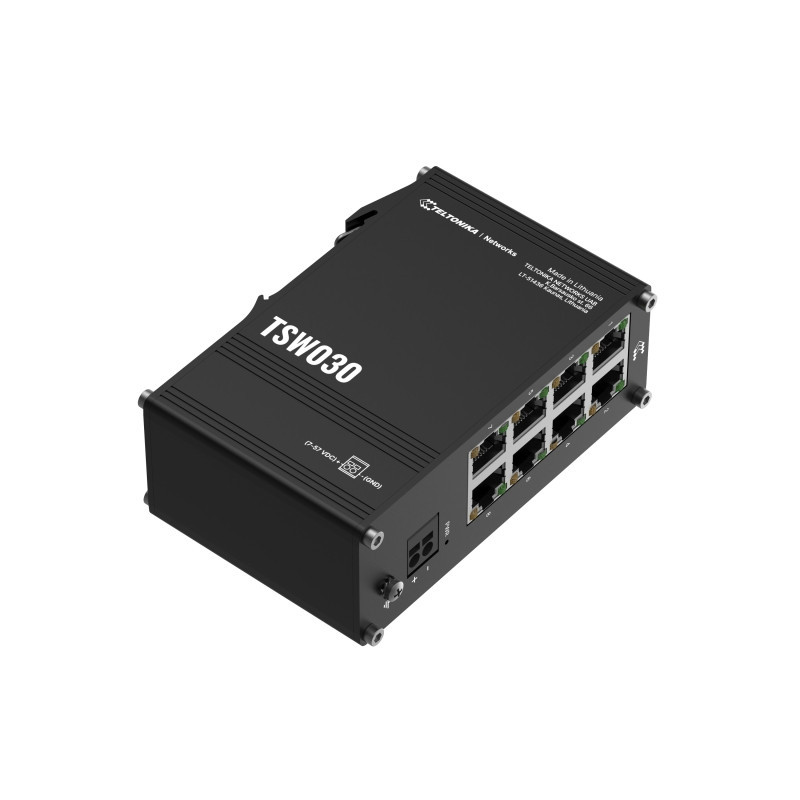

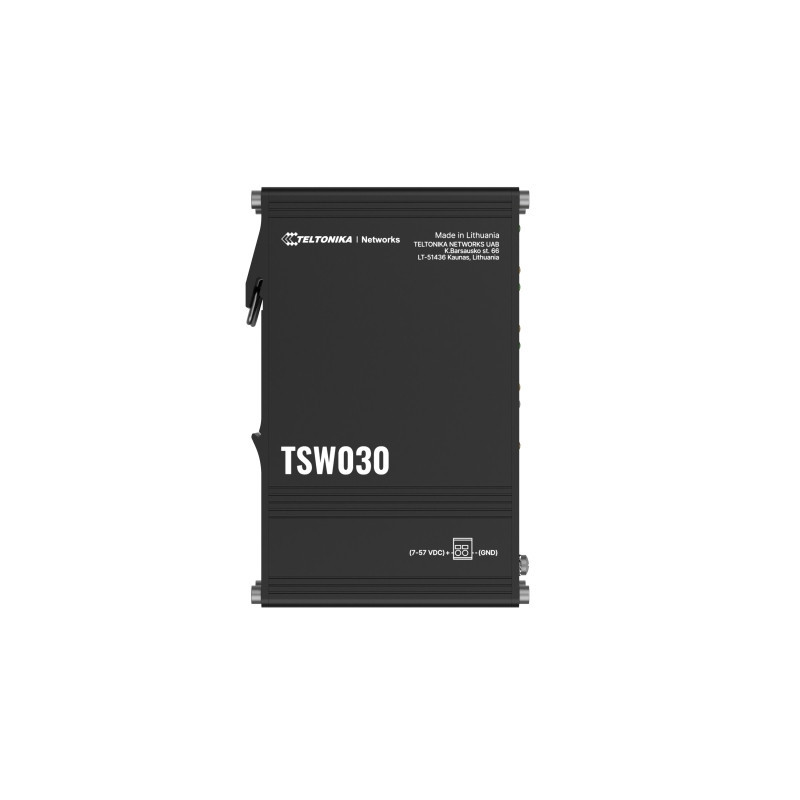

The TSW030 is a cost-efficient unmanaged Ethernet switch, featuring eight 10/100 RJ45 ports and integrated DIN rail mounting. This compact and rugged 8-port switch includes a 2-pin power input and low power consumption of up to 0.5 W when idle and a maximum of up to 1.5 W. These make this plug-and-play switch perfect for industrial applications requiring to connect up to eight devices.

EthernetLEN: 8 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover IEEE 802.3 series standards: 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

Performance SpecificationsBandwidth (Non-blocking): 20 Gbps Packer buffer: 128 KB MAC address table size: 2K entries Jumbo frame support: 9216 bytes

PowerConnector: 2-pin industrial DC power socket Input voltage range: 7 - 57 VDC, overvoltage protection: 60Vmax, reverse polarity protection: 80Vmax, surge protection: min 64.4V/max 71.2V breakdown voltage, 93.6V maximum reverse voltage @4.3A maximum reverse surge current, 1- Vin, 2-PGND Power consumption: Idle: 0.5 W / Max: 1.5 W

Physical InterfacesEthernet: 8 x RJ45 ports, 10/100 Mbps Status LEDs: 1 x Power LED, 16 x ETH status LEDs Power: 1 x 2-pin industrial DC power socket Other: 1 x Grounding screw

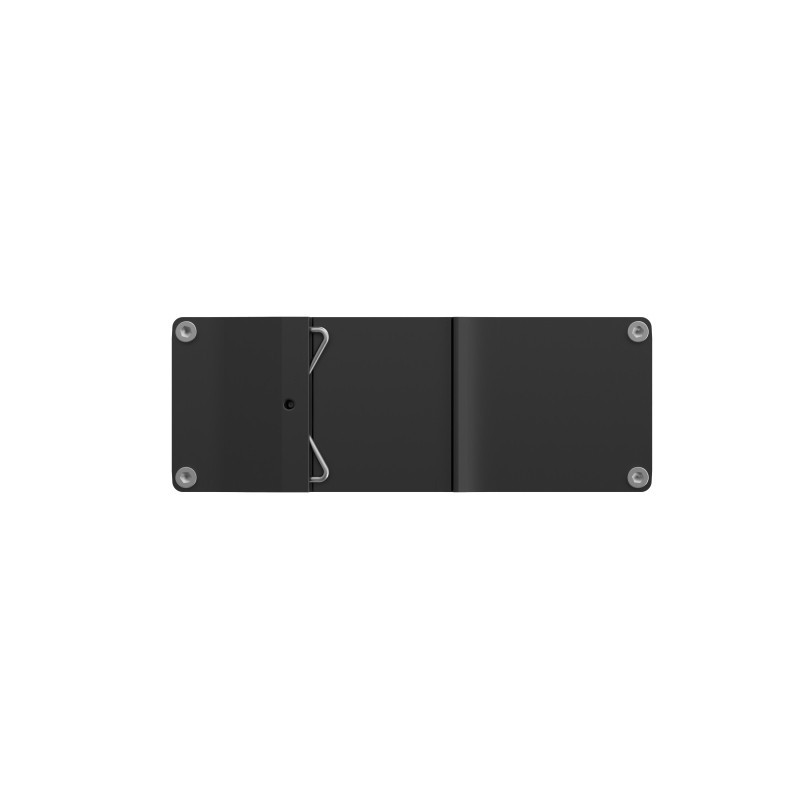

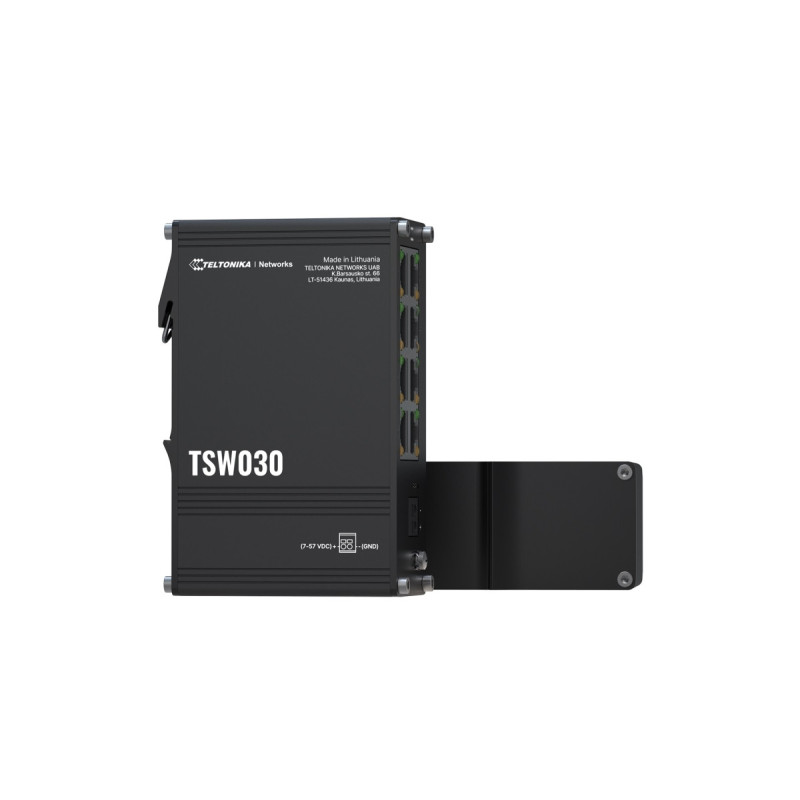

Physical SpecificationCasing material: Anodized aluminum housing and panels Dimensions (W x H x D): 113.1 x 41.2 x 74.6 mm Weight: 256 g Mounting options: Integrated DIN rail bracket, wall mount, flat surface (additional kit needed)

Operating EnvironmentOperating temperature: -40 °C to 75 °C Operating humidity: 10% to 90% non-condensing Ingress Protection Rating: IP30

Regulatory Type ApprovalsRegulatory: CE, UKCA, EAC, UCRF, RCM, FCC, IC, CB

EMC Emissions ImmunityStandards: EN 55032:2015+A11:2020; EN 55035:2017+A11:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; ESD: N 61000-4-2:2009 Radiated Immunity: EN IEC 61000-4-3:2020 EFT: EN 61000-4-4:2012 Surge Immunity (AC Mains Power Port): EN 61000-4-5:2014 + A1:2017 CS: EN 61000-4-6:2014 DIP: EN IEC 61000-4-11:2020

SafetyStandards: IEC 62368-1:2018
