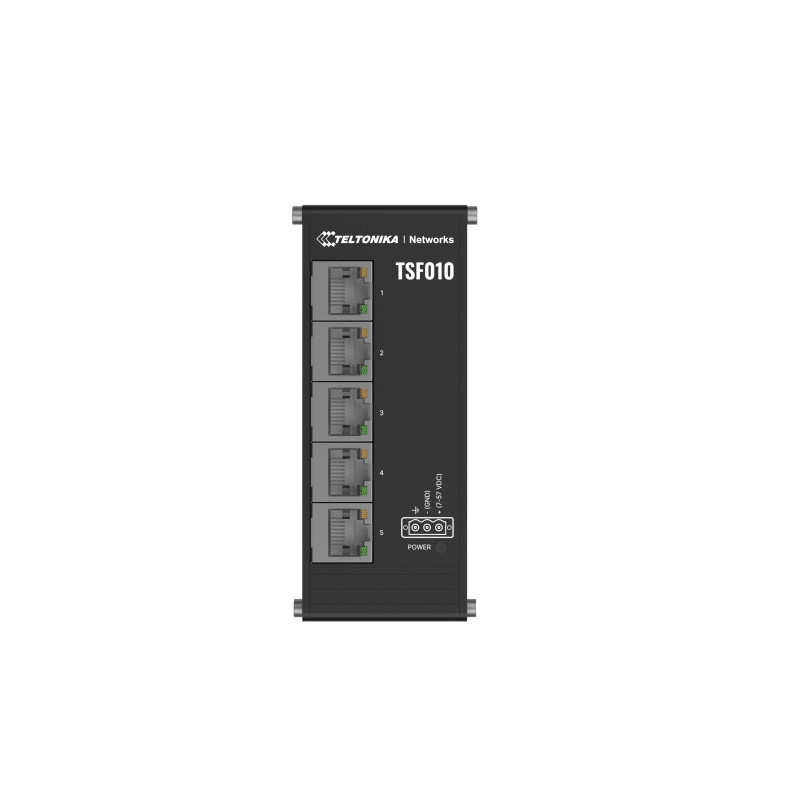

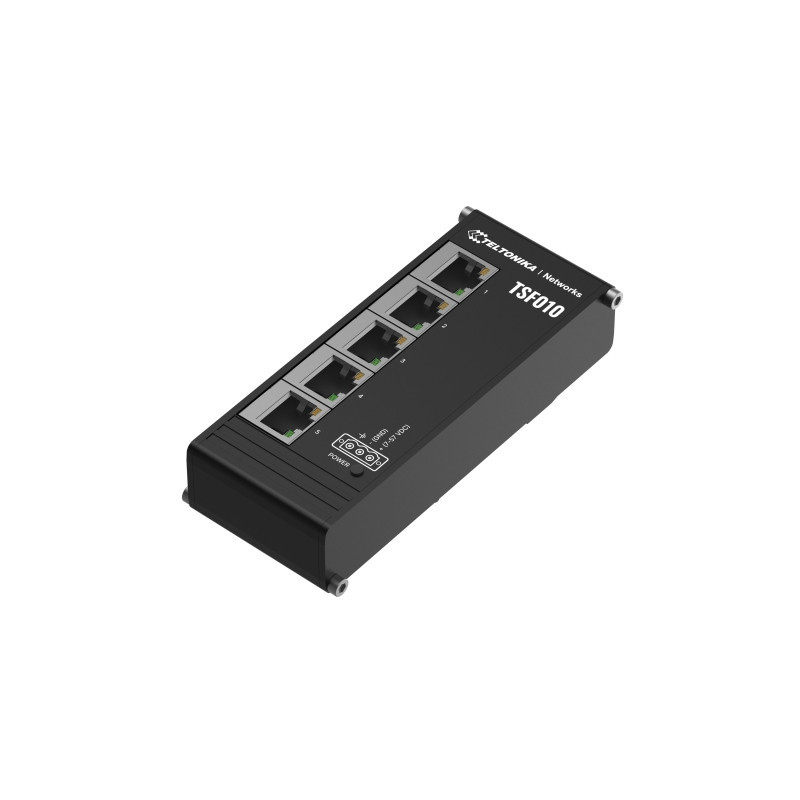

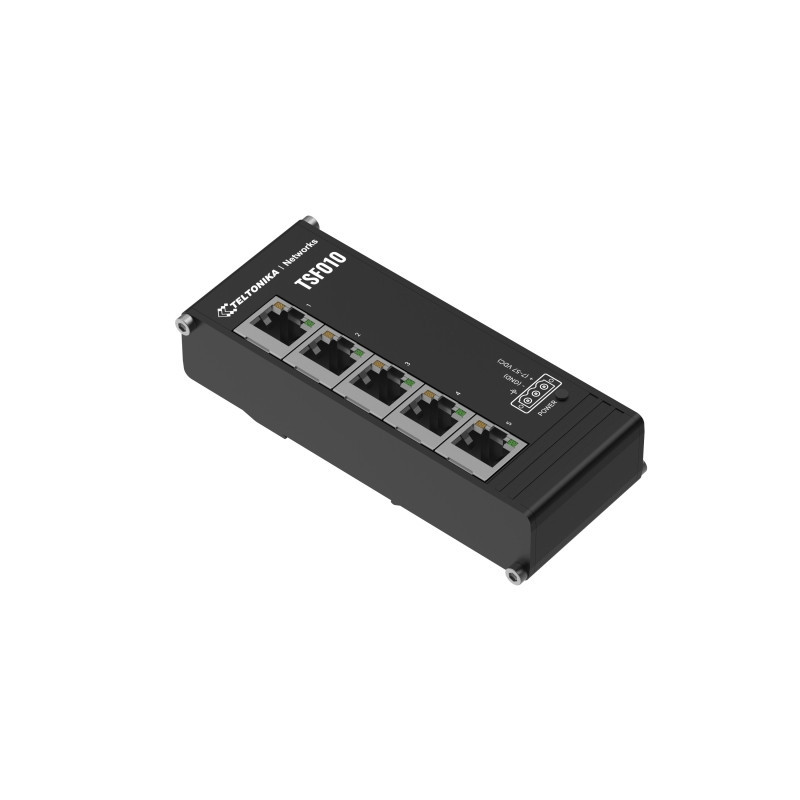

TELTONIKA 5 LAN ports 10 / 100 Mbps Flat industrial DIN rail unmanaged switch

The TSF010 is an unmanaged Ethernet switch featuring a flat design and integrated DIN rail mounting for plug-and-play deployment in industrial cabinet applications. This Ethernet switch is compact and lightweight, measuring 113 x 28 x 50 mm and weighing only 142 g. Its 3-pin power input and 7-57 VDC voltage range make it a flexible unmanaged switch tailor-made for industrial use. The TSF010 is equipped with five 10/100 Mbps RJ45 ports for reliable connectivity.

EthernetLAN: 5 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover IEEE 802.3 series standards: 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

Performance SpecificationsBandwidth (Non-blocking): 10 Gbps Packer buffer: 128 KB MAC address table size: 2K entries Jumbo frame support: 9216 bytes

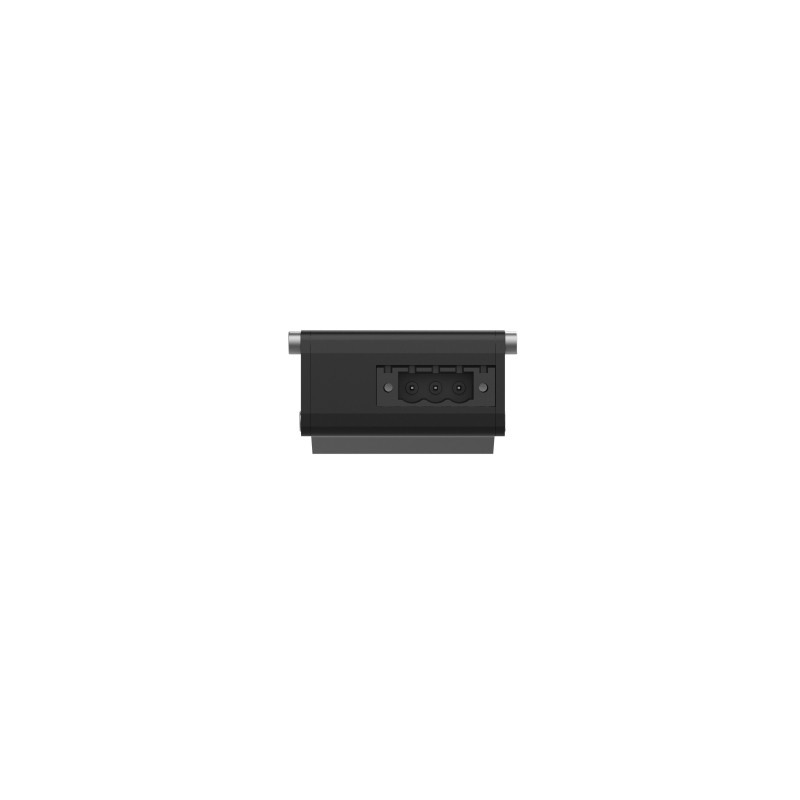

PowerConnector: 3-pin industrial DC power socket Input voltage range: 7 - 57 VDC, overvoltage protection: 60 Vmax, reverse polarity protection: 80 Vmax, surge protection: min 64.4V/max 71.2V breakdown voltage, 93.6V maximum reverse voltage @4.3A maximum reverse surge current Power consumption: Idle: 1 W / Max: 1.5 W

Physical InterfacesEthernet: 5 x RJ45 ports, 10/100 Mbps Status LEDs: 1 x Power LED, 10 x ETH status LEDs Power: 1 x 3-pin industrial DC power socket Grounding: Grounding terminal on power connector

Physical SpecificationCasing material: Anodized aluminum housing and panels Dimensions (W x H x D): 113 x 28 x 50 mm Weight: 142 g Mounting options: Integrated DIN rail bracket

Operating EnvironmentOperating temperature: -40 °C to 75 °C Operating humidity: 10% to 90% non-condensing Ingress Protection Rating: IP30

Regulatory Type ApprovalsRegulatory: CE, UKCA, EAC, UCRF, RCM, FCC, IC, CB

EMC Emissions ImmunityEMI IMMUNITY: EN 55032:2015+A11:2020; EN 55035:2017+A11:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; ESD: EN 61000-4-2:2009 Radiated Immunity: EN IEC 61000-4-3:2020 EFT: EN 61000-4-4:2012 Surge Immunity (AC Mains Power Port): EN 61000-4-5:2014 + A1:2017 CS: EN 61000-4-6:2014 DIP: EN IEC 61000-4-11:2020

SafetyStandards: IEC 62368-1:2018
