ALLNET ALLPRO21RK3399A11POEV2 Signage Display

ALLNET ALLPRO21RK3399A11POEV2. Product design: Digital signage flat panel. Display diagonal: 54.6 cm (21.5"), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 250 cd/m², HD type: Full HD, Touchscreen. Wi-Fi. Operating system installed: Android 11. Product colour: Black

Display

Panel type: IPS
Display diagonal: 54.6 cm (21.5")
Display technology: LCD
Display resolution: 1920 x 1080 pixels
Display brightness: 250 cd/m²
HD type: Full HD
Feature: Touchscreen
Touchscreen technology: Capacitive
Number of simultaneous touchpoints: 10
Feature: Multi-touch
Native aspect ratio: 16:9
Contrast ratio (typical): 1000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Active display area (W x H): 474.64 x 268.11 mm
Display diagonal (metric): 54.6 cm
Number of displays: 1

Ports & interfaces

HDMI ports quantity: 1
HDMI output ports quantity: 1
Feature: USB port
USB ports quantity: 3
USB version: 2.0
Ethernet LAN (RJ-45) ports: 1
Feature: RS-232 interface
Feature: Card reader integrated
Compatible memory cards: SD
Feature: DC-in jack
Feature: PC Audio out

Audio

Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 6 W

Design

Product design: Digital signage flat panel
Placement supported: Indoor
Product colour: Black
Screen shape: Flat
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Mounting type: Wall

Performance

Purpose: Universal
Feature: On Screen Display (OSD)

Computer system

Feature: Computer system
Feature: Built-in processor
Processor manufacturer: Rockchip
Processor model: RK3399
Internal memory: 4 GB
Internal storage capacity: 16 GB
Operating system installed: Android 11
Video formats supported: H.263, H.264, MPEG1, MPEG2, MPEG4, RV, VC-1
Audio formats supported: AAC, MP3, WMA
Image formats supported: JPEG

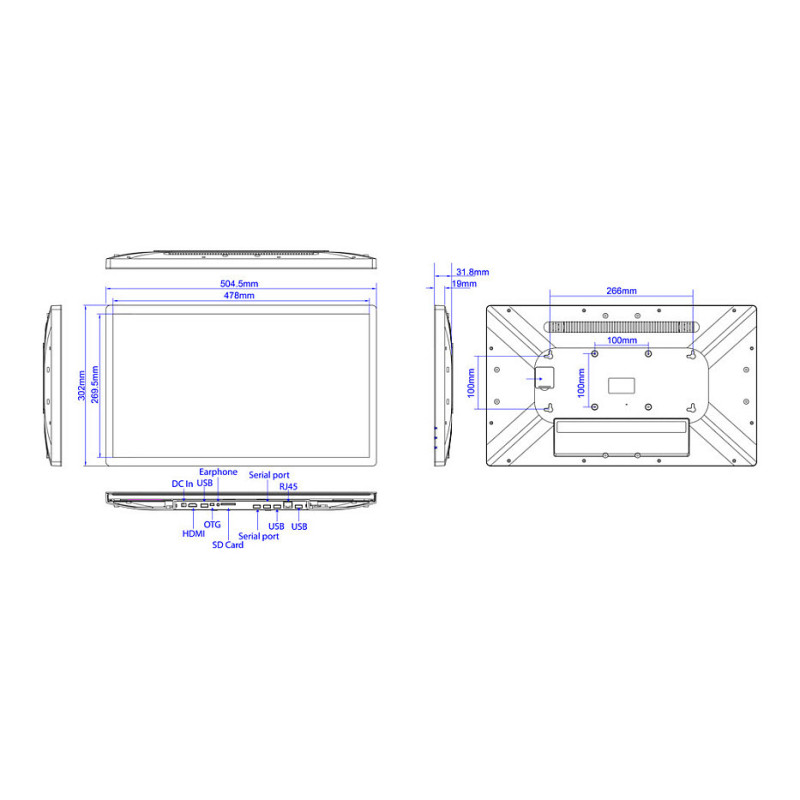

Weight & dimensions

Display width: 504.5 mm
Display depth: 31.8 mm
Display height: 302 mm

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 100,1000 Mbit/s
Feature: Wi-Fi
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Technical details

Compliance certificates: CE

Other features

Feature: Bluetooth
Bluetooth version: 4.0
