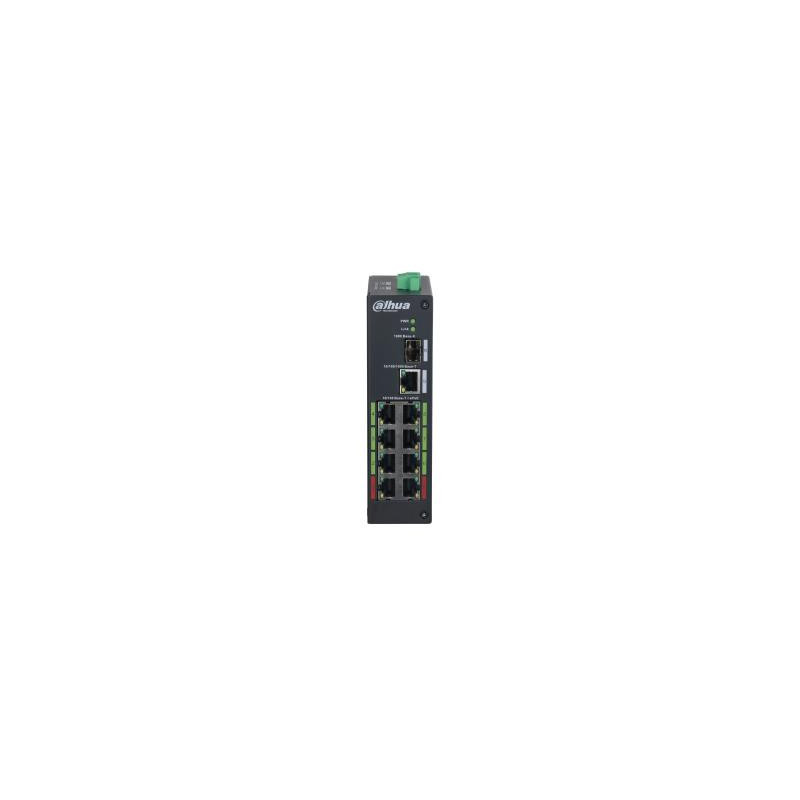

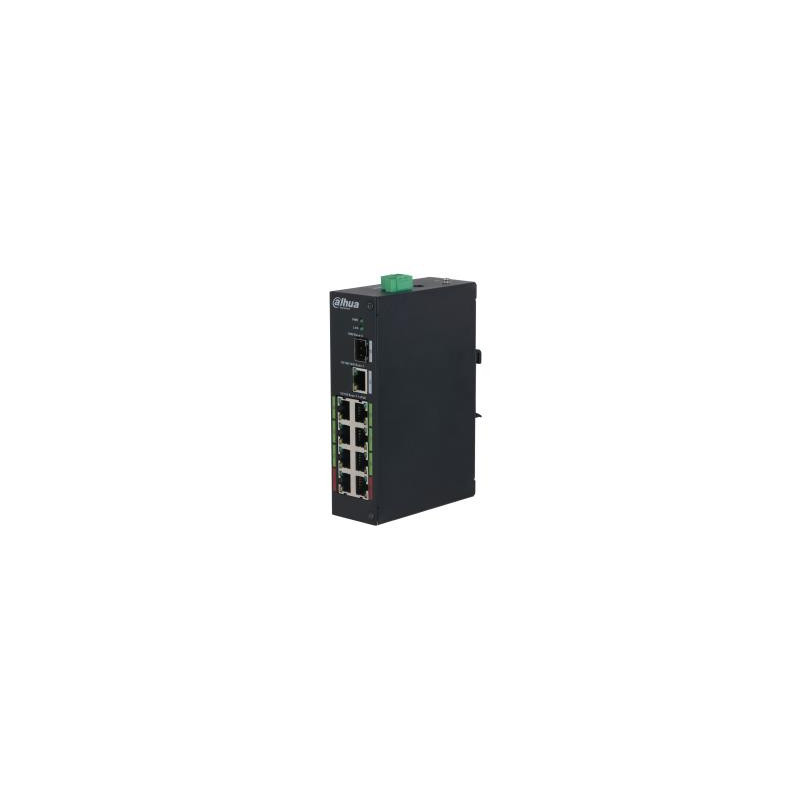

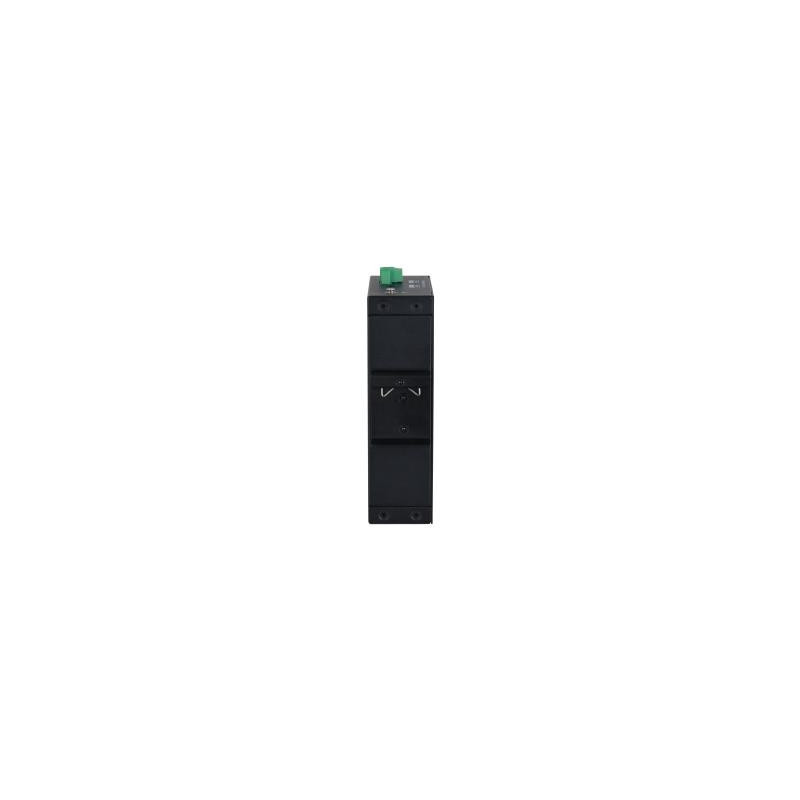

Switch, DAHUA, LR2110-8ET-120-V2, PoE ports 8, DH-LR2110-8ET-120-V2
Product reference: 2-6923172594099
Switch, DAHUA, LR2110-8ET-120-V2, PoE ports 8, DH-LR2110-8ET-120-V2

Switch, DAHUA, LR2110-8ET-120-V2, PoE ports 8, DH-LR2110-8ET-120-V2

Product reference: 2-6923172594099
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
19676 €
Product in warehouse

Guarantee
36 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*

DH-LR2110-8ET-120 is a 8-Port ePoE switch, which is able to realize PoE transmission over 800 meters Ethernet cable at the speed of 10Mbps, or 300 meters at the speed of 100Mbps. Besides, it supports PoE and PoC power supply technology, which has greatly simplified construction and wiring. Dahua ePoE technology offer a new way to accomplish long distance transmission between IP camera and network switch. It allows more flexible surveillance system design, improves reliability and saves construction and wiring cost.

  • Supports long distance PoE transmission up to 800m with ePoE technology of Dahua
  • Layer-two ePoE switch· MAC auto study and aging, MAC address list capacity is 8K
  • Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards
  • Supports IEEE802.3af, IEEE802.3at, Hi-PoE standard
  • Industrial wide temperature design
  • Port indicator light is to display the status of current transmission mode for the port, which includes IEEE, E100 and E10

Summary Dahua Technology DH-LR2110-8ET-120. Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries, Switching capacity: 8.8 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x. DC input voltage: 48 - 57 V. Power over Ethernet (PoE)
Vendor Homepage https://www.dahuasecurity.com/search/products?keyword=LR2110-8ET-120-V2
Unit Box Height 0.076
Unit Box Length 0.267
Unit Box Width 0.24
Switch layer L2
Basic switching RJ-45 Ethernet ports quantity 8
Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity 8
Gigabit Ethernet (copper) ports quantity 1
SFP module slots quantity 1
10G support No
Flow control support Yes
Networking standards IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u/IEEE 802.3x
Forwarding rate 4.17 Mpps
MAC address table 8000 entries
Packet buffer memory 2.75 MB
Switching capacity 8.8 Gbit/s
LED indicators Yes
Product colour Black
DC input voltage 48 - 57 V
Power supply included Yes
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) ports quantity 8
Total Power over Ethernet (PoE) budget 120 W
Operating relative humidity (H-H) 10 - 90 %
Operating temperature (T-T) -30 - 65 °C
Depth 100 mm
Height 42 mm
Weight 590 g
Width 150 mm
Model name LR2110-8ET-120-V2
Units per Shipping Box 1
Unit Calculated Volume 0.00487 cubm
Unit Calculated Weight 1.36 kg
