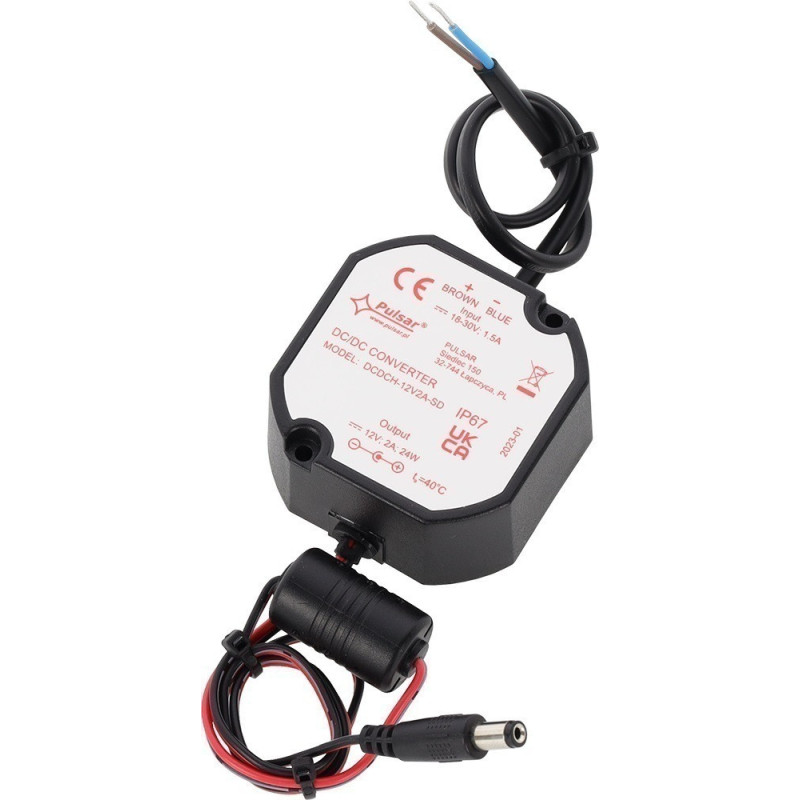

Voltage converter Pulsar DCDCH (2A / 12V)
Product reference: 26-5902135323151
  • Input: 18-30VDC
  • Output: 2A/12V
  • IP67
  • 58x58x28mm
Voltage converter Pulsar DCDCH (2A / 12V)

Voltage converter Pulsar DCDCH (2A / 12V)

Product reference: 26-5902135323151
  • Input: 18-30VDC
  • Output: 2A/12V
  • IP67
  • 58x58x28mm
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
15,37 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
Not available
  • Home
  • Supply voltage 18-30 V DC
  • Power 24W max.
  • Efficiency 93%
  • Output voltage 12 V DC
  • Current consumption in PSU systems 10 mA max.
  • Output current strength 2 A
  • Ripple voltage 100 mV p-p max.
  • Protection class IP67
  • Working conditions (temperature) -10oC÷40oC
  • Operating conditions (Humidity) 20%...90%
  • Size 58 x 58 x 28 [mm]
  • Weight 0.16 / 0.19 [kg]
  • Input cable 0.3 m
  • Output cable 0.5 m + plug DC5,5/2,1 female
  • Storage conditions temperature -20ºC...+60ºC

ManufacturerPulsar
Manufacturer codeMBDCDCH12020
Weight0.161 kg
