TP-LINK TPLINK NVR VIGI NVR4032H (VIGI NVR4032H)

VIGI NVR4032H
VIGI 32kanálový network video recorder
Decoding capacity 16 channels at 2 Mpx / 8 channels at 4 Mpx†: You can watch several channels, live broadcast and playback at the same time.
1 interface HDMI a 1 interface VGA: Supports independent video output.
H.265+: The camera transmits a compressed crystal clear image without using any additional bandwidth, which takes up four disk space, reduces network load and monitoring costs without losing image quality.
Wideband 320 Mbit/s for incoming and outgoing transmissions: Thanks to this, the video recorder NVR will handle it obslújita more cameras with high resolution.
High-capacity storage: Supports 4 SATA disk drives, each with a size of up to 10 TB.
Simultaneous playback of 16 channels: Play recordings from up to 16 cameras at the same time, increase playback speed Search events in the overview of records for easy viewing of records.
Two Ethernet ports: Supports three network modes, including multi-address mode, resistance to network failure and distribution load.
Plug Play: Allows you to automatically connect a new IP camera VIGI to a new video recorder NVR and activate it immediately. Installation is as fast as ever.
Vzdialené monitoring: Special applications VIGI, web user interface and administration management VIGI Security Manager allow simple and convenient remote monitoring
Montage do racku: Úspora mistae a faleščenie instalation.
ONVIF ensures compatibility: Thanks barrier-free compatibility, you can easily add IP cameras to VIGI aj inych znažiek a svetajnú a rozmanitú network.
DECODING
Decoding Format H.265+/H.265/ H.264+/H.264
Live View/Playback Resolution 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/
2CIF/CIF/QCIF
Synchronous Playback 16-Channel
Capability 16-ch @ 1080p (30 fps), 8-ch @ 4MP (30 fps), 4-ch @ 8MP
(30 fps)
NETWORK
Incoming Bandwidth 320 Mbps
Outgoing Bandwidth 320 Mbps

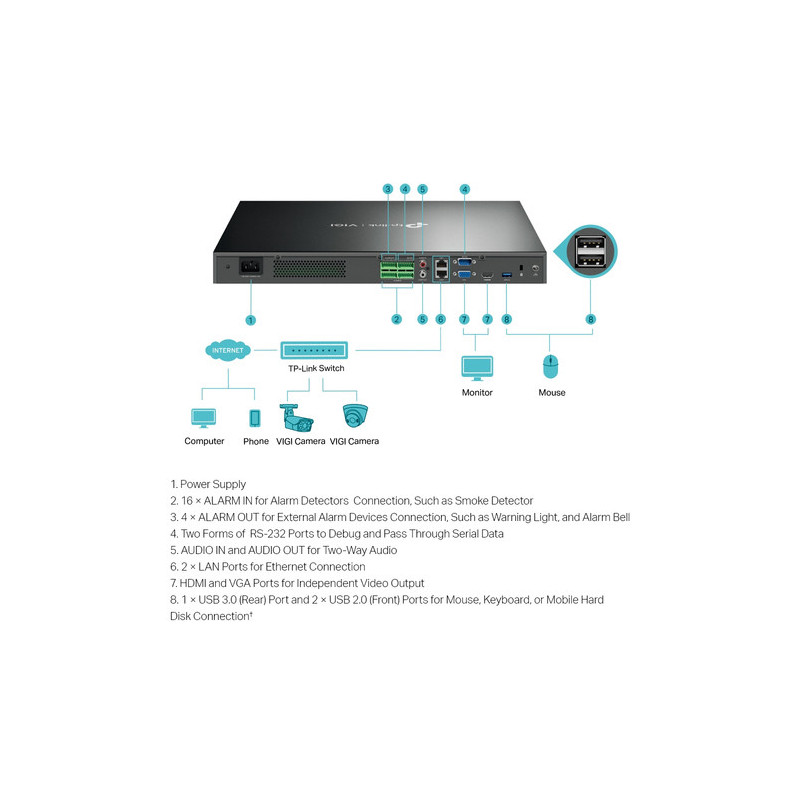

EXTERNAL INTERFACE
Network Interface 2, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet
Interface
USB Interface USB Interface
Audio Interface 1, Audio In; 1, Audio Out
Alarm In/Out 16/4
Serial Interface 1, RS232_
NETWORK MANAGEMENT
Network Protocols UPnP (Plug and Play), NTP (Network Timing)
Interoperability ONVIF, CGI
Mobile Phone Access Android, iOS
Browser Chrome (57+), Firefox (52+), Edge (91+)
HARD DISK
SATA 4 SATA Interfaces
Capacity Up to 10 TB Capacity for Each HDD
ALARM
General Alarm Motion Detection, Video Tampering, Intrusion Detection,
Line-Crossing Detection
Anomaly Alarm Video Loss, Offline and IP Conflict, Disk Exception, Login
Exception, Fan Exception
Alarm Linkage Recording, White Light Alarm, Buzzer, Log, Audible Alarm
GENERAL
Package Contents VIGI Network Video Recorder
Mouse
Installation Guide
Power Cord, HDD Power Cables, HDD Data Cables, and Terminal Blocks
Mounting Brackets, Screws and Rubber Feet
Working Temperature -10-55 °C
Working Humidity 10%~90% RH Non-Condensing
Dimensions( WXDXH ) 440 × 330×44 mm
Net Weight 4.0 Kg
Power Supply 100-240 VAC, 50 to 60HZ, 1.5A
Power Consumption 5 W (Without Disk)
48 W (With Disk)
RECORD PLAYBACK
Record Mode Manual Recording, Scheduling Recording, Motion Detection
Recording
Playback Mode Instant Playback, Regular Playback, Tag Playback, Event
Playback
Backup Mode Regular Backup, Video Clip Backup
Playback Function Play, Pause, Stop, Fast Forward, Fast Backward, Play by
Frame, Full Screen, Video Clip, Export Clip, Digital Zoom,
Lock Recording, Audio On/Off
VIDEO/IMAGE
IP Video Input 32-Channel
Multi-View Display 1/4/6/8/9/16/25/32/36
Video Output Mode HDMI/VGA Independent Output
Recording Resolution 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/
2CIF/CIF/QCIF
HDMI Output Resolution 1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz,
1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz,
1280x720/60Hz, 1024x768/60Hz
VGA Output Resolution 1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz,
1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz,
1024x768/60Hz
