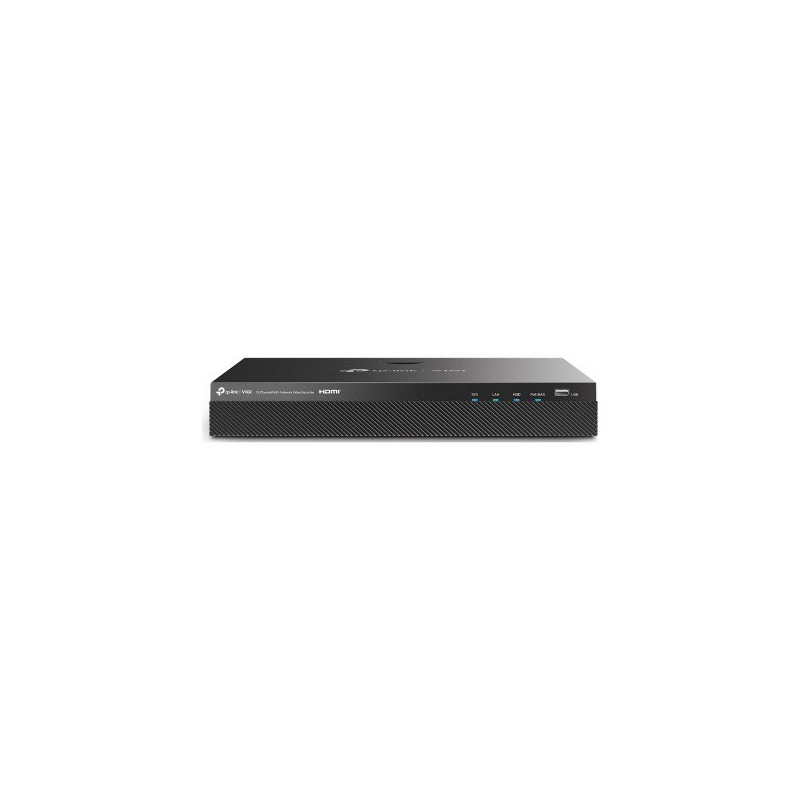

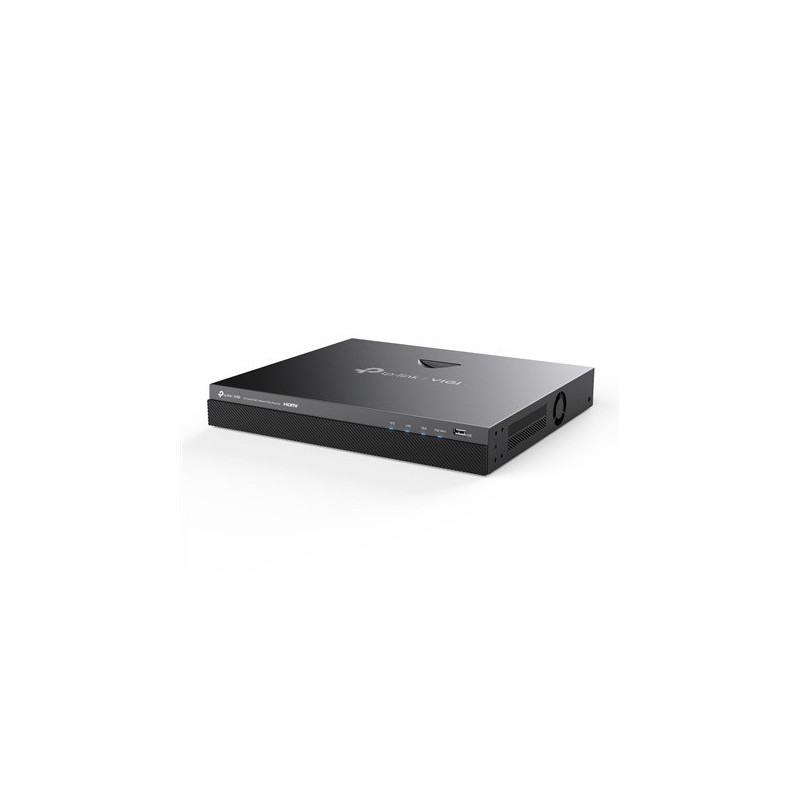

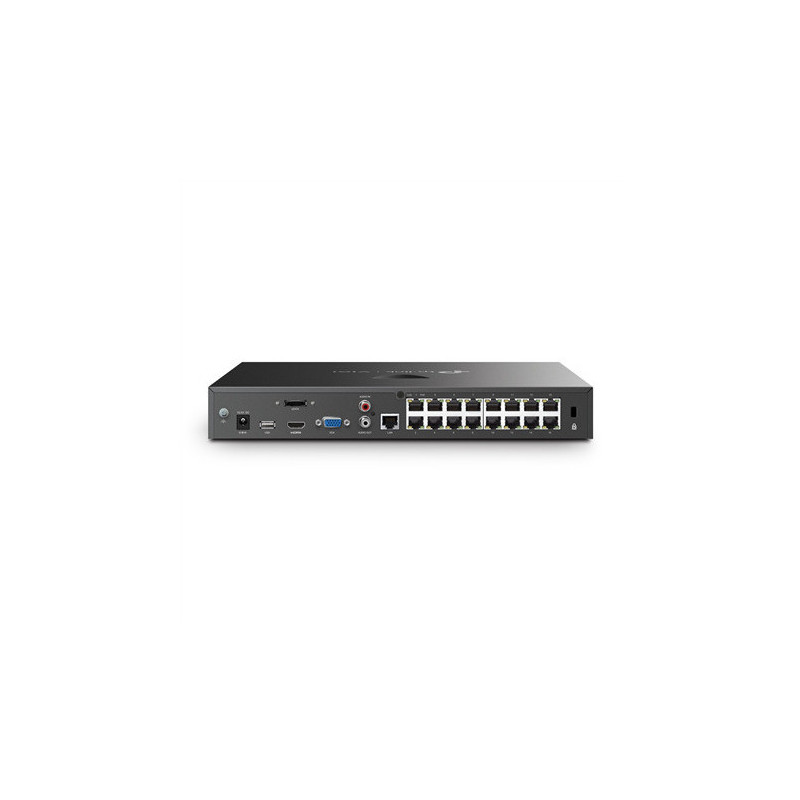

TP-LINK TPLINK NVR VIGI NVR2016H-16MP NVR2016H16MP (VIGI NVR2016H-16MP)
Product reference:
3-4895252504026
TP-LINK TPLINK NVR VIGI NVR2016H-16MP NVR2016H16MP (VIGI NVR2016H-16MP)
TP-LINK TPLINK NVR VIGI NVR2016H-16MP NVR2016H16MP (VIGI NVR2016H-16MP)
Product reference:
3-4895252504026
TP-LINK TPLINK NVR VIGI NVR2016H-16MP NVR2016H16MP (VIGI NVR2016H-16MP)
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
11 - 16
business days
VIGI NVR2016H-16MP | Video input channels 16 channels | Video recording modes 720p/1080p | Video motion detection Yes | Maximum storage capacity 10 TB | HDD interface SATA | 1xEthernet LAN (RJ-45) port | 16xPower over Ethernet (PoE) port quantity
| Summary: | TP-Link VIGI NVR2016H-16MP. Video input channels: 16 channels, Maximum resolution: 3840 x 2160 pixels, Number of simultaneously playbacked channels: 16 channels. Maximum storage capacity: 10 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3af, IEEE 802.3at, Supported network protocols: UPnP (Plug and Play), NTP (Network Timing). Product colour: Black, Certification: CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI. Power consumption (max): 40 W, Output current: 2.43 A, Output voltage: 53.5 V |
| Vendor Homepage: | www.tp-link.com/en/business-networking/vigi-network-video-recorder/vigi-nvr2016h-16mp/v1%20(no%20hdd)/ |
| Category Code: | NVR |
| CnCode: | 85219000 |
| Unit Box Height: | 0.345 |
| Unit Box Length: | 0.4 |
| Unit Box Width: | 0.14 |
| Audio formats supported: | G.711 µ-law/G.711 A-law/G.726 |
| Input bandwidth: | 80Mbit/s |
| Maximum frame rate: | 30fps |
| Maximum resolution: | 3840 x 2160pixels |
| Number of simultaneously playback channels: | 16channels |
| Output bandwidth: | 60Mbit/s |
| Playback controls: | Yes |
| Playback mode: | Digital zoom,Fast play,Forward,Full screen,Pause,Play,Stop |
| Recording mode: | Manual,Schedule |
| Supported resolutions: | HDMI Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz, 3840x2160/30Hz VGA Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x10 |
| Video formats supported: | H.264/H.264+/H.265/H.265+ |
| Video input channels: | 16channels |
| Video motion detection: | Yes |
| Video recording modes: | 1080p/720p |
| Wi-Fi: | From |
| HDD capacity: | 0GB |
| HDD interface: | SATA |
| Maximum storage capacity: | 10TB |
| Number of HDDs supported: | 2 |
| Audio output: | 1 |
| DC-in jack: | Yes |
| eSATA: | Yes |
| eSATA ports quantity: | 1 |
| Ethernet LAN (RJ-45) port: | 1 |
| Ethernet LAN data rates: | 10/100/1000Mbit/s |
| HDMI ports quantity: | 1 |
| Internal SATA ports quantity: | 2 |
| Line-in: | Yes |
| Networking standards: | IEEE 802.3af/IEEE 802.3at |
| Power over Ethernet (PoE): | Yes |
| Power over Ethernet (PoE) port quantity: | 16 |
| Supported network protocols: | UPnP (Plug and Play), NTP (Network Timing) |
| USB 2.0 ports quantity: | 2 |
| VGA (D-Sub) output port: | 1 |
| Certification: | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI |
| Product colour: | Black |
| Reset button: | Yes |
| Output current: | 2.43A |
| Output voltage: | 53.5V |
| Power consumption (max): | 40W |
| Total Power over Ethernet (PoE) budget: | 140W |
| Operating relative humidity (HH): | 10 - 90% |
| Operating temperature (TT): | -10 - 55°C |
| Storage temperature (TT): | -40 - 70°C |
| Depth: | 285mm |
| Height: | 45mm |
| Package weight: | 4100g |
| Weight: | 2100g |
| Width: | 330mm |
| AC adapter included: | Yes |
| Cables included: | AC |
| Quick installation guide: | Yes |
| Model: | VIGI NVR2016H-16MP |
| Model name: | VIGI NVR2016H-16MP |
| Units per Shipping Box: | 1 |
| Unit Calculated Volume: | 0.01932m³ |
| Unit Calculated Weight: | 4.06kg |
