TP-LINK TPLINK IP-Kamera IPKamera VIGI C540(4mm)
TP-LINK TPLINK IP-Kamera IPKamera VIGI C540(4mm)
Guarantee
24 month
Delivery from Lithuania in
3 - 8
business days
Powerful Pan Tilt
Cover every corner flexibly with VIGI's Pan Tilt camera. Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve the security within your property.

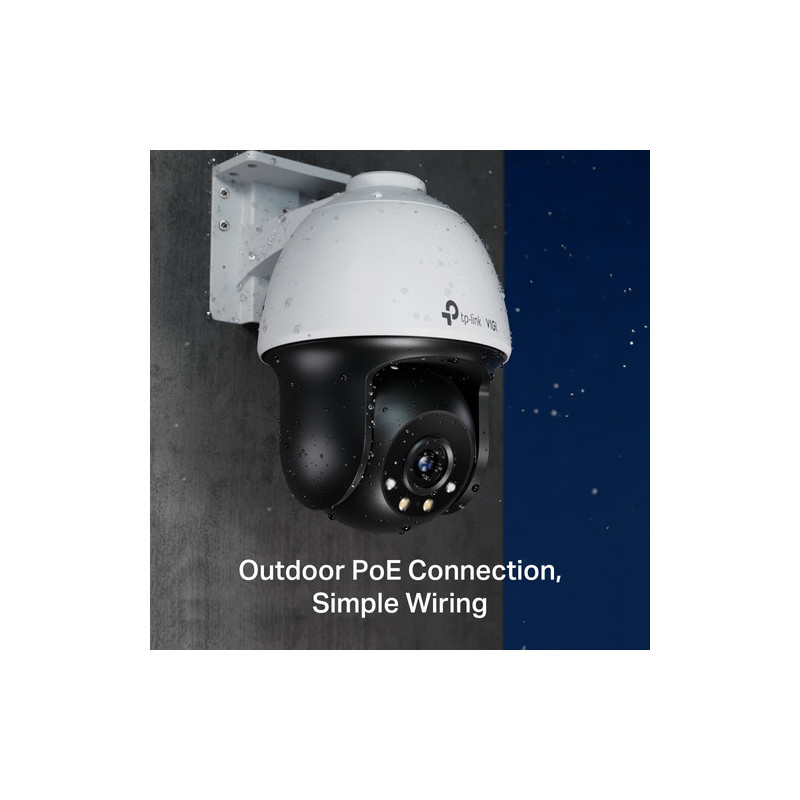

Outdoor PoE Connection, Simple Wiring
Connect your camera with an RJ45 cable, then your power supply and data transmission are all settled. Waterproof hardware protect stable performance in outdoor scenarios.
Clarity and Colors, All in One
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
We keep an eye on your business.
Smart Detection
Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.
Active Defense
Warn potential intruders instantly with sound and light when abnormal events are detected.
Every Event is Under Your Control.
VIGI camera intelligently detects activities, informs you instantly, and responds automatically by smart detection and two-way audio.
Never miss a detail.
SmartVid-Smart Video Enhancement
Smart IS
Keeps objects from being under-rendered when far away or overexposed when close to the camera at night.
Wide Dynamic Range
Adjusts for lighting contrast to minimize shadowing effects and renders images true to life.
3D DNR
Removes abnormal pixelation to provide clearer video and eliminate distortion.
More compression. More will save. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Flexible Management and Storage
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger. Local storage is available for each method, as well as onboard storage with an SD card slot (up to 256 GB).
| Summary: | TP-Link VIGI 4MP Outdoor Full-Color Pan Tilt Network Camera. Type: IP security camera, Placement supported: Indoor outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Turret. Lens viewing angle, horizontal: 79°, Lens viewing angle, vertical: 43°, Lens viewing angle, diagonal: 93°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Lens diameter: 4 mm |
| Vendor Homepage: | https://www.tp-link.com/en/business-networking/vigi-network-camera/vigi-c540/v1/ |
| Category Code: | FNC |
| CnCode: | 85258900 |
| Unit Box Height: | 0.215 |
| Unit Box Length: | 0.245 |
| Unit Box Width: | 0.165 |
| Form factor: | Turret |
| Housing material: | Plastic |
| International Protection (IP) code: | IP66 |
| Mounting type: | Ceiling/wall |
| Product colour: | Black/White |
| Certification: | RCM, BSMI, VCCI, NTRA, KC |
| Connectivity technology: | Wired |
| Placement supported: | Indoor outdoor |
| Type: | IP security camera |
| Camera pan control: | Yes |
| Camera tilt control: | Yes |
| Lens viewing angle, diagonal: | 93° |
| Lens viewing angle, horizontal: | 79° |
| Lens viewing angle, vertical: | 43° |
| Pan range: | 0 - 350° |
| Tilt angle range: | 0 - 120° |
| Optical sensor size: | 1/3" |
| Sensor type: | CMOS |
| Lens diameter: | 4mm |
| Number of lenses: | 1 |
| Zoom capability: | Yes |
| LED type: | IS |
| Night vision: | Yes |
| Night vision distance: | 30m |
| Bitrate: | 256 Kbps - 4 Mbps |
| Digital Wide Dynamic Range (DWDR): | Yes |
| Frame rate: | 30fps |
| Image quality adjustment: | Brightness/Contrast/Mirror/Saturation/Sharpness |
| Maximum resolution: | 2560 x 1440pixels |
| Noise reduction: | Yes |
| Noise reduction technology: | 3D noise reduction |
| Privacy masking: | Yes |
| Supported graphics resolutions: | 1920 x 1080 (HD 1080)/2048 x 1280/2304 x 1296/2560 x 1440/320 x 240/352 x 288/640 x 480 (VGA) |
| Total megapixels: | 4MP |
| Video compression formats: | H.264/H.264+/H.265/H.265+ |
| Video streaming: | Yes |
| Built-in microphone: | Yes |
| Built-in speaker(s): | Yes |
| Bluetooth: | From |
| Ethernet interface type: | Fast Ethernet |
| Ethernet LAN: | Yes |
| Live view: | Yes |
| Number of simultaneous live view channels: | 3channels |
| Supported network protocols: | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Wi-Fi: | From |
| Built-in HDD: | From |
| Card reader integrated: | Yes |
| Compatible memory cards: | MicroSD (TransFlash) |
| Maximum memory card size: | 256GB |
| Ethernet LAN (RJ-45) port: | 1 |
| Digest authentication: | Yes |
| HTTPS encryption: | Yes |
| Intelligent Video Surveillance (IVS) system features: | Human detection |
| IP address filtering: | Yes |
| Mirror: | Yes |
| Password protection: | Yes |
| Behavior analysis: | Intrusion detection, Line crossing detection |
| Reset button: | Yes |
| DC output voltage: | 12 |
| Power consumption (Power over Ethernet (PoE)): | 14W |
| Power source type: | PoE |
| Operating temperature (TT): | -30 - 60°C |
| Depth: | 172mm |
| Height: | 198mm |
| Width: | 120mm |
| Compliance certificates: | CE/RoHS |
| Package depth: | 213mm |
| Package height: | 243mm |
| Package weight: | 950g |
| Package width: | 163mm |
| Mounting kit: | Yes |
| Number of cameras: | 1 |
| Model: | VIGI C540 |
| Units per Shipping Box: | 8 |
| Unit Calculated Volume: | 0.01004m³ |
| Unit Calculated Weight: | 1.18kg |
