TP-LINK TPLINK IP-Kamera IPKamera InSight S485(2 8mm) TP-Link8mm) TP-Link 8mm)
TP-LINK TPLINK IP-Kamera IPKamera InSight S485(2 8mm) TP-Link8mm) TP-Link 8mm)
Guarantee
24 month
Delivery from Lithuania in
3 - 5
business days
People Vehicle Analytics
Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
Human Vehicle Classification
Distinguish humans and vehicles from other objects and receive more accurate event notifications.
True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.△
Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.
Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.
| Summary: | TP-Link INSIGHT S485. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Turret. Lens viewing angle, horizontal: 111.4°, Lens viewing angle, vertical: 58.8°, Lens viewing angle, diagonal: 134°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Detect distance: 85 m, Observe distance: 35 m, Recognize distance: 17 m |
| Vendor Homepage: | https://www.tp-link.com/uk/business-networking/vigi-network-camera/insight-s485/v1%20(2.8mm%20lens)/#highlights |
| Category Code: | FNC |
| CnCode: | 85258900 |
| Unit Box Height: | 0.115 |
| Unit Box Length: | 0.16 |
| Unit Box Width: | 0.16 |
| Form factor: | Turret |
| Housing material: | Metal |
| International Protection (IP) code: | IP67 |
| Mounting type: | Ceiling |
| Product colour: | White |
| Protection features: | Waterproof |
| Weatherproof: | Yes |
| Connectivity technology: | Wired |
| Day/night mode: | Yes |
| Dynamic range: | 120dB |
| Infrared (IR) cut-off filter: | Yes |
| Maximum operating distance: | 85m |
| Placement supported: | Outdoor |
| Remote viewing: | Yes |
| Type: | IP security camera |
| Wide Dynamic Range (WDR): | Yes |
| Camera shutter speed: | 1/3 to 1/10000s |
| Lens viewing angle, diagonal: | 134° |
| Lens viewing angle, horizontal: | 111.4° |
| Lens viewing angle, vertical: | 58.8° |
| Tilt angle range: | 0 - 90° |
| Optical sensor size: | 1/2.7" |
| Progressive scan: | Yes |
| Sensor type: | CMOS |
| Detect distance: | 85m |
| Fixed focal length: | 2.8mm |
| Fixed focus: | Yes |
| Identify distance: | 8m |
| Maximum aperture number: | 1.6 |
| Observe distance: | 35m |
| Recognize distance: | 17m |
| LED type: | IR/White |
| Night vision: | Yes |
| Back Light Compensation (BLC): | Yes |
| Bitrate: | Main Stream: 256 Kbps to 8 Mbps, Sub-Stream: 64 Kbps to 512 Kbps |
| Bit rate control: | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Digital Wide Dynamic Range (DWDR): | Yes |
| Highlight Compensation (HLC): | Yes |
| Image quality adjustment: | Brightness/Contrast/Mirror/Saturation/Sharpness |
| Maximum resolution: | 3840 x 2160pixels |
| Supported graphics resolutions: | 1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2048 x 1280/2304 x 1296/2560 x 1440/3840 x 2160 |
| Total megapixels: | 8MP |
| Video compression formats: | H.264/H.264+/H.265/H.265+ |
| Video recording: | Yes |
| Audio formats supported: | G.711 A-law |
| Audio input channels: | 1.0channels |
| Audio output channels: | 1.0channels |
| Audio system: | 2-way |
| Bit rate range: | 0 - 64Kbit/s |
| Built-in microphone: | Yes |
| Built-in speaker(s): | Yes |
| Number of microphones: | 1 |
| Sample rate: | 8kHz |
| Bluetooth: | From |
| Ethernet LAN: | Yes |
| Live view: | Yes |
| Networking standards: | IEEE 802.3af/IEEE 802.3at |
| Supported network protocols: | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| Wi-Fi: | From |
| Compatible memory cards: | MicroSD (TransFlash) |
| Maximum memory card size: | 512GB |
| DC-in jack: | Yes |
| Ethernet LAN (RJ-45) port: | 1 |
| Alert notification type: | Push notifications |
| Built-in siren: | Yes |
| HTTPS encryption: | Yes |
| IP address filtering: | Yes |
| Mirror: | Yes |
| Motion sensor: | Yes |
| Password protection: | Yes |
| Video motion detection: | Yes |
| Cloud-managed: | Yes |
| Reset button: | Yes |
| Web browser: | Yes |
| Web-based management: | Yes |
| DC output voltage: | 12 |
| Power consumption (max): | 11.5W |
| Power consumption (Power over Ethernet (PoE)): | 12.5W |
| Power source type: | DC,PoE |
| Operating relative humidity (HH): | 0 - 95% |
| Operating temperature (TT): | -30 - 60°C |
| Storage relative humidity (HH): | 0 - 95% |
| Storage temperature (TT): | -40 - 60°C |
| Height: | 83.7mm |
| Length: | 111mm |
| Weight: | 480g |
| Width: | 111mm |
| Package type: | Box |

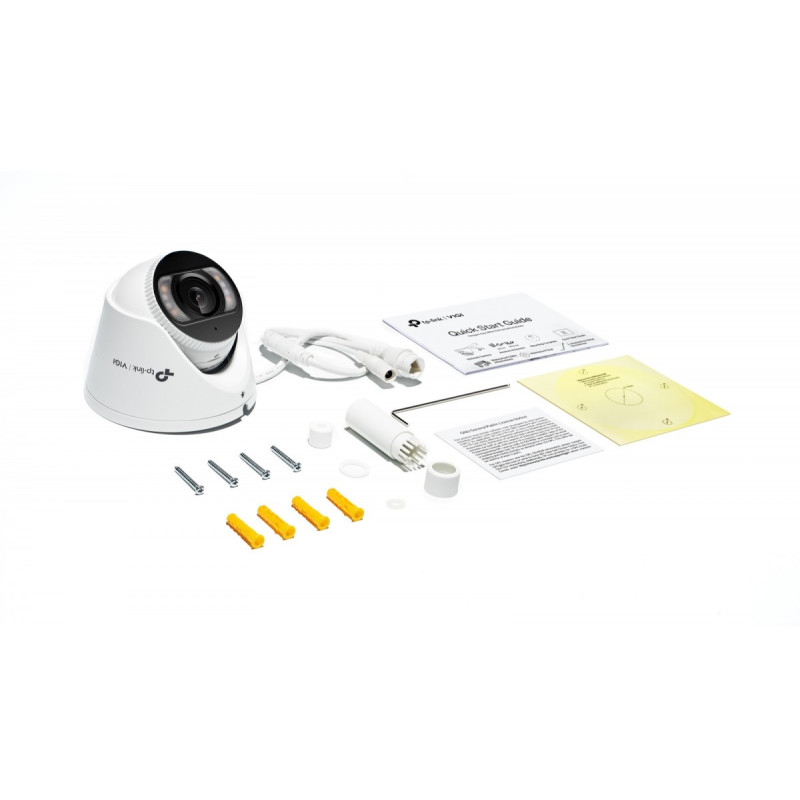

| Drilling template included: | Yes |
| Manual: | Yes |
| Mounting kit: | Yes |
| Number of cameras: | 1 |
| Screws included: | Yes |
| Model: | InSight S485 |
| Units per Pallet: | 0 |
| Units per Shipping Box: | 1 |
| Unit Calculated Volume: | 0.002944m³ |
| Unit Calculated Weight: | 0.745kg |
