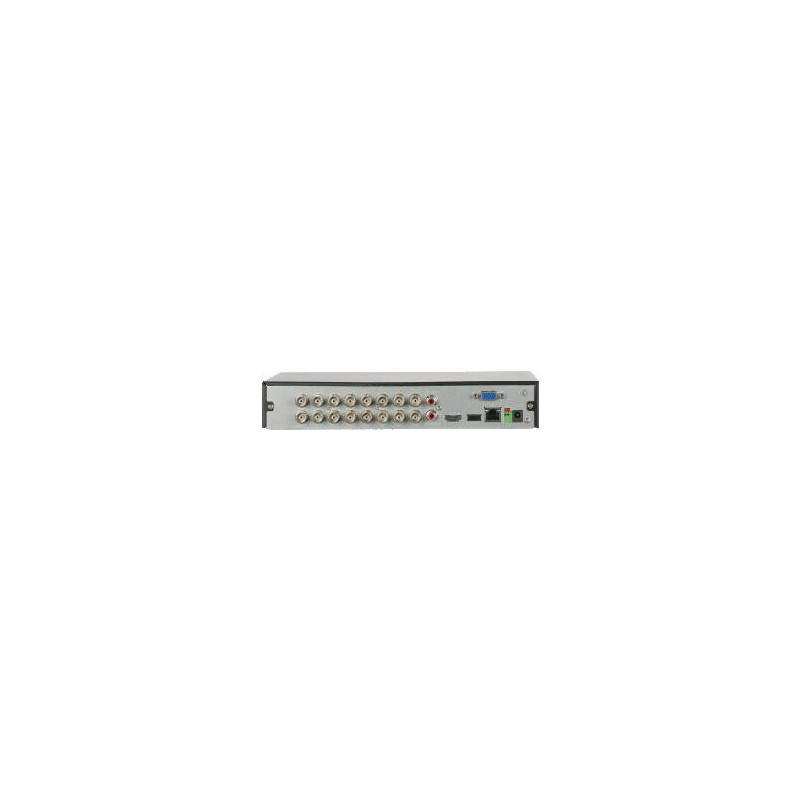

REGISTER AHD, HD-CVI, HD-TVI, CVBS, IP XVR5116HS-I3/T 16 KANAŁÓW DAHUA
REGISTER AHD, HD-CVI, HD-TVI, CVBS, IP XVR5116HS-I3/T 16 KANAŁÓW DAHUA
Guarantee
24 month
Delivery from Europe in
9 - 14
business days
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt an independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to act quickly on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
Dahua Technology, a world-leading video-centric smart IoT solution and service provider, debuted its new XVR series, XVR5000-I3 Series featuring max.full-channel SMD Plus to benefit customers from AI upgrade (The number of channels differs depending on the model. Please refer to the specifications below for information on the number of channels.). This series has been developed to reduce false-alarm rates and the cost of human surveillance, thus bringing great value to customers in search of products with accurate human/vehicle alarm to raise the security level of various indoor and outdoor facilities.
| Summary: | Dahua Technology XVR5116HS-I3/T. Product colour: Black, Maximum video resolution: 3840 x 2160 pixels, Video compression formats: H.264, H.264+, H.265, H.265+. Audio input: 1 RCA, Audio output: 1 RCA, Video in: HDCVI/AHD/TVI/CVBS/IP. Ethernet interface type: Fast Ethernet, Supported network protocols: HTTP, HTTPS, TCP / IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P. HDD interface: SATA, Maximum HDD capacity: 16 TB. Power supply type: DC, DC voltage: 12 V |
| Vendor Homepage: | https://www.dahuasecurity.com/products/All-Products/HDCVI-Recorders/5MP-Value1080p-Series/XVR5116HS-I3/T |
| Category Code: | STD |
| CnCode: | 85219000 |
| Unit Box Height: | 0.086 |
| Unit Box Length: | 0.344 |
| Unit Box Width: | 0.285 |
| Audio input: | 1 RCA |
| Audio output: | 1 RCA |
| BNC input port: | 16 |
| HDMI ports quantity: | 1 |
| RS-485 port: | 1 |
| USB 2.0 ports quantity: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A port quantity: | 1 |
| VGA (D-Sub) output port: | 1 |
| Video in: | HDCVI/AHD/TVI/CVBS/IP |
| Ethernet interface type: | Fast Ethernet |
| Ethernet LAN: | Yes |
| Ethernet LAN (RJ-45) port: | 1 |
| Supported network protocols: | HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P |
| HDD interface: | SATA |
| Maximum HDD capacity: | 16000GB |
| Analog signal format system: | NTSC/PAL |
| Audio formats supported: | G.711 µ-law/G.711 A-law/PCM |
| Backup function: | Yes |
| Bitrate: | 32Kbit/s |
| Certification: | CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B |
| Channel quantity: | 16channels |
| Dual stream support: | Yes |
| Maximum video resolution: | 3840 x 2160pixels |
| Operating system installed: | Embedded LINUX |
| Product colour: | Black |
| PTZ control: | Yes |
| Rack capacity: | 1U |
| Video capturing speed (NTSC): | 30fps |
| Video capturing speed (PAL): | 25fps |
| Video compression formats: | H.264/H.264+/H.265/H.265+ |
| Video loss detection: | Yes |
| Video motion detection: | Yes |
| Video streaming: | Yes |
| DC voltage: | 12V |
| Power supply type: | DC |
| Depth: | 237.4mm |
| Height: | 47.6mm |
| Weight: | 1170g |
| Width: | 260mm |
| Package depth: | 333mm |
| Package height: | 315mm |
| Package width: | 89mm |
| Operating relative humidity (HH): | 10 - 90% |
| Operating temperature (TT): | -10 - 55°C |
| Model: | XVR5116HS-I3/T |
| Units per Shipping Box: | 1 |
| Unit Calculated Volume: | 0.008431m³ |
| Unit Calculated Weight: | 1.58kg |
