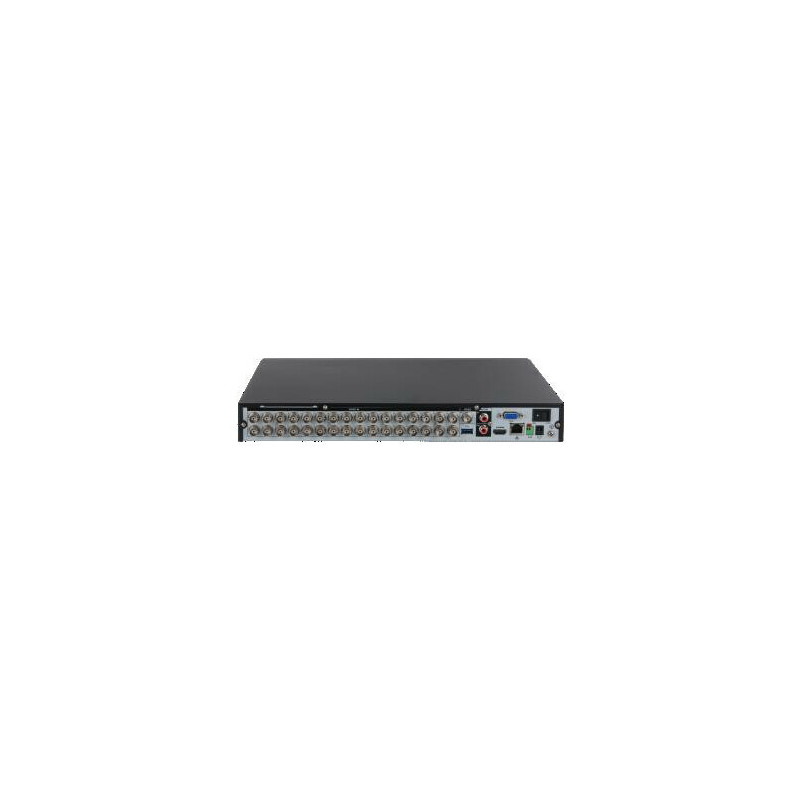

Recorder AHD, HD-CVI, HD-TVI, CVBS, IP XVR5232AN-4KL-I3 / T 32 CHANNELS DAHUA
Product reference:
3-6937552419872
Recorder AHD, HD-CVI, HD-TVI, CVBS, IP XVR5232AN-4KL-I3/T 32 CHANNELS DAHUA
Recorder AHD, HD-CVI, HD-TVI, CVBS, IP XVR5232AN-4KL-I3 / T 32 CHANNELS DAHUA
Product reference:
3-6937552419872
Recorder AHD, HD-CVI, HD-TVI, CVBS, IP XVR5232AN-4KL-I3/T 32 CHANNELS DAHUA
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 8
business days
- 32-channel two-way talk over coaxial cable allows for seamless communication between the camera, client and recorder
- 12-channel AcuPick for analog channels which improves the efficiency of target retrieval
- 12-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI
- 6-channel face recognition for analog channels which supports face comparison
- 32-channel SMD Plus for analog channels or 64-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles
- 32-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos
- Supports HDCVI, AHD, TVI, CVBS and IP video input
- Supports up to 64-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 256 Mbps
- Supports accessing Wi-Fi cameras, making it suitable for a wide range of scenes
- Smart H.265+ and H.265 dual-stream video compression
| Summary: | Dahua Technology XVR5232AN-4KL-I3/T. Product colour: Black, Maximum video resolution: 3840 x 2160 pixels, Video compression formats: H.264, H.264+, H.265, H.265+. Video resolutions: 3840 x 2160,1920 x 1080,1280 x 720. Video input channels: 32 channels. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, Supported network protocols: HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, FTP, DDNS, SNMP, P2P, Ethernet LAN data rates: 10,100,1000 Mbit/s. Maximum HDD capacity: 16 TB |
| Vendor Homepage: | https://www.dahuasecurity.com/products/All-Products/HDCVI-Recorders/4K-Value5MP-Series/XVR5232AN-4KL-I3/T |
| Category Code: | STD |
| CnCode: | 85219000 |
| Unit Box Height: | 0.425 |
| Unit Box Length: | 0.45 |
| Unit Box Width: | 0.145 |
| BNC input port: | 32 |
| HDMI ports quantity: | 1 |
| RS-485 port: | 1 |
| USB 2.0 ports quantity: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A port quantity: | 1 |
| VGA (D-Sub) output port: | 1 |
| Video input channels: | 32channels |
| Video RCA outputs: | 1 |
| Ethernet interface type: | Fast Ethernet/Gigabit Ethernet |
| Ethernet LAN: | Yes |
| Ethernet LAN (RJ-45) port: | 1 |
| Ethernet LAN data rates: | 10/100/1000Mbit/s |
| Supported network protocols: | HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, FTP, DDNS, SNMP, P2P |
| Maximum HDD capacity: | 16000GB |
| Number of HDDs supported: | 2 |
| Audio formats supported: | G.711 A-law/G.711u/PCM |
| Audio output channels: | 1.0channels |
| Backup function: | Yes |
| Dual stream support: | Yes |
| Graphical user interface (GUI): | Yes |
| Maximum video resolution: | 3840 x 2160pixels |
| Multi-display mode: | 1/16/25/36/4/8/9 |
| Multi-display supported: | Yes |
| Operating system installed: | Embedded LINUX |
| Playback mode: | Event/General/Instant/Smart/Tag |
| Product colour: | Black |
| Rack capacity: | 1U |
| USB connectivity: | Yes |
| Video compression formats: | H.264/H.264+/H.265/H.265+ |
| Video loss detection: | Yes |
| Video motion detection: | Yes |
| Video resolutions: | 1280 x 720/1920 x 1080/3840 x 2160pixels |
| DC voltage: | 12V |
| Power consumption (typical): | 32W |
| Power supply type: | DC |
| Depth: | 333.9mm |
| Height: | 53mm |
| Weight: | 2378g |
| Width: | 375mm |
| Package depth: | 147mm |
| Package height: | 425mm |
| Package weight: | 3840g |
| Package width: | 451mm |
| Quick start guide: | Yes |
| Operating relative humidity (HH): | 10 - 90% |
| Operating temperature (TT): | -10 - 55°C |
| Storage temperature (TT): | -20 - 60°C |
| Compliance certificates: | CE |
| Units per Shipping Box: | 1 |
| Unit Calculated Volume: | 0.02773m³ |
| Unit Calculated Weight: | 4.02kg |
