NET CAMERA 4MP EYEBALL / IPC-HDW2449T-S-IL-0280B DAHUA
Product reference:
3-6923172537782
NET CAMERA 4MP EYEBALL/IPC-HDW2449T-S-IL-0280B DAHUA
NET CAMERA 4MP EYEBALL / IPC-HDW2449T-S-IL-0280B DAHUA
Product reference:
3-6923172537782
NET CAMERA 4MP EYEBALL/IPC-HDW2449T-S-IL-0280B DAHUA
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 8
business days
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt an independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to act quickly on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
- 4-MP 1/2.9" CMOS image sensor, low luminance, and high definition image
- Output max. 4 MP (2688 × 1520)@20 fps, and supports 2560 × 1440 @25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in warm light/IR LED, the max. illumination distance is 30 m and the max. warm light distance is 30 m
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes

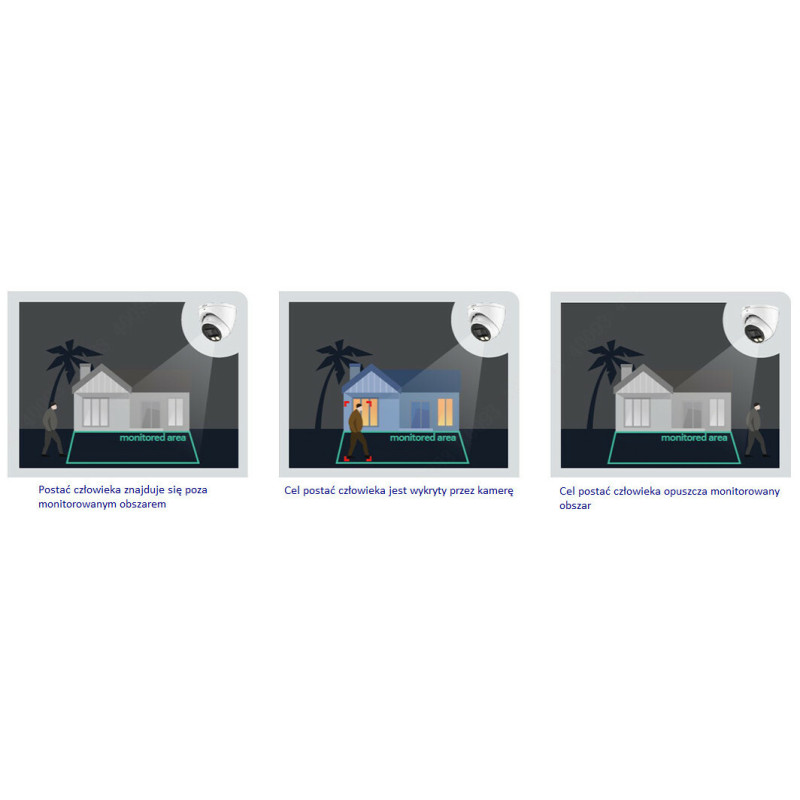

- Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
- Supports max. 256 G Micro SD card; built in MIC
- 12 VDC/PoE power supply, easy for installation
- IP67 protection
- SMD Plus
| Summary: | Dahua Technology WizSense IPC-HDW2449T-S-IL-0280B. Type: IP security camera, Placement supported: Indoor outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Turret. Minimum illumination: 0.008 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 95°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Detect distance: 63.6 m, Observe distance: 25.4 m, Recognize distance: 12.7 m |
| Vendor Homepage: | https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/2-Series/Smart-Dual-Illuminators/IPC-HDW2449T-S-IL |
| Category Code: | FNC |
| CnCode: | 85258900 |
| Unit Box Height: | 0.11 |
| Unit Box Length: | 0.12 |
| Unit Box Width: | 0.12 |
| Form factor: | Turret |
| International Protection (IP) code: | IP67 |
| Mounting type: | Ceiling |
| Product colour: | White |
| Certification: | CE-LVD: EN 62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B |
| Connectivity technology: | Wired |
| Dynamic range: | 120dB |
| Placement supported: | Indoor outdoor |
| Type: | IP security camera |
| Wide Dynamic Range (WDR): | Yes |
| Shutter speed adjustment: | Auto/Manual |
| Angle of rotation: | 360° |
| Camera shutter speed: | 1/3 - 1/100000s |
| Camera shutter type: | Electronic |
| Lens viewing angle, diagonal: | 114° |
| Lens viewing angle, horizontal: | 95° |
| Lens viewing angle, vertical: | 52° |
| Minimum illumination: | 0.008lx |
| Pan range: | 0 - 360° |
| Tilt angle range: | 0 - 78° |
| Number of Privacy masking areas (panoramic camera): | 4 |
| Number of sensors: | 1 |
| Optical sensor size: | 1/2.9" |
| Progressive scan: | Yes |
| Sensor type: | CMOS |
| Closest focusing distance: | 0.9m |
| Detect distance: | 63.6m |
| Detect distance (telephoto): | 85.4m |
| Detect distance (wide): | 63.6m |
| Identify distance: | 6.4m |
| Identify distance (telephoto): | 8.5m |
| Identify distance (wide): | 6.4m |
| Maximum aperture number: | 1.6 |
| Normal focusing range: | 0.9 - 1.6m |
| Number of lenses: | 1 |
| Observe distance: | 25.4m |
| Observe distance (telephoto): | 34.2m |
| Observe distance (wide): | 25.4m |
| Recognize distance: | 12.7m |
| Recognize distance (telephoto): | 17.1m |
| Recognize distance (wide): | 12.7m |
| LED type: | IS |
| Night vision: | From |
| Night vision distance: | 30m |
| Number of illumination LEDs: | 2 |
| Back Light Compensation (BLC): | Yes |
| Bitrate: | H.264: 32 kbps-6144 kbps; H.265: 12 kbps-6144 kbps |
| Bit rate control: | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Frame rate: | 30fps |
| Gain control type: | Auto/Manual |
| Highlight Compensation (HLC): | Yes |
| Maximum resolution: | 2688 x 1520pixels |
| Noise reduction: | Yes |
| Noise reduction technology: | 3D noise reduction |
| Privacy masking: | Yes |
| Supported graphics resolutions: | 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2520 x 1520/2560 x 1440/640 x 480 (VGA) |
| Supported video modes: | 1080p |
| Total megapixels: | 4MP |
| Video compression formats: | H.264/H.264B/H.264H/H.265/M-JPEG |
| Video formats supported: | H.264/H.264+/H.265/H.265+ |
| Video streaming: | Yes |
| Bit rate range: | 12 - 6144Kbit/s |
| Built-in microphone: | Yes |
| Signal-to-Noise Ratio (SNR): | 56dB |
| Voice codecs: | G.711a/G.711Mu/G.726/PCM |
| Ethernet interface type: | Fast Ethernet |
| Ethernet LAN: | Yes |
| Number of users: | 6user(s) |
| Streaming method: | Multicast |
| Supported network protocols: | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNA; DDNS; NTP; Multicast; ICMP; IGMP |
| Built-in HDD: | From |
| Card reader integrated: | Yes |
| Compatible memory cards: | MicroSD (TransFlash) |
| Internal memory: | 128MB |
| Maximum memory card size: | 256GB |
| ROM capacity: | 128MB |
| DC-in jack: | Yes |
| Ethernet LAN (RJ-45) port: | 1 |
| Intelligent Video Surveillance (IVS) system features: | Human detection/Intrusion/Tripwire/Vehicle detection |
| Mirror: | Yes |
| Privacy protection: | Yes |
| Video motion detection: | Yes |

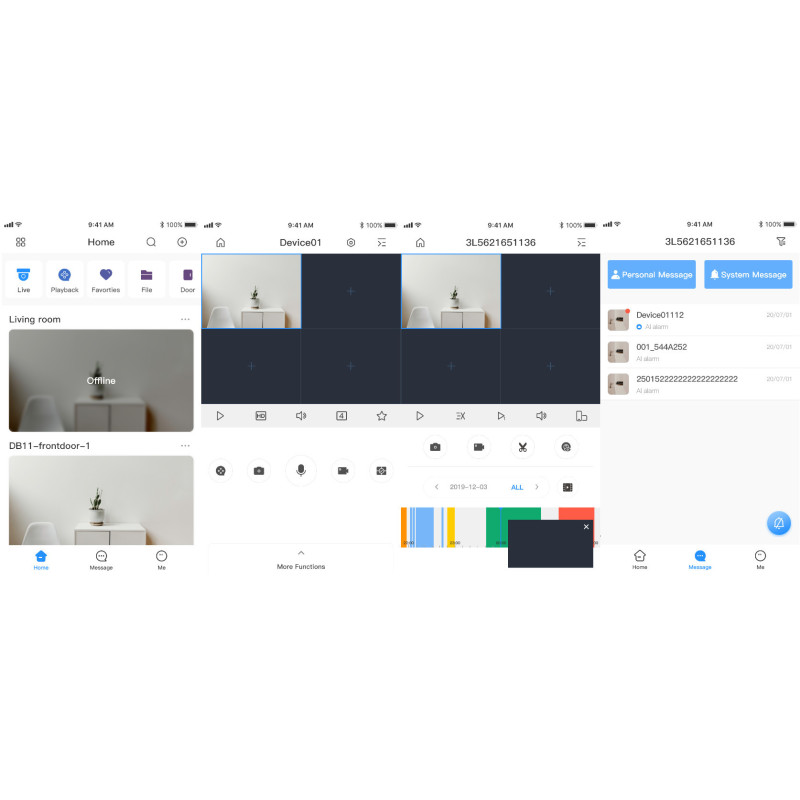

| Management software: | DSS; DMSS |
| Web browser: | Yes |
| DC output voltage: | 12 |
| Power consumption: | 2.1mA |
| Power consumption (max): | 5.2W |
| Power consumption (Power over Ethernet (PoE)): | 2.5W |
| Power source type: | DC,PoE |
| Operating relative humidity (HH): | 0 - 95% |
| Operating temperature (TT): | -40 - 60°C |
| Storage temperature (TT): | -40 - 60°C |
| Mobile operating systems supported: | Android/iOS |
| Depth: | 109.9mm |
| Diameter: | 109.9mm |
| Height: | 100.9mm |
| Weight: | 370g |
| Width: | 109.9mm |
| Package weight: | 510g |
| Number of cameras: | 1 |
| Units per Pallet: | 0 |
| Units per Shipping Box: | 30 |
| Unit Calculated Volume: | 0.00196m³ |
| Unit Calculated Weight: | 0.545kg |
