IP camera Dahua Technology OUTDOOR PTZ IP CAMERA SD22404DB-GNY - 4 Mpx 2.8 ... 12 mm DAHUA
Product reference: 3-6923172536334

IP camera Dahua Technology OUTDOOR PTZ IP CAMERA SD22404DB-GNY - 4 Mpx 2.8 ... 12 mm DAHUA

IP camera Dahua Technology OUTDOOR PTZ IP CAMERA SD22404DB-GNY - 4 Mpx 2.8 ... 12 mm DAHUA

Product reference: 3-6923172536334

IP camera Dahua Technology OUTDOOR PTZ IP CAMERA SD22404DB-GNY - 4 Mpx 2.8 ... 12 mm DAHUA

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
224,68
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
3 - 8
business days

Your message has been successfully sent!
Fill in the required fields*

Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

With its powerful optical zoom, and accurate pan and tilt capabilities, this series of cameras provides a wide monitoring range and great detail. It displays images in 4 MP resolution at 25/30 fps. These cameras offer smooth control and high-grade protection that enable them to meet the requirements of video surveillance in small-sized scenes.

Starlight Technology
With advanced image processing technology and optical technology, Dahua Starlight technology can provide clear colorful video in the environment of low illuminance. It widely applies to various environments of low illuminance.

Face Detection
Dahua Face Detection technology can detect the face in the image. With deep learning algorithm, the technology supports detecting, tracking, capturing and selecting the best face image, and then outputs face snapshot.

Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.

PFA Technology
PFA technology has introduced new methods of judgment that ensure the accuracy and predictability of the direction of subject distance adjustment. The result is a set of advanced focusing algorithms that ensure image clarity when zooming and that shorten focus time. This makes the camera highly advanced in its functions, substantially improving the quality of your experience.

  • 1/2.8" CMOS
  • Powerful 4x optical zoom
  • Max.25/30fps@4M/3M
  • Max 100°/s pan speed
  • Supports face detection
  • Support PoE
  • IP66, IK10
  • SMD 3.0
  • 6000V lightning-proof

Summary: Dahua Technology WizSense SD22404DB-GNY. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Dome. Minimum illumination: 0.0005 lx, Lens viewing angle, horizontal: 90.3 - 29.4°, Lens viewing angle, vertical: 48.5 - 16.6°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 4x, Digital zoom: 16x, Detect distance: 240 m
Vendor Homepage: https://www.dahuasecurity.com/products/All-Products/PTZ-Cameras/WizSense-Series/SD2/SD22404DB-GNY
Category Code: FNC
CnCode: 85258900
Unit Box Height: 0.135
Unit Box Length: 0.155
Unit Box Width: 0.155
Fog proof: Yes
Form factor: Dome
IK code: IK10
International Protection (IP) code: IP66
Mounting type: Ceiling/Wall/Pole
Product colour: White
Connectivity technology: Wired
Day/night mode: Yes
Placement supported: Outdoor
Preset points: Yes
PTZ control: Yes
PTZ modes: 5 Pattern/8 Tour
PTZ protocols: Pelco-P/D
Tour recording: Yes
Type: IP security camera
Camera pan control: Yes
Camera shutter speed: 1 - 1/30000s
Camera tilt control: Yes
Lens viewing angle, diagonal: 105.7 - 33.6°
Lens viewing angle, horizontal: 90.3 - 29.4°
Lens viewing angle, vertical: 48.5 - 16.6°
Minimum illumination: 0.0005lx
Pan manual speed: 0.1 - 100°/sec
Pan preset speed: 100°/sec
Pan range: 0 - 355°
Tilt angle range: 0 - 90°
Tilt manual speed: 0.1 - 60°/sec
Tilt preset speed: 60°/sec
White balance: ATW/Auto/Indoor/Manual/Natural/Outdoor/Sodium lamp/Street lamp
Optical sensor size: 1/2.8"
Progressive scan: Yes
Sensor type: CMOS
Auto focus: Yes
Closest focusing distance: 1.5m
Detect distance: 240m
Digital zoom: 16x
Focal length range: 2.8 - 12mm
Identify distance: 24m
Maximum aperture number: 3
Minimum aperture number: 1.6
Number of lenses: 1
Observe distance: 94.8m
Optical zoom: 4x
Recognize distance: 48m
Zoom capability: Yes
LED type: IR
Night vision: Yes
Back Light Compensation (BLC): Yes
Bit rate: H.264: 2816Kbps - 13056Kbps; H.265: 1024Kbps - 7936Kbps
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR): Yes
Gain control type: Auto/Manual
Highlight Compensation (HLC): Yes
Image stabilizer: Yes
Maximum resolution: 2560 x 1440pixels
Noise reduction: Yes
Noise reduction technology: 2D noise reduction,3D noise reduction
Region of Interest (ROI) encoding: Yes
Supported graphics resolutions: 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2560 x 1440/352 x 288/640 x 480 (VGA)/704 x 576
Total megapixels: 4MP
Video compression formats: H.264/H.264+/H.264B/H.264H/H.265/H.265+/M-JPEG
Video streaming: Yes
Signal-to-Noise Ratio (SNR): 55dB
Bluetooth: No
Ethernet interface type: Fast Ethernet
Ethernet LAN: Yes
Number of users: 20user(s)
Quality of Service (QoS) support: Yes
Streaming method: Multicast/Unicast
Supported network protocols: HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; SSL; Qos; FTP; UPnP; ICMP; SNMP; IGMP; ARP; RTCP; RTP; PPPoE; RTMP; Bonjour; SAMBA; NFS
Wi-Fi: No
Built-in HDD: No

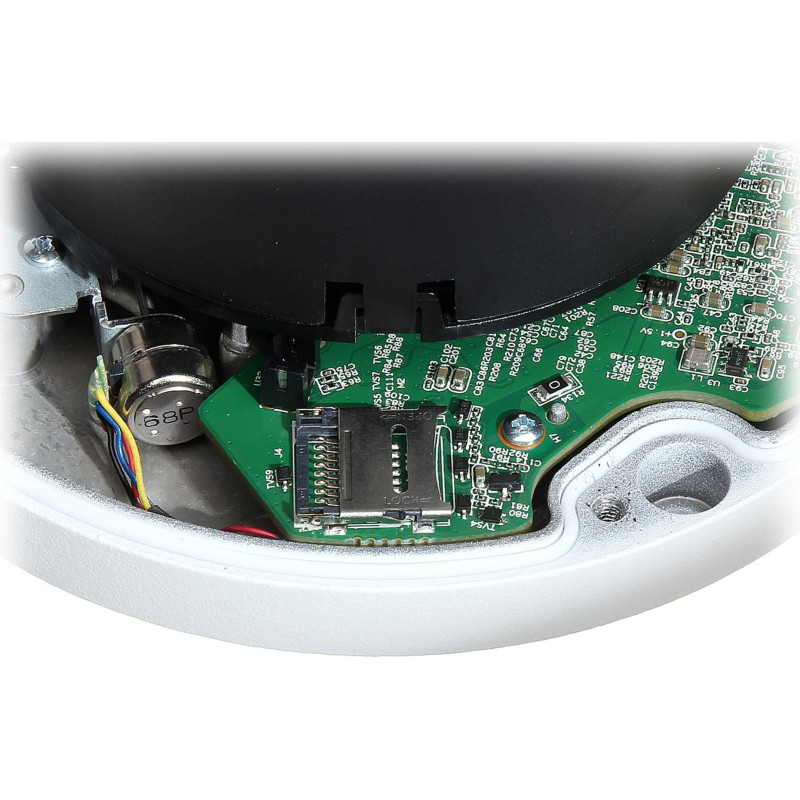

Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 512GB
RAM capacity: 512MB
ROM capacity: 128MB
Ethernet LAN (RJ-45) ports: 1
Active tampering alarm: Yes
Intelligent Video Surveillance (IVS) system features: Abandoned object/Crossing line/Face detection/Intrusion/Missing object/Moving object/Tripwire/Vehicle detection
Video motion detection: Yes
Web browser: Yes
Web-based management: Yes
DC output current: 1A
DC output voltage: 12
Power consumption (max): 6.1W
Power consumption (typical): 2.3W
Power source type: DC,PoE
Operating relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60°C
Storage relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -30 - 60°C

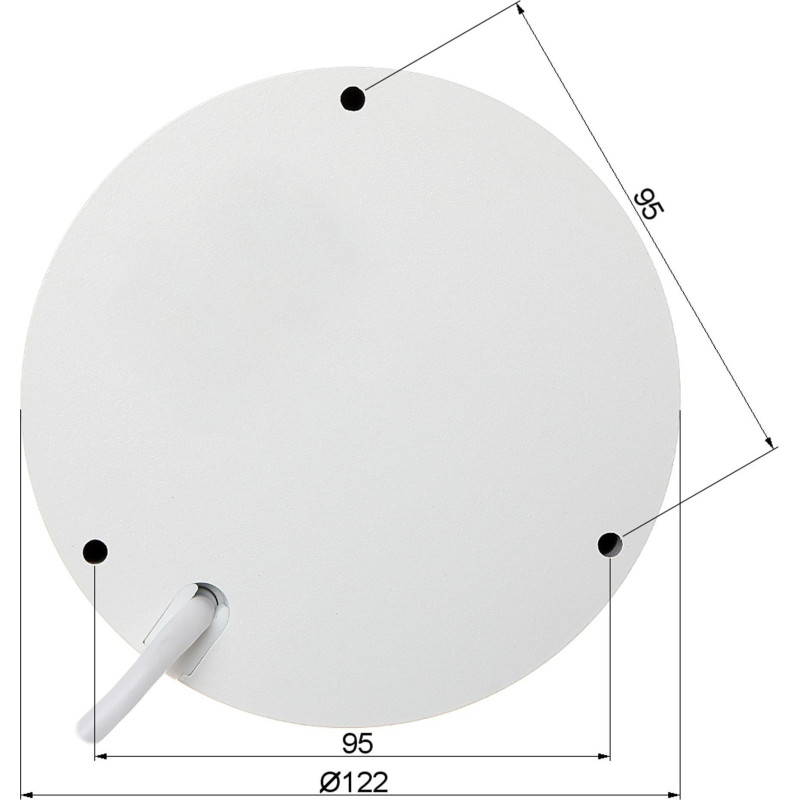

Diameter: 122mm
Height: 89mm
Weight: 500g
Package weight: 700g
Number of cameras: 1
Model: SD22404DB-GNY
Units per Pallet: 0
Units per Shipping Box: 20
Unit Calculated Volume: 0.00421m³
Unit Calculated Weight: 0.775kg
