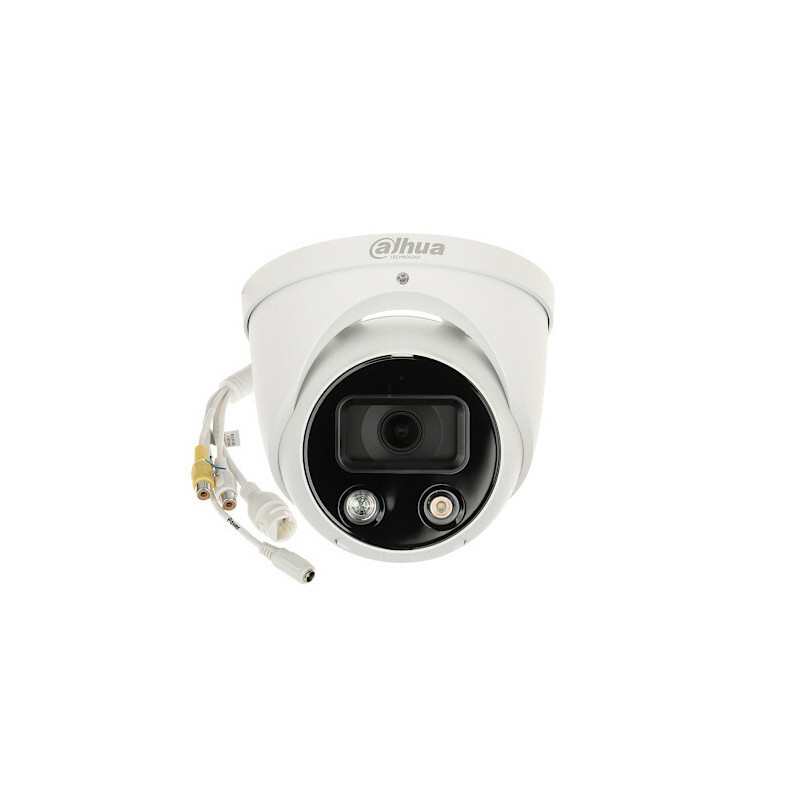

IP camera Dahua Technology IP camera TIOC 3.0 DAHUA IPC-HDW3849H-AS-PV-0280B-S5
Product reference:
3-6923172525765
IP camera Dahua Technology IP camera TIOC 3.0 DAHUA IPC-HDW3849H-AS-PV-0280B-S5
IP camera Dahua Technology IP camera TIOC 3.0 DAHUA IPC-HDW3849H-AS-PV-0280B-S5
Product reference:
3-6923172525765
IP camera Dahua Technology IP camera TIOC 3.0 DAHUA IPC-HDW3849H-AS-PV-0280B-S5
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 5
business days
- 8-MP 1/2.7" CMOS image sensor, low luminance, and high definition image
- Output max. 8 MP (3840 × 2160)@25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m
- ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
- Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk
- 12 VDC/PoE power supply
- IP67 protection
- Sound and light alarm (red and blue lights)
- SMD 4.0
- Supports AI SSA and one-tap arming and disarming
- SMD area can be set in warm light areas that support triggering alarms
| Summary: | Dahua Technology IPC-HDW3849H-AS-PV. Type: IP security camera, Placement supported: Indoor outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.0004 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 106°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Fixed focal length: 2.8 mm, Detect distance (wide): 66 m, Observe distance (wide): 26.4 m |
| Vendor Homepage: | https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/3-Series/TiOC/IPC-HDW3849H-AS-PV=S5 |
| Category Code: | FNC |
| CnCode: | 85258900 |
| Unit Box Height: | 0.135 |
| Unit Box Length: | 0.155 |
| Unit Box Width: | 0.155 |
| Form factor: | Council |
| Housing material: | Metal |
| International Protection (IP) code: | IP67 |
| Mounting type: | Ceiling |
| Product colour: | White |
| Alarm input/output: | Yes |
| Certification: | CE-LVD: EN62368-1, CE-EMC, FCC |
| Connectivity technology: | Wired |
| Day/night mode: | Yes |
| Infrared (IR) cut-off filter: | Yes |
| Placement supported: | Indoor outdoor |
| Type: | IP security camera |
| Wide Dynamic Range (WDR): | Yes |
| Shutter speed adjustment: | Auto/Manual |
| Angle of rotation: | 360° |
| Camera pan control: | Yes |
| Camera shutter speed: | 1/3 - 1/100000s |
| Camera shutter type: | Electronic |
| Camera tilt control: | Yes |
| Lens viewing angle, diagonal: | 125° |
| Lens viewing angle, horizontal: | 106° |
| Lens viewing angle, vertical: | 55° |
| Minimum illumination: | 0.0004lx |
| Pan range: | 0 - 360° |
| Tilt angle range: | 0 - 78° |
| White balance: | Auto/Custom mode/Manual/Natural/Outdoor |
| Number of sensors: | 1 |
| Optical sensor size: | 1/2.7" |
| Progressive scan: | Yes |
| Sensor type: | CMOS |
| Closest focusing distance: | 1.5m |
| Detect distance (wide): | 66m |
| Fixed focal length: | 2.8mm |
| Identify distance (wide): | 6.6m |
| Maximum aperture number: | 1 |
| Number of lenses: | 1 |
| Observe distance (wide): | 26.4m |
| Recognize distance (wide): | 13.2m |
| LED type: | IS |
| Night vision: | Yes |
| Night vision distance: | 30m |
| Number of illumination LEDs: | 1 |
| Back Light Compensation (BLC): | Yes |
| Bitrate: | 3kbps - 16384kbps |
| Bit rate control: | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Frame rate: | 30fps |
| Gain control type: | Auto/Manual |
| Highlight Compensation (HLC): | Yes |
| Maximum resolution: | 3840 x 2160pixels |
| Noise reduction: | Yes |
| Noise reduction technology: | 3D noise reduction |
| Privacy masking: | Yes |
| Region of Interest (ROI) encoding: | Yes |
| Smart IS: | Yes |
| Supported graphics resolutions: | 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/2304 x 1296/2592 x 1944/2688 x 1520/3072 x 1728/3072 x 2048/352 x 240/352 x 288/3840 x 2160/640 x 480 (VGA)/704 x 480/704 x 576 |
| Supported video mods: | 1520p/1944p/2160p/240p/480p/576p/720p/960p |
| Total megapixels: | 8MP |
| Video compression formats: | H.264/H.265/M-JPEG |
| Video formats supported: | H.264+/H.265+ |
| Video streaming: | Yes |
| Audio input channels: | 1.0channels |
| Audio output channels: | 1.0channels |
| Built-in microphone: | Yes |
| Signal-to-Noise Ratio (SNR): | 56dB |
| Voice codecs: | G.711a/G.711Mu/G.726/PCM |
| Bluetooth: | From |
| Ethernet interface type: | Fast Ethernet |
| Ethernet LAN: | Yes |
| Networking standards: | IEEE 802.1x/IEEE 802.3af |
| Number of users: | 20user(s) |
| Quality of Service (QoS) support: | Yes |
| Streaming method: | Multicast |
| Supported network protocols: | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP |
| Wi-Fi: | From |
| Built-in HDD: | From |
| Card reader integrated: | Yes |
| Compatible memory cards: | MicroSD (TransFlash) |
| Maximum memory card size: | 2GB |
| ROM capacity: | 256MB |
| DC-in jack: | Yes |
| Ethernet LAN (RJ-45) port: | 1 |
| Built-in siren: | Yes |
| HTTPS encryption: | Yes |
| Intelligent Video Surveillance (IVS) system features: | Tripwire |
| IP address filtering: | Yes |
| Mirror: | Yes |
| Security algorithms: | HTTPS |
| Video motion detection: | Yes |
| Management software: | Smart PSS, DSS, DMSS |
| Web browser: | Yes |
| DC output voltage: | 12 |
| Power consumption (max): | 8.6W |
| Power consumption (Power over Ethernet (PoE)): | 5.8W |
| Power consumption (typical): | 4.5W |
| Power source type: | DC,PoE |
| Operating relative humidity (HH): | 0 - 95% |
| Operating temperature (TT): | -40 - 60°C |
| Mobile operating systems supported: | Android/iOS |
| Diameter: | 122mm |
| Height: | 110.9mm |
| Weight: | 750g |
| Package weight: | 920g |
| Manual: | Yes |
| Number of cameras: | 1 |
| Model: | IPC-HDW3849H-ASPV0280B-S5 |
| Units per Shipping Box: | 1 |
| Unit Calculated Volume: | 0.003243m³ |
| Unit Calculated Weight: | 0.936kg |
