IP camera Dahua Technology HDW4221EP (IPC-HDW4221EP-AS-0360)
Product reference:
3-6939554905285
IP camera Dahua Technology HDW4221EP (IPC-HDW4221EP-AS-0360)
IP camera Dahua Technology HDW4221EP (IPC-HDW4221EP-AS-0360)
Product reference:
3-6939554905285
IP camera Dahua Technology HDW4221EP (IPC-HDW4221EP-AS-0360)
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 8
business days
- 1/2.7" CMOS image sensor, low luminance, and high definition image
- Outputs max. 6 MP (3288×1850) @20 fps, and supports 2688×1520 (2688 × 1520) @25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in warm light and IR LED, the max. IR distance is 30 m and the max. warm light distance is 30 m
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes

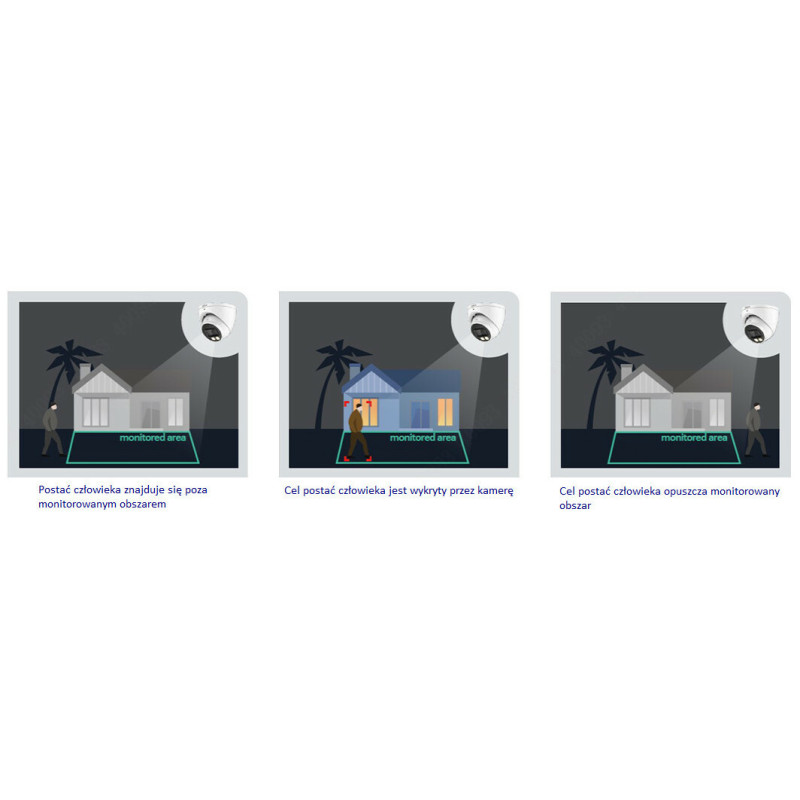

- Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
- Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
- Supports max. 256 G Micro SD card; built in Mic
- 12 VDC/PoE power supply, easy for installation
| Summary: | Dahua Technology WizSense IPC-HDW2649TM-S-IL-0280B. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Turret. Minimum illumination: 0.0007 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 112°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Detect distance: 61.2 m, Observe distance: 24.5 m, Recognize distance: 12.2 m |
| Vendor Homepage: | https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/2-Series/Smart-Dual-Light/IPC-HDW2649TM-S-IL |
| Category Code: | FNC |
| CnCode: | 85258900 |
| Unit Box Height: | 0.11 |
| Unit Box Length: | 0.14 |
| Unit Box Width: | 0.14 |
| Form factor: | Turret |
| Housing material: | Metal/Plastic |
| International Protection (IP) code: | IP67 |
| Mounting type: | Ceiling/Wall/Pole |
| Product colour: | White |
| Connectivity technology: | Wired |
| Day/night mode: | Yes |
| Dynamic range: | 120dB |
| Placement supported: | Indoor |
| Type: | IP security camera |
| Wide Dynamic Range (WDR): | Yes |
| Angle of rotation: | 360° |
| Camera pan control: | Yes |
| Camera shutter speed: | 1/3 - 1/100000s |
| Camera tilt control: | Yes |
| Lens viewing angle, diagonal: | 132° |
| Lens viewing angle, horizontal: | 112° |
| Lens viewing angle, vertical: | 61° |
| Minimum illumination: | 0.0007lx |
| Number of Privacy masking areas: | 4 |
| Pan range: | 0 - 360° |
| Tilt angle range: | 0 - 78° |
| White balance: | Auto/Manual/Natural/Outdoor/Regional custom/Street lamp |
| Number of sensors: | 1 |
| Optical sensor size: | 1/2.7" |
| Progressive scan: | Yes |
| Sensor type: | CMOS |
| Closest focusing distance: | 1m |
| Detect distance: | 61.2m |
| Fixed focal length: | 2.8mm |
| Fixed focus: | Yes |
| Identify distance: | 6.1m |
| Maximum aperture number: | 1.6 |
| Observe distance: | 24.5m |
| Recognize distance: | 12.2m |
| Colour night vision distance: | 30m |
| LED type: | IR |
| Night vision: | Yes |
| Night vision distance: | 30m |
| Number of illumination LEDs: | 2 |
| Back Light Compensation (BLC): | Yes |
| Bit rate control: | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Frame rate: | 30fps |
| Gain control type: | Auto/Manual |
| Highlight Compensation (HLC): | Yes |
| Maximum resolution: | 3288 x 1850pixels |
| Noise reduction: | Yes |
| Noise reduction technology: | 3D noise reduction |
| Region of Interest (ROI) encoding: | Yes |
| Total megapixels: | 6MP |
| Video compression formats: | H.264/H.264B/H.264H/H.265/M-JPEG |
| Video recording: | Yes |
| Video streaming: | Yes |
| Audio formats supported: | G.711 µ-law/G.711 A-law/G.726/PCM |
| Built-in microphone: | Yes |
| Bluetooth: | No |
| Ethernet interface type: | Fast Ethernet |
| Ethernet LAN: | Yes |
| Networking standards: | IEEE 802.1x |
| Quality of Service (QoS) support: | Yes |
| Streaming method: | Multicast |
| Supported network protocols: | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, ICMP, IGMP, NFS, PPPoE, P2P |
| Wi-Fi: | No |
| Built-in HDD: | No |
| Card reader integrated: | Yes |
| Compatible memory cards: | MicroSD (TransFlash) |
| Maximum memory card size: | 256GB |
| RAM capacity: | 256MB |
| ROM capacity: | 128MB |
| DC-in jack: | Yes |
| Ethernet LAN (RJ-45) ports: | 1 |
| Human and vehicle targets classification: | Yes |
| IP address filtering: | Yes |
| Mirror: | Yes |
| Network access storage (NAS): | Yes |
| Video motion detection: | Yes |
| DC output voltage: | 12 |
| Power consumption (max): | 4.6W |
| Power consumption (typical): | 2.5W |
| Power source type: | DC,PoE |
| Operating temperature (T-T): | -40 - 60°C |
| Storage temperature (T-T): | -40 - 60°C |

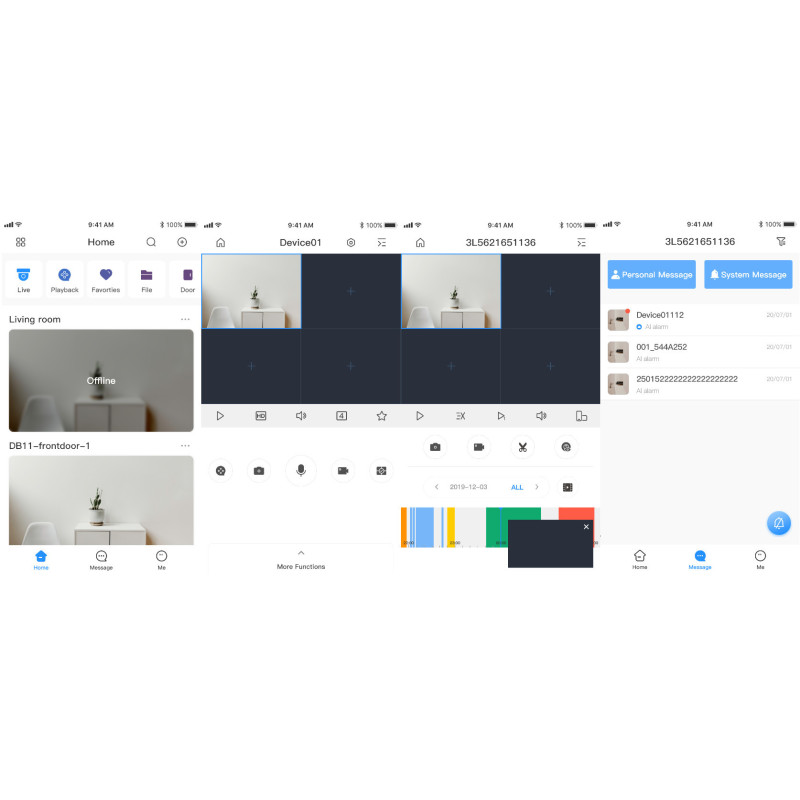

| Mobile operating systems supported: | Android/iOS |
| Diameter: | 121.9mm |
| Height: | 99.1mm |
| Weight: | 530g |
| Compliance certificates: | CE |
| Package weight: | 670g |
| Manual: | Yes |
| Number of cameras: | 1 |
| Model: | IPC-HDW2649TM-S-IL-0280B |
| Units per Pallet: | 0 |
| Units per Shipping Box: | 20 |
| Unit Calculated Volume: | 0.002769m³ |
| Unit Calculated Weight: | 0.725kg |
