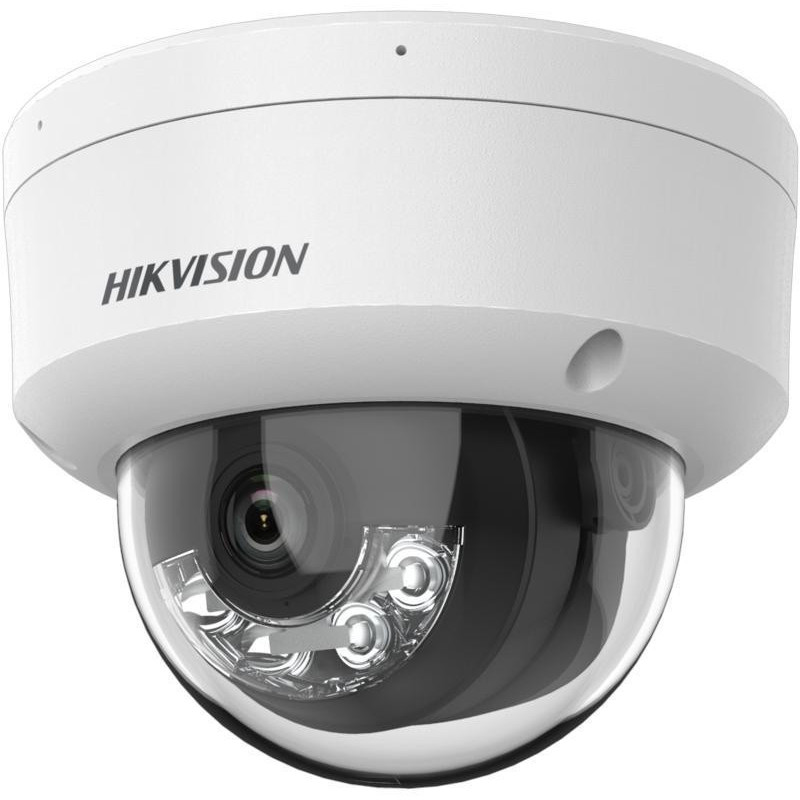

HIKVISION IP CAMERA DS-2CD1183G2-LIUF 2.8mm
Product reference:
3-6936422114695
HIKVISION IP CAMERA DS-2CD1183G2-LIUF 2.8mm
HIKVISION IP CAMERA DS-2CD1183G2-LIUF 2.8mm
Product reference:
3-6936422114695
HIKVISION IP CAMERA DS-2CD1183G2-LIUF 2.8mm
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
9 - 14
business days
| Technical details | |
|---|---|
| Iris | Yes |
| Lens mount interface | M12 |
| Design | |
| Product colour | White |
| Form factor | Dome |
| Weatherproof | Yes |
| International Protection (IP) code | IP67 |
| IK code | IK08 |
| Mounting type | Ceiling |
| Housing material | Metal, Plastic |
| Power | |
| Power source type | DC, PoE |
| Power consumption (max) | 6 W |
| DC output current | 0.5 A |
| Power consumption (Power over Ethernet (PoE)) | 7.5 W |
| DC output voltage | 12 |
| Security | |
| Digital watermark | Yes |
| Video motion detection | Yes |
| Password reset via email | Yes |
| Heartbeat | Yes |
| Password protection | Yes |
| Mirror | Yes |
| Active tampering alarm | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Management features | |
| Web-based management | Yes |

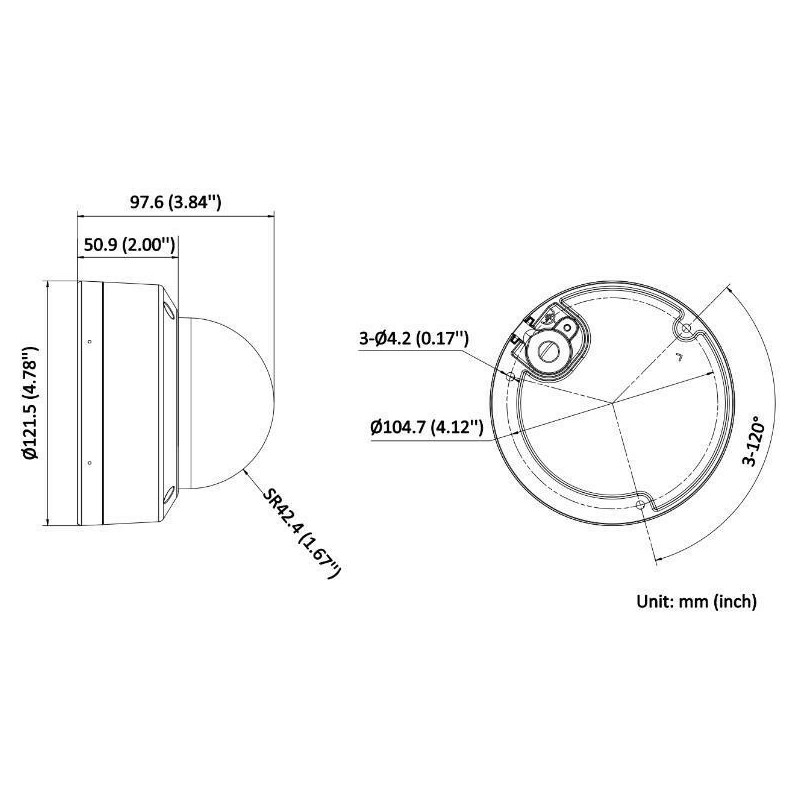

| Weight & dimensions | |
| Weight | 550 g |
| Diameter | 12.2 cm |
| Height | 97.6 mm |
| Network | |
| Bluetooth | No |
| Quality of Service (QoS) support | Yes |
| Client interoperability | iVMS-4200, Hik-Connect |
| Live view | Yes |
| Supported network protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP |
| Number of simultaneous live view channels | 6 channels |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| User access level | Administrator, Operator, User |
| Number of users | 32 user(s) |
| Performance | |
| Connectivity technology | Wired |
| Type | IP security camera |
| Infrared (IR) cut-off filter | Yes |
| Number of languages | 2 |
| Placement supported | Indoor & outdoor |
| Day/night mode | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Dynamic range | 120 dB |
| Packaging data | |
| Package weight | 800 g |
| Package width | 150 mm |
| Package depth | 150 mm |
| Package height | 141 mm |
| Packaging content | |
| Number of cameras | 1 |
| Audio | |
| Built-in microphone | Yes |
| Audio formats supported | G.722.1, AAC-LC, G.726, PCM, G.711 A-law, MP2L2 |
| Sample rates | 8 - 16 kHz |
| Bit rate range | 16 - 160 Kbit/s |
| Signal-to-Noise Ratio (SNR) | 52 dB |
| Storage | |
| Built-in HDD | No |
| Compatible memory cards | MicroSDXC, MicroSD (TransFlash), MicroSDHC |
| Card reader integrated | Yes |
| Maximum memory card size | 512 GB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Camera | |
| Tilt angle range | 0 - 75° |
| Lens viewing angle, vertical | 62° |
| Camera shutter speed | 1/3 - 1/100000 s |
| Pan range | 0 - 355° |
| Lens viewing angle, diagonal | 134° |
| Minimum illumination | 0 lx |
| Angle of rotation | 355° |
| Lens viewing angle, horizontal | 113° |
| Image sensor | |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Video | |
| Supported graphics resolutions | 640 x 480 (VGA), 1920 x 1080 (HD 1080), 3860 x 2160, 640 x 360, 1280 x 720 (HD 720), 2688 x 1512, 3200 x 1800 |
| Maximum resolution | 3840 x 2160 pixels |
| Noise reduction technology | 3D noise reduction |
| Region of Interest (ROI) encoding | Yes |
| Bit rate | 32 Kbps - 16 Mbps |
| Total megapixels | 8 MP |
| Image quality adjustment | White balance, Contrast, Sharpness, Saturation, Brightness |
| Frame rate | 15 fps |
| Privacy masking | Yes |
| Noise reduction | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Video compression formats | H.264+, H.265+, H.265, M-JPEG, H.264 |
| Back Light Compensation (BLC) | Yes |
| Video recording | Yes |
| Highlight Compensation (HLC) | Yes |
| Night vision | |
| LED type | IR |
| Night vision distance | 30 m |
| Infra-red wavelength | 850 nm |
| Night vision | Yes |
| Lens system | |
| Observe distance | 31 m |
| Detect distance | 79 m |
| Fixed focal length | 2.8 mm |
| Number of lenses | 1 |
| Recognize distance | 15 m |
| Maximum aperture number | 2 |
| Identify distance | 7 m |
| Sustainability | |
| Compliance certificates | WEEE, Low Voltage Directive (LVD), Federal Communications Commission (FCC), REACH, RoHS, KC, CB |
