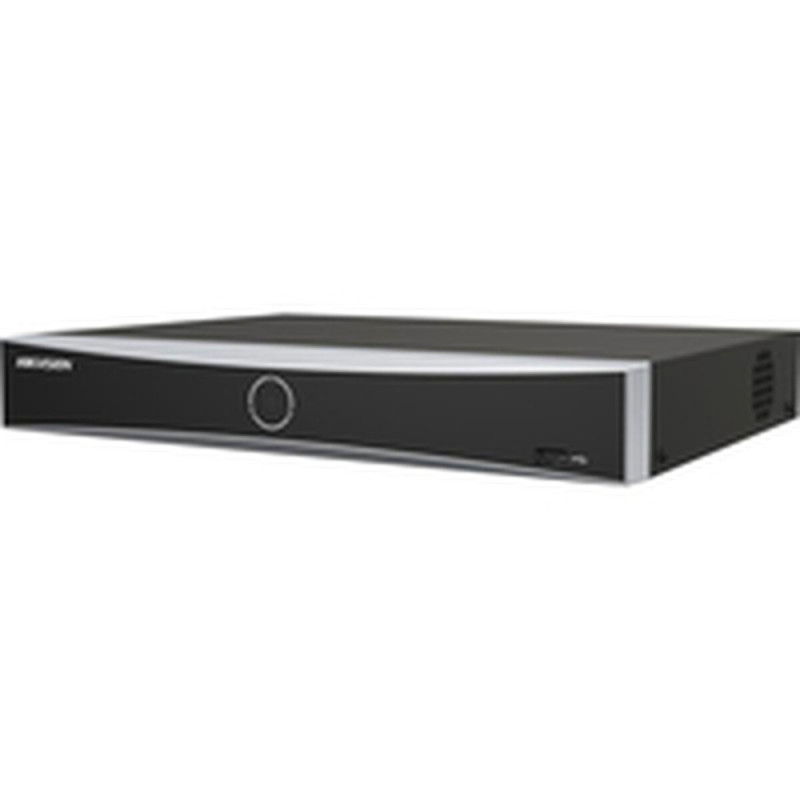

Hikvision DS-7616NXI-K1(D) Network video recorder

The Hikvision DS-7616NXI-K1(D) is a powerful 16-channel network video recorder (NVR) designed for professional IP surveillance systems. Supporting up to 12 MP resolution per channel, it provides high-quality video recording and efficient video analytics. Equipped with Acusense technology , it enhances motion detection accuracy by distinguishing between humans and vehicles. With H.265+ compression , it offers high storage efficiency and seamless remote access via Hik-Connect.

Technical Specifications:

•


  Model: DS-7616NXI-K1(D)





•


  Video Input: 16 IP channels





•


  Maximum Resolution: Up to 12 MP





•


  Decoding Capability: Up to 4-ch @ 1080p





•


  Video Output: HDMI, VGA (up to 4K)





•


  Compression Format: H.265+/H.265/H.264+/H.264





•


  SATA Interface: 1 × SATA (up to 10 TB)





•


  Network Interface: 1 × RJ-45 10/100/1000 Mbps





•


  USB Interface: 2 × USB 2.0





•


  Alarm I/O: 4/1 (optional)





•


  AI Functions: Acusense (human & vehicle classification)





•


  Power Supply: 12 V DC





•


  Power Consumption: ≤ 15 W (without HDD)





•


  Operating Temperature: -10°C to +55°C





•


  Dimensions: 315 × 242 × 45 mm





•


  Weight: 1.3 kg
