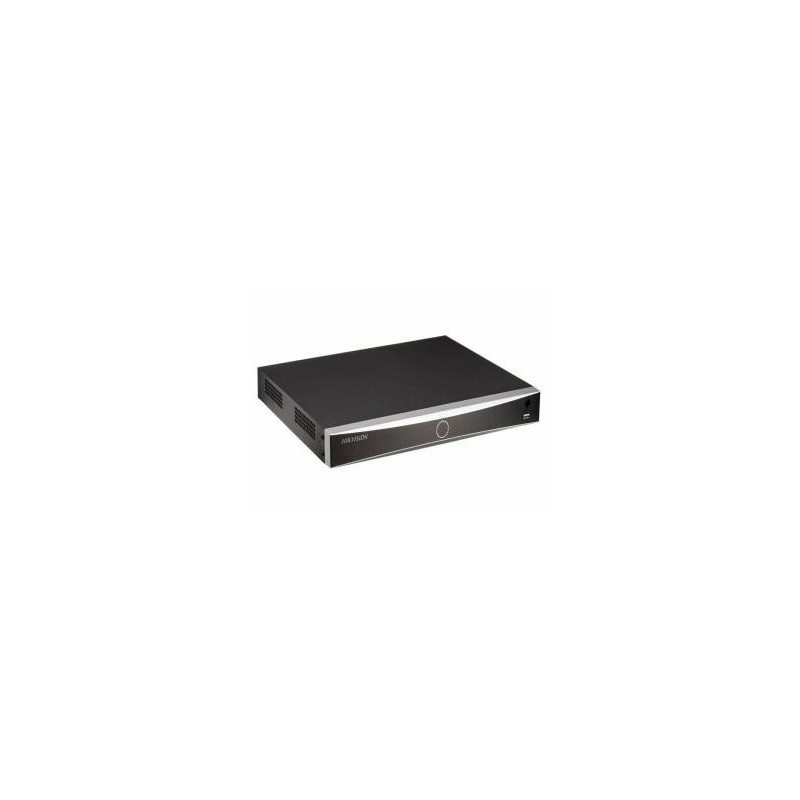

Hikvision DS-7616NXI-I2 / S(E) network video recorder

The Hikvision DS-7616NXI-I2/S(E) is a professional 16-channel NVR designed for advanced IP surveillance systems. Featuring Acusense technology , it enables precise human and vehicle classification, reducing false alarms and improving monitoring efficiency. The recorder supports up to 12 MP resolution per channel and dual HDMI/VGA output for flexible display options. With H.265+ video compression , it maximizes storage efficiency while maintaining excellent video quality. Ideal for both business and large-scale security applications.

Technical Specifications:

•


  Model: DS-7616NXI-I2/S(E)





•


  Video Input: 16 IP channels





•


  Maximum Resolution: Up to 12 MP





•


  Decoding Capability: Up to 2-ch @ 8 MP / 8-ch @ 1080p





•

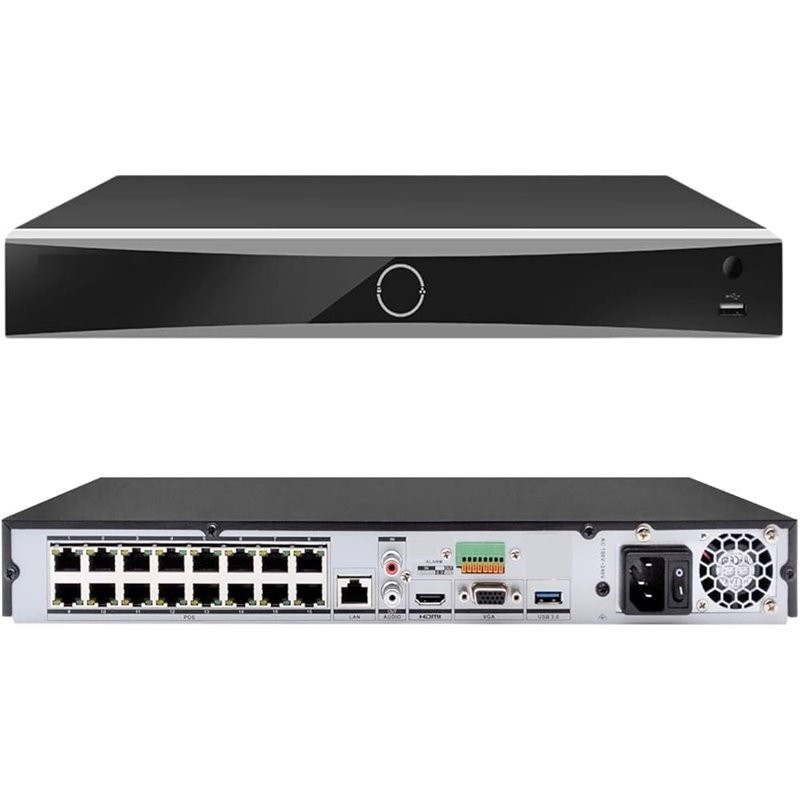

  Video Output: HDMI × 2, VGA × 1 (up to 4K)





•


  Compression Format: H.265+/H.265/H.264+/H.264





•


  Storage: 2 × SATA interfaces (up to 10 TB each)





•


  Audio Input/Output: 1/1 (RCA)





•


  Network Interface: 1 × RJ-45 10/100/1000 Mbps





•


  USB Interface: 2 × USB 2.0, 1 × USB 3.0





•


  AI Functions: Acusense (human/vehicle recognition, motion detection)





•


  Power Supply: 12 V DC





•


  Power Consumption: ≤ 20 W (without HDD)





•


  Operating Temperature: -10°C to +55°C





•


  Dimensions: 380 × 315 × 52 mm





•


  Weight: 2.0 kg
