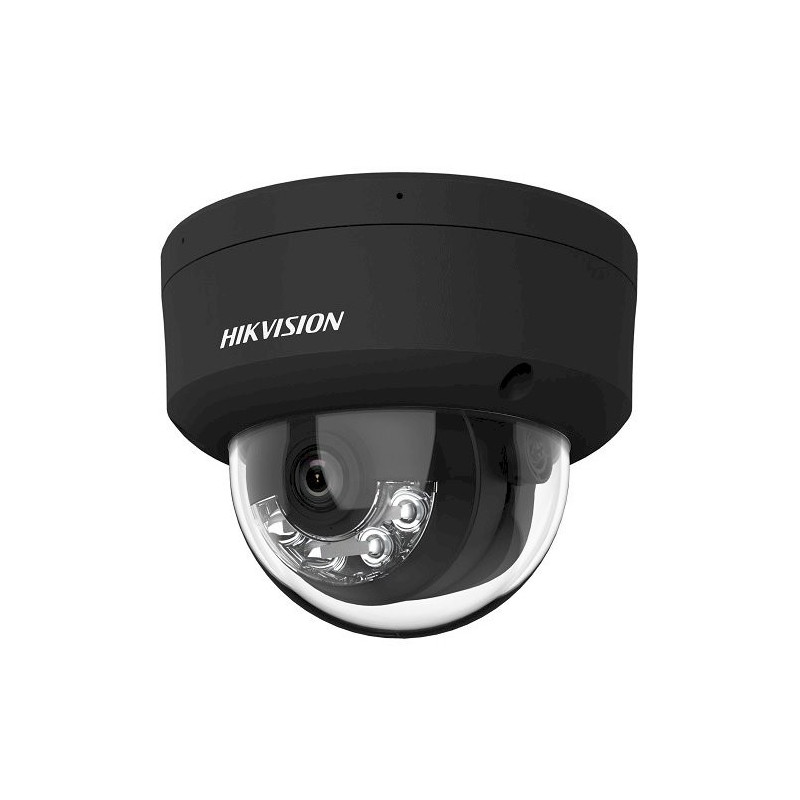

Hikvision DS-2CD2147G2H-LISU 2.8mm

4 MP Smart Hybrid Light with ColorVu Fixed Dome Network Camera



Features

• Model: DS-2CD2147G2H-LISU(2.8mm)(eF), black

• High quality imaging with 4 MP resolution

• Smart Hybrid Light: advanced technology with long range

• Clear imaging against strong back light due to 130 dB WDR technology

• Efficient H.265+ compression technology

• Focus on human and vehicle classification based on deep learning

• -U: Built-in microphone for real-time audio security

• Water and dust resistant (IP67) and vandal-resistant (IK10)



Specifications



Camera

• Image Sensor: 1/1.8" Progressive Scan CMOS

• Max. Resolution: 2688 x 1520

• Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light

• Shutter Time: 1/3 s to 1/100,000 s

• Day & Night: IR cut filter

• Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°



Lens

• Lens Type: Fixed focal lens, 2.8mm

• Focal Length & FOV: 2.8 mm, horizontal FOV 104.0°, vertical FOV 54.4°, diagonal FOV 126.7°

• Lens Mount: M16

• Iris Type: Fixed

• Aperture: F1.0

• DORI 2.8 mm: D: 61 m, O: 24 m, R: 12 m, I: 6 m



Illuminator

• Supplement Light Type: IR, White Light

• Supplement Light Range: Up to 30 m

• Smart Supplement Light: Yes

• IR Wavelength: 850 nm



Video

• Main Stream:

• 50 Hz: 25 fps (2688 x 1520, 1920 x 1080, 1280 x 720)

• 60 Hz: 30 fps (2688 x 1520, 1920 x 1080, 1280 x 720)

• Sub-Stream:

• 50 Hz: 25 fps (1280 x 720, 640 x 480, 640 x 360)

• 60 Hz: 30 fps (1280 x 720, 640 x 480, 640 x 360)

• Third Stream:

• 50 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)

• 60 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)

• Third stream is supported under certain settings.

• Video Compression:

• Main stream: H.265+/H.265/H.264+/H.264

• Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate: 32 Kbps to 8 Mbps

• H.264 Type: Baseline Profile, Main Profile, High Profile

• H.265 Type: Main Profile

• Bit Rate Control: CBR, VBR

• Scalable Video Coding (SVC): H.264 and H.265 encoding

• Region of Interest (ROI): 1 fixed region for main stream and sub-stream



Audio

• Environment Noise Filtering -U: Yes

• Audio Type -U: Mono sound

• Audio Compression -U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

• Audio Bit Rate -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)

• Audio Sampling Rate -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz



Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP

• Simultaneous Live View: Up to 6 channels

• API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP

• User/Host: Up to 32 users; 3 user levels: administrator, operator, and user

• Security: Password protection, complicated password, HTTPS encryption, 802.1x authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)

• Network Storage: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

• Client: iVMS-4200, Hik-Connect, Hik-Central

• Web Browser: Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+




• Wide Dynamic Range (WDR): 130 dB

• SNR: > /= 52 dB

• Day/Night Switch: Day,Night,Auto,Schedule

• Image Enhancement: BLC, HLC, 3D DNR

• Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

• Privacy Mask: 4 programmable polygon privacy mask

• Image Parameters Switch: yes



Interface

• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port

• On-Board Storage: Built-in memory card slot, support microSD/ microSDHC/ microSDXC card, up to 512 GB

• Built-in Microphone: -U: Yes

• Audio:

• -S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 K?, interface type: non-equilibrium

• -S: 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 ?, interface type: non-equilibrium• Alarm: -S: 1 input, 1 output (max. 12 VDC, 30 mA)

• Reset Key: Yes



Event

• Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception

• Linkage: Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email

• Smart Event: Scene change detection



Deep Learning Function

• Face Capture: Yes

• Perimeter Protection: Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types (human and vehicle)



General

• Power: 12 VDC ± 25%, 0.6 A, max. 7.2 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 8.5 W

• Material: Base: aluminum alloy, cover: aluminum alloy

• Dimension: Ø121.5 mm x 97.6 mm (Ø4.78" x 3.84")

• Package Dimension: 234 mm x 120 mm x 117 mm (9.2" x 4.7" x 4.6")

• Weight Approx. 525 g (1.2 lb.)

• With Package Weight Approx. 750 g (1.7 lb.)

• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

• General Function: Heartbeat, mirror, password reset via email, pixel counter, anti-banding

• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian



Approval

• EMC: CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015

• Safety: UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

• Environment: CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006

• Protection IP67: IEC 60529-2013, IK10: IEC 62262:2002
