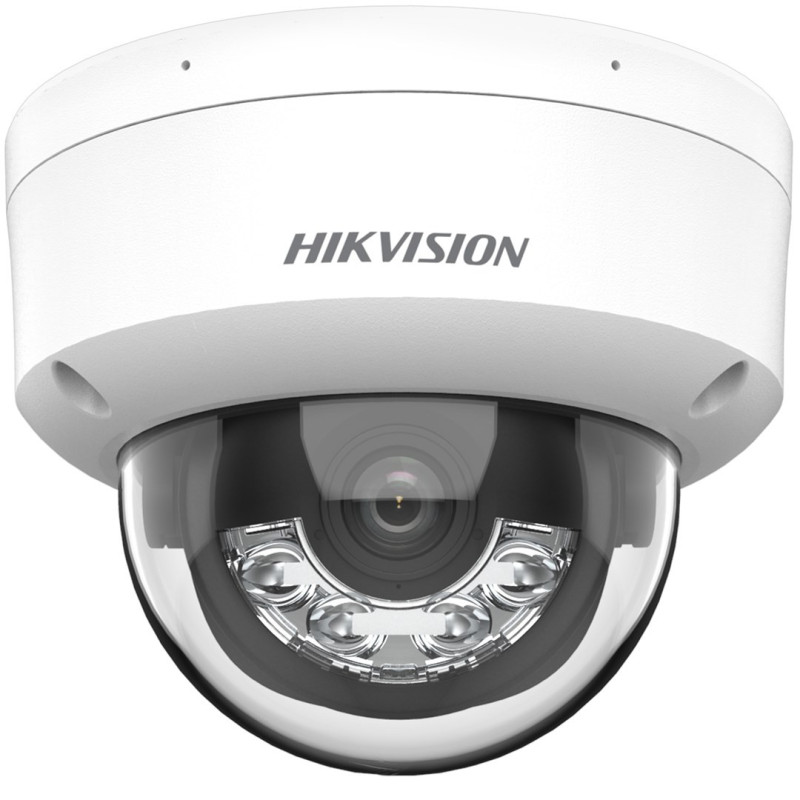

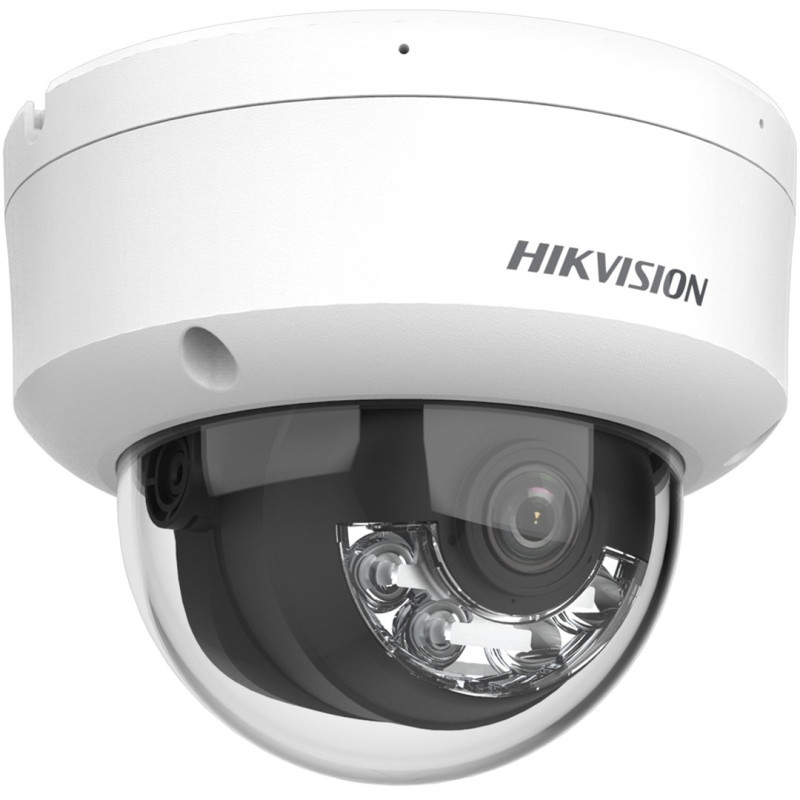

HIKVISION DS-2CD1143G2-LIU 2.8MM IP CAMERA
Product reference:
3-6942160472706
HIKVISION DS-2CD1143G2-LIU 2.8MM IP CAMERA
HIKVISION DS-2CD1143G2-LIU 2.8MM IP CAMERA
Product reference:
3-6942160472706
HIKVISION DS-2CD1143G2-LIU 2.8MM IP CAMERA
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 8
business days
| Design | |
|---|---|
| Housing material | Plastic, Metal |
| IK code | IK08 |
| International Protection (IP) code | IP67 |
| Product colour | White |
| Form factor | Council |
| Power | |
| Power consumption (Power over Ethernet (PoE)) | 7.5W |
| DC output current | 0.5A |
| DC output voltage | 12 |
| Power source type | DC, PoE |
| Power consumption (max) | 6W |
| Security | |
| Anti-flicker | Yes |
| Video motion detection | Yes |
| Password protection | Yes |
| Mirror | Yes |
| Heartbeat | Yes |
| Operational conditions | |
| Storage temperature (TT) | -30 - 60 °C |
| Storage relative humidity (HH) | 0 - 95% |
| Operating relative humidity (HH) | 0 - 95% |
| Operating temperature (TT) | -30 - 60 °C |
| Weight dimensions | |
| Package depth | 150mm |
| Package height | 141 mm |
| Height | 97.7 mm |
| Diameter | 12.1 cm |
| Package width | 150mm |
| Package weight | 800g |
| Weight | 550g |
| Network | |
| Wi-Fi | From |
| Number of users | 32 users |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Bluetooth | From |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.3af |
| Performance | |
| Certification | FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7 UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
| Infrared (IR) cut-off filter | Yes |
| Placement supported | Outdoor |
| Day/night mode | Yes |
| Wide Dynamic Range (WDR) | 120dB |
| Type | IP security camera |
| Connectivity technology | Wired |
| Packaging content | |
| Number of cameras | 1 |
| Audio | |
| Voice codecs | PCM, G.711ulaw, MP2L2, G.722.1, G.726, G.711alaw |
| Sample rate | 8kHz / 16kHz |
| Ports interfaces | |
| Ethernet LAN (RJ-45) port | 1 |
| Camera | |
| Lens viewing angle, horizontal | 98° |
| Lens viewing angle, diagonal | 114° |
| Pan range | 0 - 355° |
| Angle of rotation | 355° |
| Camera tilt control | Yes |
| Camera shutter speed | 1/3 - 1/100000 sec. |
| Lens viewing angle, vertical | 54° |
| Tilt angle range | 0 - 75° |
| Image sensor | |
| Progressive scan | Yes |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Sensor type | CMOS |
| Video | |
| Bit rate | 32 Kbps - 8 Mbps |
| Frame rate | 25 fps |
| Video compression formats | H.265+, H.264+, M-JPEG, H.264, H.265 |
| Highlight Compensation (HLC) | Yes |
| Privacy masking | Yes |
| Total megapixels | 4 MP |
| Region of Interest (ROI) encoding | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Noise reduction | Yes |
| Supported graphics resolutions | 2560 x 1440, 1280 x 720 (HD 720), 640 x 360, 1920 x 1080 (HD 1080), 640 x 480 (VGA) |
| Maximum resolution | 2560 x 1440 pixels |
| Night vision | |
| LED type | IR/White |
| Infra-red wavelength | 850 nm |
| Night vision | Yes |
| Night vision distance | 30 m |
| Lens system | |
| Fixed focal length | 2.8 mm |
| Maximum aperture number | 1.6 |
| Safety warning | |
| Warnings | Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling., The product contains electronic components; do not dispose of with the normal household waste. |
