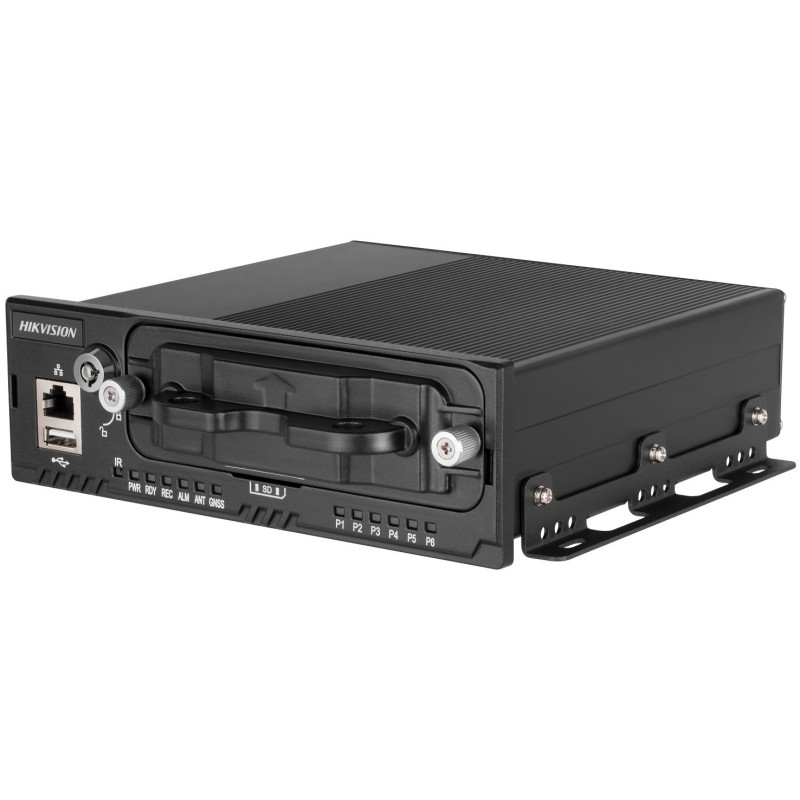

Hikvision car NVR AE-MN5043(1T / SSD)(RJ45)
Product reference: 26-6942160441641
  • Supports 4 IP cameras via PoE interfaces, additional 4 IP cameras via PoE switch
  • Up to 5 MP resolution with H.264 / H.265 compression is supported for each IP camera
  • Installs 2 × 2.5" HDD / SSD: SSD to 4 TB, HDD to 2 TB
  • Convenient graphical user interface for easy and flexible management
  • 4G and Wi-Fi modules are installed for flexible data transfer
  • Integrated GPS module for precise vehicle location and recording of location in the video stream
  • Information collection interfaces for driving data (turns, braking, reversing, etc.)
  • Aviation connectors ensure a stable signal
  • Delayed switch-off (0-6 hours) and 24-hour scheduled on/off
  • Built-in supercapacitor protects the device from sudden power outages
  • Wide supply voltage range: +9-36 V DC
  • Protection against data loss when power is turned off
  • Fanless die-cast aluminum housing, designed for harsh operating conditions
  • Software firewall supported
  • Access via web browser supported
  • Supports backing up records to duplicate HDD / SSD
Hikvision car NVR AE-MN5043(1T / SSD)(RJ45)

Hikvision car NVR AE-MN5043(1T / SSD)(RJ45)

Product reference: 26-6942160441641
  • Supports 4 IP cameras via PoE interfaces, additional 4 IP cameras via PoE switch
  • Up to 5 MP resolution with H.264 / H.265 compression is supported for each IP camera
  • Installs 2 × 2.5" HDD / SSD: SSD to 4 TB, HDD to 2 TB
  • Convenient graphical user interface for easy and flexible management
  • 4G and Wi-Fi modules are installed for flexible data transfer
  • Integrated GPS module for precise vehicle location and recording of location in the video stream
  • Information collection interfaces for driving data (turns, braking, reversing, etc.)
  • Aviation connectors ensure a stable signal
  • Delayed switch-off (0-6 hours) and 24-hour scheduled on/off
  • Built-in supercapacitor protects the device from sudden power outages
  • Wide supply voltage range: +9-36 V DC
  • Protection against data loss when power is turned off
  • Fanless die-cast aluminum housing, designed for harsh operating conditions
  • Software firewall supported
  • Access via web browser supported
  • Supports backing up records to duplicate HDD / SSD
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
484,37 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • Approvals
  • Automation EN50155(EN 50155:2021 clause 13, EN 50121-3-2:2016+A1:2019, EN45545-2:2020, EN50153:2014+A1:2017+A2:2020, BS EN ISO:13732-1:2008,ISO 13732-1:2006;EN61373:2010); EN45545 (EN 45545-2:2020 hl3); E-MARK (ECE R10)
  • EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 50498: 2010); CE-EMC (EN 55032: 2015+A1:2020, EN 50130-4: 2011+A1:2014; EN IEC 61000-3-2: 2019+A1:2021, EN 61000-3-3: 2013+A1:2019+A2:2021)
  • Environmental protection CE-RoHS (2011/65/EU and amendment 2015/863/EU)
  • Security CB (IEC 62368-1:2018); CE-LVD (EN IEC 62368-1:2020 + A11:2020 )
  • Interfaces
  • Alarm input 4 high/low level signal inputs, 1 pulse signal input, 1 button input
  • Alarm output 2 relay signal outputs
  • Network interface Front panel :1 ×10M/100M RJ45Rear panel: 1 × 10M/100M 6-pin aviation connectorNote：The front and rear network ports are at different network segments and the 6-pin aviation network cable female head to RJ45 is optional.
  • Sensor-in 4 high/low level signal inputs
  • Serial port 1 × RS-232(harness is optional), 1 × RS-422 (integrated in EXT.DEV interface)
  • Encoding/decoding parameters
  • Audio bit rate 16 Kbps
  • Audio compression G.711a/G.711u/G.722.1/G.726
  • Dual broadcast Supported
  • Encoding resolution Main stream: 1080P/720P/WD1/4CIFSub-stream: 720P/WD1/4CIF/2CIF/CIF
  • Frame rate PAL: 1 to 25 fps; NTSC: 1 to 30 fps
  • Flow type Video, video audio
  • Image compression H.265/H.264
  • General
  • Certification CE/FCC/Emark/EN50155/CB/EN45545/ROHS 2.0/ISO-7637-2
  • Working humidity 10% to 95% (non-condensing)
  • Operating temperature -25 °C to +70 °C (-13 °F to +158°F)
  • Operation Method Mouse, IR remote control, Web control, and touchscreen
  • Energy consumption Standby: ≤ 0.5 WFull load: ≤ 55 WNote: Without peripheral and storage media ≤ 20 W
  • Power source +9 to +36 VDC
  • Product dimensions 206 mm × 225.4 mm × 60.1 mm (8.1" × 8.87" × 2.37")
  • Weight (Without Storage Media) 1.66 kg (3.67 lb.)
  • Position
  • GNSS (Global Navigation Satellite System) GPS (Global Positioning System) GLONASS (Global Navigation Satellite System), 1 × FAKRA antenna
  • Sensor
  • G-Sensor Built-in
  • Memory
  • HDD/SDD 2 × 2.5 inch HDD/SSD, SSD up to 4 TB,HDD up to 2TBHDD/SSD data can be exported locally via this converter (optional) Hard Disk Case with heating function (optional)
  • SD Card Storage 1 × SD card, up to 512 GB (not for baseline. Note the SD card capacity when ordering）
  • Video/Audio Input
  • IP Camera 4-ch connected via PoE interfaces and 4-ch extendable via PoE switch.
  • Two-way audio 1, integrated in EXT.DEV interface
  • Video/Audio Output
  • Audio output 1, integrated in EXT.DEV interface
  • Video output Main output: 1, integrated in EXT.DEV interface. VGA: 1
  • Wireless network
  • 3G/4G 1 × 4G card slot, 1 × FAKRA antenna
  • Wi-Fi WI58 model: 2 × 5.8 G Wi-Fi SMA antenna(Optional. 802.11B/G/N and 802.11AC are selectable. 1 antenna is needed for 802.11B/G/N module. 2 antennas are needed for 802.11AC module.)

ManufacturerHikvision
Manufacturer codeAEMN50431TSSDRJ45
Weight1.69 kg
