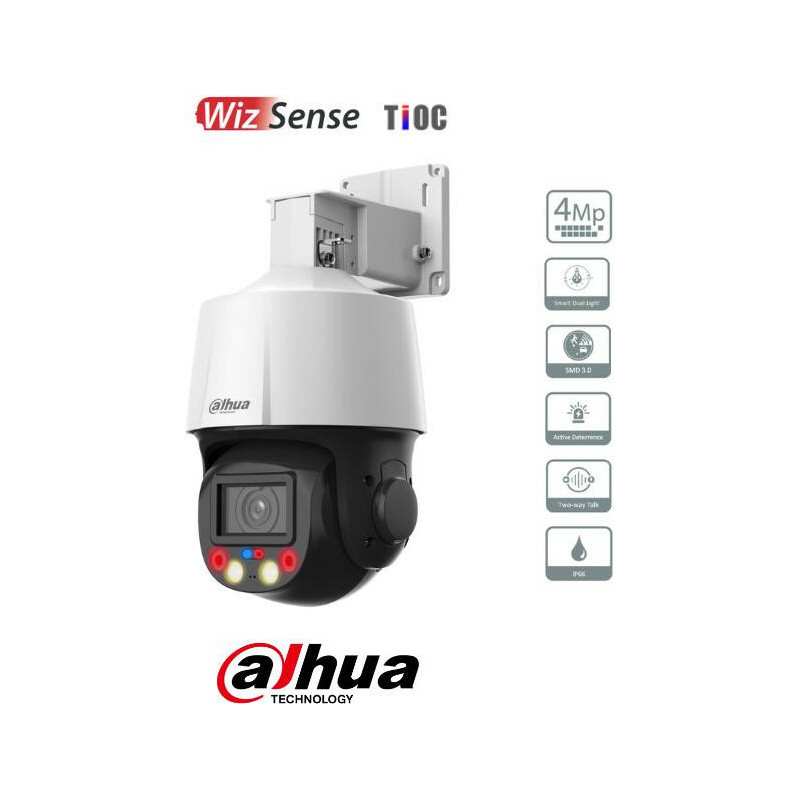

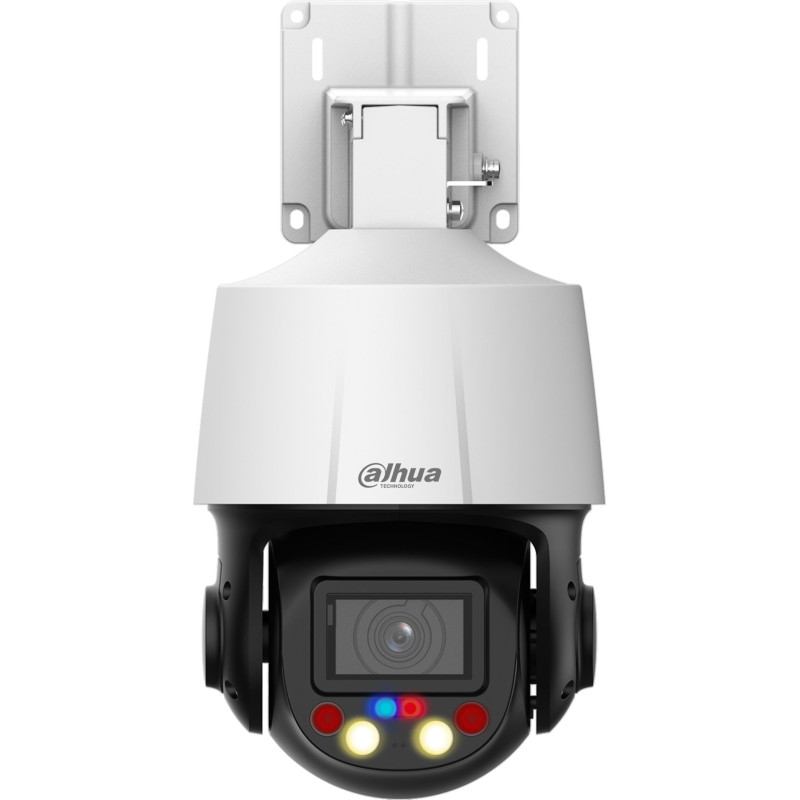

Dahua Technology IP PTZ camera, 4Mpx, TiOC, Smart (SD3E405DB-GNY-A-PV1)
Product reference:
3-6923172548184
Dahua Technology IP PTZ camera, 4Mpx, TiOC, Smart (SD3E405DB-GNY-A-PV1)
Dahua Technology IP PTZ camera, 4Mpx, TiOC, Smart (SD3E405DB-GNY-A-PV1)
Product reference:
3-6923172548184
Dahua Technology IP PTZ camera, 4Mpx, TiOC, Smart (SD3E405DB-GNY-A-PV1)
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 5
business days
- 1/2.8" 4Megapixel CMOS
- 5x optical zoom
- Max. 25/30fps@4M
- IR distance up to 50 m
- Warm light illumination distance up to 30 m
- SMD 3.0
- Perimeter protection
- Face detection
- Alarm: 1 in, 1 out; audio: 1 in, 1 out
- Built-in Mic and Speaker for Two-way Talk
- 12 VDC/PoE power supply
- IP66
- Sound and light alarm (red and blue lights)
| Summary: | Dahua Technology WizSense SD3E405DB-GNY-A-PV1. Type: IP security camera, Placement supported: Indoor outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Turret. Minimum illumination: 0.0005 lx, Tilt angle range: -15 - 90°, Tilt speed: 25.8 °/sec. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 5x, Digital zoom: 16x, Detect distance: 270 m |
| Vendor Homepage: | https://www.dahuasecurity.com/products/All-Products/PTZ-Cameras/WizSense-Series/SD3/SD3E405DB-GNY-A-PV1 |
| Category Code: | FNC |
| CnCode: | 85258900 |
| Unit Box Height: | 0.29 |
| Unit Box Length: | 0.25 |
| Unit Box Width: | 0.19 |
| Form factor: | Turret |
| International Protection (IP) code: | IP66 |
| Mounting type: | Ceiling/wall |
| Product colour: | White |
| Auto tracking: | Yes |
| Certification: | CE: EN55032/EN55024/EN50130-4 FCC: Part15 B, ANSI C63.4-2014 |
| Connectivity technology: | Wired |
| Placement supported: | Indoor outdoor |
| Preset points: | Yes |
| PTZ control: | Yes |
| Type: | IP security camera |
| Wide Dynamic Range (WDR): | Yes |
| Camera shutter speed: | 1/1 - 1/30000s |
| Minimum illumination: | 0.0005lx |
| Pan preset speed: | 35.7°/sec |
| Pan range: | 0 - 355° |
| Pan speed: | 36°/sec |
| Tilt angle range: | -15 - 90° |
| Tilt preset speed: | 27.1°/sec |
| Tilt speed: | 25.8°/sec |
| White balance: | Indoor/Manual/Natural/Outdoor/Sodium lamp/Street lamp |
| Optical sensor size: | 1/2.8" |
| Progressive scan: | Yes |
| Sensor type: | CMOS |
| Car focus: | Yes |
| Closest focusing distance: | 1.5m |
| Detect distance: | 270m |
| Digital zoom: | 16x |
| Focal length range: | 2.7 - 13.5mm |
| Focus: | Motorized/Manual |
| Identify distance: | 27m |
| Maximum aperture number: | 3 |
| Minimum aperture number: | 1.6 |
| Number of lenses: | 1 |
| Observe distance: | 106.6m |
| Optical zoom: | 5x |
| Recognize distance: | 54m |
| Zoom capability: | Yes |
| Night vision: | Yes |
| Night vision distance: | 50m |
| Number of illumination LEDs: | 6 |
| Back Light Compensation (BLC): | Yes |
| Bit rate control: | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Frame rate: | 30fps |
| Gain control type: | Auto/Manual |
| Highlight Compensation (HLC): | Yes |
| Image stabilizer: | Yes |
| Maximum resolution: | 2560 x 1440pixels |
| Noise reduction: | Yes |
| Noise reduction technology: | 2D noise reduction,3D noise reduction |
| Region of Interest (ROI) encoding: | Yes |
| Supported graphics resolutions: | 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2560 x 1440/352 x 288/640 x 480 (VGA)/704 x 576 |
| Total megapixels: | 4MP |
| Video compression formats: | H.264/H.264+/H.264B/H.265/H.265+/M-JPEG |
| Video streaming: | Yes |
| Audio input channels: | 1.0channels |
| Audio output channels: | 1.0channels |
| Signal-to-Noise Ratio (SNR): | 55dB |
| Voice codecs: | G.711a/G.711Mu/G.722.1/G.726/MP2L2/PCM |
| Bluetooth: | From |
| Ethernet LAN: | Yes |
| Number of users: | 20user(s) |
| Streaming method: | Multicast/Unicast |
| Supported network protocols: | FTP;RTMP;IPv6;Bonjour;IPv4;DNS;RTCP;PPPoE;NTP;RTP;802.1x;HTTPS;SNMP;TCP/IP;DDNS;UPnP;NFS;ICMP;UDP;IGMP;SMB;HTTP;SSL;DHCP;SMTP;Qos;RTSP;ARP |
| Wi-Fi: | From |
| Built-in HDD: | From |
| Card reader integrated: | Yes |
| Compatible memory cards: | MicroSD (TransFlash) |
| Maximum memory card size: | 512GB |
| RAM capacity: | 512MB |
| ROM capacity: | 128MB |
| Ethernet LAN (RJ-45) port: | 1 |
| Active tamper alarm: | Yes |
| Alarm input channels: | 1 |
| Alarm output channels: | 1 |
| Intelligent Video Surveillance (IVS) system features: | Abandoned object/Face detection/Human detection/Intrusion/Missing object/Tripwire/Vehicle detection |
| Video motion detection: | Yes |
| Management software: | DMSS;DSS Pro |
| DC output voltage: | 12 |
| Power consumption (max): | 15W |
| Power consumption (typical): | 4.5W |
| Power source type: | DC,PoE |
| Operating relative humidity (HH): | 0 - 95% |
| Operating temperature (TT): | -30 - 60°C |
| Mobile operating systems supported: | Android/iOS |
| Depth: | 142.6mm |
| Height: | 236.1mm |
| Weight: | 1500g |
| Width: | 140mm |
| Package weight: | 2100g |
| Number of cameras: | 1 |
| Units per Pallet: | 0 |
| Units per Shipping Box: | 1 |
| Unit Calculated Volume: | 0.01378m³ |
| Unit Calculated Weight: | 2.05kg |
