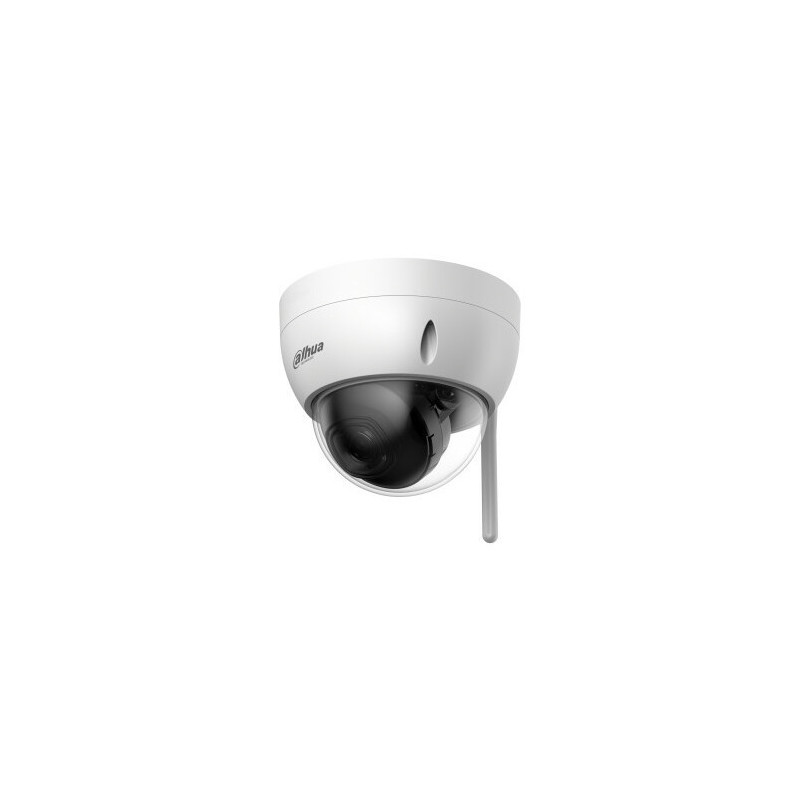

Dahua IPC-HDBW1430DE-SW-02 IP Network camera
Product reference:
3-6923172539984
Dahua IPC-HDBW1430DE-SW-02 IP Network camera
Dahua IPC-HDBW1430DE-SW-02 IP Network camera
Product reference:
3-6923172539984
Dahua IPC-HDBW1430DE-SW-02 IP Network camera
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
9 - 18
business days
- 4-MP 1/3" CMOS image sensor, low luminance, and high definition image
- Outputs max. 4 MP (2560 × 1440)@20 fps, and max. supports 3 MP (2304 × 1296)@25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in IR LED
- SMART H.264 +/H.265+, flexible coding, applicable to various band width and storage environments
- DWDR, 3D NR, BLC, digital watermarking, applicable to various monitoring scenes
- Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, SMD (human)
- Supports single antenna 2.4G Wi-Fi that covers a range of up to 80 m in an open area
- Supports max. 256 G Micro SD card
- 12 VDC power supply
- IP67, IK10 protection
| Summary: | Dahua Technology Mobile Camera DH-IPC-HDBW1430DE-SW. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired & Wireless. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Angle of rotation: 355°, Lens viewing angle, horizontal: 90°, Tilt angle range: 0 - 75°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Detect distance: 68 m, Observe distance: 27.2 m, Recognize distance: 13.6 m |
| Vendor Homepage: | https://www.dahuasecurity.com/products/All-Products/Network-Cameras/Wireless-Series/Wi-Fi-Series/4MP/IPC-HDBW1430DE-SW |
| Category Code: | FNC |
| CnCode: | 85258900 |
| Unit Box Height: | 0.145 |
| Unit Box Length: | 0.14 |
| Unit Box Width: | 0.125 |
| Form factor: | Dome |
| Housing material: | Metal |
| IK code: | IK10 |
| International Protection (IP) code: | IP67 |
| Mounting type: | Ceiling |
| Product colour: | White |
| Antenna type: | External |
| Antennas quantity: | 1 |
| Certification: | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; CE-RED: Radio Equipment Directive 2014/53/EU; FCC: 47 CFR FCC Part 15, Subpart B; FCC ID: FCC PART 15C |
| Connectivity technology: | Wired & Wireless |
| Day/night mode: | Yes |
| Placement supported: | Indoor & outdoor |
| Remote viewing: | Yes |
| Type: | IP security camera |
| Wide Dynamic Range (WDR): | Yes |
| Adjustment shutter speed: | Auto/Manual |
| Angle of rotation: | 355° |
| Camera shutter speed: | 1/3 - 1/100000s |
| Camera shutter type: | Electronic |
| Lens viewing angle, horizontal: | 90° |
| Pan range: | 0 - 355° |
| Tilt angle range: | 0 - 75° |
| Digital Wide Dynamic Range (DWDR) (panoramic camera): | Yes |
| Number of sensors: | 1 |
| Optical sensor size: | 1/3" |
| Progressive scan: | Yes |
| Sensor type: | CMOS |
| Auto focus: | Yes |
| Detect distance: | 68m |
| Fixed focal length (thermal module): | 2.8mm |
| Identify distance: | 6.8m |
| Maximum aperture number: | 2 |
| Number of lenses: | 1 |
| Observe distance: | 27.2m |
| Recognize distance: | 13.6m |
| LED type: | IR |
| Night vision: | Yes |
| Night vision distance: | 30m |
| Number of illumination LEDs: | 3 |
| Back Light Compensation (BLC): | Yes |
| Bit rate: | 3 Kbps - 20480 Kbps |
| Bit rate control: | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Digital Wide Dynamic Range (DWDR): | Yes |
| Frame rate: | 30fps |
| Highlight Compensation (HLC): | Yes |
| Maximum resolution: | 2560 x 1440pixels |
| Noise reduction: | Yes |
| Noise reduction technology: | 3D noise reduction |
| Smart IR: | Yes |
| Supported graphics resolutions: | 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2560 x 1440 |
| Supported video modes: | 1080p/720p |
| Total megapixels: | 4MP |
| Video compression formats: | H.264+/H.264H/H.265+ |
| Video formats supported: | H.264/H.264B/H.265 |
| Video intelligence analytic: | Yes |
| Video recording: | Yes |
| Video streaming: | Yes |
| Audio codecs: | G.711a; G.711Mu; PCM; G.726; G.723 |
| Audio system: | 1-way |
| Audio system full duplex: | Yes |
| Bluetooth: | No |
| Ethernet interface type: | Fast Ethernet |
| Ethernet LAN: | Yes |
| Number of users: | 6user(s) |
| Wi-Fi: | Yes |
| Wi-Fi standards: | 802.11b/802.11g/Wi-Fi 4 (802.11n) |
| Built-in HDD: | No |
| Card reader integrated: | Yes |
| Compatible memory cards: | MicroSD (TransFlash) |
| Internal memory: | 64MB |
| Maximum memory card size: | 256GB |
| ROM capacity: | 16MB |
| Ethernet LAN (RJ-45) ports: | 1 |
| Detection distance: | 80m |
| Intelligent Video Surveillance (IVS) system features: | Intrusion |
| Mirror: | Yes |
| Web browser: | Yes |
| DC output voltage: | 12 |
| Power source type: | DC,PoE |
| Operating relative humidity (H-H): | 0 - 95% |
| Operating temperature (T-T): | -40 - 60°C |
| Storage temperature (T-T): | -40 - 60°C |
| Mobile operating systems supported: | Android/iOS |

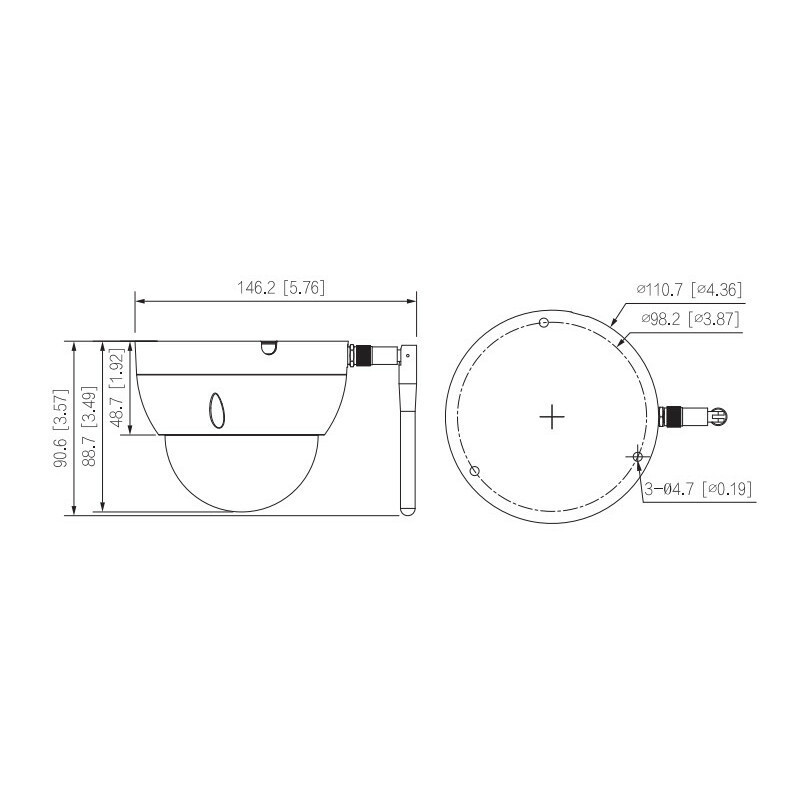

| Diameter: | 110.7mm |
| Height: | 88.7mm |
| Weight: | 414g |
| Package weight: | 592g |
| Number of cameras: | 1 |
| Units per Shipping Box: | 1 |
| Unit Calculated Volume: | 0.002537m³ |
| Unit Calculated Weight: | 0.639kg |
