With features of simple installation, easy operation, and high performance-cost ratio, Dahua Entry series network camera is applicable to small and medium-sized scenes, such as homes / residences, small-sized retail stores, and other small and medium-sized enterprises.
Smart H.265+ Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.
Motion Detection
When moving objects appear in the monitoring image, Dahua Motion Detection (General) technology triggers alarm or records.
Smart Illumination
Dahua Smart Illumination technology can display image in the environment of low illuminance or completely dark environment. According to the distance of the targets, the camera adjusts
Illuminations intensity automatically to display the details of the moving target.
Cyber Security
Dahua network camera is equipped with a series of key security technologies, such as security authentication and authorization, access control, trusted protection, encrypted transmission, and encrypted storage, which improve its security defense and data protection, and prevent malicious programs from invading the device.
Protection (IP67,wide voltage)
IP67: The camera passes a series of strict tests on dust and soak. It has a dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with unstable voltage.

  • 2MP 1/2.8" CMOS image sensor, low luminance, and high definition image
  • Output max. 2MP (1920 × 1080)@25/30 fps
  • H.265 codec, high compression rate, ultra-low bit rate
  • Built-in IR LED, and the max. illumination distance is 50 m
  • ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments
  • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
  • Abnormality detection: Motion detection, privacy masking, no SD card, SD card full, SD card error, network disconnection, IP conflict, and illegal access
  • Max. 256G SD card
  • 12V DC/PoE power supply
  • IP67 protection

Summary:Dahua Technology Entry IPC-HFW1230T-ZS-S5. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: Black, White, Form factor: Bullet. Minimum illumination: 0.0005 lx, Angle of rotation: 360°, Tilt angle range: 0 - 90°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Focal length range: 2.8 - 12, Focus: Motorized/Manual, Identify distance: 13 m
Vendor Homepage:https://www.dahuasecurity.com/mena/products/All-Products/Network-Cameras/Entry-Series/2MP/IPC-HFW1230T-ZS-S5
Category Code:FNC
CnCode:85258900
Unit Box Height:0.16
Unit Box Length:0.31
Unit Box Width:0.145
Form factor:Bullet
International Protection (IP) code:IP67
Mounting type:Ceiling/Wall/Pole
Product colour:Black/White
Auto pan mode:Yes
Certification:CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
Connectivity technology:Wired
Day/night mode:Yes
Maximum operating distance:50m
Placement supported:Outdoor
Type:IP security camera
Wide Dynamic Range (WDR):Yes
Shutter speed adjustment:Auto/Manual
Angle of rotation:360°
Camera pan control:Yes
Camera shutter speed:1/3 s-1/100,000s
Camera tilt control:Yes
Minimum illumination:0.0005lx
Pan range:0 - 360°
Tilt angle range:0 - 90°
White balance:Car
Optical sensor size:1/2.8"
Sensor type:CMOS
Closest focusing distance:1.2m
Detect distance (telephoto):131m
Detect distance (wide):48m
Focal length range:2.8 - 12mm
Focus:Motorized/Manual
Identify distance:13m
Identify distance (telephoto):13m
Identify distance (wide):5m
Normal focusing range:1.2m
Number of lenses:1
Observe distance (telephoto):52m
Observe distance (wide):19m
Recognize distance (telephoto):26m
Recognize distance (wide):10m
LED type:IS
Night vision:Yes
Night vision distance:50m
Number of illumination LEDs:2
Back Light Compensation (BLC):Yes
Bitrate:H.264: 32 kbps-6144 kbps, H.265: 12 kbps-6144 kbps
Bit rate control:Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR):Yes
Frame rate:30fps
Gain control type:Auto/Manual
Highlight Compensation (HLC):Yes
Maximum resolution:1920 x 1080pixels
Noise reduction:Yes
Noise reduction technology:3D noise reduction
Privacy masking:Yes
Region of Interest (ROI) encoding:Yes
Smart IS:Yes
Supported graphics resolutions:1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576
Supported video modes:1080p/720p
Total megapixels:2MP
Video compression formats:H.264/H.264+/H.265/H.265+
Video streaming:Yes
Bluetooth:From
Ethernet interface type:Fast Ethernet
Ethernet LAN:Yes
Number of users:6user(s)
Supported network protocols:IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNA; NTP; Multicast; DDNS
Wi-Fi:From
Built-in HDD:From
Card reader integrated:Yes
Compatible memory cards:MicroSD (TransFlash)
Internal memory:128MB
Maximum memory card size:256GB
ROM capacity:16MB
Ethernet LAN (RJ-45) port:1
DC output voltage:12
Power consumption (max):4.3W
Power consumption (Power over Ethernet (PoE)):5.5W
Power consumption (typical):1.8W
Power source type:DC,PoE
Operating relative humidity (HH):0 - 95%
Operating temperature (TT):-30 - 60°C

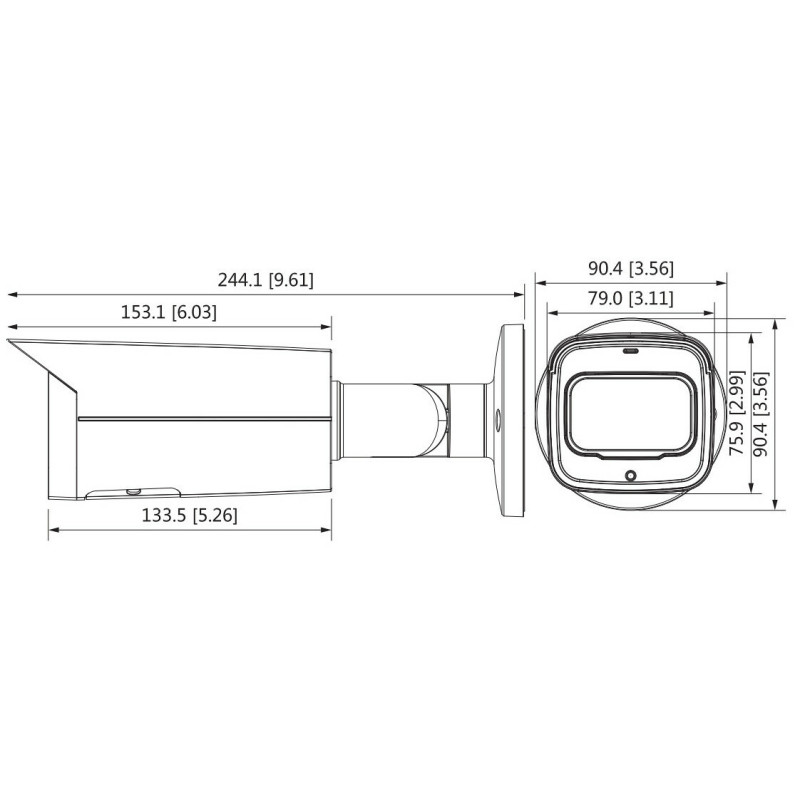

Diameter:90.4mm
Height:244.1mm
Weight:860g
Package weight:1120g
Number of cameras:1
Units per Shipping Box:1
Unit Calculated Volume:0.007192m³
Unit Calculated Weight:1.08kg
