Camera IP Dahua Technology Camera Ip Dahua Ipc-Hdbw2431R-Zs-27135-S2
Product reference:
3-6923172545671
Camera IP Dahua Technology Camera Ip Dahua Ipc-Hdbw2431R-Zs-27135-S2
Camera IP Dahua Technology Camera Ip Dahua Ipc-Hdbw2431R-Zs-27135-S2
Product reference:
3-6923172545671
Camera IP Dahua Technology Camera Ip Dahua Ipc-Hdbw2431R-Zs-27135-S2
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 5
business days
- 4-MP 1/2.9" CMOS image sensor, low luminance, and high definition image
- Outputs max. 4 MP (2688 × 1520)@20 fps and supports 2560 × 1440 (2560 × 1440)@25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in IR LED, and the max. illumination distance is 40 m
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
- Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
- Alarm: 1 in, 1 out (Only - ZAS supports); audio: 1 in, 1 out (Only - ZAS supports); supports max. 256 G Micro SD card; built in MIC
- 12 VDC/PoE power supply, easy for installation
- IP67 and IK10 protection
- SMD Plus
| Summary: | Dahua Technology WizSense IPC-HDBW2441R-ZAS-27135. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Angle of rotation: 355°, Lens viewing angle, horizontal: 104 - 29°, Lens viewing angle, vertical: 54 - 16°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Focal length range: 2.7 - 13.5 mm, Detect distance (wide): 64 m, Detect distance (tele): 210 m |
| Vendor Homepage: | https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/2-Series/4MP/IPC-HDBW2441R-ZAS |
| Category Code: | FNC |
| CnCode: | 85258900 |
| Unit Box Height: | 0.14 |
| Unit Box Length: | 0.16 |
| Unit Box Width: | 0.16 |
| Form factor: | Dome |
| Housing material: | Metal |
| IK code: | IK10 |
| International Protection (IP) code: | IP67 |
| Mounting type: | Ceiling |
| Product colour: | White |
| Connectivity technology: | Wired |
| Day/night mode: | Yes |
| Dynamic range: | 120dB |
| Placement supported: | Outdoor |
| Type: | IP security camera |
| Wide Dynamic Range (WDR): | Yes |
| Adjustment shutter speed: | Auto/Manual |
| Angle of rotation: | 355° |
| Camera shutter speed: | 1/3 - 1/100000s |
| Camera shutter type: | Electronic |
| Lens viewing angle, diagonal: | 125 - 34° |
| Lens viewing angle, horizontal: | 104 - 29° |
| Lens viewing angle, vertical: | 54 - 16° |
| Minimum illumination: | 0lx |
| Number of Privacy masking areas: | 4 |
| Pan range: | 0 - 355° |
| Tilt angle range: | 0 - 75° |
| White balance: | Auto/Manual/Natural/Outdoor/Regional custom/Street lamp |
| Optical sensor size: | 1/2.9" |
| Progressive scan: | Yes |
| Sensor type: | CMOS |
| Closest focusing distance: | 0.8m |
| Detect distance (tele): | 210m |
| Detect distance (wide): | 64m |
| Focal length range: | 2.7 - 13.5mm |
| Identify distance (tele): | 21m |
| Identify distance (wide): | 6.4m |
| Minimum aperture number: | 1.5 |
| Observe distance (tele): | 84m |
| Observe distance (wide): | 25.6m |
| Recognize distance (tele): | 42m |
| Recognize distance (wide): | 12.8m |
| LED type: | IR |
| Night vision: | Yes |
| Night vision distance: | 40m |
| Number of illumination LEDs: | 2 |
| Back Light Compensation (BLC): | Yes |
| Bit rate: | 12 kbps-6144 kbps |
| Bit rate control: | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Gain control type: | Auto/Manual |
| Highlight Compensation (HLC): | Yes |
| Maximum resolution: | 2688 x 1520pixels |
| Noise reduction: | Yes |
| Noise reduction technology: | 3D noise reduction |
| Supported graphics resolutions: | 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2560 x 1440/2688 x 1520/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576 |
| Total megapixels: | 4MP |
| Video compression formats: | H.264/H.264B/H.264H/H.265/M-JPEG |
| Audio formats supported: | G.711 µ-law/G.711 A-law/G.726/PCM |
| Audio input channels: | 1.0channels |
| Audio output channels: | 1.0channels |
| Built-in microphone: | Yes |
| Built-in speaker(s): | Yes |
| Signal-to-Noise Ratio (SNR): | 56dB |
| Bluetooth: | No |
| Ethernet LAN: | Yes |
| Number of users: | 6user(s) |
| Supported network protocols: | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP |
| Wi-Fi: | No |
| Built-in HDD: | No |
| Card reader integrated: | Yes |
| Compatible memory cards: | MicroSD (TransFlash) |
| Flash memory: | 128MB |
| Internal memory: | 128MB |
| Maximum memory card size: | 256GB |
| Ethernet LAN (RJ-45) ports: | 1 |
| Alarm input channels: | 1 |
| Alarm output channels: | 1 |
| Mirror: | Yes |
| Video motion detection: | Yes |
| Management software: | Smart PSS; DSS; DMSS |
| Web browser: | No |
| DC output voltage: | 12 |
| Power consumption (max): | 6.5W |
| Power consumption (Power over Ethernet (PoE)): | 3.2W |
| Power consumption (typical): | 2.3W |
| Power source type: | DC,PoE |
| Operating relative humidity (H-H): | 0 - 95% |
| Operating temperature (T-T): | -30 - 60°C |
| Storage temperature (T-T): | -40 - 60°C |
| Mobile operating systems supported: | Android/iOS |

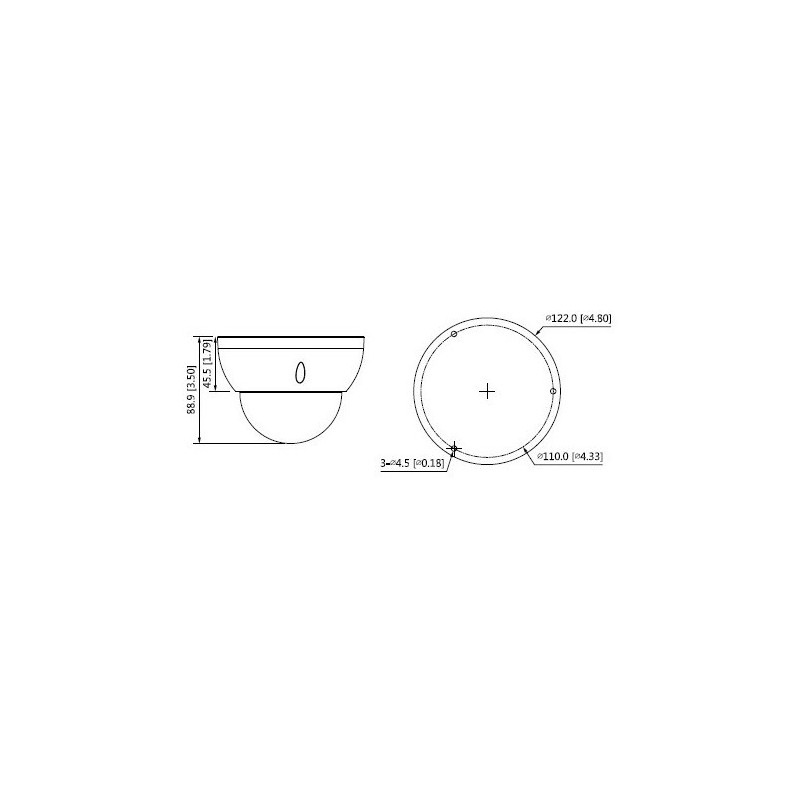

| Diameter: | 122mm |
| Height: | 93.4mm |
| Weight: | 520g |
| Package weight: | 680g |
| Number of cameras: | 1 |
| Model: | IPC-HDBW2441R-ZAS-27135 |
| Units per Shipping Box: | 1 |
| Unit Calculated Volume: | 0.003584m³ |
| Unit Calculated Weight: | 0.68kg |
