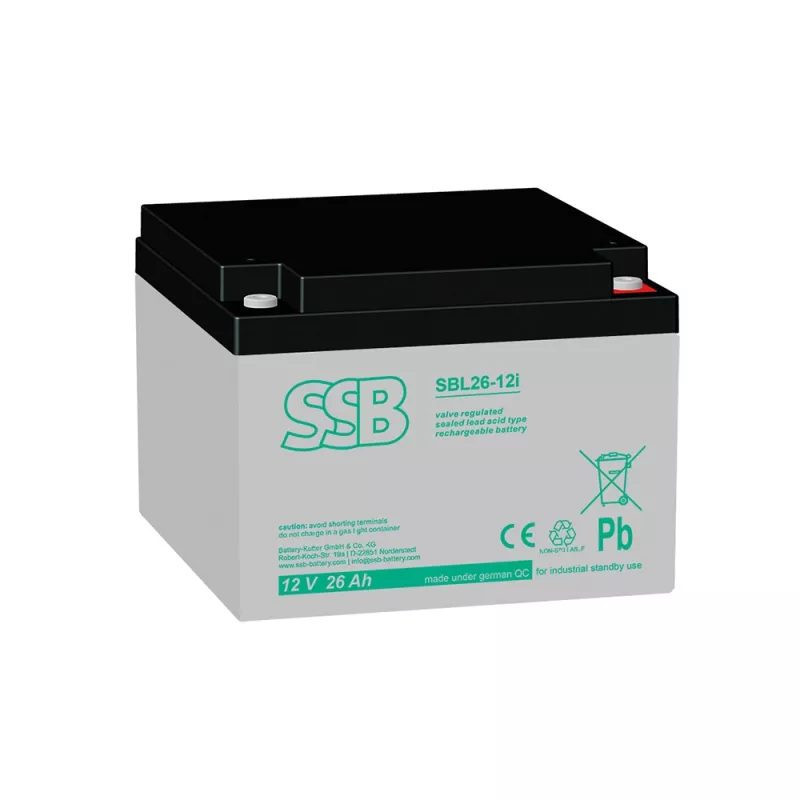

Battery (AGM) SSB SBL (26Ah, 12V, F13 M5, VRLA)
Product reference: 26-AS26AH12VM5F13
  • Type: AGM battery
  • Model: SBL 26-12i
  • Capacity: 26 Ah
  • Voltage: 12V
  • Connection: F13 M5
  • Technology: VRLA (Valve Regulated Lead Acid)
  • Weight: 8.10 kg
  • Dimensions: 176x166x125 mm (length x width x height)
  • Height with connectors: 125 mm
Battery (AGM) SSB SBL (26Ah, 12V, F13 M5, VRLA)

Battery (AGM) SSB SBL (26Ah, 12V, F13 M5, VRLA)

Product reference: 26-AS26AH12VM5F13
  • Type: AGM battery
  • Model: SBL 26-12i
  • Capacity: 26 Ah
  • Voltage: 12V
  • Connection: F13 M5
  • Technology: VRLA (Valve Regulated Lead Acid)
  • Weight: 8.10 kg
  • Dimensions: 176x166x125 mm (length x width x height)
  • Height with connectors: 125 mm
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
65,76 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • General data
  • Rated voltage 12V
  • Nominal capacity 26 Ah @ C20 to 1.75 V/cell
  • Technology AGM (Absorbent Glass Mat), VRLA (Valve Regulated Lead Acid)
  • Weight ~ 8.1 kg
  • Design life 10-12 years (standby use), Long Life acc. Eurobat
  • Internal resistance ~ 13.5 mΩ (fully charged)
  • Operating temperature range Discharge: -20°C to +60°C, Charge: 0°C to +50°C, Storage: -20°C to +60°C
  • Maximum discharge current 260 A (5 seconds)
  • Short-circuit current 900 A
  • Maximum charging current 7.8 A
  • Charging voltage Standby use: 13.7 - 13.9 VDC, Cycle use: 14.6 - 14.8 VDC
  • Self-discharge Monthly loss less than 3% at 25°C
  • Container material ABS UL94HB (optional UL94-V0)
  • Dimensions (L x W x H) 176 ±2mm x 166 ±2mm x 125 ±2mm
  • Total height 125 ±2mm
  • Terminal types Internal thread M5 (breaking torque 6-7 Nm)
  • Compliance standards PN-EN 60896-21:2007, PN-EN 60896-22:2007, PN-EN 61056-1:2013, PN-EN 61056-2:2013, PN-E-83016:1999
  • Certificates ISO 9001, ISO 14001
  • Usage UPS, Emergency Lighting, Fire Alarm Systems, Security Systems, Energy Utilities, DC Power Supply

ManufacturerSSB
Manufacturer codeAS26AH12VM5F13
Weight8.1 kg
