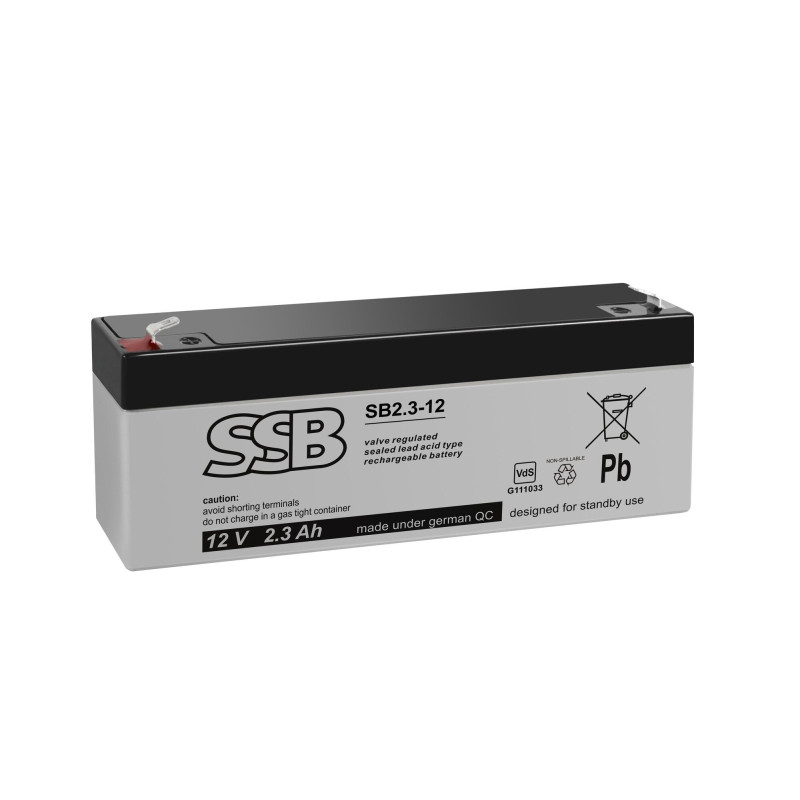

Battery (AGM) SSB SB (2.3Ah, 12V, F1, VRLA)

Product reference: 26-AS23AH12V

Battery (AGM) SSB SB (2.3Ah, 12V, F1, VRLA)

Product reference: 26-AS23AH12V

You have 3 products in compare list, please remove someone and try again

Add to compare

16,01 €

Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!

Fill in the required fields*

Not available

General data
Rated voltage 12V
Nominal capacity 2.3 Ah @ C20 to 1.75 V/cell
Technology AGM (Absorbent Glass Mat), VRLA (Valve Regulated Lead Acid)
Weight ~ 0.85 kg
Design life 6-9 years (standby use), General Purpose acc. Eurobat
Internal resistance ~ 70 mΩ (fully charged)
Operating temperature range Discharge: -20°C to +60°C, Charge: 0°C to +50°C, Storage: -20°C to +60°C
Maximum discharge current 23 A (5 seconds)
Maximum charging current 0.69 A
Charging voltage Standby use: 13.7 - 13.9 VDC, Cycle use: 14.6 - 14.8 VDC
Self-discharge Monthly loss less than 3% at 25°C
Container material ABS UL94HB (optional UL94-V0)
Dimensions (L x W x H) 177 ±1.5 mm x 35 ±1.5 mm x 62 ±1.5 mm
Total height 68 ±1.5mm
Terminal types Fast-on 4.8 mm
Compliance standards PN-EN 60896-21:2007, PN-EN 60896-22:2007, PN-EN 61056-1:2013, PN-EN 61056-2:2013, PN-E-83016:1999
Certificates ISO 9001, ISO 14001
Usage UPS, Emergency Lighting, Fire Alarm Systems, Security Systems, Energy Utilities, DC Power Supply
