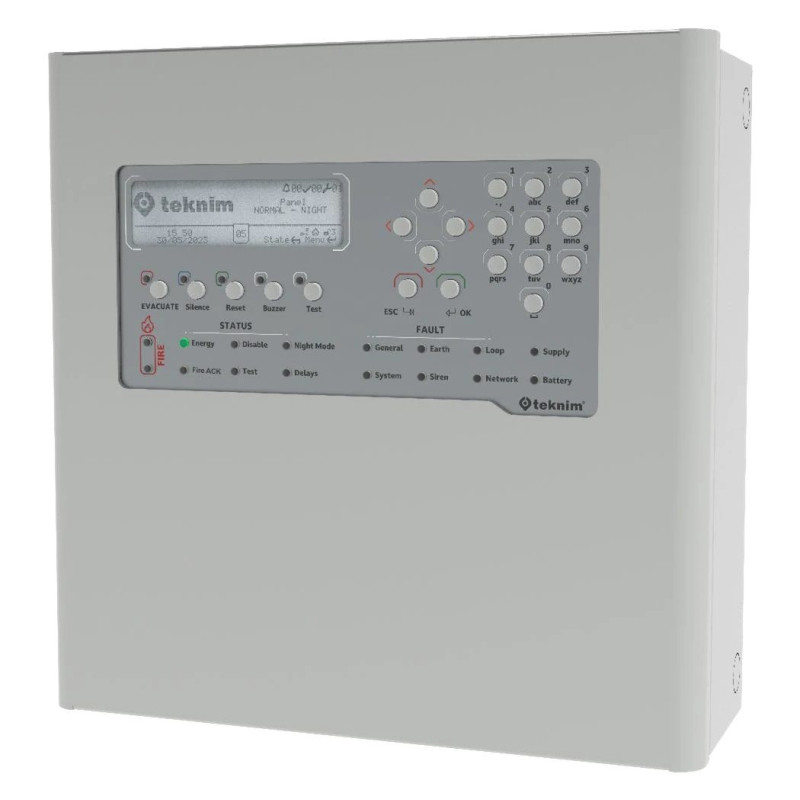

Type: addressable fire control panelNumber of loops: 1 loop, expandable to 2 loopsStandard: EN54-2, EN54-4Zones: 72 zonesNumber of devices in the loop: 240 devicesNetwork integration: up to 16 control panels via RS-485 (with TFC-1209)Event log: 12,000 eventsManagement: mobile appBrand:...
Type: addressable fire control panelNumber of loops: 4 loopsStandard: EN54-2, EN54-4Zones: 72 zonesNumber of devices in the loop: 127 devices (total 508)Network integration: up to 16 panels via RS-485 (with TFC-1209)Event log: 12,000 eventsManagement: mobile appBrand: TeknimModel: TFP-2214
Type: Addressable controlled I/O moduleModel: EM344SBrand: EneaInputs / Outputs: 4 inputs / 4 controlled outputsConventional zone connection: 2 inputs availableSupply voltage: 19-30 VDCCurrent (standby): 80 µACurrent (alarm mode): 20 mA
Type: conventional zone connection moduleIntegrated insulatorStandard: EN54-18, EN54-17Number of detectors in the zone: 32 detectors, unlimited number of buttonsIndication: 4 LED indicatorsBrand: TeknimModel: TFM-1661
Type: addressable detector baseCompatibility: all Teknim fire detectorsBrand: TeknimModel: TFA-0120
Type: Addressable door magnetModel: DoorProtect Plus FibraBrand: AjaxSensors: Shock, vibration and tilt (5-25°)Connection: Fiber wired technology up to 2000 mPower supply: 5-30 V (Fiber line)Protection: IP50, IK04Color: White
Addressable alarm buttonLED status indication
Addressable smoke detectorWhite
Type: Addressable temperature detectorModel: ED200Manufacturer: EneaSupply voltage: 19-30 VDCStandby power supply current: 200 μASupply current in alarm mode: 10 mA at 27.6 VOutput contact current (max.): 14 mA

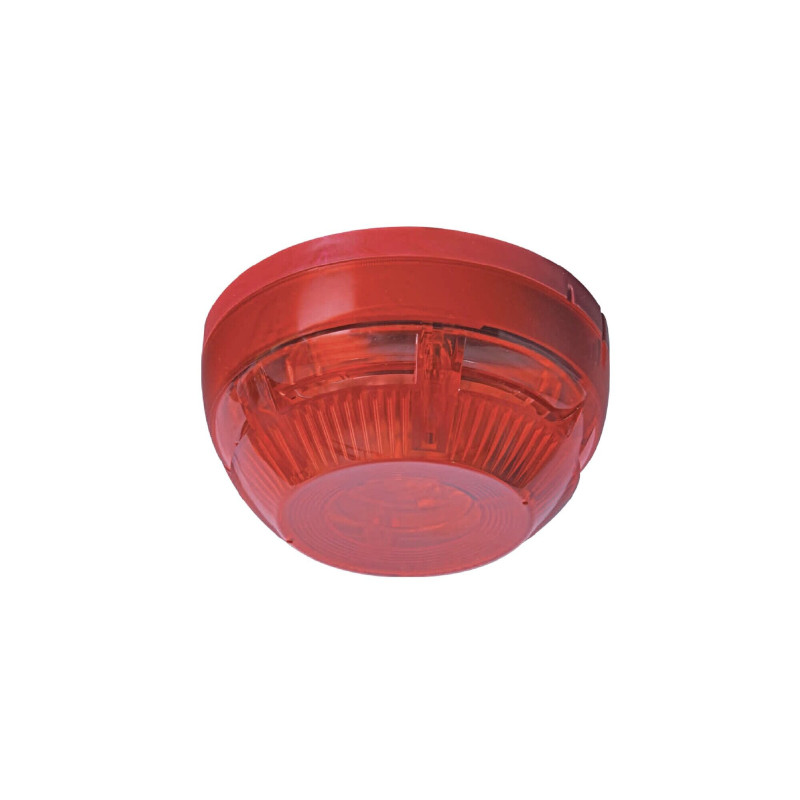

Type: addressable fire sirenIntegrated siren, integrated isolatorStandard: EN54-3, EN54-17Sound level: 97 dBSound tones: 42 tonesVolume level options: 3 levelsProtection class: IP21CHousing: red/white, transparent UL94 non-flammable polycarbonateBrand: TeknimModel: TFS-1181
Type: addressable fire siren with strobeIntegrated siren, integrated strobe, integrated isolatorStandard: EN54-3, EN54-23, EN54-17Sound level: 97 dBSound tones: 42 tonesVolume level options: 3 levelsFlash modes: 3 modesBrightness modes: 3 modesHousing: red, transparent UL94 non-flammable...
Type: address flashBuilt-in flash, built-in isolatorStandard: EN54-23, EN54-17, EN54-13Flash modes: 3 modesBrightness modes: 3 modesHousing: red, transparent UL94 non-flammable polycarbonateBrand: TeknimModel: TFS-1183R
Type: Wired addressable indoor sirenModel: Ajax HomeSiren FibraColor: BlackSound level: 81-105 dBAudio duration: 3-180 secondsConnection type: Fiber (UTP cable)Operating range: Up to 2000 mProtection class: IP50Code: 44398.11.BL1
Type: input moduleInputs: 1 monitored inputIntegrated insulatorBrand: TeknimModel: TFM-1011
Type: input/output moduleIntegrated insulatorInputs: 1 monitored inputOutputs: 1 monitored outputBrand: TeknimModel: TFM-1431
Type: Addressable relay I/O moduleModel: EM322ACBrand: EneaInputs / Outputs: 2 inputs, 2 relay outputs (230 VAC)Supply voltage: 19-30 VDCIntegrated short circuit isolator: YesLED indicators: For inputs, outputs and loopbackCurrent (standby): max. 80 µACurrent (alarm mode): max. 10 mADimensions:...
Type: Addressable relay I/O moduleModel: EM344RBrand: EneaInputs / Outputs: 4 inputs / 4 relay outputsConventional zone connection: 2 inputs availableSupply voltage: 19-30 VDCCurrent (standby): 80 µACurrent (alarm mode): 20 mA
Type: addressable repeaterDisplay: 240×64 LCDInterface: RS-485 connection (up to 1 km)Features: user-friendly interface, real-time stabilized communication, alarm/error/warning monitoringHousing: sturdy metalBrand: TeknimModel: TFP-1240
For addressable sensors: Enea/IRIS Equipped with a short circuit board that ensures continuity in the event of the detector being removed from the line.
Type: Addressable sirenModel: ES2011REPower supply: From the loopPower: Low power consumptionWith insulatorProtection class: IP65Brand: Enea
Type: Addressable siren with flashModel: ES2021REPower supply: From the loopInsulator: YesUsage: For outdoor and indoor useProtection class: IP65
Sound output 106 dB at 1 m - adjustable depending on the selected tone.32 selectable tonesPower consumption 4-41 mA, depending on the selected tone.IP67
Type: addressable smoke detectorStandard: EN54-7Technology: light scattering principleIndication: 2× LED indicators (360°)Sensitivity: 3 adjustable levels (high, medium, low)Algorithms: sudden pollution reduction, adaptive protection, pollution level measurementInterface: Remote indicator...
Type: addressable smoke detectorIntegrated insulatorStandard: EN54-7, EN54-17Technology: light scattering principleIndication: 2× LED indicators (360°), multi-color status/fire/short circuit/pollutionSensitivity: 3 adjustable levels (high, medium, low)Algorithms: sudden pollution reduction,...
