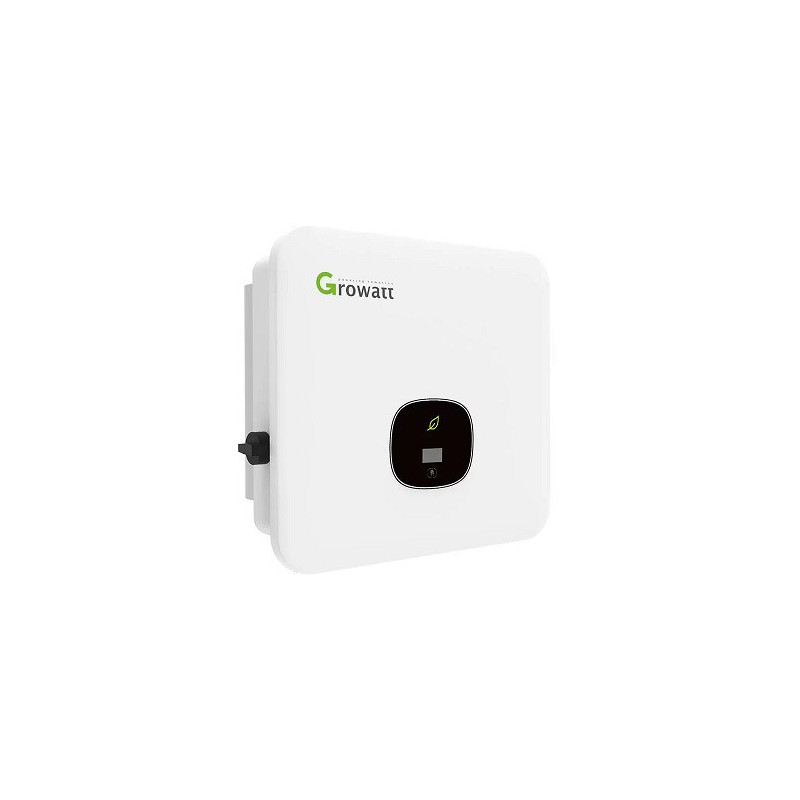

Solar inverter GROWATT MOD 10KTL3-X, 10kW, 3-phase, 2 MPPT inputs

Solar inverter 10kW, 3-phase, 2 MPPT inputs, Growatt MOD 10KTL3-X
Features:
High efficiency inverter. Maximum inverter efficiency up to 98.6%.
Interfaces: USB, RS-485.
Supports control via smartphone app.
Safe and durable. Integrated Type II DC and AC SPD.
The inverter has a compact design.
Technical data:
Output AC power: 10000 W.
Output voltage: AC 220V/380V; 230/400V.
Number of phases: 3.
Output frequency: 50/60 Hz.
Rated input voltage: DC 580V.
Max PV input current per input: 13A.
Number of independent MPPT inputs: 2.
Max PV input power: 15000 W.
MPPT voltage range: DC 140V - 1000V.
Communication: RS485.
Interface: USB.
Safety class: IP66.
Surge protection: DC Type II / AC Type II.
Display: OLED.
Operating temperature: -25°C ~ +60°C.
Dimensions: 425x387x178mm.
Weight: 14 kg.
Warranty: The voltage converter (inverter) warranty is valid from the date on which we (the seller) are provided with the inverter serial number, purchase invoice, and a certificate from a certified electrician or ESO at the time of delivery of the solar power plant regarding the installed:
1) Lightning arrester and surge arrester (from the input side)
2) Lightning protection (between solar panels and inverter)
3) DC voltage disconnector between the panels and the inverter
4) Separate grounding of solar panels from the common grounding of the house
The 10-year (120-month) manufacturer's warranty is valid from the date of purchase of the inverter upon presentation of the above documents.
Note: A lightning strike is an insured event, not a warranty event.
