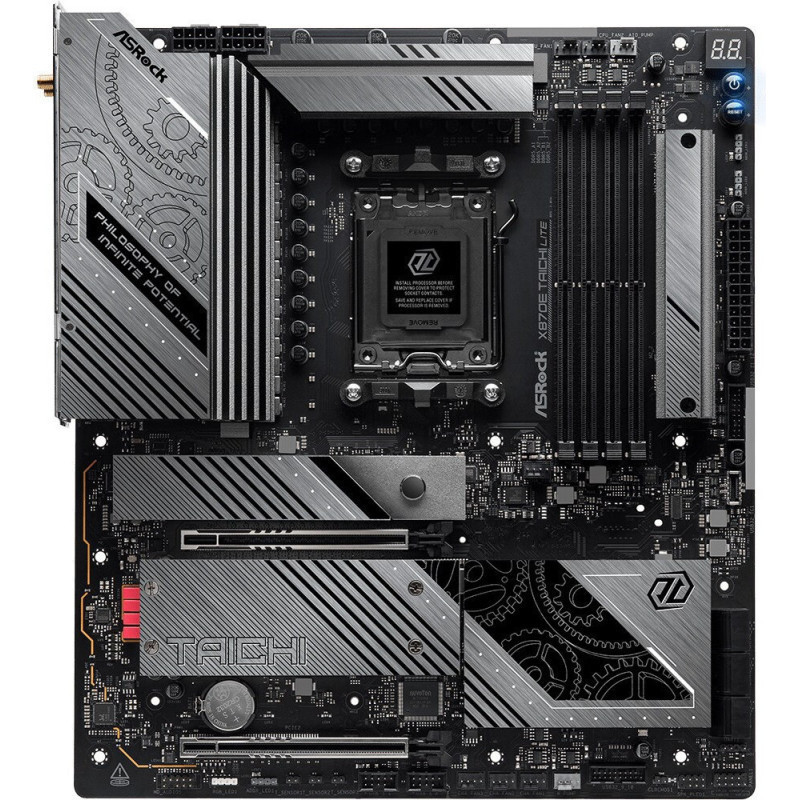

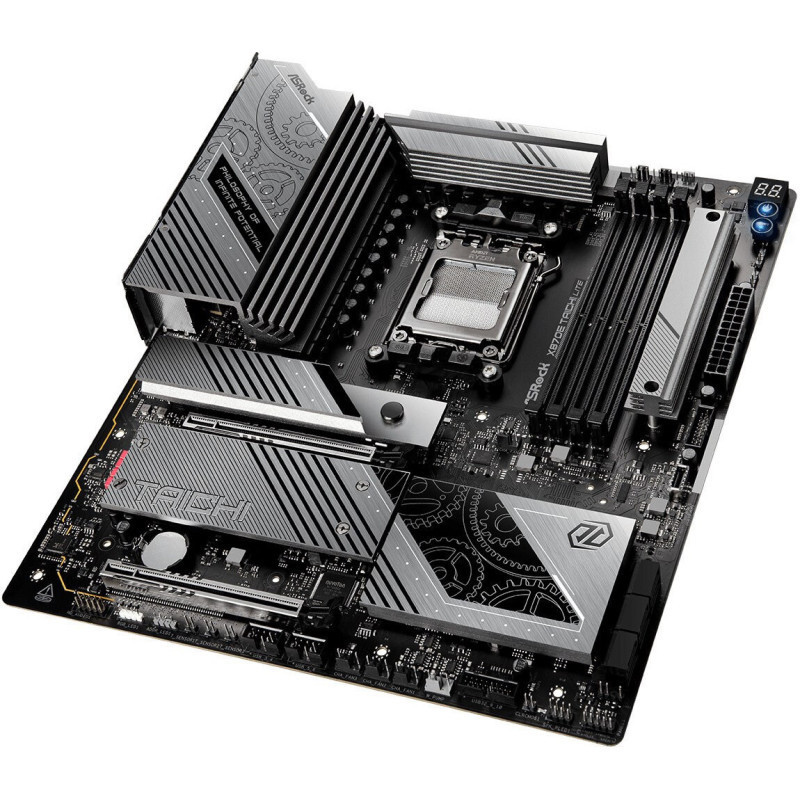

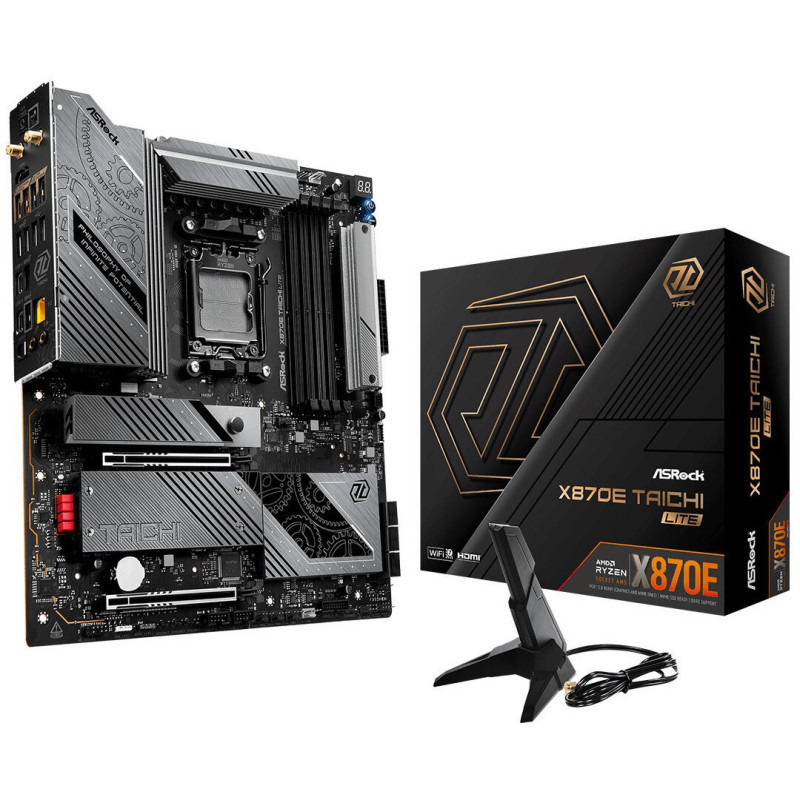

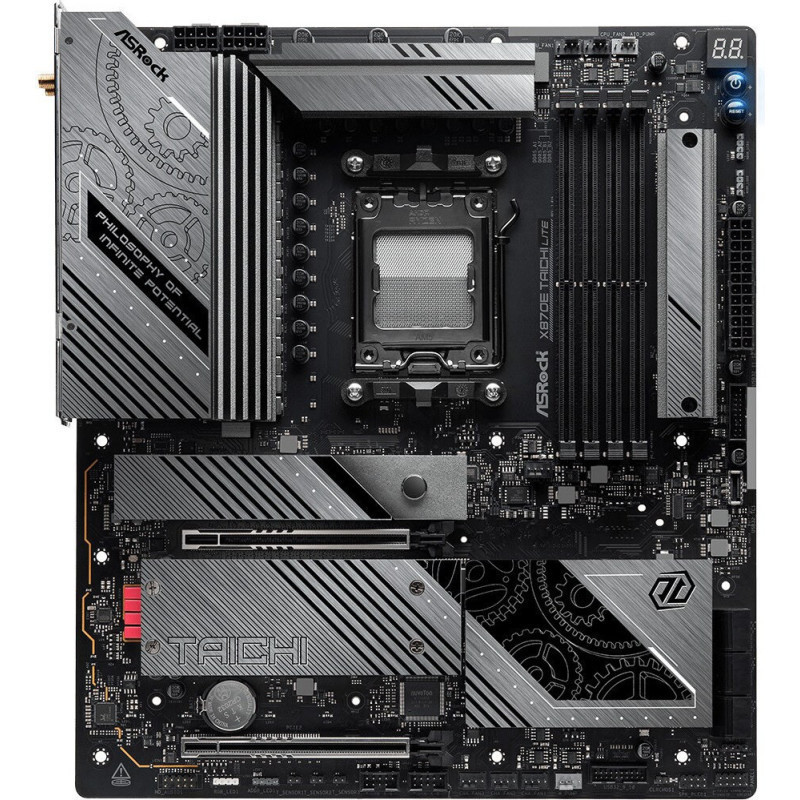

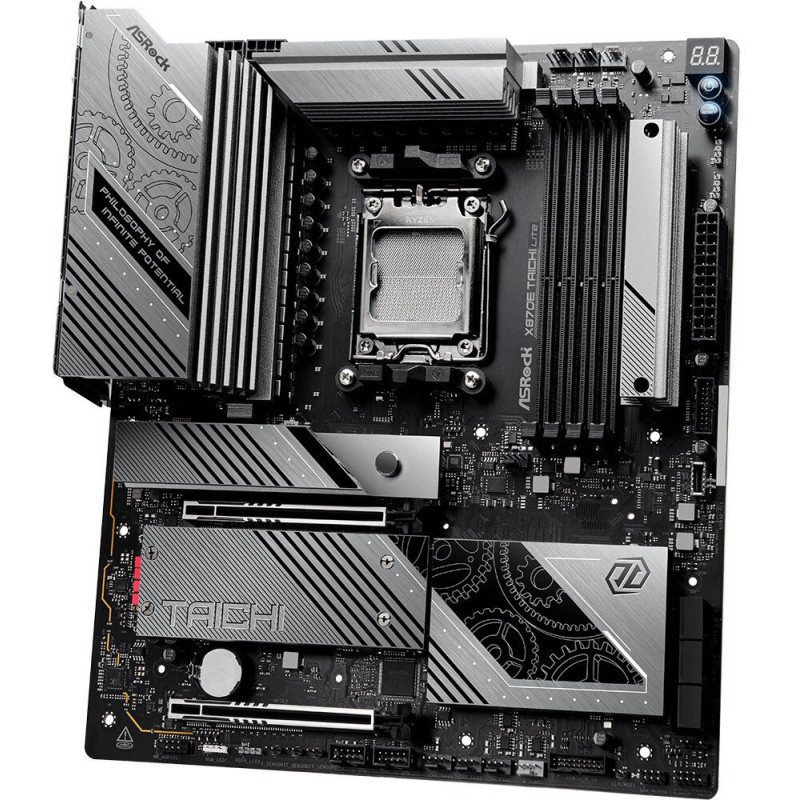

X870E TAICHI LITE AM5 4DDR5 M.2 EATX
Product reference:
3-4710483947445
X870E TAICHI LITE AM5 4DDR5 M.2 EATX
X870E TAICHI LITE AM5 4DDR5 M.2 EATX
Product reference:
3-4710483947445
X870E TAICHI LITE AM5 4DDR5 M.2 EATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
10 - 19
business days
| Processor | |
|---|---|
| Compatible processor series | AMD Ryzen™ 7000 Series, AMD Ryzen™ 8000 Series, AMD Ryzen™ 9000 Series |
| Maximum number of SMP processors | 1 |
| Processor socket | Socket AM5 |
| Processor manufacturer | AMD |
| Features | |
| Operating system architecture | 64-bit |
| Motherboard form factor | Extended ATX |
| Audio chip | Realtek ALC4082 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870E |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Audio output channels | 5.1 channels |
| Memory | |
| Supported memory clock speed (max) | 8200+ MHz |
| Memory channels | Dual channel |
| Number of memory slots | 4 |
| Memory slot type | DIMMs |
| Supported memory types | DDR5-SDRAM |
| Unbuffered memory | Yes |
| Maximum internal memory | 256GB |
| Weight dimensions | |
| Width | 305mm |
| Depth | 267 mm |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | 5 Gigabit Ethernet |
| Bluetooth version | 5.4 |
| Wi-Fi standard | 802.11g, 802.11a, Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax), 802.11b |
| Wi-Fi | Yes |
| LAN controller | Realtek RTL8126 |
| Bluetooth | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Internal I/O | |
| RGB LED pin header | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 2.0 connectors | 2 |
| ATX Power connector (24-pin) | Yes |
| Front panel audio connector | Yes |
| CPU fan connector | Yes |
| BIOS | |
| BIOS type | UEFI AMI |
| Storage controllers | |
| Supported storage drive interfaces | Blazing M.2 (PCIe Gen5 x4), Hyper M.2 (PCIe Gen4 x4) |
| Rear panel I/O port | |
| Microphone in | Yes |
| Line out | Yes |
| USB 3.2 Gen 2x2 Type-C port quantity | 2 |
| Number of USB 2.0 Type-A ports | 2 |
| Number of Wi-Fi antenna ports | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A port quantity | 5 |
| Ethernet LAN (RJ-45) port | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A port quantity | 3 |
| Clear CMOS button | Yes |
| HDMI port quantity | 1 |
| S/PDIF out port | Yes |
| Expansion slot | |
| PCI Express x16 (Gen 5.x) slot | 2 |
