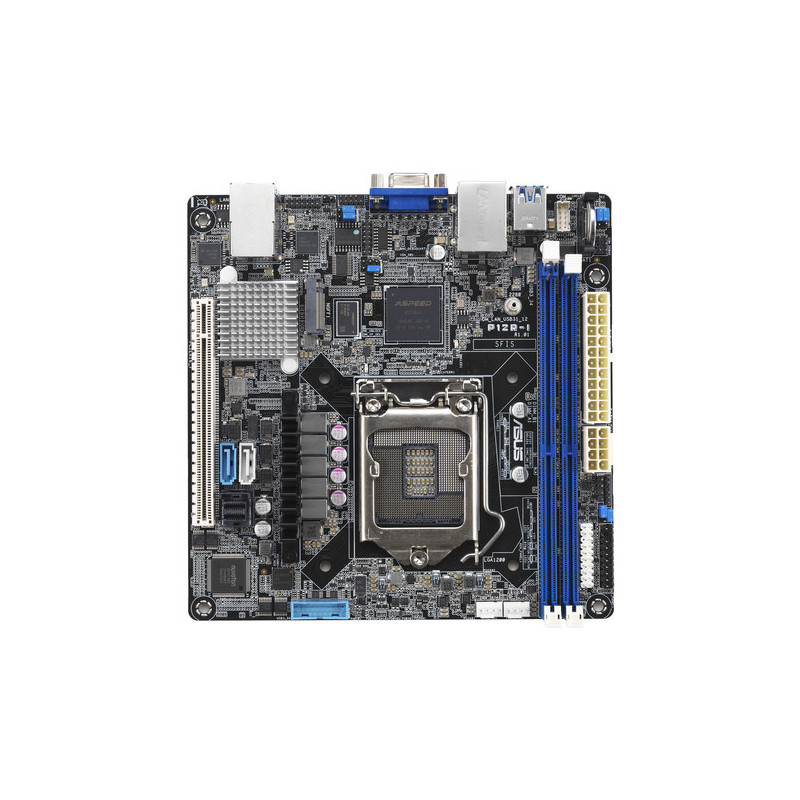

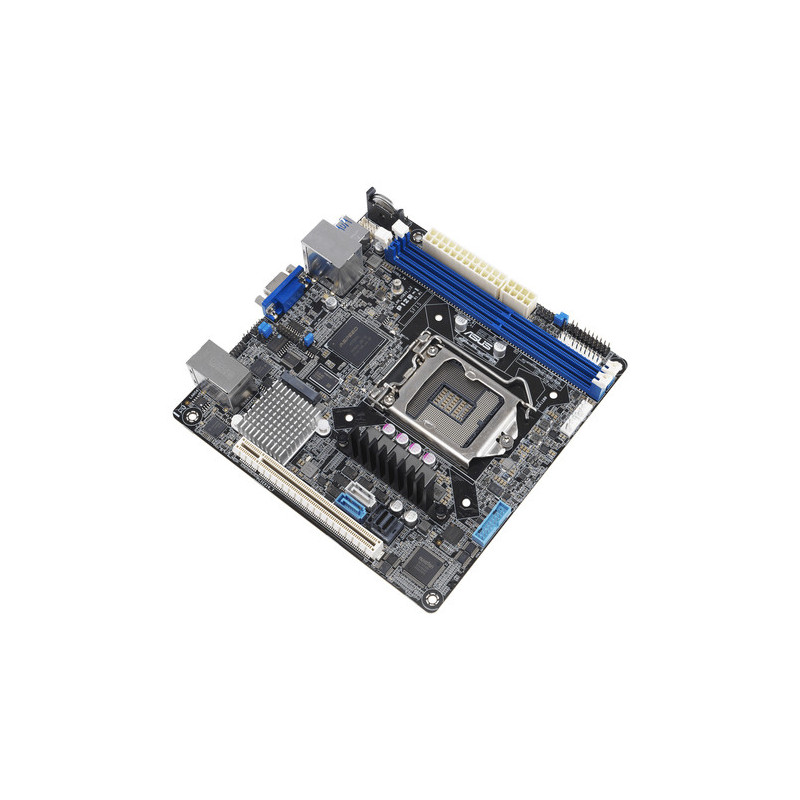

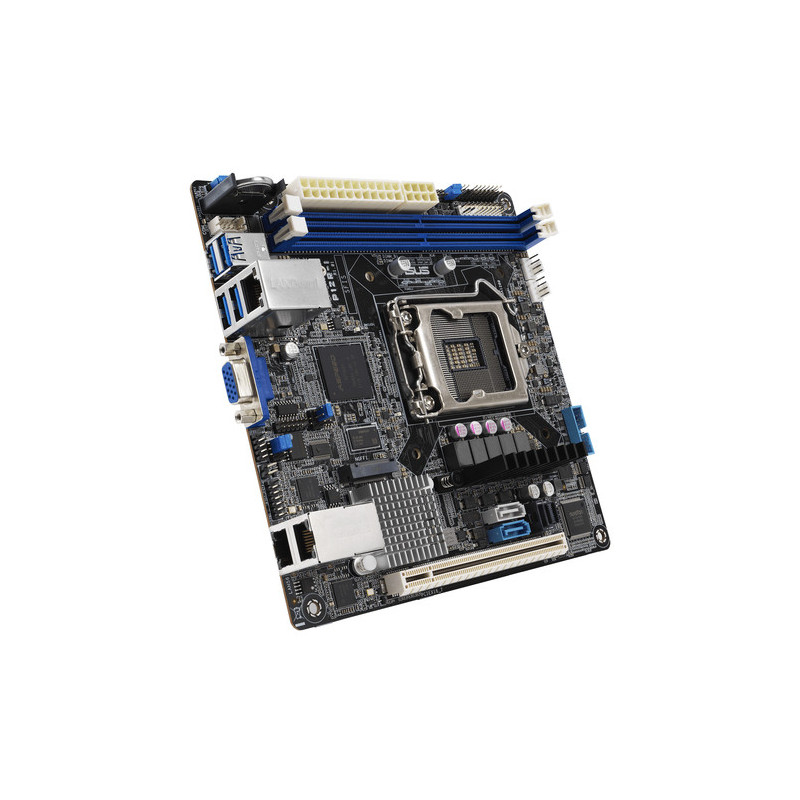

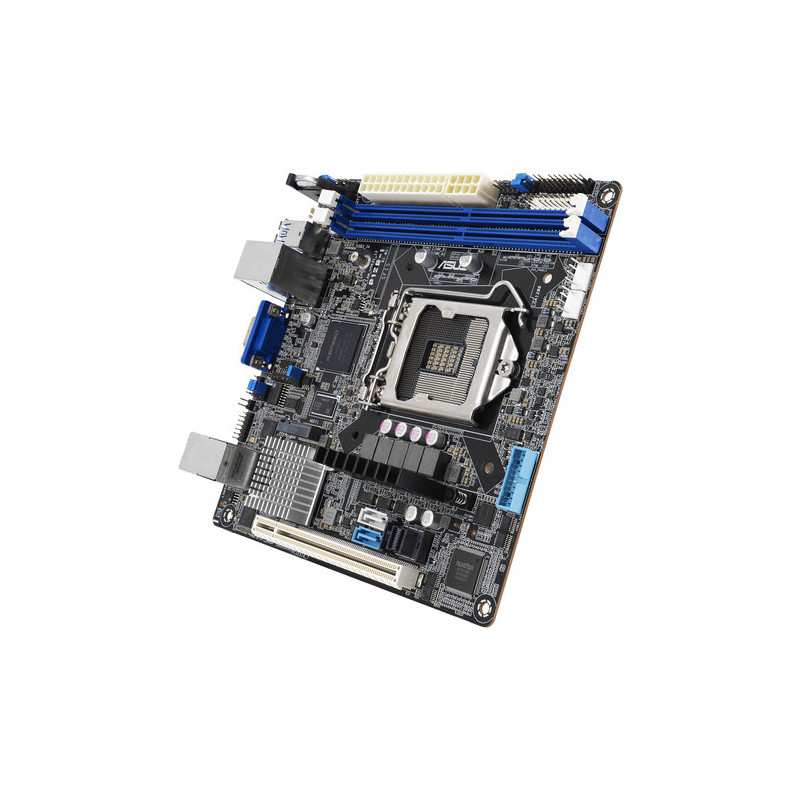

Server board Asus P12R-I
Product reference:
3-4711081507604
Server board Asus P12R-I
Server board Asus P12R-I
Product reference:
3-4711081507604
Server board Asus P12R-I
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
10 - 15
business days
| Processor | |
|---|---|
| Compatible processor series | Intel Xeon E, Intel® Pentium® |
| Processor socket | LGA 1200 (Socket H5) |
| Processor manufacturer | Intel |
| Graphics | |
| On-board graphics card memory | 64MB |
| Graphics card | AST2600 |
| Graphics card family | ASPEED |
| Features | |
| Motherboard chipset | Intel C252 |
| Component for | Server |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Memory | |
| Supported memory module capacities | 8GB, 4GB, 32GB, 16GB |
| Maximum internal memory | 64GB |
| Memory slot type | DIMMs |
| Memory channels | Dual channel |
| Supported memory clock speeds | 2933, 3200MHz, 2666 |
| Number of memory slots | 2 |
| Supported memory types | DDR4-SDRAM |
| Operational conditions | |
| Operating temperature (TT) | 10 - 50 °C |
| Storage relative humidity (HH) | 20 - 90% |
| Storage temperature (TT) | -40 - 70 °C |
| Weight dimensions | |
| Width | 170mm |
| Depth | 170mm |
| Network | |
| Wi-Fi | From |
| Ethernet LAN | Yes |
| LAN controller | Intel® I210-AT |
| Internal I/O | |
| Serial port headers | 1 |
| EPS power connector (8-pin) | Yes |
| Chassis intrusion connector | Yes |
| TPM connector | Yes |
| Number of SATA III connectors | 6 |
| ATX Power connector (24-pin) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of chassis fan connectors | 2 |
| Packaging data | |
| Package width | 311 mm |
| Package height | 78 mm |
| Package weight | 1.2 kg |
| Package depth | 281 mm |
| Storage controllers | |
| Supported storage drive interfaces | M.2, SATA III |
| Rear panel I/O port | |
| Number of SAS ports | 2 |
| Ethernet LAN (RJ-45) port | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A port quantity | 4 |
| VGA (D-Sub) port quantity | 1 |
| Expansion slot | |
| Number of M.2 (M) slots | 1 |
| PCI Express x16 slot | 1 |
| Other features | |
| Weight | 520g |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Safety warning | |
| Warnings | Adjust adequate ventilation to avoid overheating and potential damage., Avoid contact with liquids and moisture to prevent damage to equipment., The product contains electrical components - take care during installation to avoid injury. |
