SAPPHIRE NITRO+ B850M WIFI / AM5 / mATX
Product reference:
3-4895106296916
SAPPHIRE NITRO+ B850M WIFI/AM5/mATX
SAPPHIRE NITRO+ B850M WIFI / AM5 / mATX
Product reference:
3-4895106296916
SAPPHIRE NITRO+ B850M WIFI/AM5/mATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 8
business days

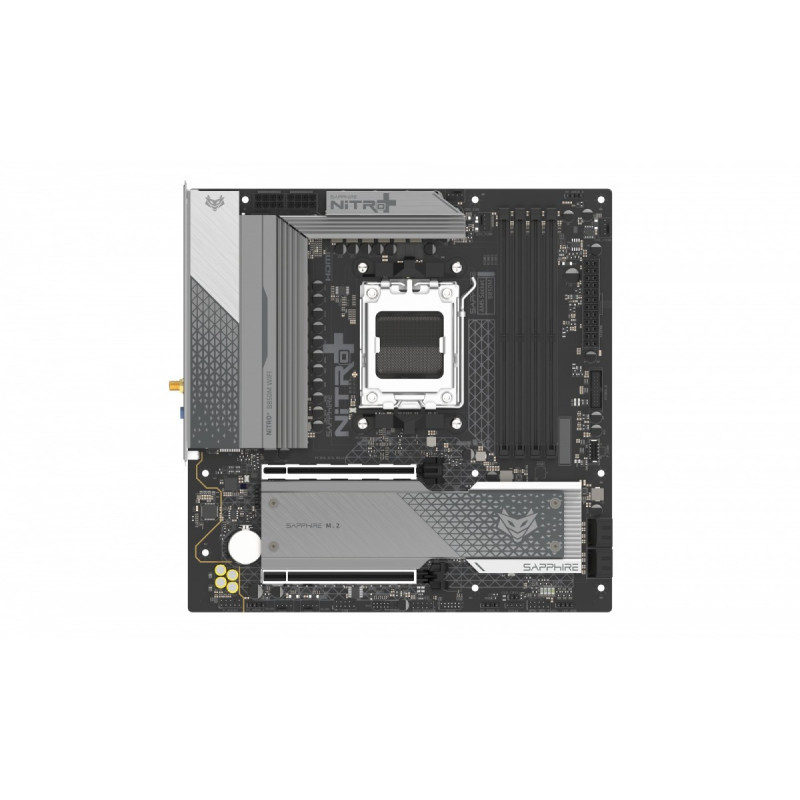

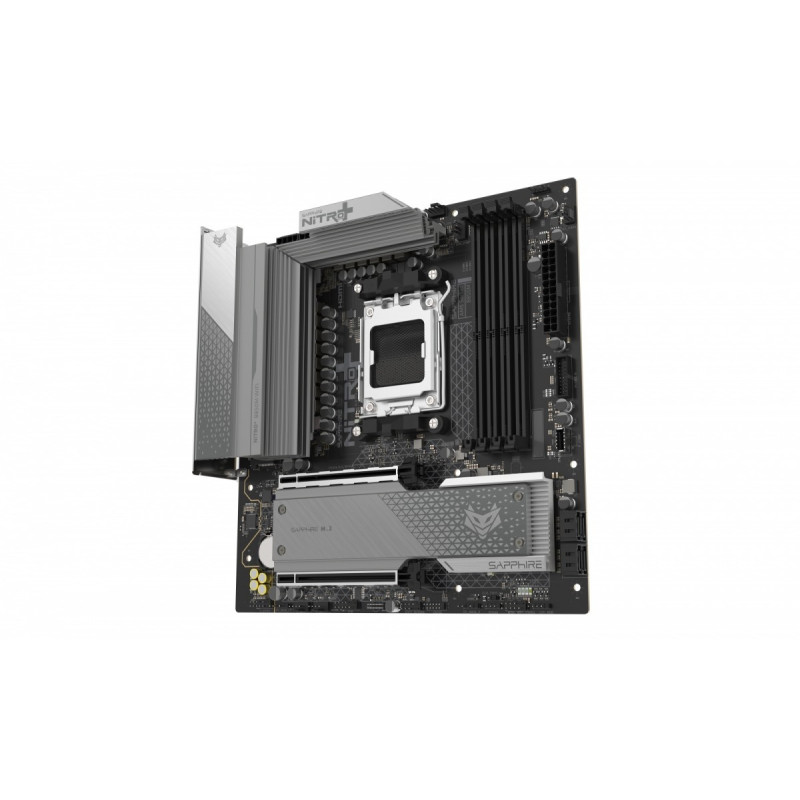

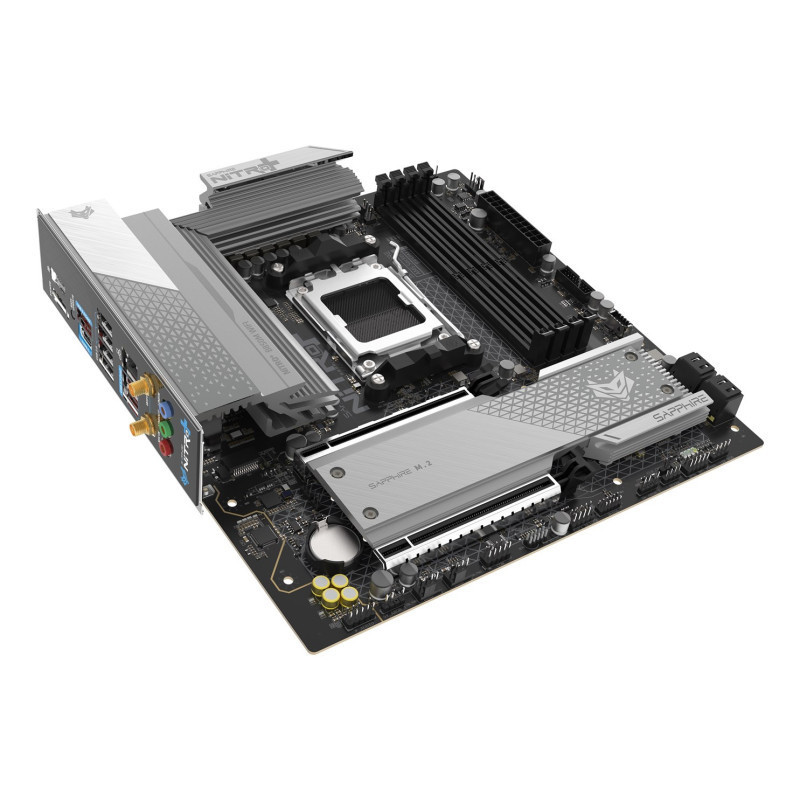

SAPPHIRE NITRO+ B850M WIFI
Chipset:
Chipset:
AMD® B850
Dimensional format: micro-ATX, 244x244mm
Processor support: AMD Ryzen™ rady 9000/8000/7000
Processor reliability: AM5
Remember:
* 4x DIMM, dvojkanálová DDR5, maximum memory capacity 256 GB (4x 64 GB), up to 8000 MT/s (pretaktovanie)
Graphic outputs:
(Graphics specifications may vary depending on the installed CPU.)
* 1x DisplayPort
* 1x HDMI
Sound card: codec Realtek® ALC897 HD Audio, 5.1kanálový zvuk
Ethernet: Realtek® RTL8125BG 2.5 GbE
WLAN + Bluetooth: M.2 WiFi 6, support 802.11 a/b/g/n/ac/ax, band 2.4 GHz/5 GHz + Bluetooth 5.3
Expansion slots:
* 1x PCIe 5.0 x16
* 1x PCIe 4.0 x4 (x16)
Storage space:
* 1x PCIe 5.0 M.2
* 1x PCIe 4.0 M.2
* 4x SATA
USB:
Predné USB (total 5 ports)
* 1x USB 3.2 Gen1 (1x typ C)
* 1x USB 3.2 Gen1 (2x typ A)
* 1x USB 2.0 (2x typ A)

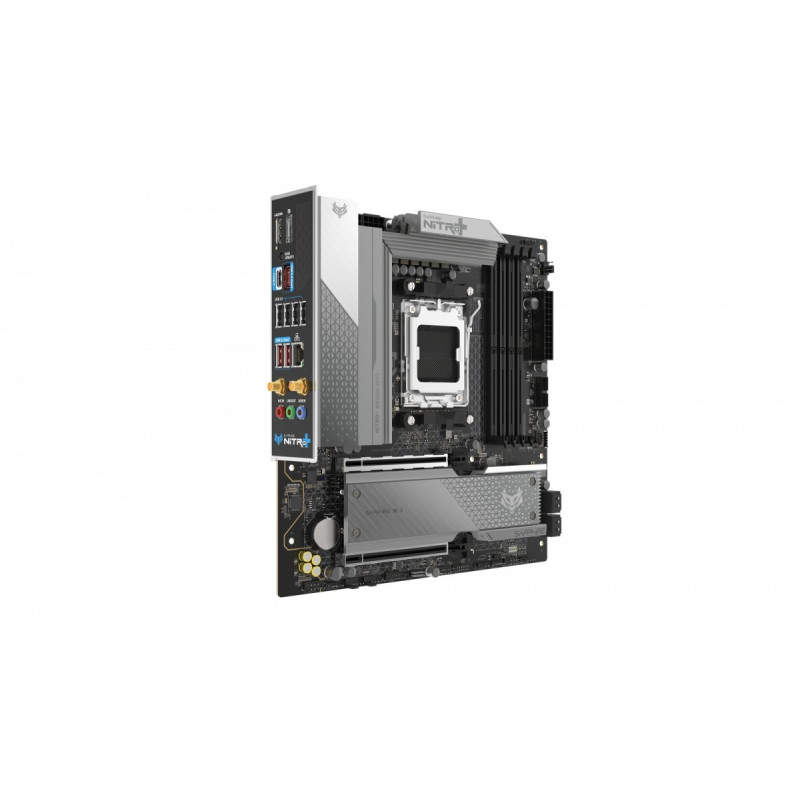

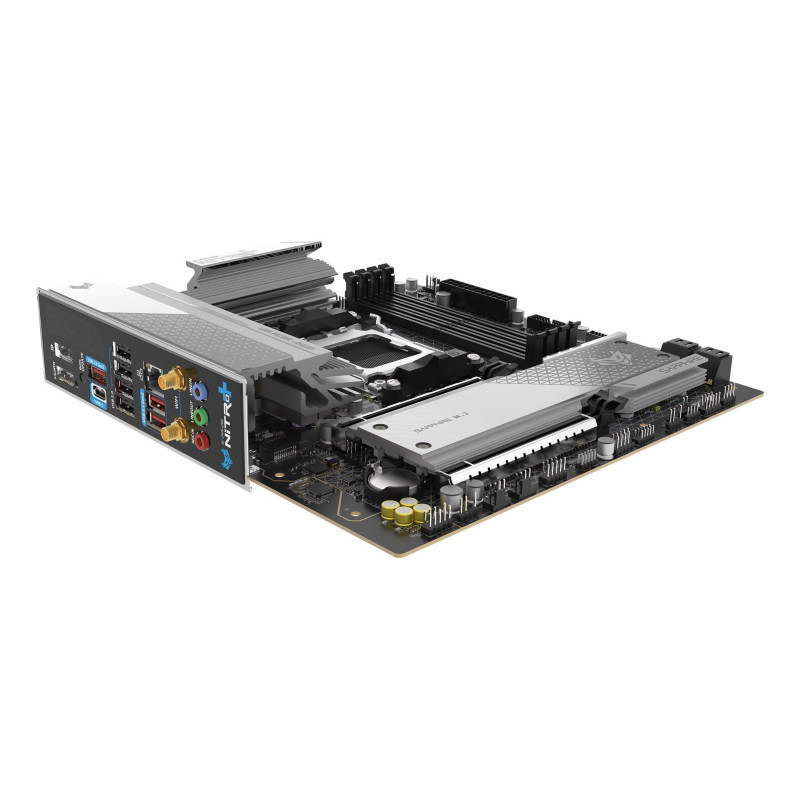

Ports on the rear panel:
* 1x DisplayPort
* 1x HDMI™
* 1x RJ45 LAN
* 2x Wi-Fi antenna
* 1x button One-Click Flash BIOS
* 4x USB 2.0
* 3x USB 3.2 Gen 2 typ A
* 1x USB 3.2 Gen 2 typ C
* 3x audio konektor
Debug LED:
* DRAM: yellow
* CPU: red
* GPU: biela
* Boot: green
Link to the manufacturer's website: https://www.sapphiretech.com/en/consumer/mb_nitro_b850m-wifi
| Graphic outputs | |
|---|---|
| DisplayPort / miniDisplayPort | Yes |
| HDMI connector | Yes |
| DVI connector | No |
| VGA connector (D-Sub) | No |
| Model design | |
| Model | SAPPHIRE NITRO+ B850M WIFI |
| Motherboard size | micro ATX |
| Processor and memory | |
| Maximum frequency base | 8000 |
| Pamäť - total number of slots | 4 |
| Memory - maximum size (GB) | 256 |
| Pätice | AM5 |
| Processor generation support | DDR5 |
| Memory type | 1 |
| Chip set | |
| Chip set | B850 |
| Chipset manufacturer | AMD |
| Interior equipment | |
| M.2 v mode PCIe 3.0 x4 | Yes |
| PCIe 4.0 x16 | No |
| PCIe 5.0 x16 | Yes |
| Number of SATA 6 Gb/s connectors | 1 |
| Number of USB 2.0 connectors (internal) | 1 |
| Pochet konektorov USB 3.x (internal) | 7th to 9th gen Ryzen |
| Number of slots M.2 | 2 |
| Number of PCI slots | 1 |
| Pochet slotov PCIe x1 | 4 |
| Pochet slotov PCIe x16 | 2 |
| USB Type C (internal) | Yes |
| Outdoor accessories | |
| Bluetooth | Yes |
| Ethernet - speed | 2.5 Gbps |
| Number of LAN ports | Yes |
| Number of USB 2.0 ports (external) | 4 |
| Počet portov USB 3.x (externých) | 3 |
| Number of USB Type C ports (external) | 1 |
| Network card type | Realtek |
| Wi-Fi | Yes |
