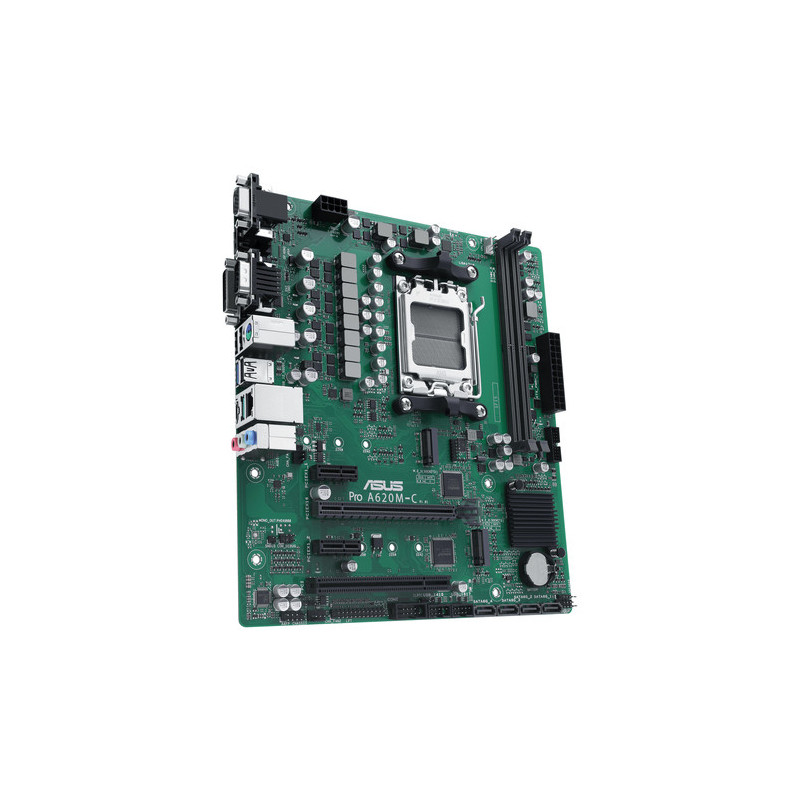

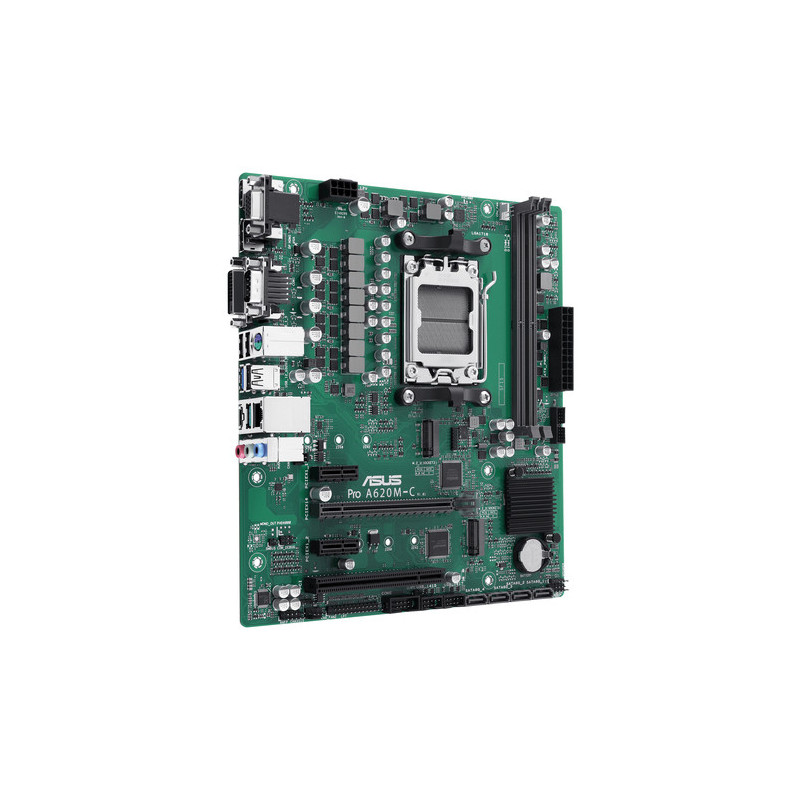

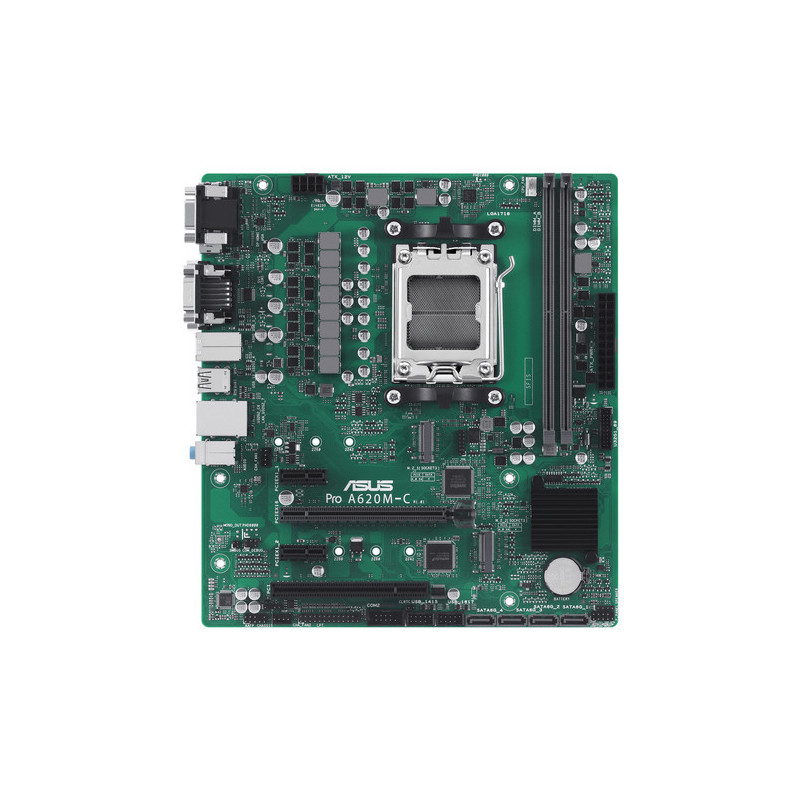

PRO A620M-C-CSM

s program ASUS Corporate Stable Model
Chipset: AMD A620
Board format: mATX (244x224 mm)
Processor support: AMD Ryzen™ série 7000
Processor Socket: AM5
Remember:
* 2x slotted DIMM, max. 96 GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 Non-ECC, bez vysváscej memčetija
* dvojkanálová architektur memčetija
* supports AMD EXtended Profiles for Overclocking (EXPO™)
* OptiMem II
Graphic outputs:
* 1x DisplayPort 1.4
* 1x VGA
* 1x DVI-D
* 1x HDMI™ 2.1
Sound card: Realtek 7.1 Surround Sound High Definition Audio CODEC - supports playback up to 24-bit/192kHz
Ethernet: 1x Realtek 1Gb
WLAN + Bluetooth: nie
Expansion slots:
* 1x PCIe 4.0 x16
* 2x PCIe 3.0 x1
* 1x PCI
RAID radic: technology AMD RAID Xpert2 supports NVMe RAID 0/1/10 and SATA RAID 0/1/10
Storage space:
in total supports 2 sloty M.2 a 4 porty SATA 6Gb/s
* 1x M.2_1 (Key M), typ 2242/2260/2280 (supports PCIe 4.0 mode x4)
* 1x M.2_2 (Key M), typ 2242/2260/2280 (supports PCIe 4.0 mode x4)
* 4x SATA 6 Gb/s
USB:
Zadné USB (6 ports in total)
* 2x USB 3.2 Gen 2 (1x typ A + 1x USB typ C®)
* 1x USB 3.2 Gen 1 (1x typ A)
* 3x USB 2.0 (3x typ A)
Predné USB (6 ports in total)
* 1x USB 3.2 Gen 1 (5G) konektor - supports additional 2 ports USB 3.2 Gen 1
* 2x USB 2.0 konektor - supports additional 4 ports USB 2.0
Ports on the rear panel:
* 2x USB 3.2 Gen 2 (1x typ A + 1x USB typ C®)
* 1x USB 3.2 Gen 1 (1x typ A)
* 3x USB 2.0 (3x typ A)
* 1x DisplayPort
* 1x VGA
* 1x DVI-D
* 1x HDMI™
* 1x Realtek 1Gb ethernet
* 1x COM port_
* 3x audio konektor
* 1x PS/2 kombinatý port keyboard/myš
Internal ports:
Súvisiace s ventilátorom a chladením
* 1x 4-pinový Konektor fan procesora
* 1x 4-pinový Konektor fan screen
Napájanie
* 1x 24-pinový main napájácí connector
* 1x 8-pinový +12V napájáci konektor
Súvisiace s úložiskom
* 2x slot M.2 (Key M)
* 4x port SATA 6 Gb/s
USB
* 1x konektor USB 3.2 Gen 1 (5G) - supports additional 2 ports USB 3.2 Gen 1
* 2x konektor USB 2.0 - supports additional 4 ports USB 2.0
Other
* 1x konektor Clear CMOS
* 1x konektor Chassis Intrude
* 1x konektor COM Port_
* 1x connector Front Panel Audio (AAFP)
* 1x connector COM debug
* 1x connector LPT
* 1x connector SMBUS
* 1x konektor reprodukatora
* 1x konektor SPI TPM (14-1pin)
* 1x 10-1 pin konektor systemového panela
BIOS: 256 MB Flash ROM, UEFI AMI BIOS

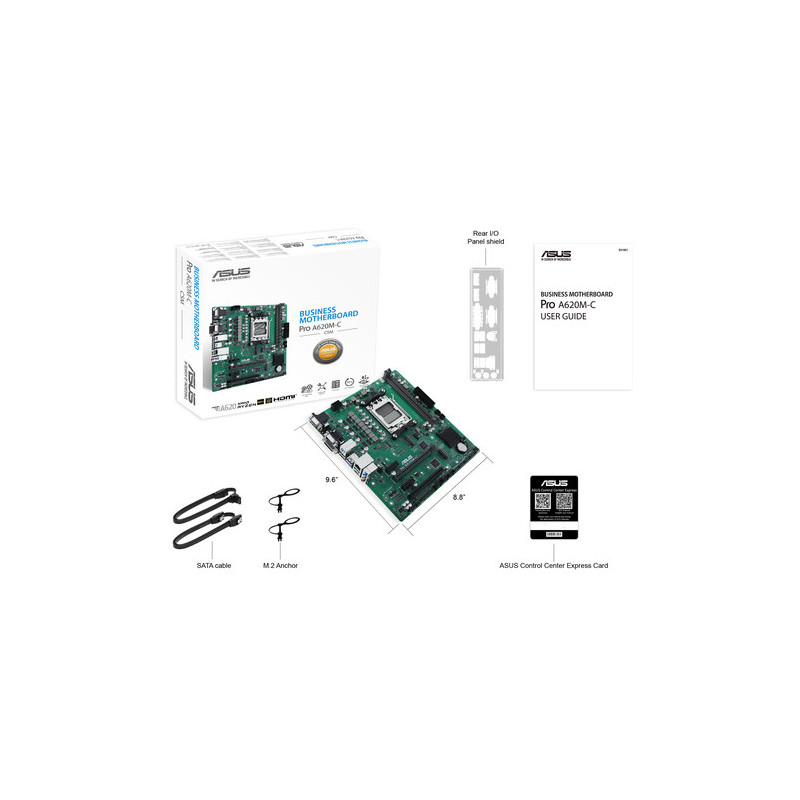

Accessories:
* 2x cable SATA 6 Gb/s
* 1x shutter I/O
* 2x úchytka M.2
* 1x map ACC Express s aktiváčným klíhom
* 1x user guide
Link to the manufacturer's website: https://www.asus.com/motherboards-components/motherboards/business/pro-a620m-c-csm/
