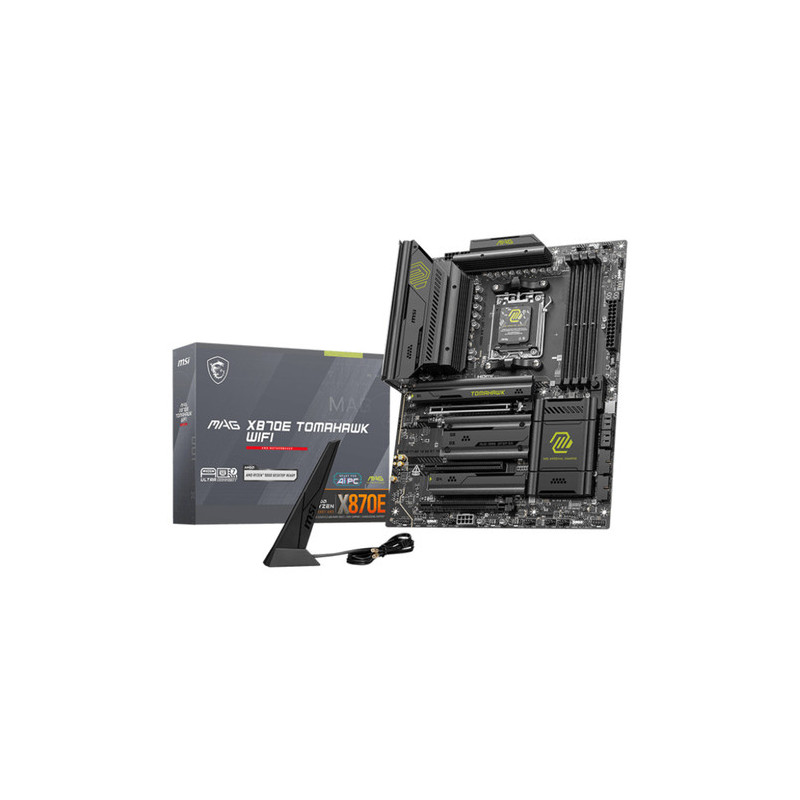

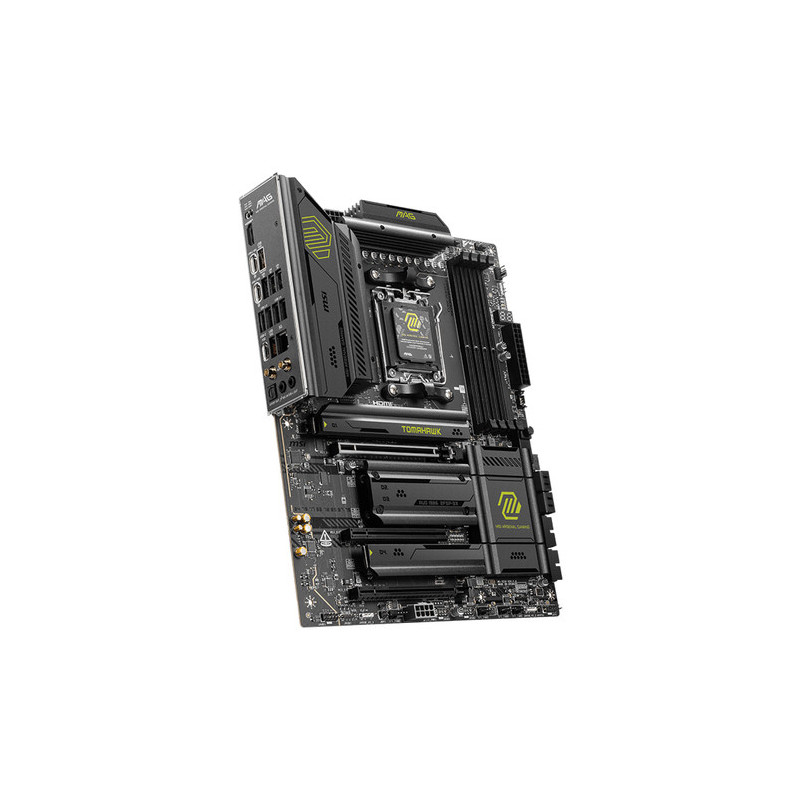

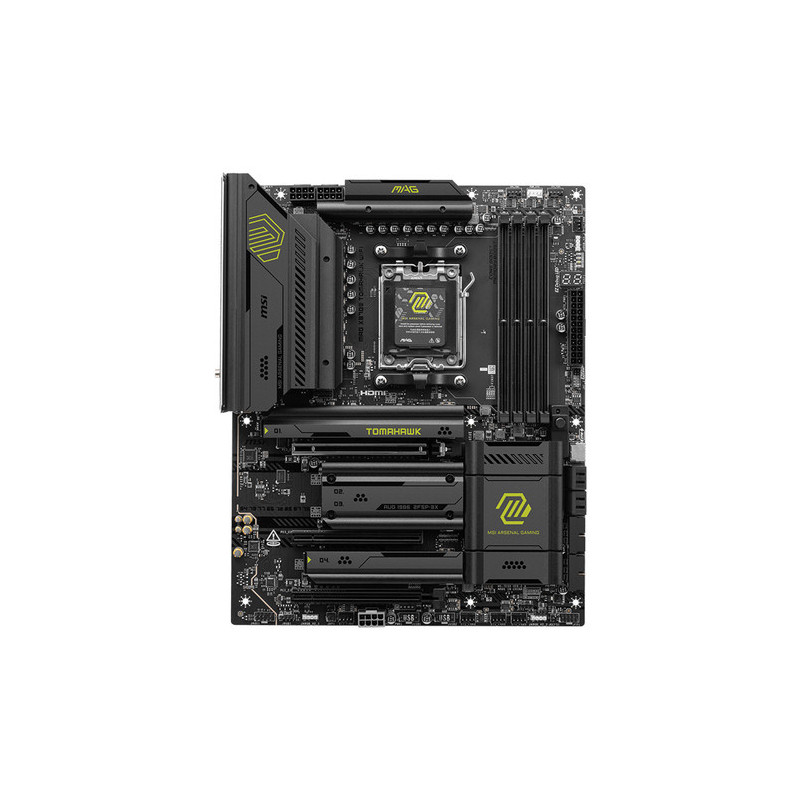

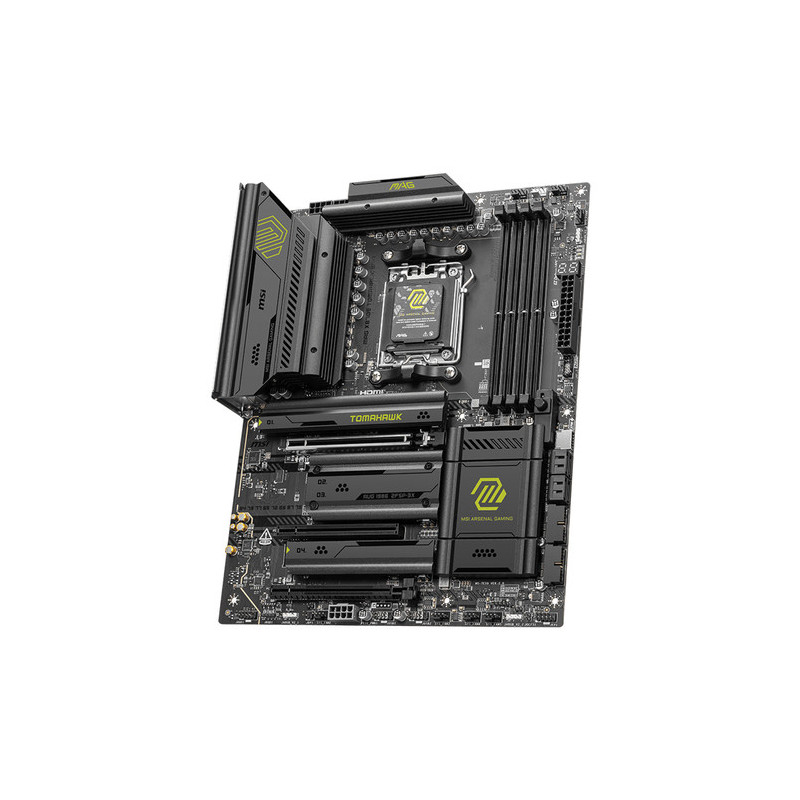

MSI MAG X870E TOMAHAWK WIFI motherboard AMD X870E Socket AM5 ATX

* Frozr Guard
* EZ DIY
* Audio Boost 5
Chipset: AMD X870E
Dimensional format: ATX (304,8x243,84 mm)
Processor support: AMD Ryzen™ série 9000/8000/7000
Processor socket: AM5
Remember: * max. pretaktovania frequency:
• 1DPC 1R speed up to 8400+ MT/s
• 1DPC 2R speed up to 6400+ MT/s
• 2DPC 1R speed up to 6400+ MT/s
• 2DPC 2R speed up to 4800+ MT/s
* support AMD POR Speed a JEDEC Speed
* support for pretaktovania memory a AMD EXPO™
* support for Non-ECC, without cache memory
* support for CUDIMM, iba Clock Driver bypass mode
* dvojkanálová architektur memtria
Graphic outputs:
(Graphic specifications may vary depending on the installed CPU.)
* 1x HDMI™ 2.1 port FRL, maximum resolution 8K 60 Hz
* 2x DisplayPort USB4® type C, support for DisplayPort 1.4 s HBR3 via USB type C, maximum resolution 4K 60 Hz
Sound card: codec Realtek® ALC4080, 7.1-kanálový sound, playback support up to 32-bit/384 kHz (no front panel)
Ethernet: Realtek® 8126-CG 5G LAN
WLAN + Bluetooth: Wi-Fi 7 + Bluetooth® 5.4 (wireless module is pre-installed in slot M.2 Key-E)
Expansion slots: 3x PCI-E x16:
* PCI_E1 Gen PCIe 5.0 x16
* PCI_E2 Gen PCIe 3.0 x1_
* PCI_E3 Gen PCIe 4.0 x4
PCI_E1:
- support PCIe 5.0 x16 (pre processor Ryzen™ 9000/7000)
- support for PCIe 4.0 x8 (pre processor Ryzen™ 8700/8600/8400)
- support for PCIe 4.0 x4 (pre processor Ryzen™ 8500/8300)
Storage space:
supports a total of 4 slots M.2 a 4 porty SATA 6 Gb/s
* M.2_1 (CPU) supports up to PCIe 5.0 x4, support 22110/2280 devices
* M.2_2 (CPU) supports up to PCIe 5.0 x4, support 2280/2260 device
* M.2_3 (chipset) supports up to PCIe 4.0 x4, support 2280/2260 device
* M.2_4 (chipset) supports up to PCIe 4.0 x4, support 2280/2260 device
* 4x port SATA 6 Gb/s
USB:
Zadné USB (12 ports in total)
* 2x USB 4.0 40 Gb/s (typ C)
* 1x USB 3.2 Gen 2 10 Gb/s (typ C)
* 2x USB 3.2 Gen 2 10 Gb/s (typ A)
* 3x USB 3.2 Gen 1 5 Gb/s (typ A)
* 4x USB 2.0
Predné USB (9 ports in total)
* 1x USB 20 Gb/s (typ C)
* 4x USB 5 Gb/s (typ A)
* 4x USB 2.0

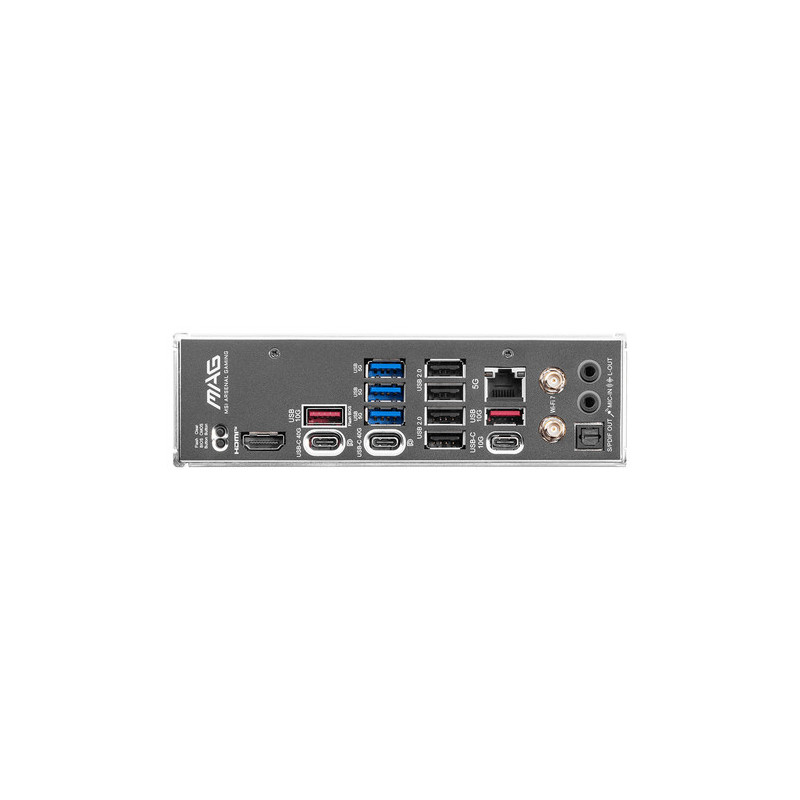

Ports on the rear panel:
* 2x USB 4.0 40 Gb/s (typ C)
* 1x USB 3.2 Gen 2 10 Gb/s (typ C)
* 2x USB 3.2 Gen 2 10 Gb/s (typ A) red
* 3x USB 3.2 Gen 1 5 Gb/s (typ A)
* 4x USB 2.0
* 1x HDMI™
* 1x RJ-45 5G LAN
* 1x Wi-Fi/Bluetooth
* 2x audio konektor
* 1x S/PDIF out
* 1x Flash BIOS button
* 1x Clear CMOS button
Internal ports:
Power supply
* 1x power supply connector (ATX_PWR)
* 2x power supply connector (CPU_PWR)
* 1x napájací konektor (PCIE_PWR 8pin)
* 1x predný konektor typ C pre rapide nabítija (PD_PWR1)
Súvisiace s ventiladorom a chladením
* 1x ventilator CPU
* 1x kombinandý ventilator (Pump_Sys Fan)
* 6x systémový ventilator
Súvisiace s úložiskom
* 4x SATA 6 Gb/s connector
* 4x slot M.2 (M-Key)
USB
* 4x USB 2.0
* 4x USB 5 Gb/s (typ A)
* 1x USB 20 Gb/s (typ C)
Lighting LED
* 3x addressable V2 RGB LED konektor (JARGB_V2)
* 1x RGB LED konektor (JRGB)
* 4x EZ Debug LED
* 1x EZ Digit Debug LED
Ostatné
* 1x EZ Conn-header (JAF_2)
* 2x Front Panel (JFP)
* 1x Chassis Intrusion (JCI)
* 1x Front Audio (JAUD)
* 1x TPM pin header (podpora TPM 2.0)
Accessories:
* 2x SATA 6 Gb/s cable
* 1 na 3 EZ Conn cable (V2)
* EZ Front Panel cable
* Wi-Fi module
* M.2 screw
* USB Drive
* sada nálepiek
* Shout-Out card
* EZ M.2 Clip II key
* user manual
Link to the manufacturer's website: https://www.msi.com/Motherboard/MAG-X870E-TOMAHAWK-WIFI
