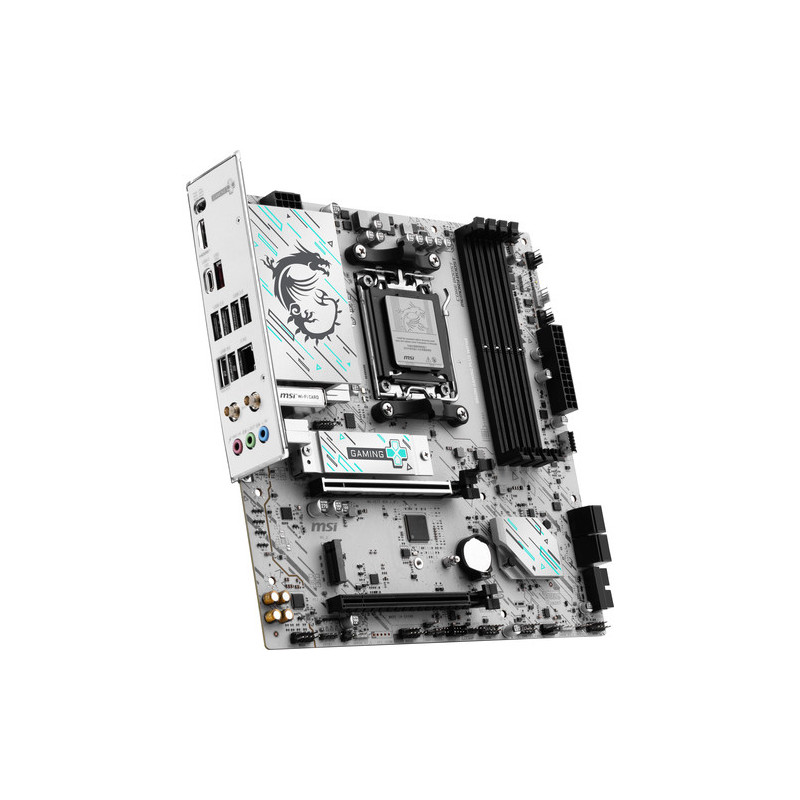

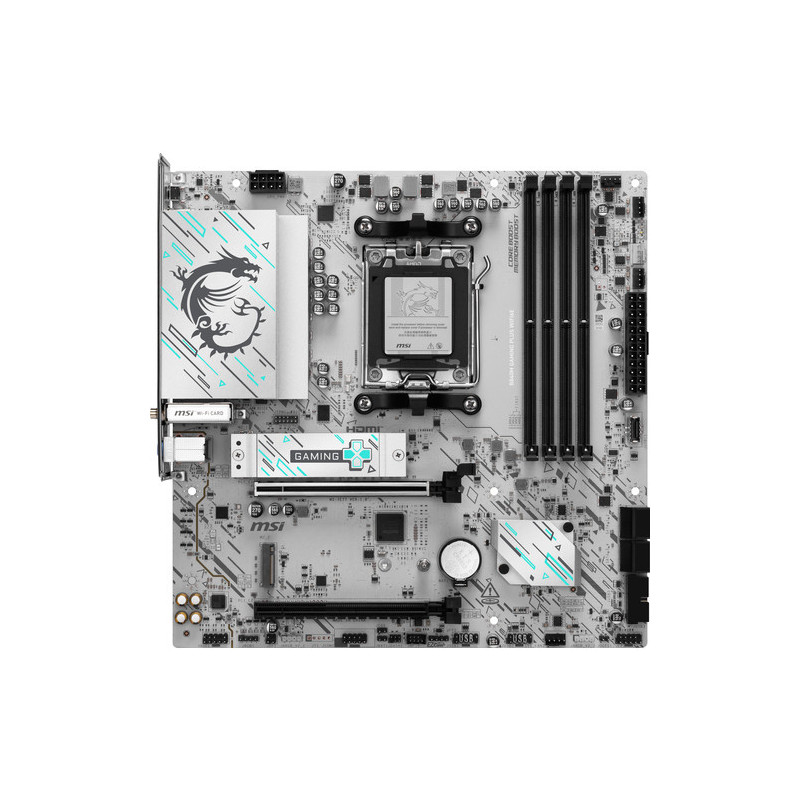

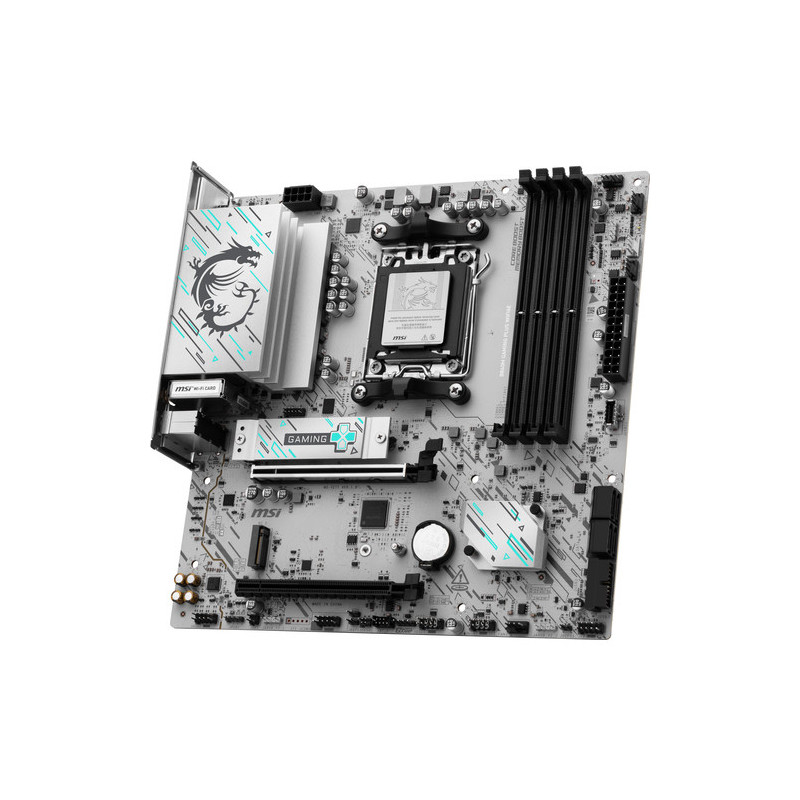

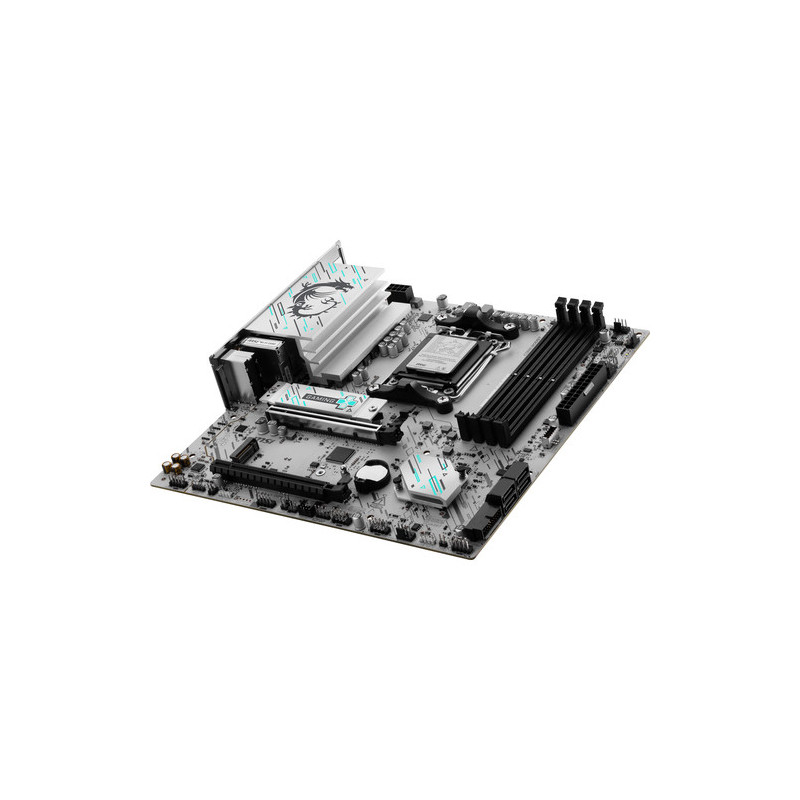

MSI B840M GAMING PLUS WIFI6E motherboard AMD B840 socket AM5 micro ATX
Product reference:
3-4711377361811
MSI B840M GAMING PLUS WIFI6E motherboard AMD B840 socket AM5 micro ATX
MSI B840M GAMING PLUS WIFI6E motherboard AMD B840 socket AM5 micro ATX
Product reference:
3-4711377361811
MSI B840M GAMING PLUS WIFI6E motherboard AMD B840 socket AM5 micro ATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
10 - 15
business days
| Processor | |
|---|---|
| Supported processor sockets | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 9000 Series, AMD Ryzen 8000 Series |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Graphics | |
| On-board graphics card | No |
| Features | |
| Motherboard chipset family | AMD |
| Audio chip | Realtek ALC897 |
| Product colour | White |
| Motherboard form factor | micro ATX |
| Windows operating systems supported | Windows 11 x64 |
| Audio output channels | 7.1 channels |
| Motherboard chipset | AMD B840 |
| Memory | |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory clock speeds | 8000, 6400, 5600, 4800 |
| Supported memory types | DDR5-SDRAM |
| Maximum internal memory | 256 GB |
| Memory channels | Dual-channel |
| Supported memory clock speed (max) | 8000 MHz |
| ECC сompatibility | Non-ECC |
| Weight & dimensions | |
| Depth | 243.8 mm |
| Width | 243.8 mm |
| Network | |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| LAN controller | Realtek RTL8125D |
| Ethernet LAN | Yes |
| Wi-Fi standards | 802.11b, Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 6E (802.11ax), Wi-Fi 5 (802.11ac) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | Yes |
| Internal I/O | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Number of RGB LED pin headers | 4 |
| RGB LED pin header | Yes |
| Number of CPU fan connectors | 1 |
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Number of SATA III connectors | 4 |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 1, 10, 0 |
| RAID support | Yes |
| Number of storage drives supported | 6 |
| Supported storage drive types | HDD & SSD |

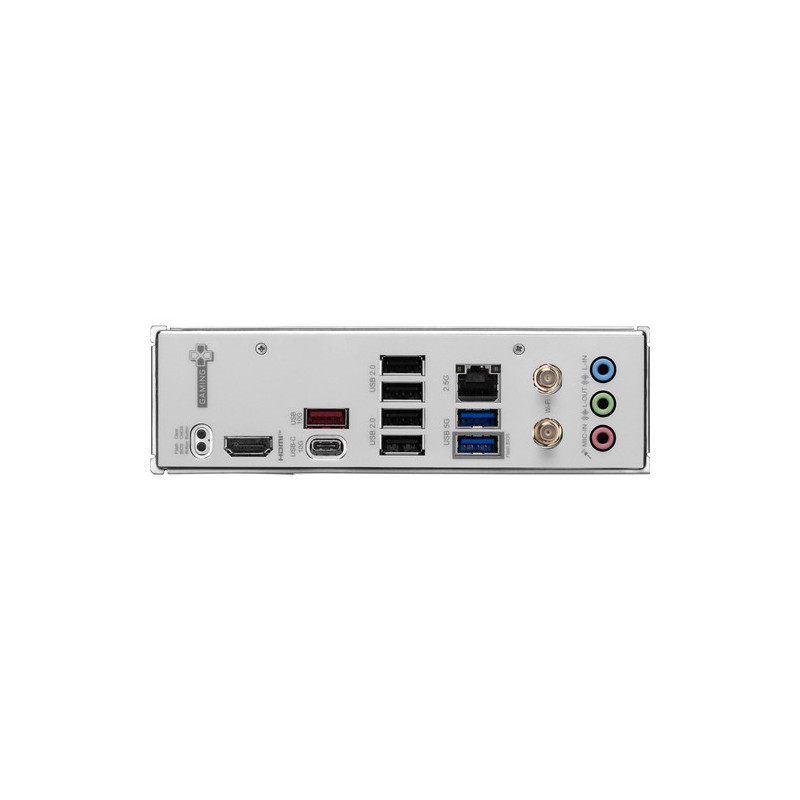

| Rear panel I/O ports | |
| USB 2.0 ports quantity | 4 |
| HDMI version | 2.1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Expansion slots | |
| PCI Express x16 slots | 2 |
| 1st M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
| Number of M.2 (M) slots | 2 |
