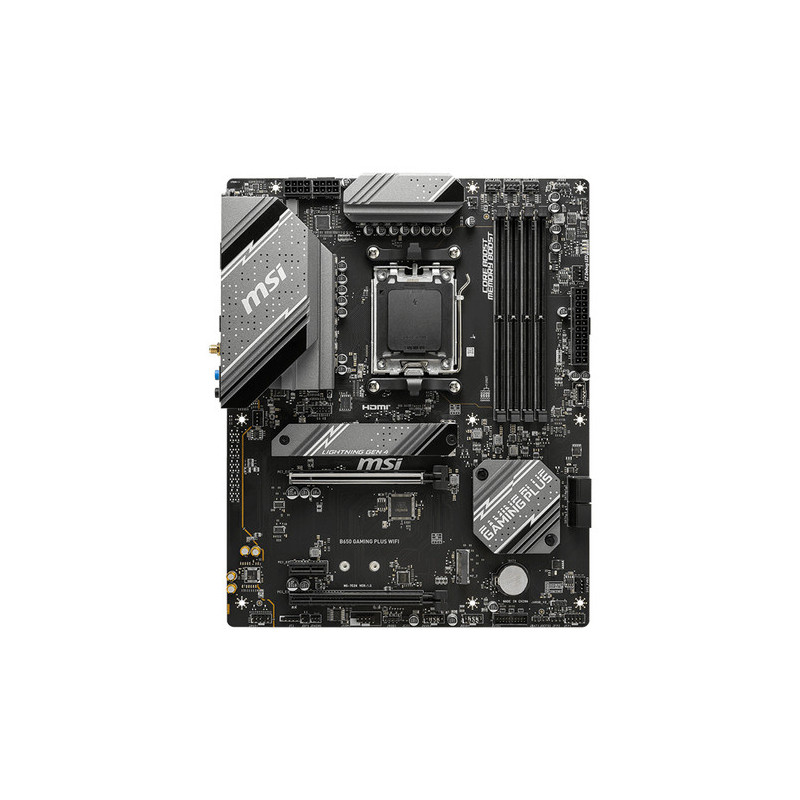

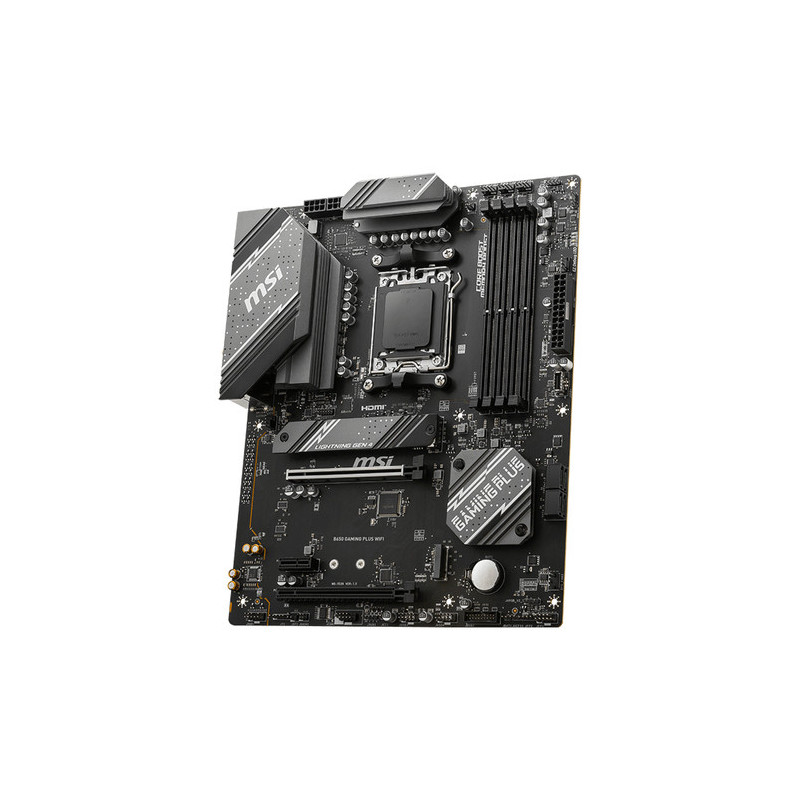

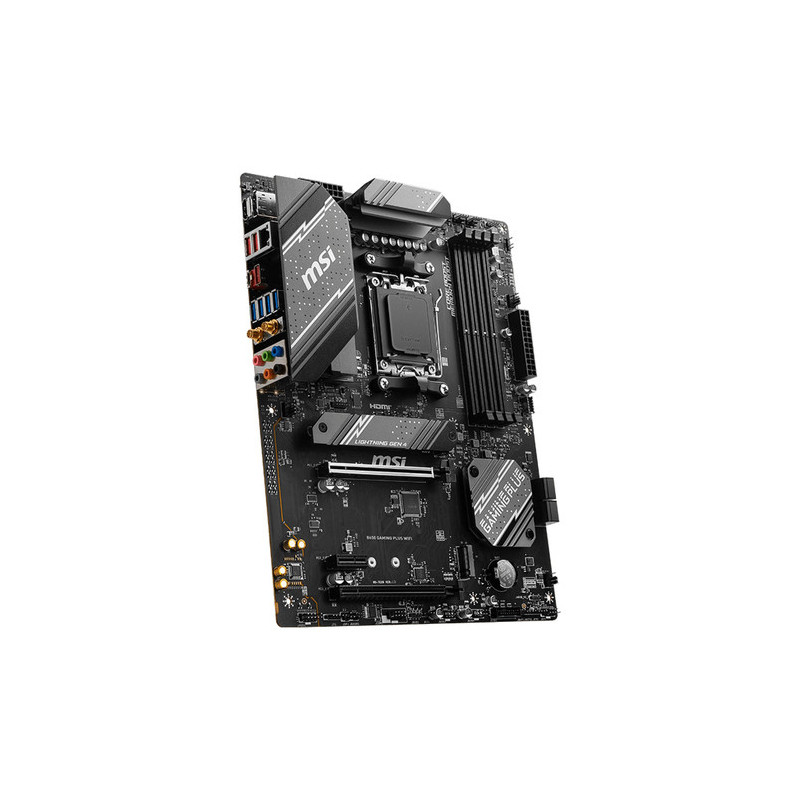

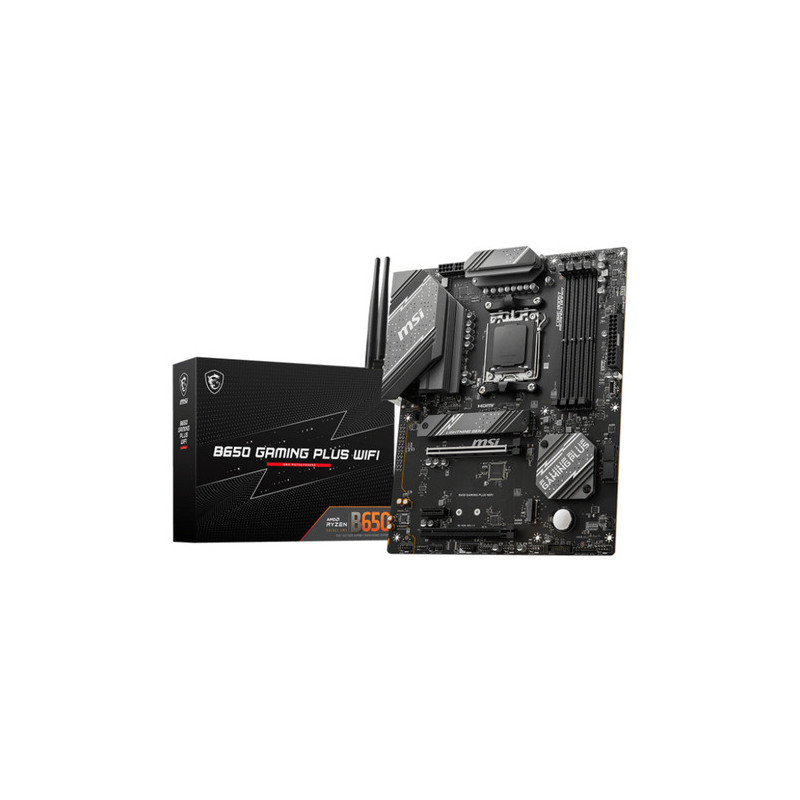

MSI B650 GAMING PLUS WIFI motherboard AMD B650 Socket AM5 ATX

Specifications - Motherboard MSI B650 Gaming Plus WiFi

Processor

•


  Processor Manufacturer: AMD





•


  Processor Socket: Socket AM5





•


  Supported Processor Sockets: Socket AM5





•


  Maximum Memory Supported by Processor: 192 GB




Memory

•


  Supported Memory Types: DDR5-SDRAM





•


  Number of Memory Slots: 4





•


  Memory Channels: Dual-channel





•


  Supported Memory Speeds: 4800 / 5000 / 5200 / up to 7200 MHz (OC)





•


  Maximum System Memory: 192 GB





•


  Unbuffered Memory Support: Yes




Storage Controllers

•


  Supported Drive Types: HDD & SSD





•


  Supported Interfaces: M.2, PCI Express





•


  RAID Support: Yes





•


  RAID Levels: 0, 1, 10




Graphics

•


  Parallel Processing Support: Not supported




Internal I/O Connectors

•


  USB 2.0 Headers: 4





•


  USB 3.2 Gen 1 Headers (Type-A): 2





•


  USB 3.2 Gen 2 Headers (Type-A): 1





•


  SATA III Ports: 4





•


  Front Panel Audio Header: Yes





•


  Front Panel Header: Yes





•


  CPU Fan Header: Yes





•


  Chassis Intrusion Header: Yes





•


  TPM Header: Yes





•


  RGB LED Header: Yes

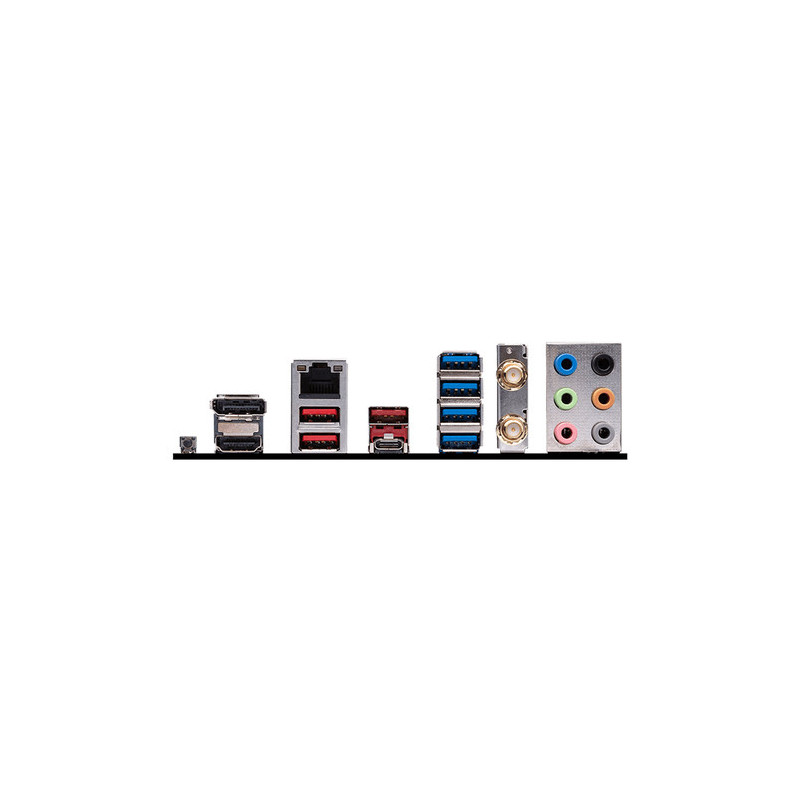

Rear I/O Ports

•


  USB 3.2 Gen 1 Type-A Ports: 4





•


  USB 3.2 Gen 2 Type-A Ports: 3





•


  USB 3.2 Gen 2 Type-C Ports: 1





•


  HDMI Ports: 1 (version 2.1)





•


  DisplayPort Ports: 1 (version 1.4)





•


  Ethernet LAN (RJ-45): 1





•


  S/PDIF Out Port: Yes




Network

•


  Wired LAN: Yes





•


  LAN Speed: 2.5 Gigabit Ethernet





•


  Wi-Fi: Yes





•


  Wi-Fi Standard: Wi-Fi 6E (802.11ax)





•


  Supported Wi-Fi Standards: 802.11a/b/g/n/ac/ax





•


  Bluetooth: Yes (version 5.3)




Features

•


  Chipset: AMD B650





•


  Audio Chip: Realtek ALC897





•


  Audio Output Channels: 7.1





•


  Form Factor: ATX





•


  Colour: Black





•


  Chipset Family: AMD





•


  Supported Operating Systems: Windows 10 x64, Windows 11 x64




Expansion Slots

•


  M.2 (M-Key) Slots: 2





• PCI Express x16 (Gen 3.x) slots: 4

BIOS

•


  BIOS Type: UEFI AMI




Dimensions

•


  Width: 243.8 mm





•


  Depth: 243.8 mm
