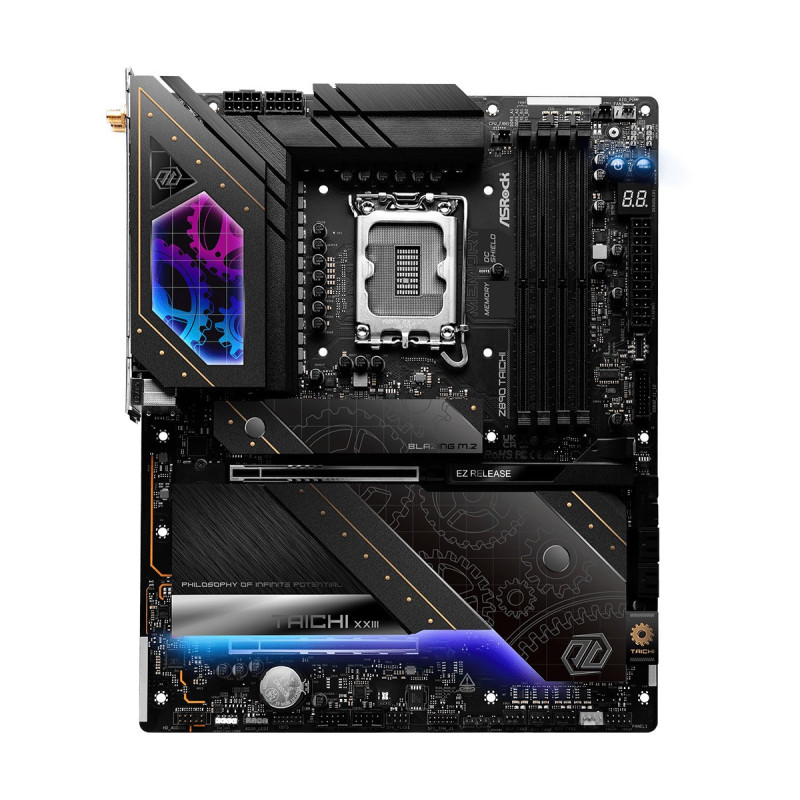

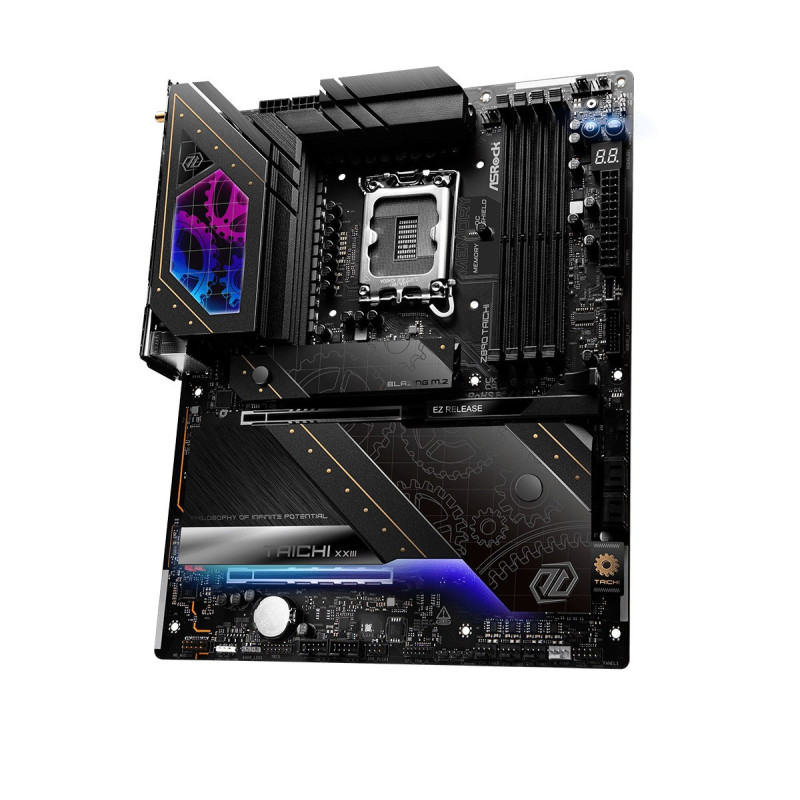

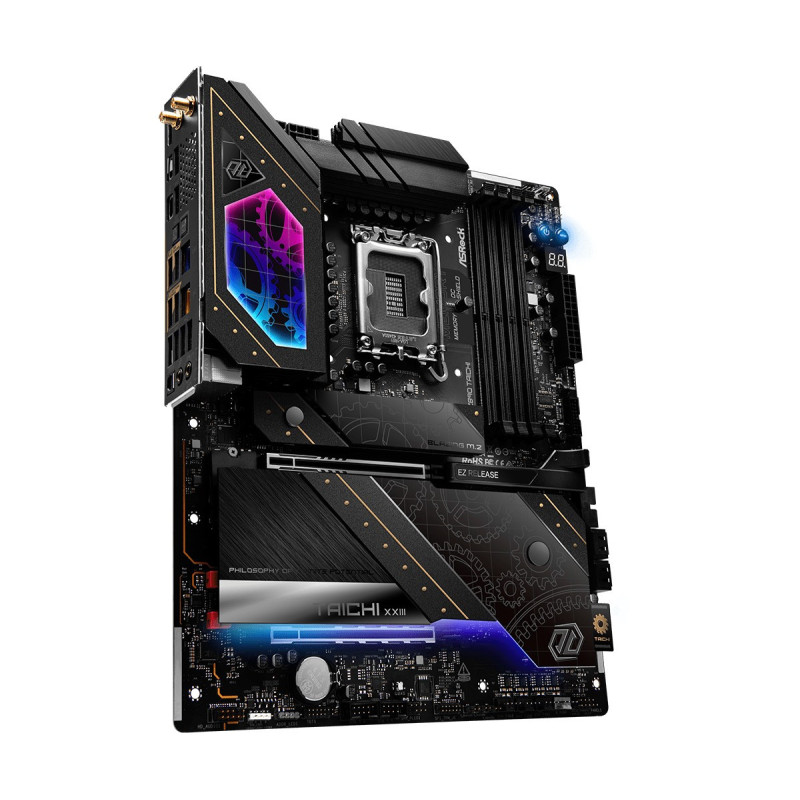

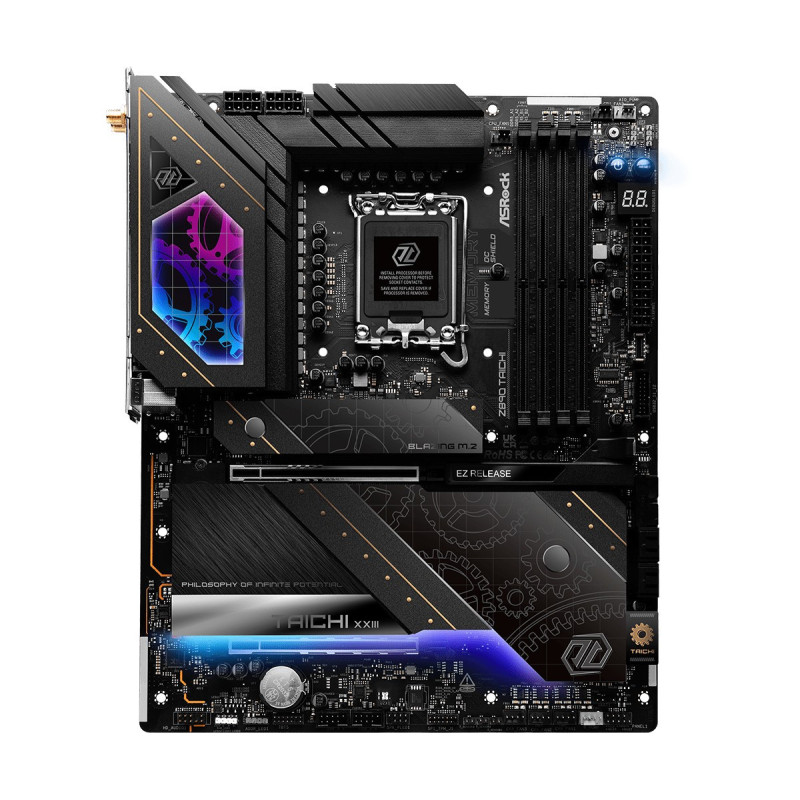

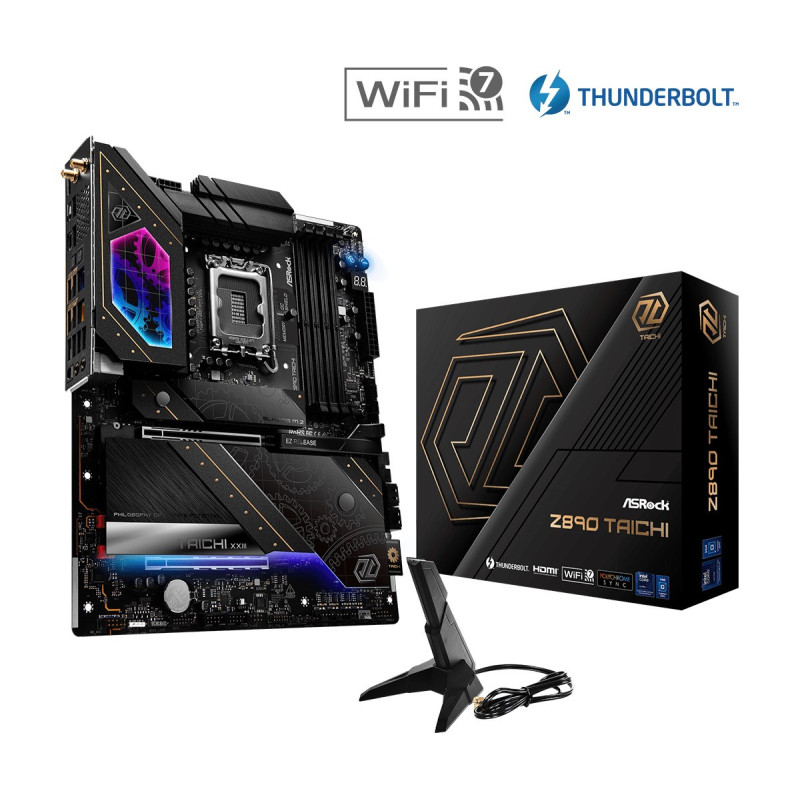

Motherboard Z890 TAICHI ATX
Product reference:
3-4710483949685
Motherboard Z890 TAICHI ATX
Motherboard Z890 TAICHI ATX
Product reference:
3-4710483949685
Motherboard Z890 TAICHI ATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 8
business days
| Processor | |
|---|---|
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Processor manufacturer | Intel |
| Supported processor sockets | LGA 1851 |
| Graphics | |
| HDCP | Yes |
| Parallel processing technology support | Not supported |
| Maximum resolution | 7680 x 4320 pixels |
| Features | |
| Certification | FCC, CE, ErP/EuP, CEC Tier II |
| Audio output channels | 5.1 channels |
| Motherboard chipset | Intel Z890 |
| Motherboard form factor | ATX |
| Windows operating systems supported | Windows 11 x64 |
| Product colour | Black |
| Audio chip | Realtek ALC4082 |
| Motherboard chipset family | Intel |
| Memory | |
| ECC compatibility | Non-ECC |
| Supported memory types | DDR5-SDRAM |
| Memory slot type | DIMMs |
| Number of memory slots | 4 |
| Memory channels | Dual channel |
| Unbuffered memory | Yes |
| Maximum internal memory | 256GB |
| Weight dimensions | |
| Depth | 244 mm |
| Width | 305mm |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth version | 5.4 |
| Ethernet interface type | 5 Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Wi-Fi standard | Wi-Fi 6E (802.11ax), Wi-Fi 4 (802.11n), 802.11b, 802.11g, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be) |
| LAN controller | Dragon RTL8125BG, Realtek RTL8126 |
| Bluetooth | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Internal I/O | |
| USB 3.2 Gen 2x2 connectors | 1 |
| RGB LED pin header | Yes |
| 12V power connector | Yes |
| EPS power connector (8-pin) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| TPM connector | Yes |
| Number of SATA III connectors | 4 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 4 |
| USB 2.0 connectors | 2 |
| Number of EPS power connectors (8-pin) | 2 |
| Number of RGB LED pin headers | 4 |
| Number of CPU fan connectors | 2 |
| Number of water pump connectors | 1 |
| BIOS | |
| Clear CMOS button | Yes |
| BIOS type | UEFI AMI |
| Packaging content | |
| M.2 standoff included | Yes |
| Antenna included | Yes |
| Screws included | Yes |
| Cables included | SATA |
| Storage controllers | |
| Number of storage drives supported | 10 |
| Supported storage drive interfaces | PCI Express 4.0, PCI Express 5.0, SATA III |
| RAID levels | 1, 10, 0, 5 |
| RAID support | Yes |
| Supported storage drive types | HDD SSD |
| Rear panel I/O port | |
| Headphone outputs | 1 |
| WiFi-AP antenna jack | 2 |
| Thunderbolt ports quantity | 2 |
| Microphone in | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A port quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A port quantity | 4 |
| USB 2.0 ports quantity | 2 |
| HDMI version | 2.1 |
| USB connector type | USB Type-A, USB Type-C |
| HDMI port quantity | 1 |
| Ethernet LAN (RJ-45) port | 2 |
| S/PDIF out port | Yes |
| Expansion slot | |
| PCI Express x16 (Gen 5.x) slot | 1 |
| PCI Express x16 (Gen 4.x) slot | 1 |
| Number of M.2 (M) slots | 6 |
| 5th M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 2280 |
| 4th M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 6th M.2 highest PCI Express generation | 4.0 |
| 6th M.2 largest key size | 2280 |
| 1st M.2 largest key size | 2280 |
| 4th M.2 largest key size | 2280 |
| 5th M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
